Default mp62 coldside oil in throttle body

Hello
I have got NB 00 mp62 coldside supercharger setup and still have got problems with oil consumption through the throttle body. Throttle body is still very oily.

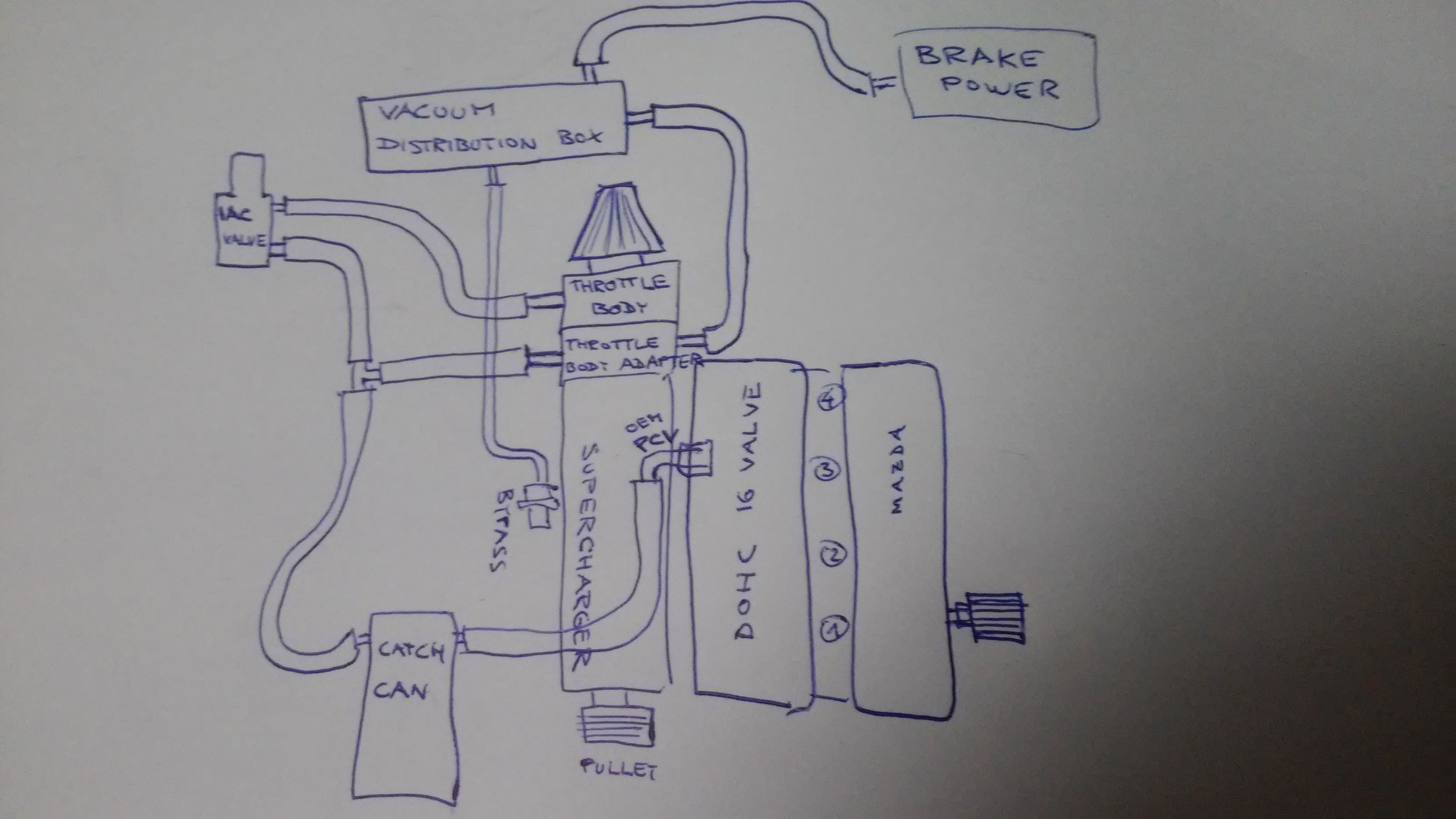

Is my vacuum line set up correct, or any problem with it?

Or is it possible to delete pcv valve,and exchange it for little air filter ? Like on the other side of valve cover?
Attached Thumbnails
mp62 coldside oil in throttle body-vacuum-line.jpg
elektron is offline   Reply With Quote
Old 06-22-2015, 06:22 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by elektron View Post
Hello
I have got NB 00 mp62 coldside supercharger setup and still have got problems with oil consumption through the throttle body. Throttle body is still very oily.
Is my vacuum line set up correct, or any problem with it?

Or is it possible to delete pcv valve,and exchange it for little air filter ? Like on the other side of valve cover?

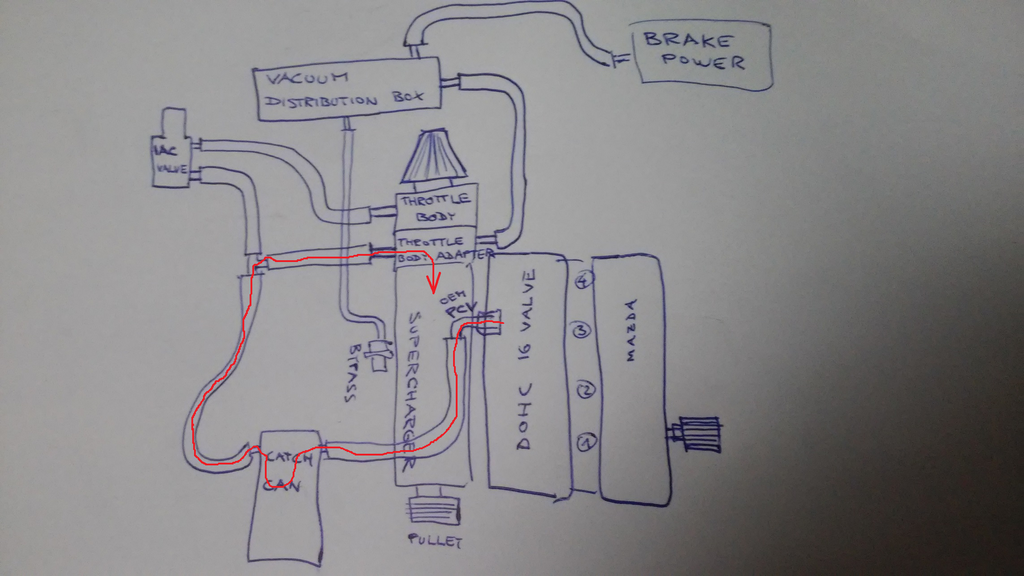

This is where the oil is coming from. As long as it's configured how you have it, oil is going to go into the engine.

To stop the oil, unhook the PCV.

To reduce how much oil goes in, get a better catch can.

On my setup I have the PCV blocked, and the breather (exhaust side vent) going to the air intake pre-sc.
Attached Thumbnails
mp62 coldside oil in throttle body-oil_zpsn1fg1l0f.png
patsmx5 is offline   Reply With Quote
Old 06-23-2015, 10:18 AM   #3
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

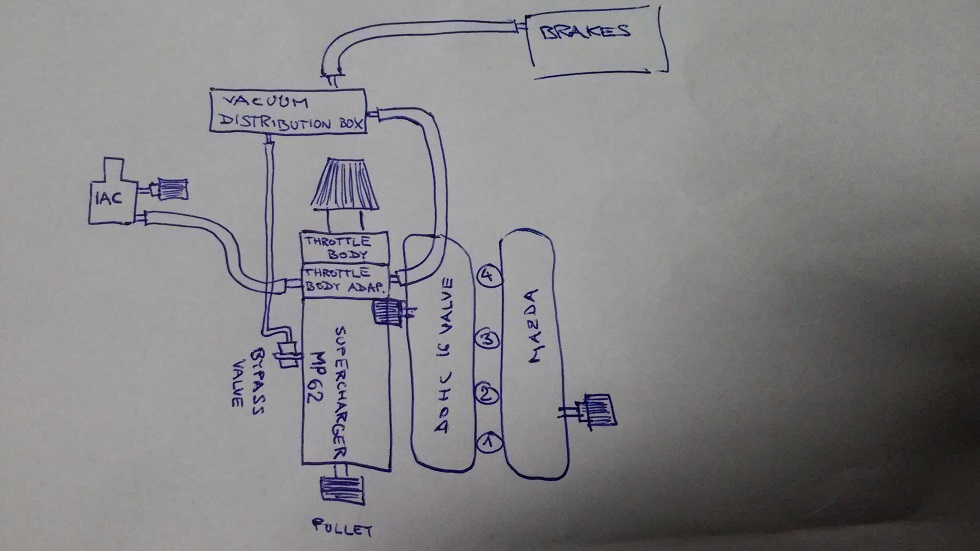

Thank you very much. And could I block PCV valve, disconnect IAC valve input from throttle body - install mini air filter to the IAC valve input and connect output of IAC valve only directly to the throttle body adapter?
Attached Thumbnails
mp62 coldside oil in throttle body-vacuum-line-v2-pcv-delete-.jpg

Last edited by elektron; 06-23-2015 at 11:05 AM.
elektron is offline   Reply With Quote
Old 06-23-2015, 11:10 AM   #4
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

Attached Thumbnails
mp62 coldside oil in throttle body-80-vacuum_line_v2_pcv_delete__074cc219b6539e1e0896a523653ec3efb8d9f71f.jpg
elektron is offline   Reply With Quote
Old 06-23-2015, 11:26 AM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default mp62 coldside oil in throttle body

Oil vapor will promote detonation, as well. It is good to eliminate it.
sixshooter is online now   Reply With Quote
Old 06-23-2015, 12:41 PM   #6
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Just block off PCV completely, don't use it. No filter on it, just plug it.

For the IACV, yes, you can use a filter. Or not use one (what I'm doing). Or just run the hose over to where your intake pipe is (that feeds filtered air to the motor) and pop a hose barb in that pipe and hook it up there, so it gets filtered air from the filter you already have in the engine bay. This is what I'm gonna do, one day....
patsmx5 is offline   Reply With Quote
Old 07-21-2015, 07:37 AM   #7
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I'm not a fan of removing the PCV system.
There are real world power gains to be had from running a properly set up PCV system.
It promotes better piston ring seal.
TNTUBA is offline   Reply With Quote
Old 07-21-2015, 03:15 PM   #8
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Is there any reason you can't just vent the LH side (in the sketch) of the catch can to air?
ericwh is offline   Reply With Quote
Old 07-21-2015, 03:45 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by ericwh View Post
Is there any reason you can't just vent the LH side (in the sketch) of the catch can to air?
It would, as TNTUBA indicated, defeat the PCV system by depriving it of manifold vacuum.
Joe Perez is offline   Reply With Quote
Old 07-22-2015, 09:22 AM   #10
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Hm. I thought the positive pressure in the crankcase would be enough to vent it. I have a vent-to-air catch can - no pcv valve, just a fitting - and there is... stuff... in the catch can. So it is at least working some of the time.
ericwh is offline   Reply With Quote
Old 07-22-2015, 09:50 AM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by ericwh View Post
Hm. I thought the positive pressure in the crankcase would be enough to vent it. I have a vent-to-air catch can - no pcv valve, just a fitting - and there is... stuff... in the catch can. So it is at least working some of the time.
The crankcase isn't going to explode from the pressure inside it, if that's what you mean. It'll vent out any excess pressure within it.

There is, however, one school of thought which presupposes that the presence of an operating PCV system actually causes the crankcase to operate under slightly negative pressure, and that this is somehow beneficial to the longevity of the piston rings. Personally, I can't see the alleged mechanism of action here, but I acknowledge that it's a not-uncommon point of view.
Joe Perez is offline   Reply With Quote
Old 07-22-2015, 08:18 PM   #12
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
The crankcase isn't going to explode from the pressure inside it, if that's what you mean. It'll vent out any excess pressure within it.

There is, however, one school of thought which presupposes that the presence of an operating PCV system actually causes the crankcase to operate under slightly negative pressure, and that this is somehow beneficial to the longevity of the piston rings. Personally, I can't see the alleged mechanism of action here, but I acknowledge that it's a not-uncommon point of view.
And all PCV systems have a 1-way valve in them that closes when you go WOT, shutting the system off. It's for emissions, and it operates when the motor is in vacuum only.

The crankcase vent does vent crankcase pressure when at WOT.

If you want to pull enough vacuum to improve ring seal, you need a pump designed for that installed on the engine. They exist, and they work. a PCV valve is not one of these pumps though.
patsmx5 is offline   Reply With Quote
Old 08-07-2015, 05:45 PM   #13
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Just block off PCV completely, don't use it. No filter on it, just plug it.

For the IACV, yes, you can use a filter. Or not use one (what I'm doing). Or just run the hose over to where your intake pipe is (that feeds filtered air to the motor) and pop a hose barb in that pipe and hook it up there, so it gets filtered air from the filter you already have in the engine bay. This is what I'm gonna do, one day....

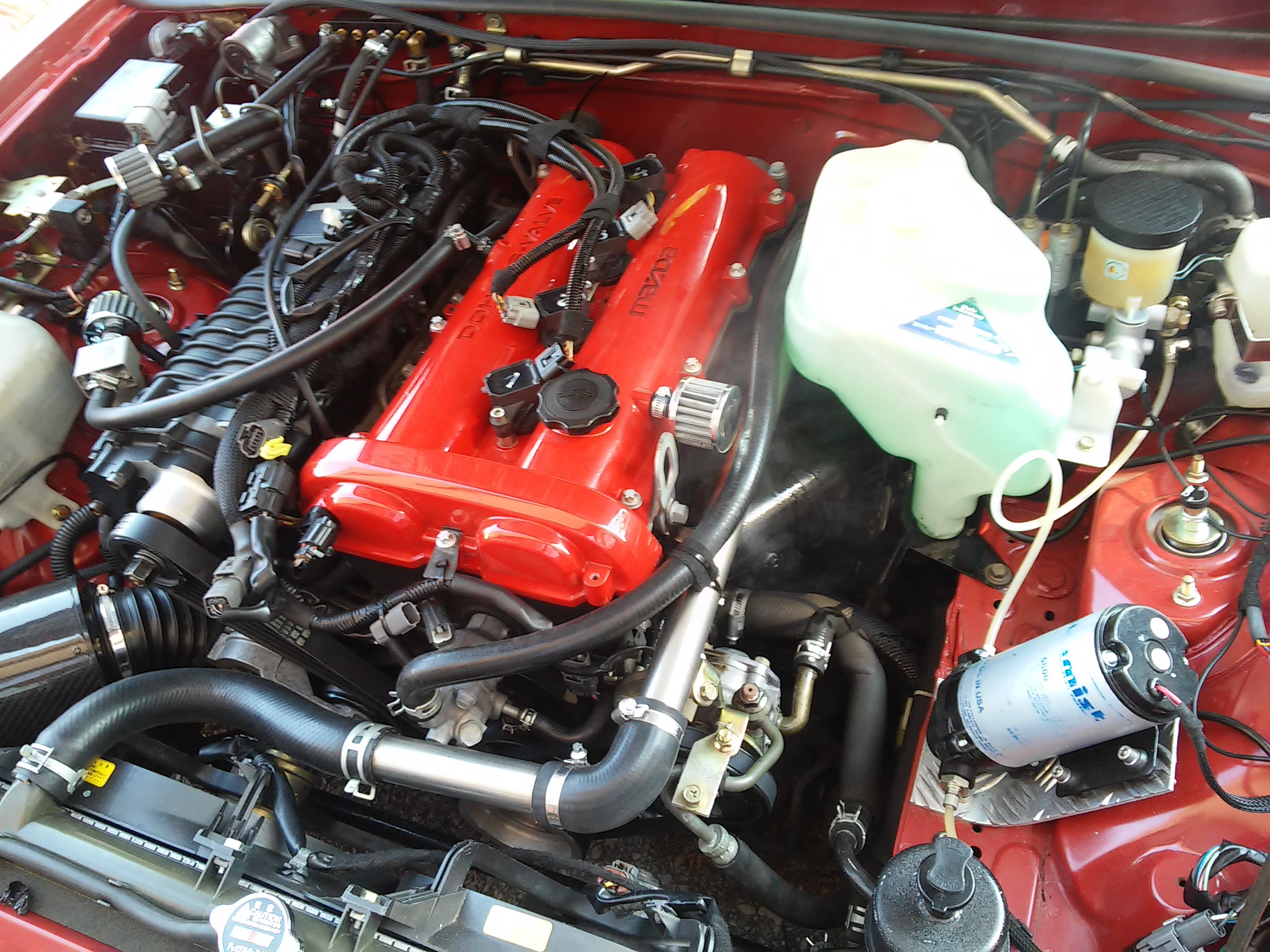

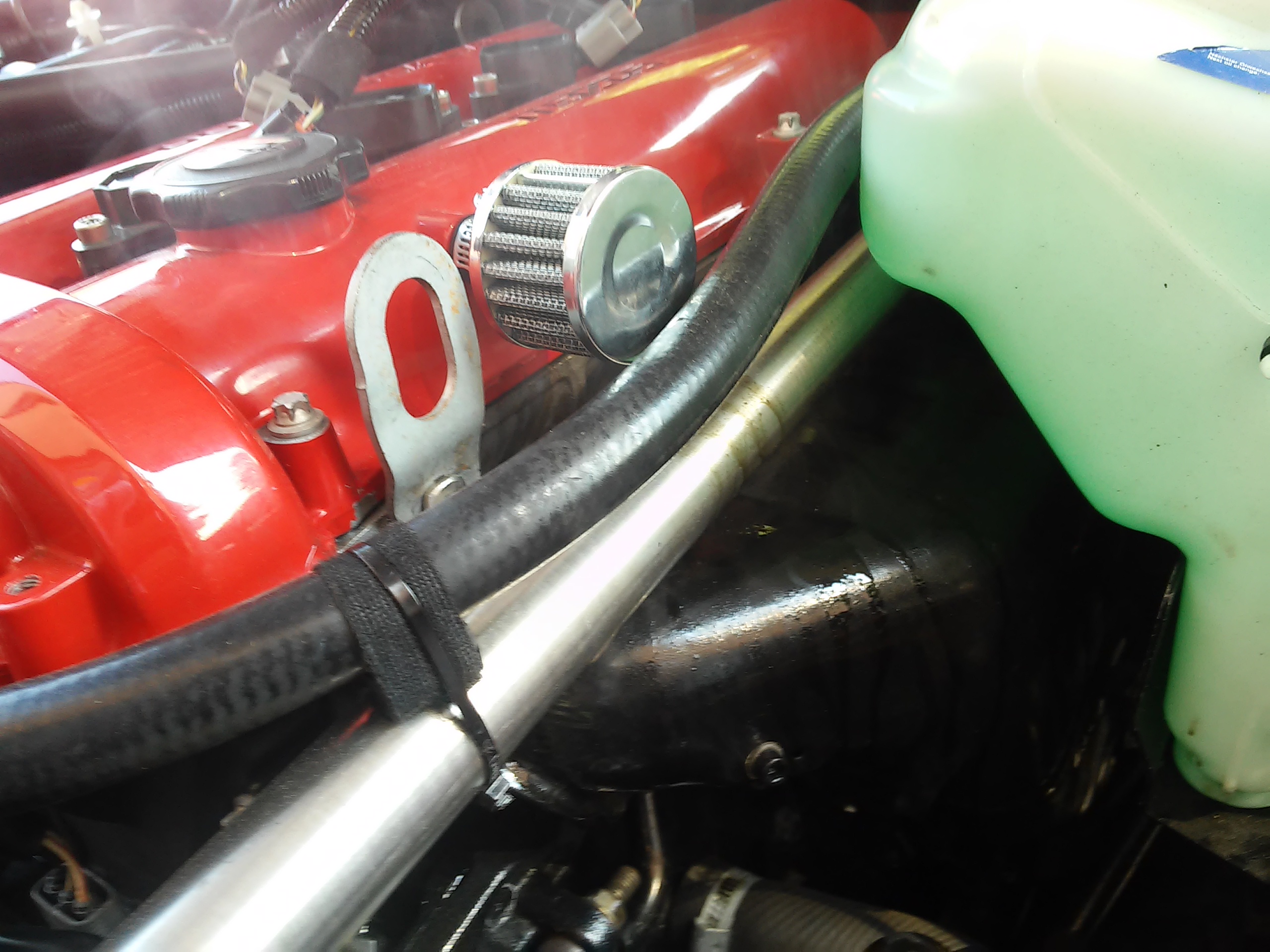

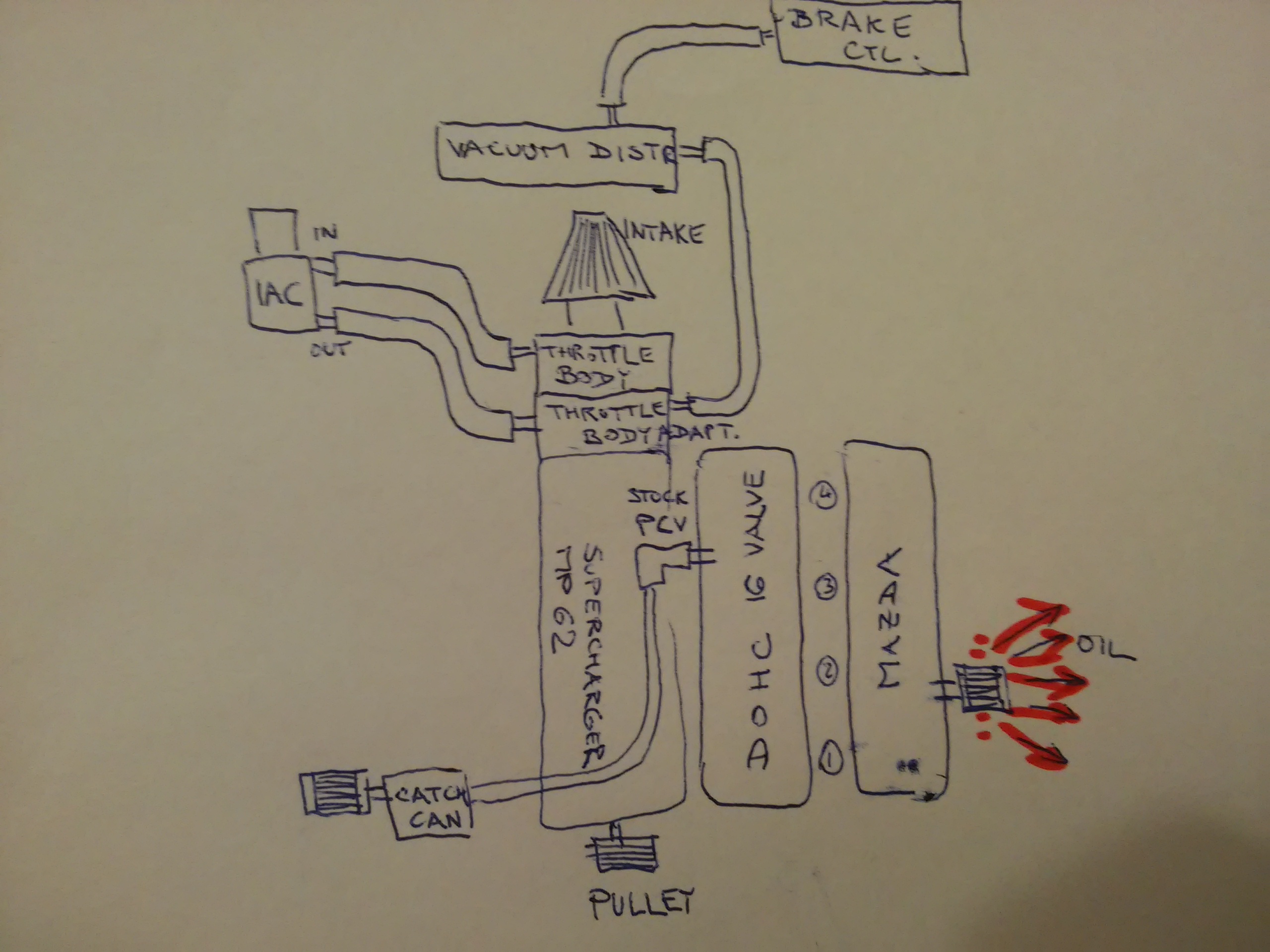

I just installed it this way - deleted vacuum line from catch can to throttle body. Today after 2-3 km test drive, it started to smoke from under the hood. Hotside crankcase filter started to spray oil. It seems that ventilation of crankcase without vacuum line helpfull of pcv side is not sufficient. Please any advise to eliminate it? I also measured cylinder pressure - 175-180-180-180psi. (8,6:1 CR pistons) , max. boost is 13 psi at redline.
Attached Thumbnails
mp62 coldside oil in throttle body-20150807_223508.jpg   mp62 coldside oil in throttle body-20150807_152821.jpg   mp62 coldside oil in throttle body-20150807_152825.jpg

Last edited by elektron; 08-07-2015 at 05:53 PM. Reason: text completition
elektron is offline   Reply With Quote
Old 08-07-2015, 09:27 PM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by elektron View Post
I just installed it this way - deleted vacuum line from catch can to throttle body. Today after 2-3 km test drive, it started to smoke from under the hood. Hotside crankcase filter started to spray oil. It seems that ventilation of crankcase without vacuum line helpfull of pcv side is not sufficient. Please any advise to eliminate it? I also measured cylinder pressure - 175-180-180-180psi. (8,6:1 CR pistons) , max. boost is 13 psi at redline.
I have a 3/8" hose connected to the drivers side vent that goes to the intake upstream of the supercharger. This should be hooked up whether you have PCV working or not.
patsmx5 is offline   Reply With Quote
Old 08-10-2015, 09:32 AM   #15
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

Quote:
Originally Posted by patsmx5 View Post
I have a 3/8" hose connected to the drivers side vent that goes to the intake upstream of the supercharger. This should be hooked up whether you have PCV working or not.
So you have oil vapor induction? I wouldn't do that myself because oil vapor reduces the octane rating of the fuel/air mixture and promotes detonation, but if it works for you, great!
sixshooter is online now   Reply With Quote
Old 08-10-2015, 03:23 PM   #16
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by sixshooter View Post
So you have oil vapor induction? I wouldn't do that myself because oil vapor reduces the octane rating of the fuel/air mixture and promotes detonation, but if it works for you, great!
Yes. Mine is a street car and I don't want the emissions/smell of it venting to atmosphere. If it were a race car though that's what I would do for the reason you state. On my engine the amount of oil coming out of that hose is about 1/10,000th the amount that comes out of the PCV valve, so I don't worry about it.
patsmx5 is offline   Reply With Quote
Old 08-20-2015, 05:04 PM   #17
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

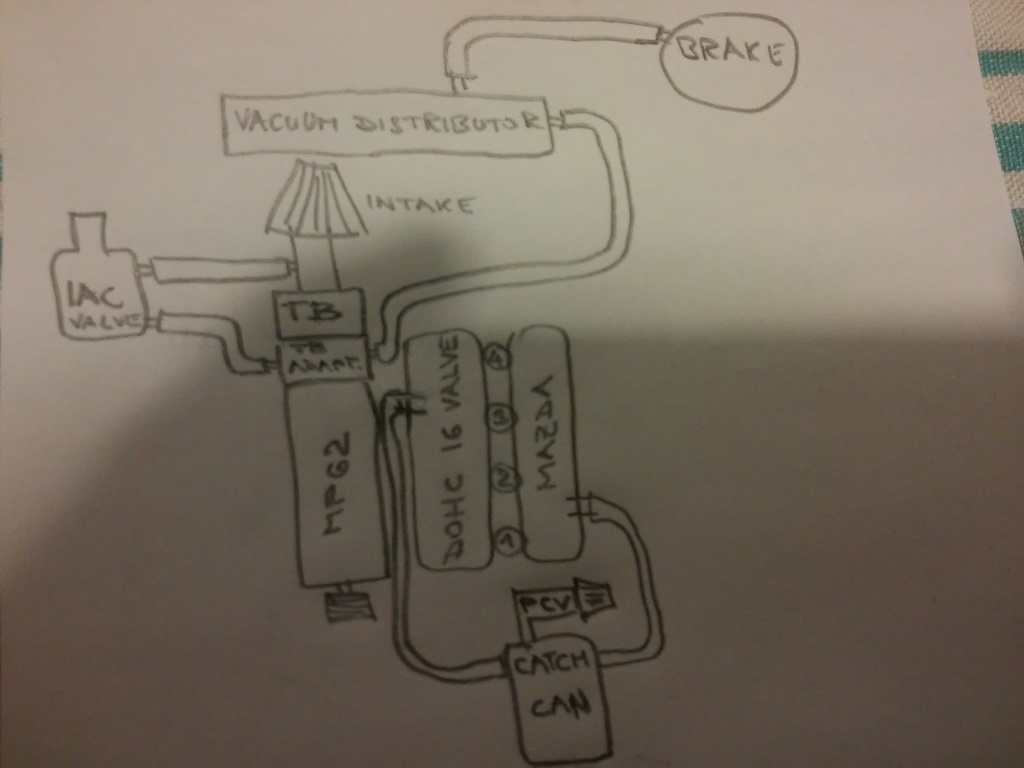

I made it this way (passive), I have got no oil consumption, but have got problem with brakes. Especially when I need to brake immediately after throttled or after making donuts, brake pedal is hard for a moment. It seems that is is not enough vacuum for powering brakes.
How to fix it?
Attached Thumbnails
mp62 coldside oil in throttle body-20150820_215315.jpg

Last edited by elektron; 08-20-2015 at 06:01 PM.
elektron is offline   Reply With Quote
Old 08-20-2015, 05:09 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Is there a check-valve between the throttle body and the vacuum accumulator?
Joe Perez is offline   Reply With Quote
Old 08-20-2015, 05:51 PM   #19
Junior Member
Thread Starter

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

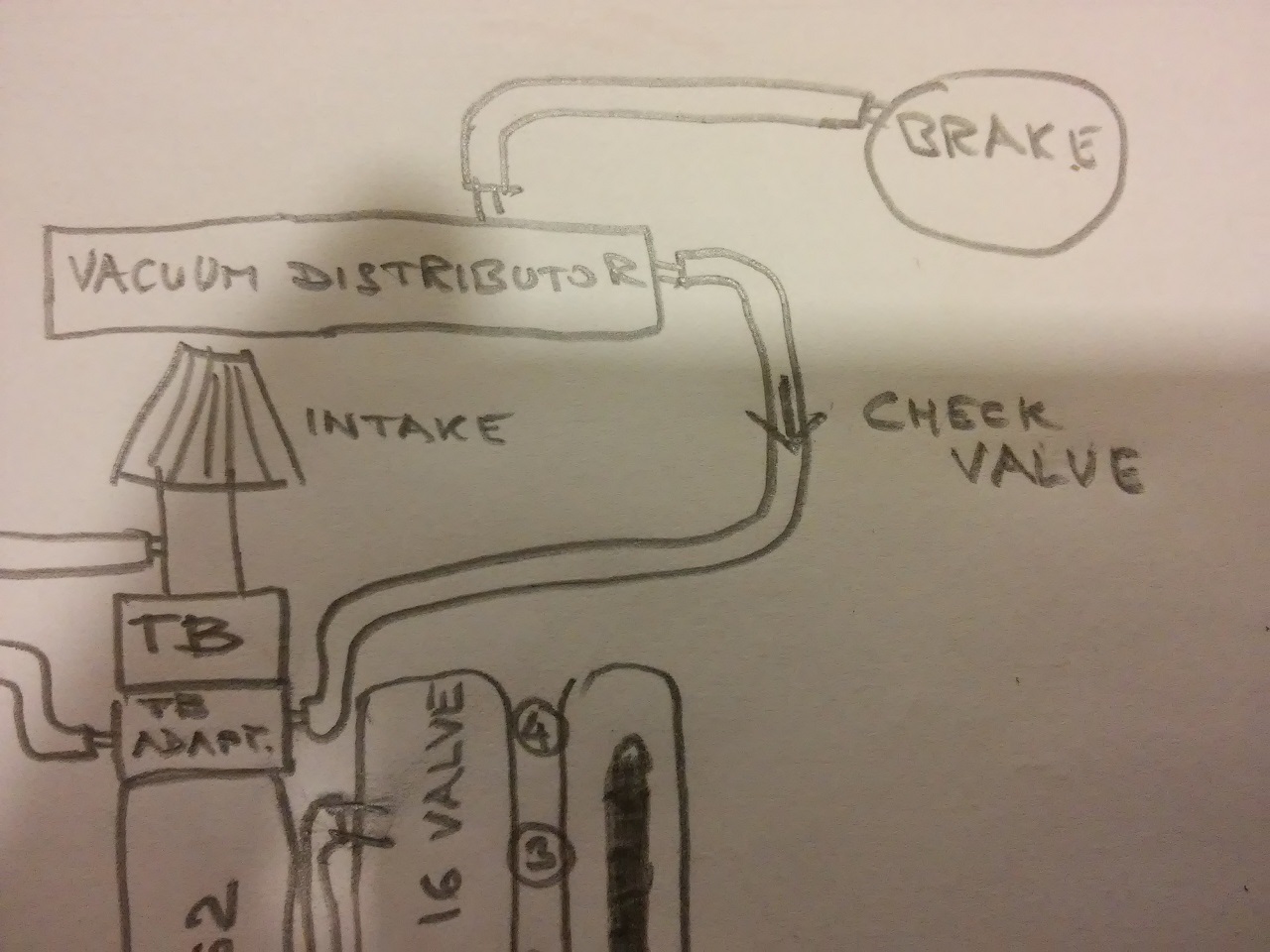

No I havent got any. What type have you got? Something like this (direction)? Will it be helpful?
Attached Thumbnails
mp62 coldside oil in throttle body-20150820_225623.jpg
elektron is offline   Reply With Quote
Old 08-20-2015, 06:07 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by elektron View Post
I made it this way (passive), I have got no oil consumption, but have got problem with brakes. Especially when I need to brake immediately after throttled or after making donuts, brake pedal is hard for a moment. It seems that is is not enough vacuum for powering brakes.
How to fix it?
Install a 1 way valve between the brake booster and the vacuum manifold. The factory hose that connects to the brake booster has a 1 way valve built into it a few inches away from the booster.
patsmx5 is offline   Reply With Quote
