Old 01-24-2010, 02:19 PM   #21
Newb

Join Date: Oct 2008
Posts: 5
Total Cats: 0
Default

Quote:
Originally Posted by rmcelwee View Post
This is the first time I have looked at anything on the forum other than "Insert BS" and it is a question about a JRSC???



Anyway, this is #1. #2 would be the same but with an AC pulley in there somewhere.



FWIW, you can find a ton of JRSC info on my defunct sebring website mirror:
Page Title

Awesome, that helps a bunch, thanks.
MoD_Scotty is offline   Reply With Quote
Old 01-24-2010, 02:23 PM   #22
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Minneola, FL
Posts: 28
Total Cats: 0
Default

Quote:
Originally Posted by rmcelwee View Post



Anyway, this is #1. #2 would be the same but with an AC pulley in there somewhere.
Thanks. That's a big help. Unfortunately my tensioner looks like nothing like that except for the fact it's single pulley. I was considering buying the track dog tensioner, but they require PS.
sil80redtop is offline   Reply With Quote
Old 01-24-2010, 03:55 PM   #23
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

You may be able to get away with the track dog one. It should provide the same basic tensioning function and does it matter too much where abouts on the belt it's doing so? It looks like it mounts on the same bolts as my Stage One Tuning bracket did (similar to track dog) so I think it should work out alright. You could always buy it, line it up and return it if it doesn't work.

As for p51, well that's just what happens when people try to show off online.
jdmaddox88 is offline   Reply With Quote
Old 01-24-2010, 05:40 PM   #24
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Quote:
Originally Posted by Toddcod View Post
Well, guys this is a supercharger section. I like both. That is why I have a P1sc Procharger and a STS Turbo kits for my Vetts.

rmcelwee, That is a nice tensioner! I haven't seen that one before.
Thanks. It is/was custom. I pulled the JRSC off a few years ago and I am not quite sure what happened to that pulley...
rmcelwee is offline   Reply With Quote
Old 01-24-2010, 06:20 PM   #25
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Minneola, FL
Posts: 28
Total Cats: 0
Default

If that pulley appears, let me know!

AB
sil80redtop is offline   Reply With Quote
Old 01-25-2010, 08:48 AM   #26
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by p51hellfire View Post
your a waste of bandwidth
Pot... meet kettle.
Doppelgänger is offline   Reply With Quote
Old 01-25-2010, 12:44 PM   #27
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Quote:
Originally Posted by MoD_Scotty View Post
Are you done yet?
flame on
p51hellfire is offline   Reply With Quote
Old 01-25-2010, 01:02 PM   #28
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

Any way you could fit an autotensioner from a 6 rib kit in there?

You could use some string wrapped around the pulleys you have to find the belt length you need.
BarbyCar is offline   Reply With Quote
Old 03-09-2010, 12:50 PM   #29
Guest

Join Date: Jul 2007
Location: Raleigh, NC
Posts: 22
Total Cats: 0
Default

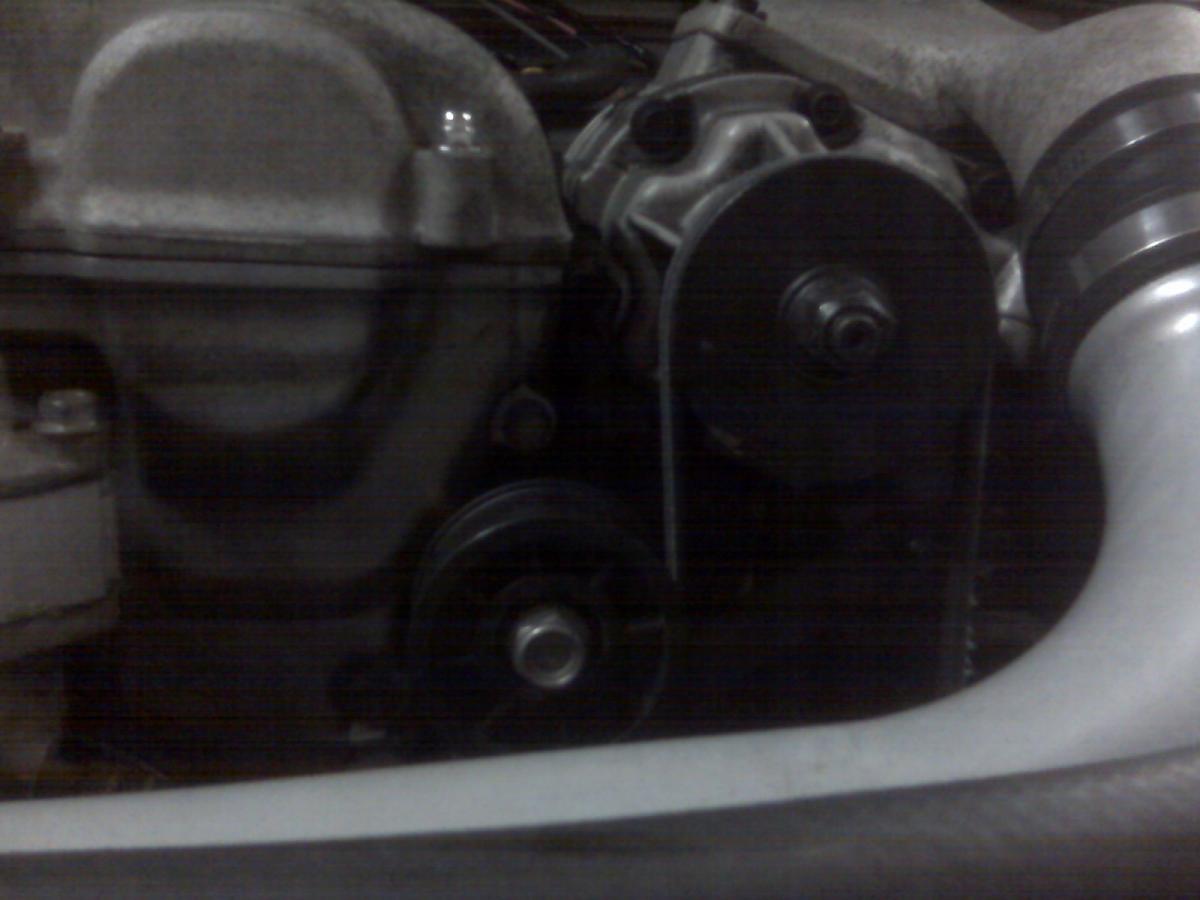

I've got your same setup, 91 No PS with A/C. I got the S/C kit from a PS A/C car and ordered a new bracket from MOSS to replace the stock idler.

I've attached the only pic I've got right now.

My experience with MOSS was less than helpful on this install. The belt that works on my setup is not what MOSS said worked. Gates K040500........ 50 5/8 which is the P/S pump belt from a 89-94 taurus sho was the winner.

right now the car is waiting for a new differential in Virginia, but I can take more pics on the 20th if you need them.
Attached Thumbnails
Need pics of 1.6L JRSC belt routing!-img00067.jpg
joshwastaken is offline   Reply With Quote
Old 03-09-2010, 01:01 PM   #30
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Minneola, FL
Posts: 28
Total Cats: 0
Default

Thanks for the help with the pic. I'm going to try bolting it up this weekend, and I think I can make it work with what I've got. The guy at Moss who was the most knowledgeable about these kits unfortunately left the company a few months back.

AB
sil80redtop is offline   Reply With Quote
Old 03-09-2010, 01:37 PM   #31
Guest

Join Date: Jul 2007
Location: Raleigh, NC
Posts: 22
Total Cats: 0
Default

What bracket are you going to use?
joshwastaken is offline   Reply With Quote
Old 03-09-2010, 04:28 PM   #32
Newb
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Minneola, FL
Posts: 28
Total Cats: 0
Default

I purchased a non PS, non AC kit, and it came with a single pulley and bracket. It looks like the bracket bolts up where the OE PS bracket would be. I also purchased a few small parts that were part of the AC only kit that weren't listed in my kit.

AB
sil80redtop is offline   Reply With Quote
