Default Noob, Rotrex SC options

Hello all,
Just a noob here with the need for speed! Although this sight is mostly for discussion about turbo power, yes, I've gone to the dark side and decided to install a Rotrex Supercharger on my 96 Miata.
My plans are the following for the vehicle- Install 99 NB engine w/ stock bottom end, ported head, 1mm oversize valves, BP5a intake cam, adjustable cam gears. Exhaust exits through a RB header,
2.5 inch exhaust. Catalyst currently still on the vehicle. Ms2pnp still in the box ready to go on, get setup, go through the learning curve (whoa) before the SC install. Intake manifold is a skunk2 with 64mm
throttle body. Coolant bypass going on as soon as the 949 radiator is installed.
Anyway, that is just the baseline of engine mods for a vehicle that is currently a DD with second duty as a track car. My automotive experience is vast, but never with FI aside from being involved from
a distance with my son's Miata turbo install. So as far as goals for the system, 250-300 whp is probably what I'm looking to achieve currently. Does it make sense to use the C30-74, or is the C30-94 a
better option, with room for higher HP if wanted in the future? Hoping someone's been down this road and can share their experience and advise.
Bmiata40 is offline   Reply With Quote
Old 11-12-2017, 12:35 PM   #2
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 743
Total Cats: 46
Default

The -94 will be easier to get near 300whp. Make your decision about power now and stick to it. Turbo would be easier to change your mind on power, but Rotrex has it's place for some applications (i.e. easy to install, track car FI)

Sounds like you are reasonably well researched... read my build for some advice on what not to do.
dcamp2 is offline   Reply With Quote
Old 11-12-2017, 03:43 PM   #3
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

Does your son have a build thread here on MT.net?

I suppose the thought is that the Rotrex will have low enough torque at low RPM that it can boost up to 300 whp at high RPM without bending stock rods?
DNMakinson is offline   Reply With Quote
Old 11-12-2017, 09:05 PM   #4
Newb
Thread Starter

Join Date: Nov 2017
Posts: 7
Total Cats: 1
Default

Thanks for the response. I wasn't as clear as I should have been in my opening of this thread. 250-300 whp is what I would like to see at some point, that's why I questioned if the -94 wasn't the best option. To begin with, yes with stock internals, an untuned system, the lower end of that HP range would be my desired starting point. I hate to admit to ignorance but here you have it; I'm not sure what the difference in HP I would be starting using the Kraftwerks Kit for the NB which comes with the -74 as opposed to the -94. They state that the -74 on a stock engine would be in the 190-200 hp. They can tell me what percentage of added air the -94 would flow, but that was it. I also have to wonder if the intercooler for the base system would be sufficient to keep intake air temps in check on a 90 degree plus track day. The more I think about it, the more questions I have!
By the way, DN, the quote is great! I'll keep it in mind. To answer your questions, no and yes! What's your thoughts on max HP the stock rods can handle?
Bmiata40 is offline   Reply With Quote
Old 11-12-2017, 09:06 PM   #5
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

You can go with either the 74 or the 94. The 74 should give you about 250 with that config. See oregonmon's thread.
Mobius is offline   Reply With Quote
Old 11-12-2017, 09:10 PM   #6
Newb
Thread Starter

Join Date: Nov 2017
Posts: 7
Total Cats: 1
Default

Hey DN, just noticed the link to your build thread, I'm on my way to it now. Cheers
Bmiata40 is offline   Reply With Quote
Old 11-12-2017, 11:11 PM   #7
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

My build is just opposite of what you have in mind. Tiny turbo for fun street, early boost, low end torque. I’m not familiar with the centrifugal supers, but others are.
DNMakinson is offline   Reply With Quote
Old 11-13-2017, 01:21 PM   #8
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

DNMakinson is offline   Reply With Quote
Old 11-25-2017, 02:53 PM   #9
Junior Member

Join Date: Dec 2010
Posts: 402
Total Cats: 3
Default

You can see my mods in my sig block.

With an 85mm pulley and a gutted cat, my Kraftwerks C74 kit dyno'd at 211hp/170tq. The max boost I've seen on track is 8.8 psi. I think there may be another 10 horses to be had if the spark table were more aggressive, but I asked to keep it conservative so I can beat on her on track.

I had originally installed the Rotrex on a ~134,000 mile engine. At ~144,000 miles, she was using three quarts of oil per two day event, down on power and smoking badly during downshifts. I replaced the bottom end with one from a Japanese Domestic Market used import motor that had about 60k on it. I re-used my 25,000 mile rebuilt head. That's the combo making the 211/170 numbers. The odometer now reads about 153k.

I've had her on track in temps above 100 degrees. I usually short shift at 6600 or so when it's that hot, and I can usually complete a full 30 minute session. I did four days straight at VIR in early November in high 50s low 60s temps, and the coolant barely crossed 200. I still have the a/c hooked up, but never use it. It's coming out over the winter and I suspect all will be well with track temps next Summer.

Enjoy,

Last edited by poormxdad; 11-25-2017 at 03:59 PM.
poormxdad is online now   Reply With Quote
Old 11-25-2017, 03:53 PM   #10
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

I'd suggest going for the 94 Rotrex. Keep in mind you're on the ragged edge for stock block. Keep boost modest and torque below 200 and you should be good.
k24madness is offline   Reply With Quote
Old 11-28-2017, 03:07 PM   #11
Newb

Join Date: Jan 2017
Posts: 13
Total Cats: 0
Default

I made 247 whp and 191 ft/lbs on a mustang dyno with my 225k mile 1.6L, a c30-94, and a custom intercooler. I spin the supercharger to about 90k rpm (c30-94 has a 100k limit while c30-74 has 120k limit) @ 7200 rpm. After 5k miles of track and street abuse, the motor is starting to smoke on decel, so I am building a similar 1.8 to you, minus the head work. I am hoping for 300whp on the same dyno. Currently the -94 makes about 14.5 psi at redline. I could imagine it would be significantly less with the better flowing 1.8.
bschonman is offline   Reply With Quote
Old 11-30-2017, 12:20 AM   #12
Newb
Thread Starter

Join Date: Nov 2017
Posts: 7
Total Cats: 1
Default

Thanks for the advise k24madness, yes I already have the -94.
bschonman, sounds like quite a fun little 1.6. It's understandable that a higher mileage motor may start to smoke pushing that kind of HP and being pushed hard! My plans have changed since my last post. I've been tuning my 96's NA 1.8 with the ms2pnp. I've decided to use the bottom end of this motor with the 99 cylinder head that I'm in the process of porting right now. This should flow quite well and I'll have a good testbed for the mods that I'm doing. For what I had planned on selling the motor for, it didn't make sense to not use it! I have a donor, wrecked 2000 NB with 150k that I'm going to remove and rebuild the motor with forged internals, then switch it over down the road. I do still have questions on running a hybrid engine like this, which I do still have to research. What compression ratio will be without shaving the head except for a clean-up, then decide how much to shave the head. If anyone has any thoughts on this set-up, please let me know!
As poormxdad did, I'll tune for longevity in the beginning, not sure how long that will last...The Kraftwerks kit came with the 350 injectors and their cookie cutter intercooler, my son says for the gusto, I'll need to get bigger injectors and a bigger intercooler, any thoughts? He's running a turbo on his NB. with 550 cc injectors and a huge intercooler.
Bmiata40 is offline   Reply With Quote
Old 11-30-2017, 12:39 AM   #13
Newb

Join Date: Jan 2017
Posts: 13
Total Cats: 0
Default

I am amazed how similar your build is to mine. I have an already built 94 bottom end with 8.5:1 forged pistons and forged rods. I got a 99 head and am researching how much I can safely deck it. Because of the lack of low-end the rotrex has, I understand you can run higher compression than a similar boost turbo setup. I think I am leaning toward somewhere between 9.5-10:1 compression, with something like a .04-.06 decking. Since my pistons are below stock compression ratio, I should have a little more room to play with, theoretically. This is my first time assembling a motor that is not stock, so my knowledge is quite limited. Please someone correct me if any of my information is wrong.

Also, if from my understanding, you should have no issues with the hybrid motor. You can use your CAS with the 1.8 head.

Also, my rx8 injectors (~440cc) were maxed out at this power level. I got an adjustable fuel pressure regulator to add a little extra flow and get the duty cycles down to a more reliable level. That should put into perspective how inadequate your injectors are for your goal. I have a set of flow force injectors that will hopefully do the job with the 1.8 and my higher goals.
bschonman is offline   Reply With Quote
Old 11-30-2017, 02:14 AM   #14
Newb
Thread Starter

Join Date: Nov 2017
Posts: 7
Total Cats: 1
Default

Sounds like you've been doing your homework bschonman. Higher compression on the SC build has been one of the questions that I was wondering about. I had read several months ago about Quinn Motors taking .100 off the bp4w head. He was running ITB's on the car and started off with taking off much less, and gradually, if my memory serves me, worked up to .100. The car and the build was on one of the other Miata forums, although if you see the car on youtube by looking for Miata ITB.
The KSC also came with the DeatschWerks 255 LPH fuel pump. Are you familiar with it and how that will help over the stock pump? Hope to discuss it further very soon, the next few days are going to be 24Hrs of Lemons!
Bmiata40 is offline   Reply With Quote
Old 11-30-2017, 08:02 AM   #15
Newb

Join Date: Jan 2017
Posts: 13
Total Cats: 0
Default

I think I remember seeing that thread when he said he decked .06 and wished he went for more, but I guess I never finished reading it. .10 is a LOT.

As far as fuel pump, I went with a simple walbro 255, which should be good until ~400 whp on pump gas, so it will meet our needs.

And to continue our similarities, while you are doing 24 Hours of Lemons, I will be doing ChumpCar at VIR. Amazing.
bschonman is offline   Reply With Quote
Old 12-01-2017, 03:22 AM   #16
Newb
Thread Starter

Join Date: Nov 2017
Posts: 7
Total Cats: 1
Default

I believe that's what he ended up taking off, please don't quote me, because that does sound crazy! That kind of valve to piston clearance and compression ratio, bring up a whole new set of problems.
Chump Car is the next series that I'm going to start entering, they race at Laguna Seca, which Lemons does not. This weekend is Sonoma. If you'd care to check the car out sometime on youtube, lookup
FauxLorean. It's a Ford Focus that is a gas to drive considering it a low dollar car. Enjoy the weekend!
Bmiata40 is offline   Reply With Quote
Old 12-03-2017, 01:13 PM   #17
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

High compression with a Rotrex is a good plan. Even better is you use cams with shorter seat to seat duration, more lift and more duration at .020+

I am running 11:1 on mine. The biggest challenge you'll have is fuel. I run E85. No way that setup will run on pump fuel. Keep that in mind as you work on potential setups.
k24madness is offline   Reply With Quote
Old 12-03-2017, 03:36 PM   #18
Newb

Join Date: Jan 2017
Posts: 13
Total Cats: 0
Default

I'm personally trying to keep the car streetable and therefore have as much low end torque as a rotrex car can have. Any recommendations for pump gas? No e85 around here. And my want for low end torque rules out cams, right?
bschonman is offline   Reply With Quote
Old 12-03-2017, 03:37 PM   #19
Newb

Join Date: Jan 2017
Posts: 13
Total Cats: 0
Default

Also, what blower do you run and how much power does it make with that setup?
bschonman is offline   Reply With Quote
Old 12-04-2017, 03:09 AM   #20
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

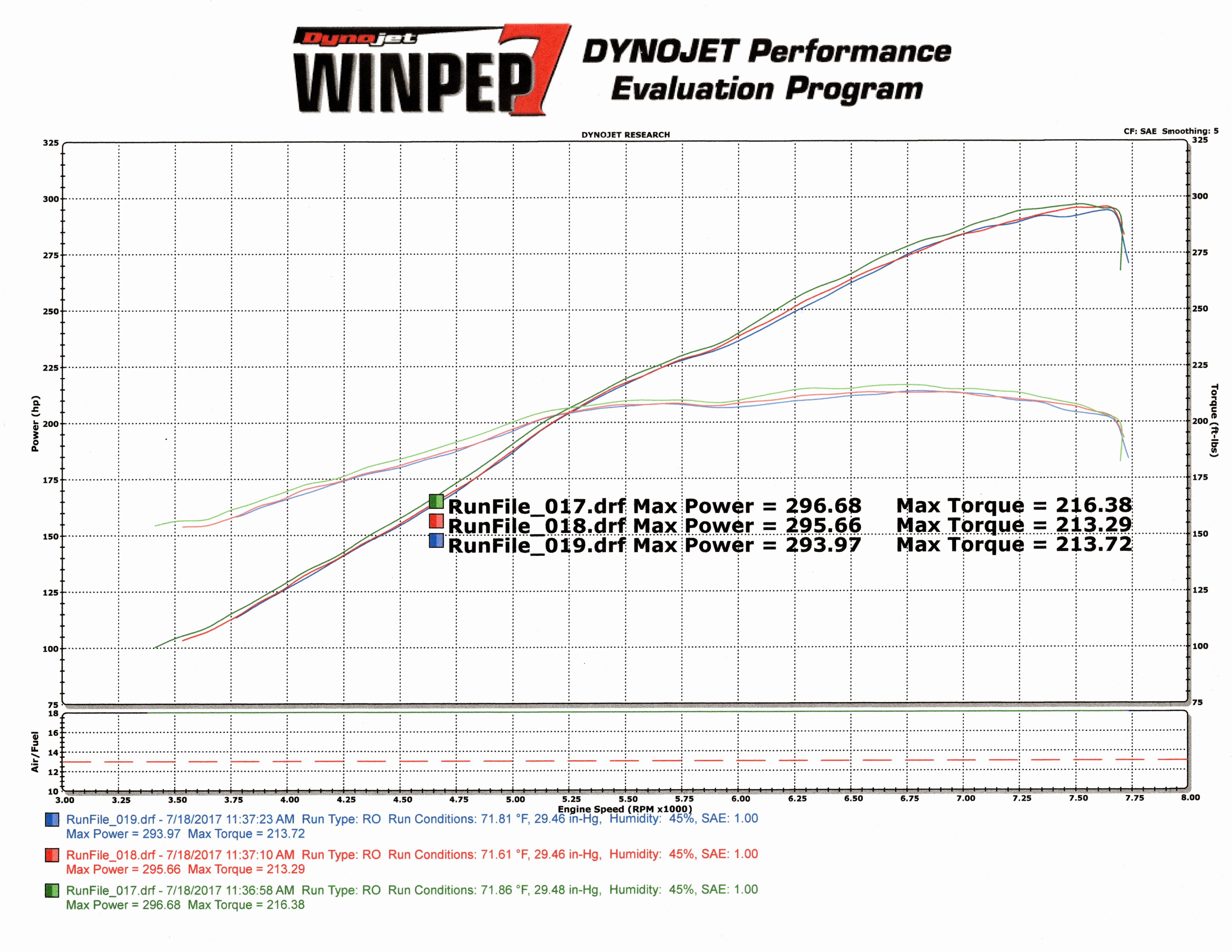

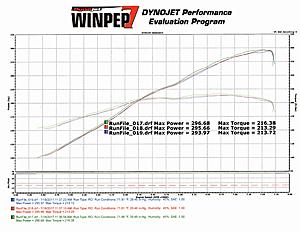

295 WHP, CM30-74 Rotrex, pro built motor so it's tough to compare.

Skip bumping compression on street car. Maybe clip the head .020 and call it good. Run the bigger 94 blower though. Should be able to get good power before detonation sets in.

Depending on on where you are in the build process you should consider passing on the Rotrex and get a TSE turbo kit. Honestly it's a better setup on the street. Seems to be better on track too.
Attached Thumbnails
Noob, Rotrex SC options-original_a8afa142cdea633bc20dbed856382cd6.jpg

Last edited by k24madness; 12-06-2017 at 04:01 PM.
k24madness is offline   Reply With Quote
