Default Please help me with m45 belt



Hello and thank you for taking interest in my post. I've been sitting here for a few hours trying to figure out how this damn belt attaches to the idler pulleys, tightens down, and torques. I've read the instructions over and over from moss miata and I still cannot figure it out. This is the last thing I need to finish after rebuilding my engine from the block up. Please help me figure this one out! A video, a text description, anything will help.

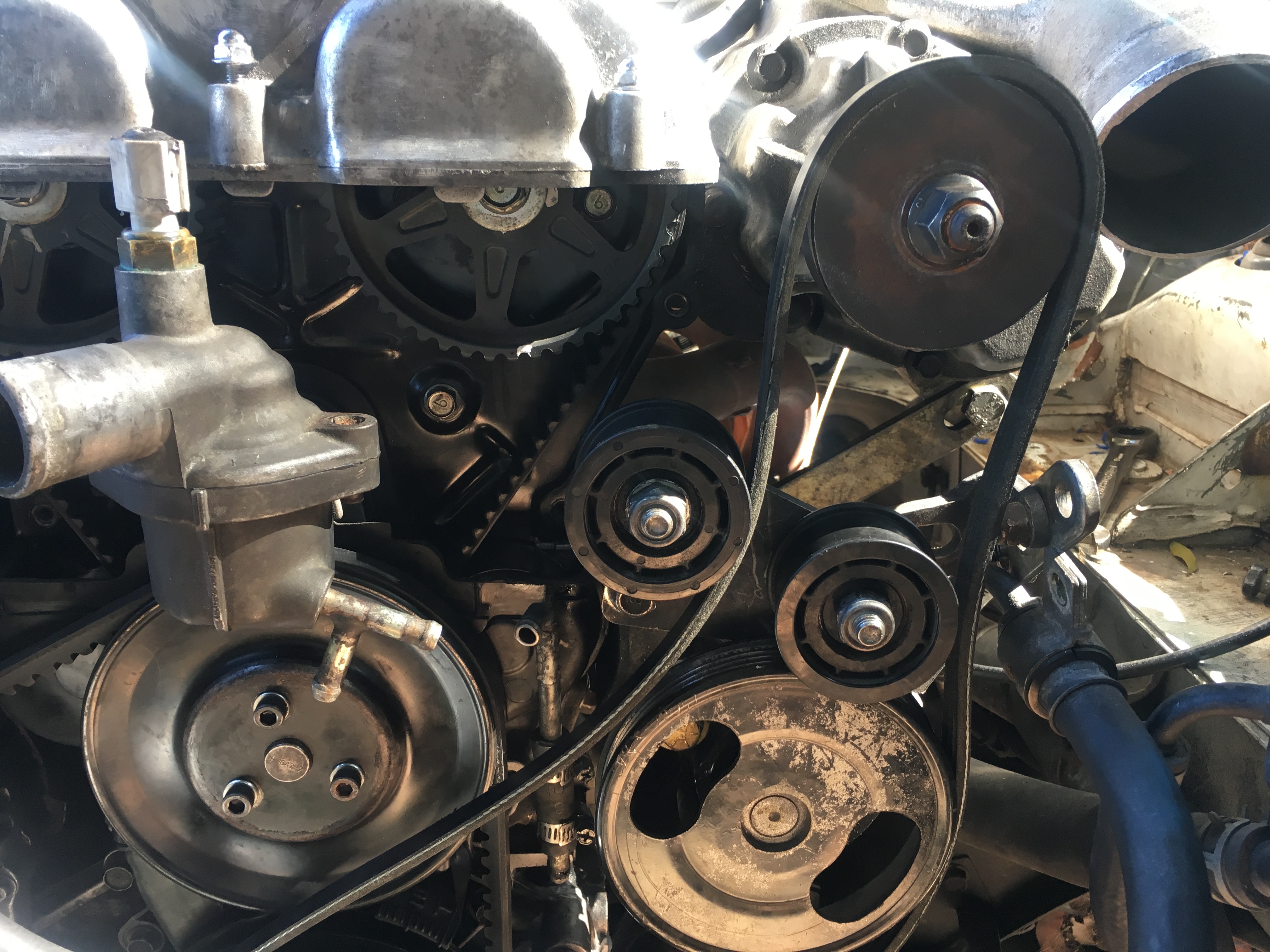

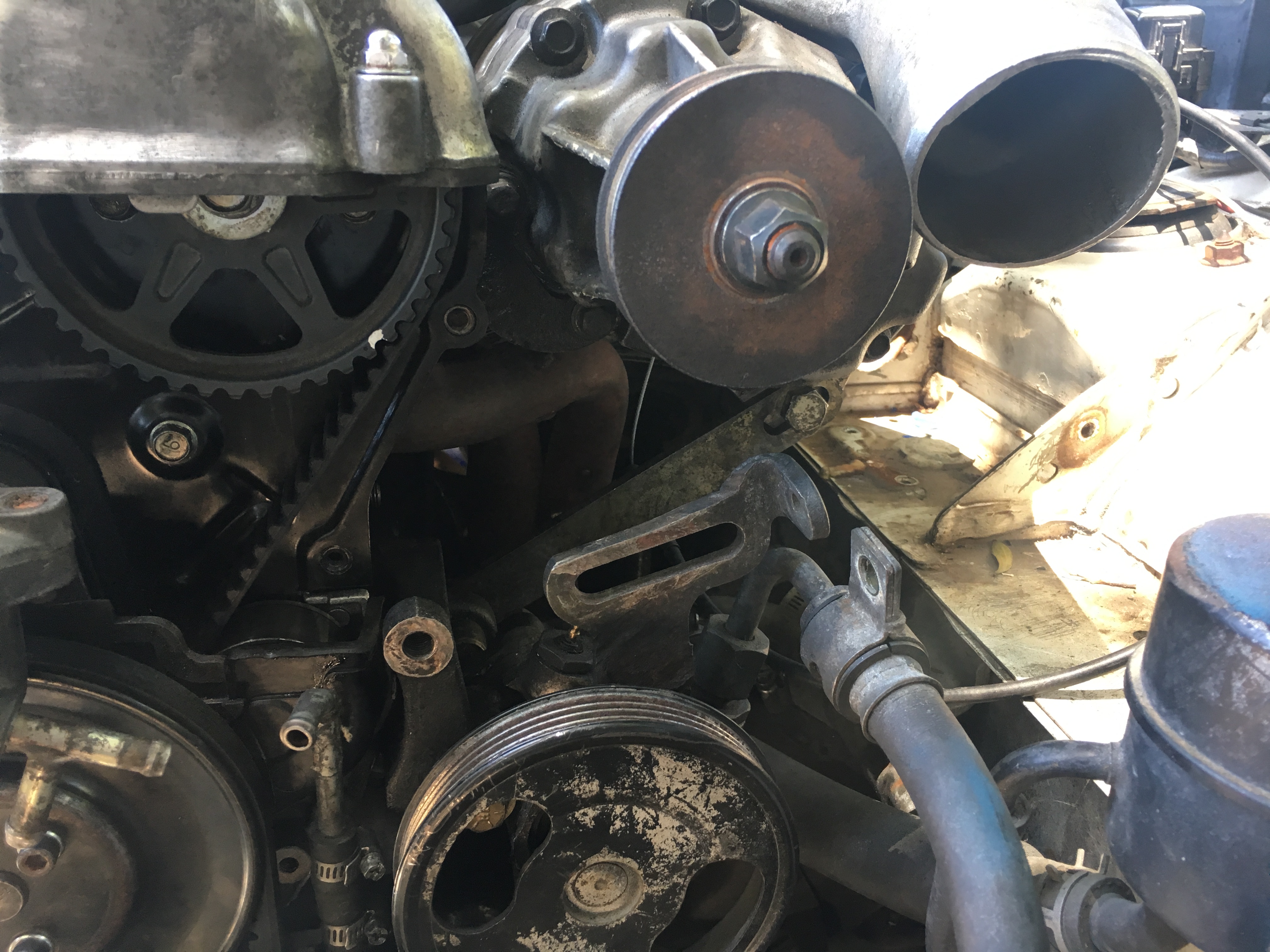

Attached Thumbnails Please help me with m45 belt-img_0767.jpg   Please help me with m45 belt-img_0764.jpg
lyonnate23 is offline
Old 06-16-2017, 01:24 PM
  #2
Senior Member

Schroedinger's Avatar

Join Date: Apr 2016
Location: Atlanta
Posts: 545
Total Cats: 111
Default

That original tensioner bracket that came with the JRSC kit is janky as hell. The Trackdog Racing tensioner is huge improvement.

I can't really offer any help because I don't have power steering or AC. The kit instructions suck, and don't really give you any good guidance on this. Unless someone else comes along to post, you're just going to have to figure it out.
Schroedinger is offline
Old 06-16-2017, 01:39 PM
  #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,100
Total Cats: 2,268
Default







Braineack is offline
Old 06-16-2017, 01:41 PM
  #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,477
Total Cats: 1,628
Default

Probably goes like this



And 5 seconds of googling gives me this

aidandj is offline
Old 06-16-2017, 01:55 PM
  #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

Sorry for the miscommunication. I get how the belt is supposed to be mounted (end product). I am having trouble mounting the belt in the first place. I can get the belt on in its proper orientation but if I do that first I can't mount the hardware as there is too much torque on the belt before I can mount the bolts. If I try to do the hardware first I cannot get the belt on the hardware even in it's most "loosened" state.
lyonnate23 is offline
Old 06-16-2017, 01:58 PM
  #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

Originally Posted by aidandj View Post
Probably goes like this

And 5 seconds of googling gives me this

That picture has different mounting hardware than the moss miata kit that I am using.
lyonnate23 is offline
Old 06-16-2017, 02:02 PM
  #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

Thanks for the quick responses by the way. It's much appreciated.
lyonnate23 is offline
Old 06-16-2017, 02:02 PM
  #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,100
Total Cats: 2,268
Default

Originally Posted by lyonnate23 View Post
Sorry for the miscommunication. I get how the belt is supposed to be mounted (end product). I am having trouble mounting the belt in the first place. I can get the belt on in its proper orientation but if I do that first I can't mount the hardware as there is too much torque on the belt before I can mount the bolts. If I try to do the hardware first I cannot get the belt on the hardware even in it's most "loosened" state.
cut loses, turbo it instead!
Braineack is offline
Old 06-16-2017, 02:10 PM
  #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default



Originally Posted by Braineack View Post
cut loses, turbo it instead!
I've already spend so much money on rebuilding this stupid 1.6L.... I've kinda reached my budget on this car for a little.
Hindsight I should've definitely done a 1.8 swap and called it at that. At least I have a fully forged internals now and I won't melt my pistons any time soon (hopefully).

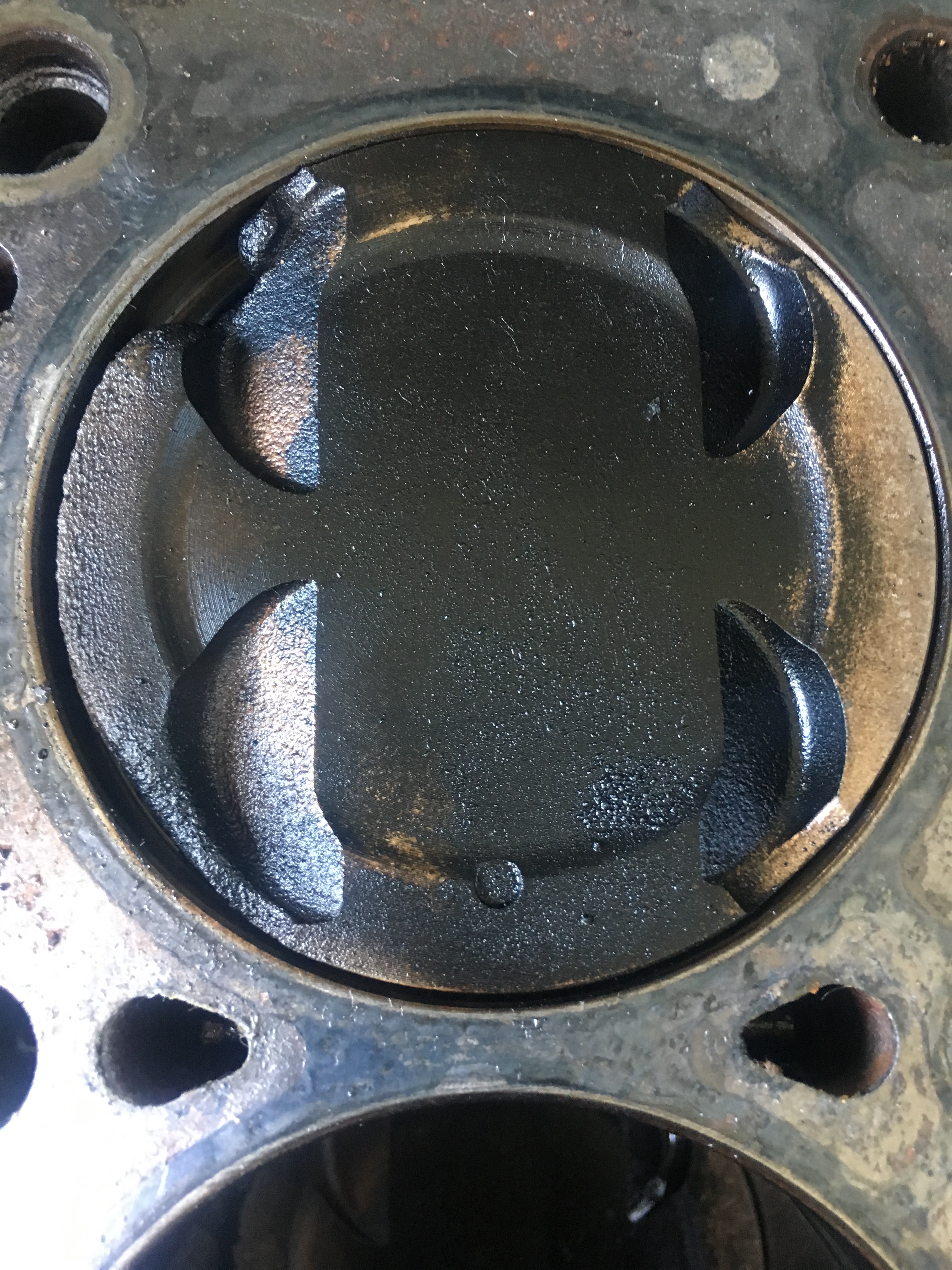

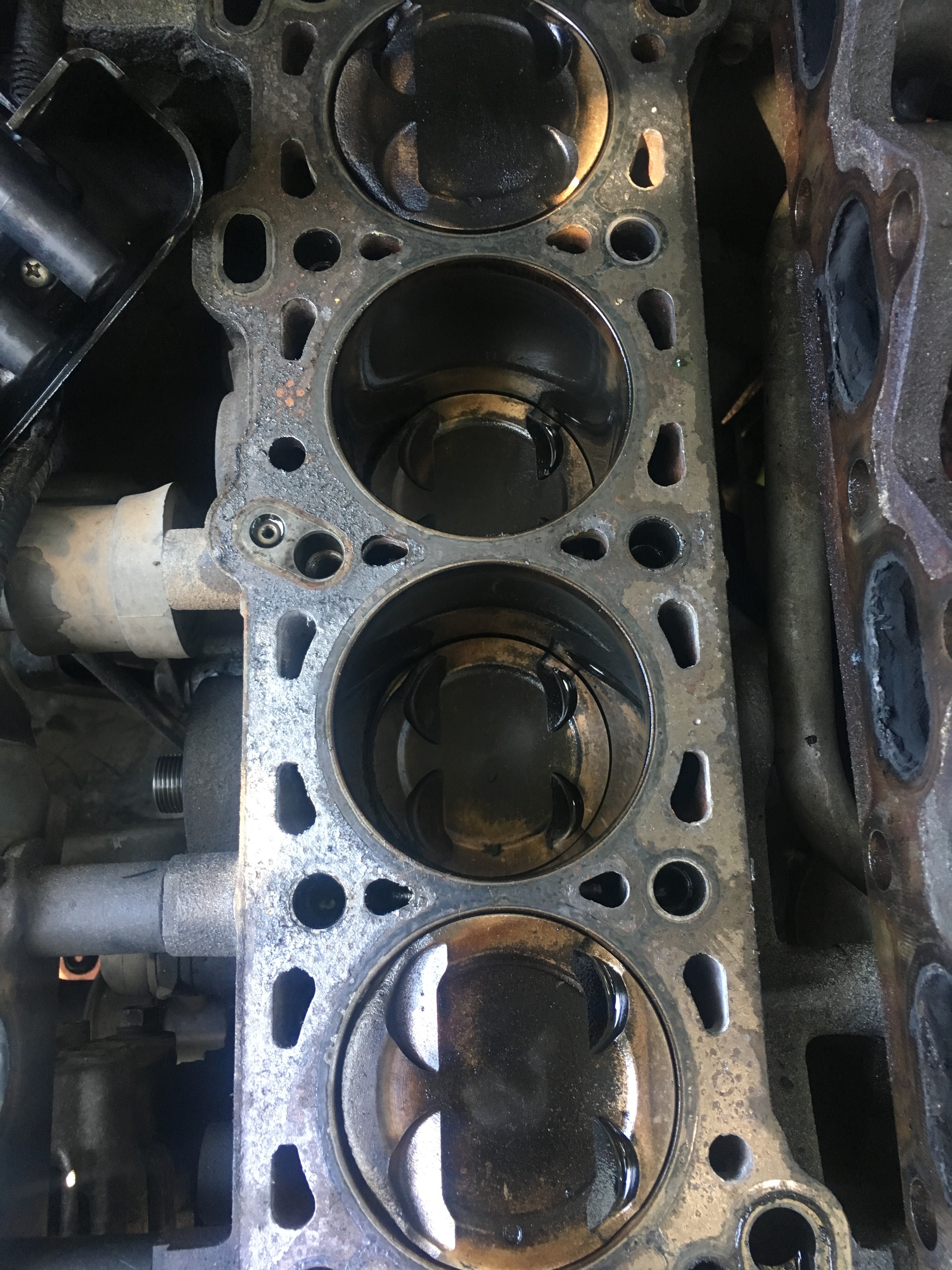

Attached Thumbnails Please help me with m45 belt-img_0415.jpg   Please help me with m45 belt-img_0416.jpg
lyonnate23 is offline
Old 06-16-2017, 03:53 PM
  #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default


Need not fret boys and girls as I've managed to best that annoying belt. If you have this shitting mounting system and are also having trouble I'd be more than happy to help. Email me at [email protected]
lyonnate23 is offline
Old 06-16-2017, 04:42 PM
  #11
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,838
Total Cats: 102
Default

Wait, did you build a 1.6 for an m45?
ridethecliche is offline
Old 06-16-2017, 06:33 PM
  #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

I built a 1.6 so that I could get back on the road. It just happens to have a JRSC.
lyonnate23 is offline
Old 06-16-2017, 06:55 PM
  #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,100
Total Cats: 2,268
Default

is it running an IC? what's your fuel/timing control?
Braineack is offline
Old 06-16-2017, 07:12 PM
  #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

DIY MS2, Deatschwerks 350cc injectors. I'm not sure what you mean by IC.
When I bought the miata it had the MSD ignition control, stock injectors, FMU, and stock ECU. I couldn't stand a shitily build miata so I had to learn to fix it from square one. I was just a kid with a soldering iron and a will to learn.
lyonnate23 is offline
Old 06-16-2017, 07:21 PM
  #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2016
Location: Ventura, CA
Posts: 95
Total Cats: 15
Default

You are actually a big help in getting me to where I am now, Braineack. I couldn't count how many threads/ posts of yours (and Joe Perez) that have helped me these past couple years.
lyonnate23 is offline
Old 06-17-2017, 10:16 PM
  #16
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,431
Total Cats: 70
Default

IC is intercooler. Glad to see you got the belt on! When I did mine, it is tight enough I have to just loop the belt onto the pulley and then crank the engine over. The other option is to get the next size up belt (usually a 1/2" longer) so you have a bit more give.

Good choice going with the MS over the piggy back setup, it is a huge upgrade in drivability.

I am running my JRSC/Seebring/BRP mutt of a setup with the 150mm crank overlay and 62.5mm supercharger pulley and it is a hoot.
x_25 is offline
