Default Rotrex Troubles; Should'a turbo'd?

I just installed the Rotrex kit with the inter cooler and a set of Fab9 coils on an otherwise stock 03 VVT miata. Now I can't get it to hold a steady idle and under 4.5K rpms it stutters/stumbles badly. Over 4.5K rpm it'll build boost quickly and pull hard as long as I stay in it. I can also hold a steady rpm (say 2K) for about 20 seconds before the rpm drops quickly and it almost dies. When driving at low speed in 1st or 2nd it bucks pretty violently.

Am I the only who's had these issues with their Rotrex? I haven't found any topics like this on any forums.
mtbiker4life is offline   Reply With Quote
Old 05-01-2015, 06:12 PM   #2
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Your ECU and injector setup would be useful info for others to help you out.
cyotani is offline   Reply With Quote
Old 05-01-2015, 06:13 PM   #3
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Quote:
Originally Posted by mtbiker4life View Post
I just installed the Rotrex kit with the inter cooler and a set of Fab9 coils on an otherwise stock 03 VVT miata. Now I can't get it to hold a steady idle and under 4.5K rpms it stutters/stumbles badly. Over 4.5K rpm it'll build boost quickly and pull hard as long as I stay in it. I can also hold a steady rpm (say 2K) for about 20 seconds before the rpm drops quickly and it almost dies. When driving at low speed in 1st or 2nd it bucks pretty violently.

Am I the only who's had these issues with their Rotrex? I haven't found any topics like this on any forums.
Your problem most likley is with the engine managment not the Rotrex.
You should provide more information on your setup to include ecu settup settings etc.
HHammerly is offline   Reply With Quote
Old 05-01-2015, 07:29 PM   #4
Newb
Thread Starter

Join Date: Nov 2011
Location: Maryland
Posts: 8
Total Cats: 0
Default

Having all the info would help haha.

The ECU is stock. I'm running the injectors and fuel box that came with the kit.

And by 'issues with the rotrex' I'm referring to the kit as a whole, the supercharger itself is pretty awesome. I assume my problem is with fuel delivery or vacuum.
mtbiker4life is offline   Reply With Quote
Old 05-01-2015, 07:47 PM   #5
Newb

Join Date: Jun 2014
Posts: 19
Total Cats: -2
Default

You should definitely ditch the rotrex. You can probably sell it for a couple hundred bucks. In fact I'll buy it now.


Or you can get a megasquirt and fix the problem
cool hand luke is offline   Reply With Quote
Old 05-02-2015, 04:14 AM   #6
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 67
Total Cats: 4
Default

Unless you have a basic vacuum leak, you have two variables that have had mixed results:

1. The Kraftwerks (if that's what you have) fueling was supposed to be mediocre. The NB kits came with something *similar* to an FM Voodoo Box and 350cc injectors. I think 350s are way too large for the stock ecu to handle and part of the problem.

2. Some customers of the Fab9 COPs experienced problems when installed alongside piggybacks.

Try putting back the stock injectors, remove the COPs and piggyback. Drive around *without boost* to see if the problems disappear. If so, I'd add the piggyback in, without the injectors. Test again. Then add either the injectors or COPS, test again. Then add the other one. A wideband would be helpful here to determine whether you even need the injectors for your power levels.
RunninOnEmpty is offline   Reply With Quote
Old 05-02-2015, 05:45 PM   #7
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I had the exact same problem you described with my kit back in 2011. Take a look at the DFC (digital fuel controller) box that plugs in between the injectors and the factory harness. My problem was 2 fold:
  1. No retention clips to hold plugs into factory harness
  2. Pins not seated properly into plugs on either side of the DFC harness

While you could jam the connector into the factory injector plug as hard as you wanted, in 1,000~1,500 miles they would come loose and the injectors would stop working properly. Where the injectors have clips to hold harness in place, the Kraftwerks plug had nothing. See below for fix.

Where the Kraftwerks plug attached to the stock injector, I found that several of the female pins were not seated correctly in the plastic connector body. When you pushed them onto the injector, it pushed the connector out of the back side of the plug. The solution was to re-seat them all so that they clipped in properly. This was caused 100% by Kraftwerks cutting corners and using shitty connectors and having the parts assembled by people who didn't know what they were doing. No testing, no inspection and no QC on their end. I returned the DFC to them and they said it "tested fine" even with the pins pushing out of the back of the injector connectors

You can trust me when I tell you I have some experience with the Rotrex.

Quote:
Originally Posted by EvoOrange2k

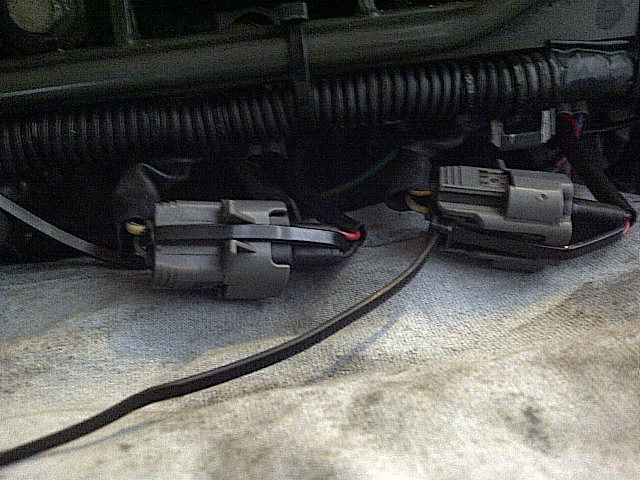

Well, I popped the upper manifold off and checked the connectors, sure enough #3 & #4 were backed out ever so slightly compared to #1 & #2. I found my zip-ties and secured the clips as best as I could. I did this by threading the zip-tie between the wires on the factory injector clip, and then right around the backside between the wires on the DFC plug in one big loop.

A picture (even a poor cell phone one) is worth 1,000 words, so Ill try keep this short.


I also ended up re-looming my factory injector harness and zip-tied it to the fuel rail. The plastic shroud on the factory harness finally gave up and broke apart. Its now MUCH easier to tuck the piggyback clips under the fuel rail.

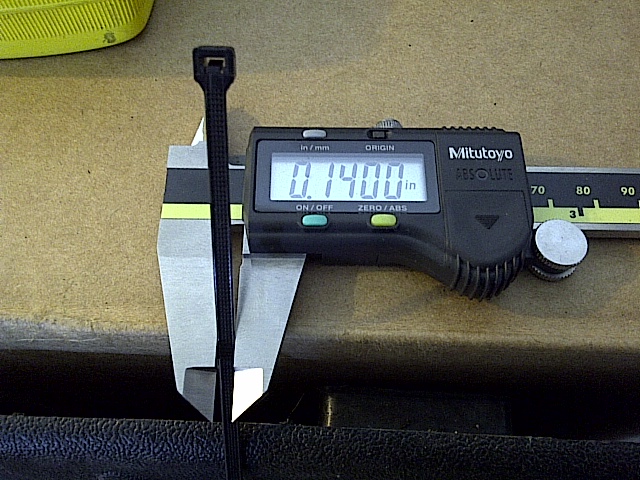

The zip-ties I used were just about as wide as you would possibly fit in there. If you go any wider than this, its going to start pushing the wires out of place on the back of the connectors. That would be a bad thing.



The pics don't show it, but the flat on the back of the black DFC to plug (the ones without the clips) now sits almost perfectly flush with the edge of the grey Mazda harness injector clips. I also trimmed the tails off the zip-ties before I reassembled. We'll see if this solves my issue.
Go read the whole thread on M.net: Rotrex belt issue? - MX-5 Miata Forum its a doozy.
Attached Thumbnails
Rotrex Troubles; Should'a turbo'd?-nrwe3.jpg   Rotrex Troubles; Should'a turbo'd?-1kpa0.jpg
EO2K is offline   Reply With Quote
Old 05-04-2015, 09:42 AM   #8
Newb
Thread Starter

Join Date: Nov 2011
Location: Maryland
Posts: 8
Total Cats: 0
Default

Thanks for the suggestions!
I'll take a look at the Kraftwerks injector harness, check the pins and zip-tie the connectors, 1st. If that doesn't work, I'll try the stock injectors.
mtbiker4life is offline   Reply With Quote
Old 05-05-2015, 01:21 PM   #9
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

This thread is a really excellent argument for a non-electronics Rotrex and a MS.
Sparetire is offline   Reply With Quote
Old 05-06-2015, 01:06 AM   #10
Newb

Join Date: May 2015
Posts: 5
Total Cats: 0
Default

I picked up my rotrex kit second hand and the guy inclued the TDR fuel and power cards, i used these instead of the kraftwerks fuel box....people don't love them because they're not competitively priced w/ megasquirt which offers more control, so if you can find someone unloading them you can get them for cheap. I was able to do a decnet tune for the street with them and I'm pretty happy.

Last edited by hjkl; 05-06-2015 at 01:07 AM. Reason: I am a horrible typist.
hjkl is offline   Reply With Quote
Old 05-08-2015, 01:38 PM   #11
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

None of the behavior he is describing is attributable to the Voodoo box or injectors size. I had the same setup (2002 VVT) and it ran just fine. I even did track days with that setup. I did get CELS due to the 350ccs being too rich out of boost, but there is a 10 cent remedy for that also. I did eventually up the boost and go to a AEM FIC. I'd look at EO2K's suggestion. For a street car at stock boost the Voodoo box can be adjusted to work fine
tomiboy is offline   Reply With Quote
Old 05-11-2015, 02:01 PM   #12
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

I am confused, is there a VooDoo box involved anywhere in this? IS a 'DFC' the same as a VooDoo box?

The horrible driveability certainly could be caused by misfiring injectors resulting from bad connections.
Sparetire is offline   Reply With Quote
Old 05-11-2015, 02:54 PM   #13
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

The piggy back that was provided with my KW kit was the same as the "VooDoo box" that FM provides. The "VooDoo box" name is FM's but the box is identical in everyway, as far as appearance of the boards inside. I'm sure it is made by an outside company for FM and KW.
tomiboy is offline   Reply With Quote
Old 05-11-2015, 03:02 PM   #14
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

VooDoo Box, older Powercards, DFC (Digital Fuel Controller) are all the same thing. Kraftwerks, FM, Moss and FFS will all tell you they are different, but I've personally handled and disassembled all of them and the hardware is the same. Someplace I have the info about the company that actually manufactures them but I don't care to look it up atm.

The "newer" Powercards are in fact different hardware, but work pretty much the same.
EO2K is offline   Reply With Quote
Old 05-11-2015, 03:08 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

I was gonna say, but what about the

P-P-P-P-P-P-P-P-P-P-P-POWERRRRRRRRRRR CARD PRO


.....bro
18psi is offline   Reply With Quote
Old 05-18-2015, 12:07 PM   #16
Newb
Thread Starter

Join Date: Nov 2011
Location: Maryland
Posts: 8
Total Cats: 0
Default

Y'all were correct! The issue was the fuel box supplied with the kit. For what ever reason it didn't work when the system was in vacuum thus the stumble at lower RPM's and bad idle. I removed the fuel box and swapped the stock injectors back in. It started right up and ran fine (well as "fine" as it can with a supercharger on the stock ecu).

I now have the MS PNP3 and even with a base tune there's a night and day difference.
All that's left is getting a good tune. I wish I could've bought the kit without the electronics, it would've saved money and headaches for sure.
mtbiker4life is offline   Reply With Quote
Old 05-18-2015, 01:34 PM   #17
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm glad you got it sorted out!

The Grams Performance injectors can probably be reused with the MS, they are modern EV14 injectors. They are a bit undersized from what most of us run though. Those 350cc injectors are probably good for 225hp on the NB fuel system so that gives you a little bit more headroom than the stockers.

Of course, now that you have a MS you can buy pretty much whatever sized injectors you want. If you go down this path its not worth spending the money unless you are buying an EV14 style injector. Injector Dynamics and Fuel Injector Clinic are both very popular around these parts.

Good luck with it going forward! Do you have a build thread here on MT? You can always make one here in the Supercharger section and hide from the mean old turbo people in the build threads section
EO2K is offline   Reply With Quote
Old 05-18-2015, 01:51 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

Since he already has em I'd use em too. If my stockers made 201 before actually running out of fuel, I think he should be just fine on a brotrex stock-ish setup with these.
18psi is offline   Reply With Quote
Old 05-18-2015, 02:43 PM   #19
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Great!!
tomiboy is offline   Reply With Quote
Old 05-18-2015, 02:49 PM   #20
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by mtbiker4life View Post
Y'all were correct! The issue was the fuel box supplied with the kit. For what ever reason it didn't work when the system was in vacuum thus the stumble at lower RPM's and bad idle. I removed the fuel box and swapped the stock injectors back in. It started right up and ran fine (well as "fine" as it can with a supercharger on the stock ecu).

I now have the MS PNP3 and even with a base tune there's a night and day difference.
All that's left is getting a good tune. I wish I could've bought the kit without the electronics, it would've saved money and headaches for sure.
Glad you got everything figured out.

We have the "cracked ebay manifold" thread stickied in the turbo section, I vote for sticky-ing this one for the supercharger section.
