SF Bay Area JRSC M45 Guru needed.


Old 04-04-2017, 11:06 PM
  #1
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default SF Bay Area JRSC M45 Guru needed.

New Noob here looking for some assistance. I have inherited my brothers 95M that he put the JRSC kit on many, many, years ago and since he is no longer with me I can't ask him what was done nor how it is tuned. Looking for someone in the San Francisco Bay Area that is really knowledgable with the JRSC M45 kits and would be willing to take a looke at my setup.

Seems to be running really well and I'm not having any real issues other than a slight boog until some boost is made at lower rpm's.

Did a major service on the car as it had been sitting for a few years. All fluids changed, coolant, motor, tranny, diff oils, new plugs one colder than stock, new NGK wires, new UNI air filter, fuel filter, flushed and bleed brakes and clutch. Fixed a few minor oil leaks, CAS o-ring, valve cover gasket. New SC belt and it does not seem to be slipping as there is no rubber dust on the snoot of the SC.

What I really would like is for someone in the know take a look at this cars setup and give it there blessing more for my piece of mind than anything.

TIA
Vmxwinn is offline
Old 04-04-2017, 11:17 PM
  #2
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,186
Total Cats: 3,166
Default

all the people that considered that setup good died 20 years ago

the stumble/bog is because it's running on a power card
18psi is offline
Old 04-05-2017, 12:22 AM
  #3
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

I was poking around this evening looking at everything. I do have the original JR install manual that came with it. Looks pretty much as laid out in the manual. Wouldnt the power card be mounted back by the ECU behind the passengers seat? If so nothing there. I did find a J&S individual cylinder knock sensor module under the carpet up in the passengers footwell.

Also someone gave me an old JR power card but have not put that on. Should I, is it worth it?
Vmxwinn is offline
Old 04-05-2017, 12:30 AM
  #4
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 743
Total Cats: 77
Default

Shoot Twibs415 a message... it's possible he has some free time to give your car an inspection.
And options for what to upgrade/etc. if the mood strikes.
SchmoozerJoe is offline
Old 04-05-2017, 09:27 PM
  #5
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 86
Total Cats: 4
Default

If it really is THAT old, it may not even be controlling additional fueling electronically through a piggyback. AFPR maybe? Post a pic of the powercard, many versions, adjustable of course a little better. Non-adjustable tended to run rich just to cover all user scenarios. the older ones usually benefitted from an O2 clamp.
RunninOnEmpty is offline
Old 04-05-2017, 10:00 PM
  #6
Junior Member

Join Date: May 2005
Location: Earth
Posts: 71
Total Cats: -5
Default

Where in SF are you?
soospecmx5 is offline
Old 04-05-2017, 11:55 PM
  #7
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

Originally Posted by soospecmx5 View Post
Where in SF are you?
East Bay, Danville
Vmxwinn is offline
Old 04-06-2017, 12:46 AM
  #8
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

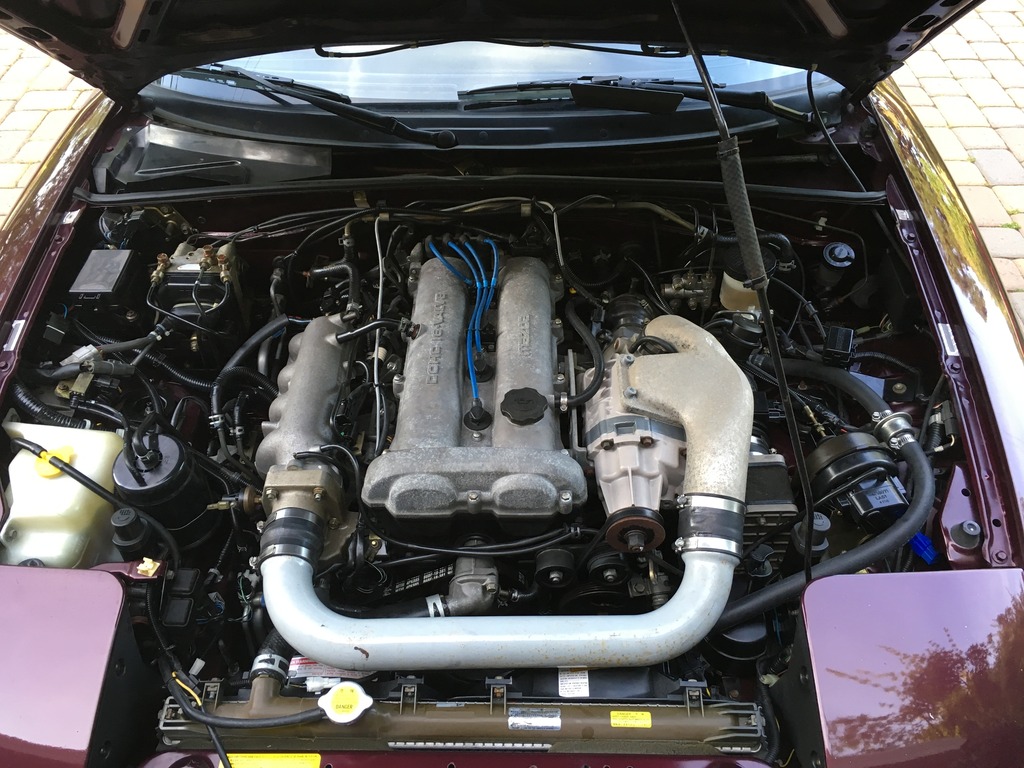

Here a few pictures I took last summer. Done a bunch more detail cleaning and fixing little things for the better.



Name:  image_zpsw8vyajte.jpeg
Views: 126
Size:  255.5 KB

Last edited by Vmxwinn; 04-06-2017 at 02:10 AM.
Vmxwinn is offline
Old 04-06-2017, 08:14 PM
  #9
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 86
Total Cats: 4
Default

Check your manual again regarding the wiring of the boost sensor in the dummy throttle body. Follow the wire from that sender, and you'll probably find some relay wiring with a diode in it. Will probably be next to the fuse box. You'll have better luck searching by the term "Sebring" rather than "JRSC" based on the age of the kit. I think that tricks the car into dumping more fuel.

Also try pinging board member, "rmcelwee" who runs the site lightweightmiata.com with a lot of old Sebring Supercharger info. He can probably help you figure out the fueling solution.
RunninOnEmpty is offline
Old 04-07-2017, 12:14 PM
  #10
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

Thanks Runninonempty. I checked the JR manual and looked at my setup and that is type of fuel enrichment I have. You can see the relay in the picture above on the passenger side just in front of the fuse box.

I have this power card pictured below. Should I install it and disconnect the current original fuel enrichment electronics?

Name:  image_zpsuaa8plwy.jpeg
Views: 111
Size:  217.8 KB

Last edited by Vmxwinn; 04-08-2017 at 05:23 PM. Reason: added picture
Vmxwinn is offline
Old 04-08-2017, 05:34 PM
  #11
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

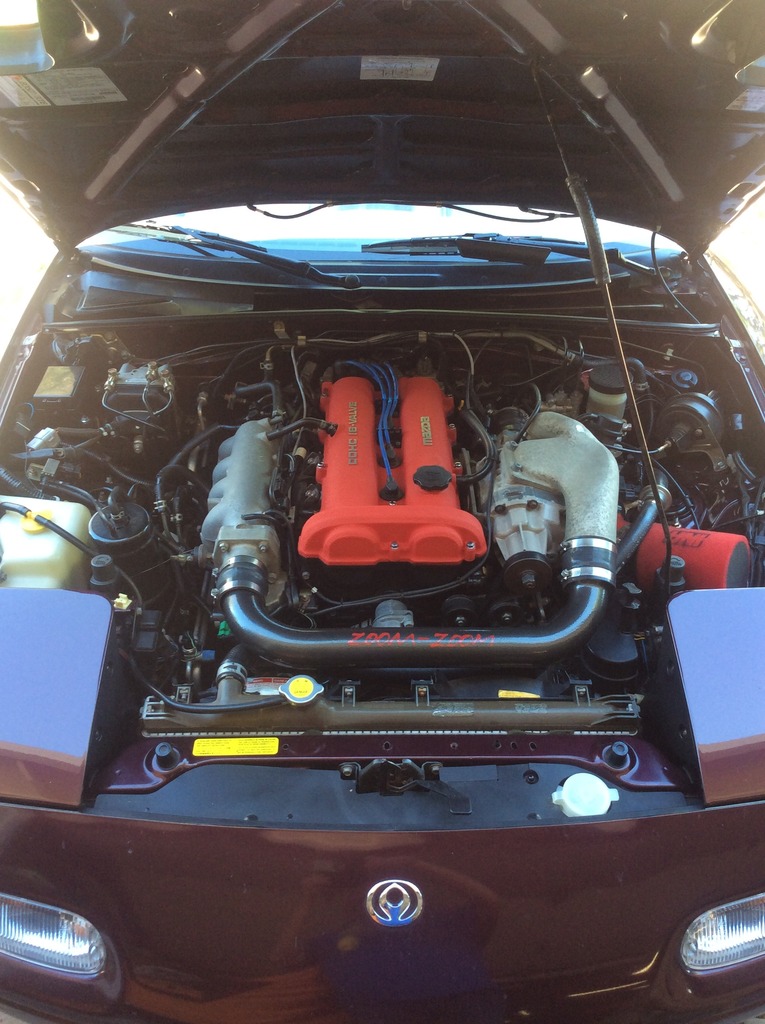

And here is the engine bay currently. A little more cleaned up and my home brewed TrackDog copy air filter and relocated cruise control diaphragm.

Name:  image_zpsqx8b8bfy.jpeg
Views: 97
Size:  211.2 KB
Vmxwinn is offline
Old 04-08-2017, 08:57 PM
  #12
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Sunnyvale, CA
Posts: 1,757
Total Cats: 38
Default

Needs more megasquirt tbh
MartinezA92 is offline
Old 04-11-2017, 10:20 PM
  #13
Junior Member

Join Date: May 2005
Location: Earth
Posts: 71
Total Cats: -5
Default

Get rid of the bandaids, buy an ecu megasquirt/hydra?, problem solved!

If your worry about CrAppy Smog, install your old bandaid for smog and return back to ecu.

There's a hydra for sale as we speak in the fs section.
soospecmx5 is offline
Old 04-25-2017, 02:02 AM
  #14
Junior Member
iTrader: (4)

Join Date: Mar 2006
Location: San Diego, CA
Posts: 86
Total Cats: 4
Default

That Powercard is the first gen. It'll be better than what you have now, but pretty much any electronic fueling solution you pick nowadays is going to be a big upgrade from that, because they're all adjustable to an extent now. But for free, yeah, I'd do it. This forum heavily encourages Full Standalone ECUs, but a lot of us still use piggybacks/band aids. Just depends how much time or money you want to throw at something.
RunninOnEmpty is offline
Old 05-08-2017, 01:39 AM
  #15
Newb
Thread Starter

Join Date: Apr 2017
Location: S.F Bay Area
Posts: 12
Total Cats: 0
Default

Originally Posted by RunninOnEmpty View Post
That Powercard is the first gen. It'll be better than what you have now, but pretty much any electronic fueling solution you pick nowadays is going to be a big upgrade from that, because they're all adjustable to an extent now. But for free, yeah, I'd do it. This forum heavily encourages Full Standalone ECUs, but a lot of us still use piggybacks/band aids. Just depends how much time or money you want to throw at something.
Sorry for being such a Noob but should I disconnect what I have now completely and hook up the power card in its place?
Vmxwinn is offline
Old 05-10-2017, 08:46 PM
  #16
Ham
Newb

Join Date: Oct 2009
Location: San Diego, CA
Posts: 12
Total Cats: 29
Default

Replace your radiator. Brown end tanks means the plastic is weak and will crack.
Ham is offline
Old 05-12-2017, 09:58 PM
  #17
Senior Member

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 578
Total Cats: 92
Default

I believe 95s in CA just get a sniffer test as well right? If it is just a sniffer I would get a MS.
farpolemiddle is offline
Old 05-13-2017, 07:44 PM
  #18
Art
Junior Member

Join Date: Jul 2016
Posts: 413
Total Cats: -215
Default

.

Last edited by Art; 06-11-2018 at 07:48 PM.
Art is offline
