Default TDR Belt Tensioner?

Anyone had experience with the Track Dog Racing tensioners? I was advised it would be a good idea to get one when I upgrade the blower pulley.
RustBoxBrad is offline   Reply With Quote
Old 11-22-2011, 10:54 AM   #2
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Great upgrade over the stock JRSC idler setup. Much easier to install and tension belts.
Greg G is offline   Reply With Quote
Old 11-23-2011, 09:33 AM   #3
Newb

Join Date: Apr 2011
Location: Oxnard, CA
Posts: 4
Total Cats: 0
Default

Yes, I agree, saves tons of time readjusting the belt...I think a must have item.
carazy is offline   Reply With Quote
Old 11-23-2011, 11:28 AM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Adjust your belt this afternoon and let us know if you think the JR system deserves an upgrade, lol.
vehicular is offline   Reply With Quote
Old 11-23-2011, 01:09 PM   #5
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

If it's on my car it's what you should have

/thread
jeff_man is offline   Reply With Quote
Old 11-23-2011, 04:22 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Well, I talked to Gary at TDR today. It looks like my options are limited. I can't run the TDR tensioner because I don't have factory PS. I can't change the nose pulley either because I have the older cone shaped one. My only option is a crank overlay.
RustBoxBrad is offline   Reply With Quote
Old 11-24-2011, 11:49 AM   #7
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I've got an upgraded tensioner with no PS. I did ended up adding an extra idler pulley to the setup to improve the belt routing, and get the belt tighter though.
baron340 is offline   Reply With Quote
Old 11-25-2011, 12:27 AM   #8
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
I've got an upgraded tensioner with no PS. I did ended up adding an extra idler pulley to the setup to improve the belt routing, and get the belt tighter though.
You have any pics of your setup? I've been also trying to figure a way to delete the AC. Gary said to just get a smaller belt, but with the way it's setup it would hit itself without an extra idler where the AC compressor is.
RustBoxBrad is offline   Reply With Quote
Old 11-25-2011, 12:45 PM   #9
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

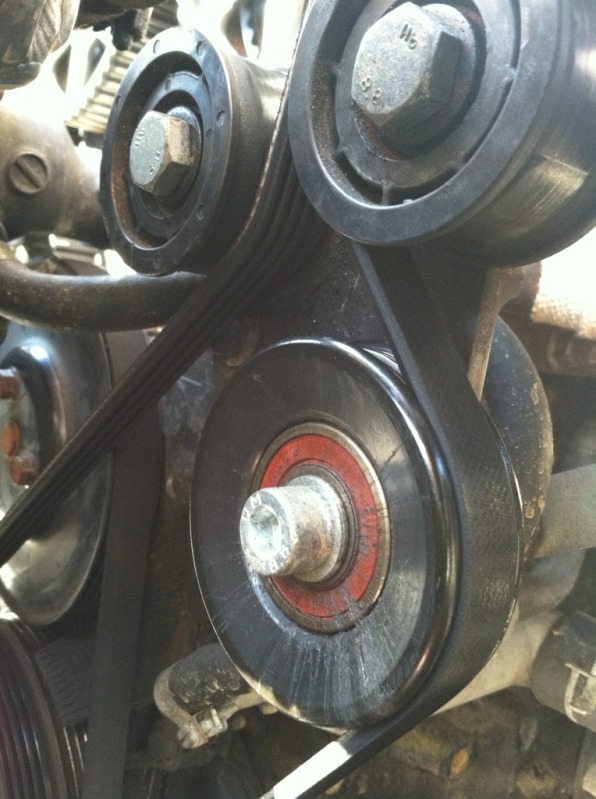

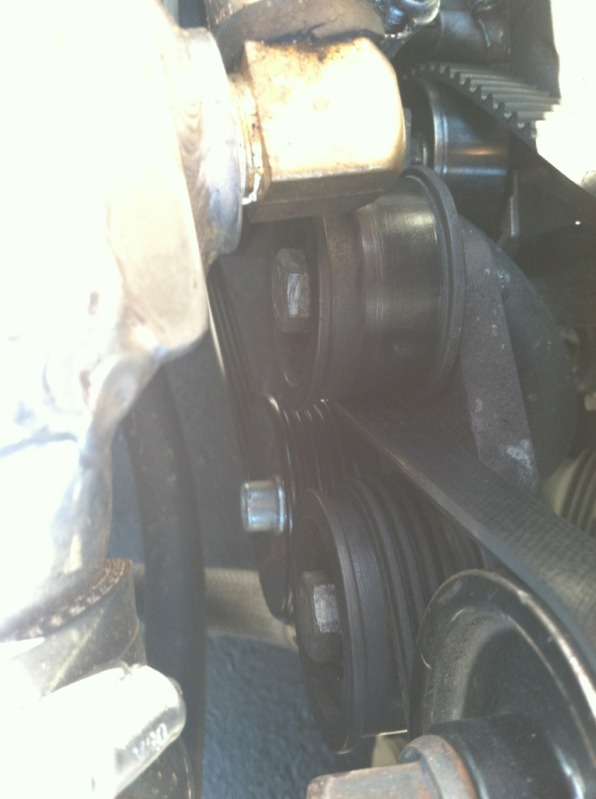

That was my problem, I couldn't get a belt tight enough without the tensioner pushing the belt together. I tried everything I could think of. Here's a couple quickie i-phone pics to give you an idea.





That pulley with the allen head bolt is my added idler. I just got a random 4 rib idler pulley from advanced auto and made a little spacer bushing thing on the lathe and through bolted it to an empty hole in the support plate for the S/C. I don't have either PS or AC, and I have a crank overlay. If you are interested, I can make another spacer and send you the part number for the pulley, but I only have access to the lathe for another month or so. Hope that helps.
Attached Thumbnails
TDR Belt Tensioner?-c994b4be.jpg   TDR Belt Tensioner?-0891a710.jpg
baron340 is offline   Reply With Quote
Old 11-25-2011, 05:51 PM   #10
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

get a shorter belt and you will not have to tighten it as much.
jeff_man is offline   Reply With Quote
Old 11-29-2011, 12:34 PM   #11
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Well, after tightening the belt with the current setup, it seems to be holding fine after 1k miles. I may just keep this setup for awhile, but with the A/C removed and an extra idler added to get more contact surface on the blower pulley. Baron340, would you care to share the part number on that pulley you used?
RustBoxBrad is offline   Reply With Quote
Old 12-04-2011, 06:27 PM   #12
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

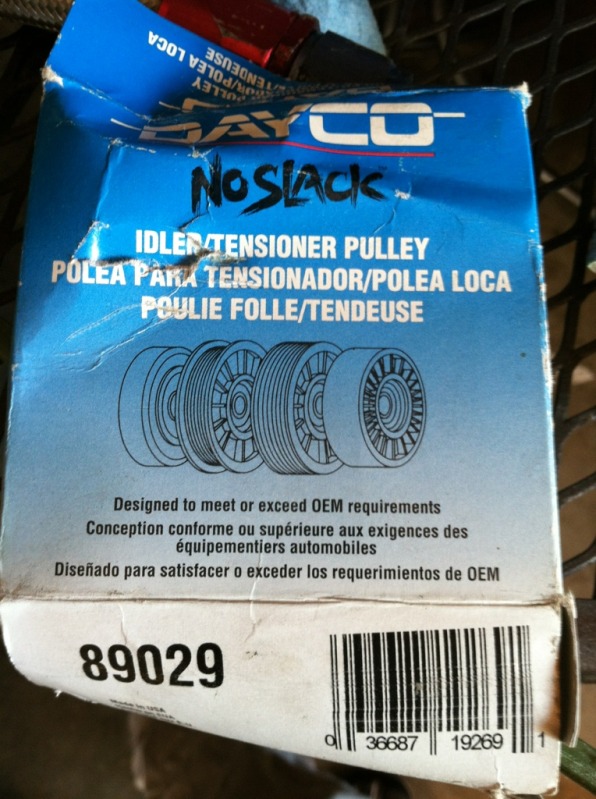

Well for posterity's sake here is that pulley I used.
Attached Thumbnails
TDR Belt Tensioner?-a014a241.jpg
baron340 is offline   Reply With Quote
Old 12-07-2011, 01:56 PM   #13
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post


Well for posterity's sake here is that pulley I used.
Thank you sir! It's much appreciated. I think I'm going to try to tackle the A/C delete over the holiday break along with my intercooler install.
RustBoxBrad is offline   Reply With Quote
Old 12-07-2011, 02:40 PM   #14
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I thought we established how much you're going to miss that AC in Nashville in June, lol?
vehicular is offline   Reply With Quote
Old 12-07-2011, 02:47 PM   #15
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Murfreesboro, TN
Posts: 58
Total Cats: 0
Default

Quote:
Originally Posted by vehicular View Post
I thought we established how much you're going to miss that AC in Nashville in June, lol?
Haha, no doubt I'll miss it a bit, but thankfully my roof folds down
RustBoxBrad is offline   Reply With Quote
Old 12-14-2011, 07:03 PM   #16
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

is there a generic replacement for the TRD metal tensioner pulleys? one if mine is squeeky and they want over 100 for the pair...
fwMiata is offline   Reply With Quote
Old 12-14-2011, 11:35 PM   #17
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

They're Miata timing belt tensioner rollers.
vehicular is offline   Reply With Quote
Old 12-19-2011, 01:46 PM   #18
Newb

Join Date: Nov 2010
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
That was my problem, I couldn't get a belt tight enough without the tensioner pushing the belt together. I tried everything I could think of. Here's a couple quickie i-phone pics to give you an idea.





That pulley with the allen head bolt is my added idler. I just got a random 4 rib idler pulley from advanced auto and made a little spacer bushing thing on the lathe and through bolted it to an empty hole in the support plate for the S/C. I don't have either PS or AC, and I have a crank overlay. If you are interested, I can make another spacer and send you the part number for the pulley, but I only have access to the lathe for another month or so. Hope that helps.
I have a lathe....you should send me a couple of pics with mic measurement and i could try to make them.
