Default 6 Speed Input Shaft Sleeve Question

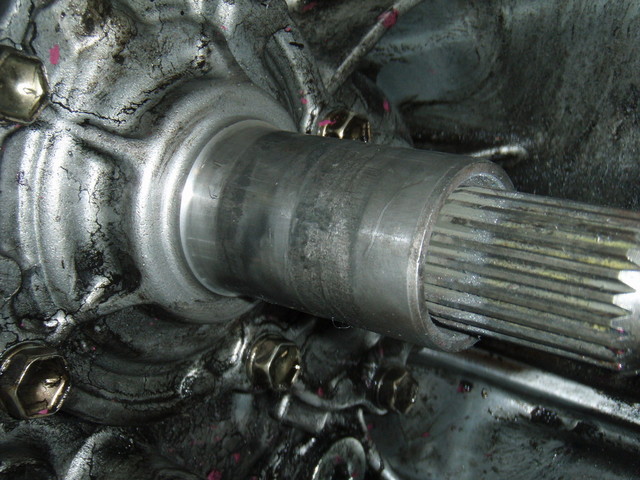

I pulled the tranny yesterday for a squealing throw out bearing and noticed the input shaft sleeve is a little worn. Is this normal? I didn't notice it when I put it in but I also wasn't troubleshooting anything. The transmission has ~65k easy miles on it. I stuck a caliper on it and the worn area is about .017" deep.

Thoughts appreciated.
Attached Thumbnails
6 Speed Input Shaft Sleeve Question-p9127832.sized.jpg
mr_hyde is offline   Reply With Quote
Old 09-12-2012, 11:59 PM   #2
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Was your throwout bearing completely seized up?
Bryce is offline   Reply With Quote
Old 09-13-2012, 12:16 AM   #3
Senior Member
Thread Starter
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

No. Actually it feels perfect. I'm a little puzzled about the squeaking. The pivot ball and slave ball had grease. FM stage 2 clutch disk is at .329". Torque on the pressure plate bolts felt fine when I took it off.
mr_hyde is offline   Reply With Quote
Old 09-13-2012, 02:44 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Show me you shaft sleeve, tranny.
hustler is offline   Reply With Quote
Old 09-13-2012, 11:48 AM   #5
Senior Member
Thread Starter
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by hustler View Post
Show me you shaft sleeve, tranny.
It's in the first post bad man. I also specify my pivot ball was lubed.



Anyone have a link to replacing the front seal on a 6 speed? That would have directions and torque specs to R&R the sleeve.
mr_hyde is offline   Reply With Quote
Old 09-13-2012, 04:02 PM   #6
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

IIRC, The input on the trans doesn't have a standard style seal, it's just permatex-ed, no no seal replacement guide for u :(
fooger03 is offline   Reply With Quote
Old 09-13-2012, 04:37 PM   #7
Senior Member
Thread Starter
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

I was thinking more in terms on the input shaft seal. Those instructions would include the shield. I'll play it by ear but anyone know the torque specs for the bolts?
mr_hyde is offline   Reply With Quote
