Quote:
Originally Posted by Leafy View Post
You dont really want to adjust the front camber with the FUCA, not enough room in the top of the tire area. Theres a good chunk of weight to be taken out of there though. Just extending the FLCA ~10-15mm is more than enough help in the front of the car for camber. I've pretty much covered all the good ideas that no one else is doing with my arm designs. I've been too busy to actually make a set though. If Keith wants to give em a go though... All thats left is some fixture design.
I'm really not very excited about different lower control arms. But if you've got some drawings to share, it might be interesting to see how you've dealt with the challenges.

For the front uppers, 2.5mm of movement of the upper ball joint is worth about a degree of camber according to our calculations.
Keith@FM is offline   Reply With Quote
Old 12-12-2014, 12:26 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by [email protected] View Post
I'm really not very excited about different lower control arms. But if you've got some drawings to share, it might be interesting to see how you've dealt with the challenges.

For the front uppers, 2.5mm of movement of the upper ball joint is worth about a degree of camber according to our calculations.
I'll shoot you an email. My FLCAs also include roll center correction and a better and cheaper than stock lower ball joint (yay american car parts).
Leafy is offline   Reply With Quote
Old 12-12-2014, 06:51 PM   #23
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,475
Total Cats: 114
Default

Quote:
Originally Posted by [email protected] View Post
To answer the most common question: front uppers are in the design stage.
Adusting the front upper controll arm shorter in order to gain the camber I want is compleatly useless to me. if anything I need longer front uppers and even longer still front lowers.

there is already negative room between the shock top area and a tire to move the top of the tire further in with even 245/40's mounted on 10" wheels with effective 20mm offset wheels and Im stuffing 275's on 11" wheels in there.

It's the front lowers that need to be lengthened and I need adjustability to get around 4 degrees of front camber.
bbundy is offline   Reply With Quote
Old 12-12-2014, 07:42 PM   #24
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

The reason I'm focusing on the front uppers is because I've seen far too many failed lowers.

Bob, how much more negative camber do you need? You are a bit of an extreme case, but we're definitely going to be seeing a lot more of the 245/10" combo.
Keith@FM is offline   Reply With Quote
Old 12-12-2014, 07:58 PM   #25
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,475
Total Cats: 114
Default

Quote:
Originally Posted by [email protected] View Post
The reason I'm focusing on the front uppers is because I've seen far too many failed lowers.

Bob, how much more negative camber do you need? You are a bit of an extreme case, but we're definitely going to be seeing a lot more of the 245/10" combo.
I've been pretty happy with ~3.8 to 4 degrees up front. 2.2 -2.4 in the rear for high hp off corners and for just straight line grip. The top of the tire inboard clearance issue even gets worse with more camber but the car kept being faster with more. I have the front shocks leaned over a bit more than stock by offsetting the bolt locations in the shock tops Also need 2.25" Id springs instead of 2.5" and I still rub the paint off the springs with the tire after a while.
bbundy is offline   Reply With Quote
Old 12-12-2014, 09:57 PM   #26
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Just run bias ply and back your camber off by half.
guttedmiata is offline   Reply With Quote
Old 12-12-2014, 11:06 PM   #27
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

Quote:
Originally Posted by OGRacing View Post
tell me more about this "Scotch bright" process...
Well, for me, its generally how most of my ideas are generated. One glass of scotch, and suddenly I'm much brighter intellectually!
glade is offline   Reply With Quote
Old 12-13-2014, 12:04 AM   #28
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Quote:
Originally Posted by Leafy View Post
You dont really want to adjust the front camber with the FUCA, not enough room in the top of the tire area. Theres a good chunk of weight to be taken out of there though. Just extending the FLCA ~10-15mm is more than enough help in the front of the car for camber. I've pretty much covered all the good ideas that no one else is doing with my arm designs. I've been too busy to actually make a set though. If Keith wants to give em a go though... All thats left is some fixture design.
Quote:
Originally Posted by [email protected] View Post
I'm really not very excited about different lower control arms. But if you've got some drawings to share, it might be interesting to see how you've dealt with the challenges.

For the front uppers, 2.5mm of movement of the upper ball joint is worth about a degree of camber according to our calculations.
I have a workable idea to extend the front lower control arm. I have some pieces to share for anyone that wants to undergo the task. It's a DIY that does not require much work and retains the strength of the OEM design. I lost focus when the NB subframe swap accomplished my goals. Maybe Bob would want to take on the challenge?

It's one of those things that would be tough for FM or other vendors to offer as a service. Kinda like welding on the reinforced sway bar tabs.
k24madness is offline   Reply With Quote
Old 12-13-2014, 09:44 AM   #29
Junior Member

Join Date: Mar 2012
Posts: 322
Total Cats: 23
Default

Space in the wheel well is tight enough, even without moving the top of the tire in..

Bundy, you may talk to Danny George (On Facebook if you have it), he`s a drifter but he`s done a couple interesting thing with the front suspension.
All the FormulaD cars seems to require a very wide front track, and IIRC (could be wrong) Danny made front LCAs and UCAs to widen the track.

You can see how wide it is here;


As far as my understanding goes, they do this for steering angle clearance and to loosen the rear end, but it may hold some interesting info.
M.Adamovits is offline   Reply With Quote
Old 12-17-2014, 11:58 AM   #30
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Quote:
Originally Posted by guttedmiata View Post
Just run bias ply and back your camber off by half.
He wants to go faster not slower.
mcfandango is offline   Reply With Quote
Old 12-17-2014, 12:17 PM   #31
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by mcfandango View Post
He wants to go faster not slower.
Lol everyone knows when you put replace A6's with Avons, add a roll bar, gut it and make more power you go slower.
Leafy is offline   Reply With Quote
Old 12-21-2014, 12:16 PM   #32
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

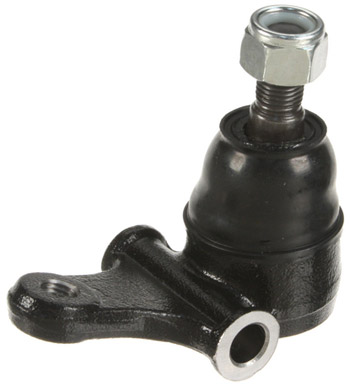

Keith how about making a custom offset lower ball joint? It does not have to move out much (1/4"- 3/8") to gain the extra camber everyone wants. It does not look difficult to achieve. I assume you could just contact a major suspension parts manufacturer and just change the spec a bit.

I bet there would be a broad appeal. Not having to press in bushings is a bonus. Not losing inner tire clearance is another plus.
Attached Thumbnails
Adjustable rear upper control arms from Flyin' Miata-miata-lower-ball-joint.jpg

Last edited by k24madness; 12-23-2014 at 01:28 AM.
k24madness is offline   Reply With Quote
Old 12-22-2014, 08:13 PM   #33
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Problem is a custom lbj thats going to last is going to cost as much as a set of tubular lowers and will increase the forces on the stock lower control arm which someone who was going to break an off the self tubular arm will probably eventually break anyways.
Leafy is offline   Reply With Quote
Old 12-22-2014, 08:33 PM   #34
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
Problem is a custom lbj thats going to last is going to cost as much as a set of tubular lowers and will increase the forces on the stock lower control arm which someone who was going to break an off the self tubular arm will probably eventually break anyways.
Maybe, but I can tell you we bent a lower tubular arm on the very first run at an autocross and the stock arms have held up fine.
guttedmiata is offline   Reply With Quote
Old 12-23-2014, 12:42 AM   #35
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,475
Total Cats: 114
Default

Quote:
Originally Posted by guttedmiata View Post
Maybe, but I can tell you we bent a lower tubular arm on the very first run at an autocross and the stock arms have held up fine.
I really like the way the V8R front lower adjusts as I can make camber and toe adjustments fairly easy and accurately with just a set of hub stands. trying to DIY the adjustments with only the stock inboard camber bolts is a major pain in the **** because caster gets all screwed up and major hard to get them tight without moving them when you are reaching in from the side of the car.

Having said that I don't believe they are as strong as stock and they are slightly heavier than stock. I cracked my first pair within a year and they were replaced. I believe the replacement set has a much thicker wall tube in the tube that cracked.
bbundy is offline   Reply With Quote
Old 02-02-2015, 09:31 PM   #36
Junior Member

Join Date: Oct 2009
Location: Ottawa, ON, Canada
Posts: 84
Total Cats: 5
Default

Did anyone share their designs with FM?
schmoo is offline   Reply With Quote
