Default Anyone have a torsen rebuild guild?

Getting wheel spin like I have an open diff. Saw some spec miata stuff about opening it up and replacing discs. Wanted to see if anyone had a parts list and or a rebuild guild.
jeff_man is offline   Reply With Quote
Old 03-16-2015, 09:44 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

torsen has disks?? pretty sure its all gears
18psi is offline   Reply With Quote
Old 03-16-2015, 10:56 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

lol @ Spec Miata Wisdom™
Savington is offline   Reply With Quote
Old 03-16-2015, 11:10 PM   #4
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

IIRC, there's a Mazdaspeed clutch-pack LSD available that's legal in Spec Miata -- that's probably what he was talking about.

As for your diff, if it's a Torsen and it's not making loud clunking noises then it's fine. If it is making loud clunking noises, then it's junk. There's not much in between.

--Ian
codrus is offline   Reply With Quote
Old 03-17-2015, 12:05 AM   #5
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

I found this and this is what I'm going on.

jeff_man is offline   Reply With Quote
Old 03-17-2015, 08:25 AM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Isn't that the Fuji diff in that video. AIUI the fuji diff has small clutch plates to add pre-load to the diff, this means that you get drive even when 1 wheel has no torque.

The Torsen's actual limiting slip mechanism is all through gears, it can't wear out, they either work, or the entire differential is pretty much destroyed.

richyvrlimited is offline   Reply With Quote
Old 03-17-2015, 08:56 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

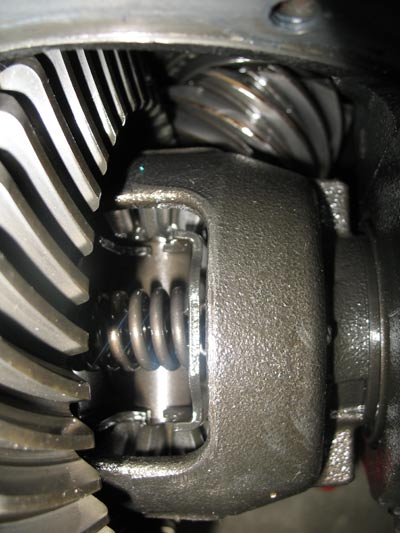

The super fuji looks like an open with a large spring inside it. no hexicoil gears.



but that still doesn't mean what's in the video are clutch plates.
Attached Thumbnails
Anyone have a torsen rebuild guild?-img_1052.jpg
Braineack is offline   Reply With Quote
Old 03-17-2015, 10:48 AM   #8
Junior Member

Join Date: Aug 2010
Location: Texas
Posts: 162
Total Cats: 11
Default

Torsen units are a mechanical system, but part of that system is frictional force. Here's a great video that describes this:


While those pieces may not technically be clutches, they are part of the process for adjusting bias ratio. It also makes sense that they can wear out over time, reducing the TBR.

From Torsen FAQ: "Since performance (torque bias ratio or TBR) is a direct function of the unit’s internal resistance to differentiate, changing the resistance will change the TBR. Most of this resistance comes from the gear design itself, and cannot be altered. However, there are other frictional factors that can. One of these factors is the friction coefficient of the washers, which the side gears thrust against when torque is applied. We use a variety of different washer types to adjust the TBR. Higher friction washers include plain steel, steel with nickel plating or FNC heat treating, and hardened bronze. To reduce friction, we also use needle bearings as well as washers with a Teflon-based coating."

Not that I'm claiming to be an expert or even knowledgable. It's just an interesting subject to me.

robert
robertcope is offline   Reply With Quote
Old 03-17-2015, 11:03 AM   #9
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

mgeoffriau is offline   Reply With Quote
Old 03-17-2015, 12:12 PM   #10
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by mgeoffriau View Post
I love you guys
jeff_man is offline   Reply With Quote
Old 03-17-2015, 01:29 PM   #11
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Just pull the e-brake about half way and be done with it for a lap or two, then replace rear brake pads and repeat.
fooger03 is offline   Reply With Quote
