Default Bad Pedal Feel, possibly parking brake related?

So I swapped out for new pads (DTC-60's) and my pedal feel has gone to ****. Stock ABS brakes ('99), and the pedal is spongy for the first 1-2" of travel and then rock solid. Pedal spongyness does not get better if the brakes are pumped, and once the rock solid point is reached the car stops fantastically. Spongy travel does not change at all, under track conditions or regular road driving. I had this problem initially when I bought the car, and finally had it fixed last year with the set of HP+ I had. I bled the brakes (including cycling the ABS with the TBS + Ground jumpered in the diag box) using the 2 person method and have no air left within the system.

I can't remember what fixed it the last time, but I think I wound up setting the rear parking brake adjusters tighter than most seem to recommend (tight then back off 1/3rd turn). I did adjust both the slack at the pedal as well as the parking brake, combined with endless amounts of bleeding. How concerned should I be about a bit of drag on the rear pads? I think what I'm feeling is the rear brakes being too loose on the adjustment, resulting in excessive travel of the caliper. I'm going to try only backing them off a 1/4 turn and see if that makes a difference, I'm just concerned with the drag on the pads.
TrueChaos is offline   Reply With Quote
Old 05-06-2016, 02:13 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

You may find that winding them in to tight is now more than a one third turn. New pads should be seated and then the parking brake re-set.

I normally only do a 1/4 turn on the readjusting and have never hit a problem.
olderguy is offline   Reply With Quote
Old 05-06-2016, 02:57 PM   #3
Newb
Thread Starter

Join Date: Aug 2011
Posts: 5
Total Cats: 0
Default

Makes sense, will adjust and report back. When you say the pads should be seated, is this as simple as pressing the brake pedal or should it involve bedding the pads? I bled the brakes then adjusted the ebrake, wondering if that's enough or if I should always do the ebrake again after bedding pads.
TrueChaos is offline   Reply With Quote
Old 05-06-2016, 03:16 PM   #4
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

The piston should self adjust. The parking brake adjustment is for adjusting the parking brake.

Even if you don't adjust the parking brake at all, you should be able to pump the brakes and bring the piston out to where it should be. The hand brake will feel like garbage and may not hold, but the pedal should feel fine. I don't suggest doing it this way, just making a point. I think something else is going on.
williams805 is offline   Reply With Quote
Old 05-06-2016, 04:42 PM   #5
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by TrueChaos View Post
Makes sense, will adjust and report back. When you say the pads should be seated, is this as simple as pressing the brake pedal or should it involve bedding the pads? I bled the brakes then adjusted the ebrake, wondering if that's enough or if I should always do the ebrake again after bedding pads.
I readjust after bedding. And as Williams805 says, there could be something else going on there.
olderguy is offline   Reply With Quote
Old 05-06-2016, 06:31 PM   #6
Newb

Join Date: Jun 2015
Posts: 17
Total Cats: -1
Default

How are your rotors? I've fixed spongy brakes on two cars (one on a miata, after adjusting everything, bleeding well, replacing master and replacing hoses) by replacing excessively worn rotors. Sounds retarded I know. I assume it's excessive pad travel to hit the worn rotor, although I'm Well Aware of how hydraulic brakes self adjust.
Mazdated is offline   Reply With Quote
Old 05-06-2016, 07:09 PM   #7
Newb
Thread Starter

Join Date: Aug 2011
Posts: 5
Total Cats: 0
Default

Quote:
Originally Posted by Mazdated View Post
How are your rotors? I've fixed spongy brakes on two cars (one on a miata, after adjusting everything, bleeding well, replacing master and replacing hoses) by replacing excessively worn rotors. Sounds retarded I know. I assume it's excessive pad travel to hit the worn rotor, although I'm Well Aware of how hydraulic brakes self adjust.
Rotors are brand new.

Trip report: One caliper needed a full 3 turns to tight, backed off 1/4 turn and re-set. I could spin the wheel with the parking brake engaged before the readjustment. The first stop felt great, after that it returned to mushyness. Jacked it back up, set the parking brake, and I can spin the one wheel again... not easily, but it's possible, and if I can do it by hand it's clearly backing off of the adjusted point. Regardless of feel, it'll still lock the wheels at 80mph on mostly dead 225 rs3's.

Looks like I'm in for my 3rd rebuilt caliper on that side. Replaced both rears due to age, the next time I did brakes I had fluid in the adjuster area so time for another rebuilt caliper, and now this. I will say the adjuster on that side seemed to bind frequently when adjusting, so I guess I shouldn't be too surprised. I was checking temps coming off the track with an IR thermometer and both rears were pretty even. I've got a track day on monday though, time to see if I can get a caliper tomorrow.
TrueChaos is offline   Reply With Quote
Old 05-06-2016, 07:17 PM   #8
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

You've buggered the end of the adjuster. They're soft (brass?) so they won't bugger up the gear. Not sure if you can replace the adjuster without getting a new caliper.

Edit: Yes, you can. P/N BW0H26733. About 8 bucks a pop.
rleete is offline   Reply With Quote
Old 05-06-2016, 07:20 PM   #9
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

How's your rotor runout? Are you getting pad kickback?
hornetball is offline   Reply With Quote
Old 05-06-2016, 07:50 PM   #10
Newb
Thread Starter

Join Date: Aug 2011
Posts: 5
Total Cats: 0
Default

Quote:
Originally Posted by rleete View Post
You've buggered the end of the adjuster. They're soft (brass?) so they won't bugger up the gear. Not sure if you can replace the adjuster without getting a new caliper.

Edit: Yes, you can. P/N BW0H26733. About 8 bucks a pop.
The end of the adjuster is fine, I pulled it to double check when I realized I had to re-tighten the caliper. The problem is that it seems to bind after around a turn or so, at which point I need to put a bit of weight behind it to get it past whatever is causing the bind. Once it's past whatever is binding it, It'll spin freely for another half to full turn, rinse and repeat. I had the adjustment set properly (tight to the point where you can't spin the wheel, then back off a 1/4-1/3rd of a turn. With this method I can spin the wheel with a minor amount of drag with the parking brake off, and can't spin it at all with the parking brake engaged. After going out and doing a few hard stops, waiting for the brakes to cool, jacking the car and setting the ebrake I can turn the wheel by hand again.

Hornetball - Rotors were new when I installed the pads, and have a single trackday on them now. I don't have a runout gauge - if runout was the issue wouldn't I be getting a decent amount of vibration? I'm not noticing and shaking / vibration under hard braking. As for pad kickback - wouldn't that be solved by pumping the brakes? A few pumps doesn't change the pedal height - and I'm getting some braking force from the spongy start of the pedal.

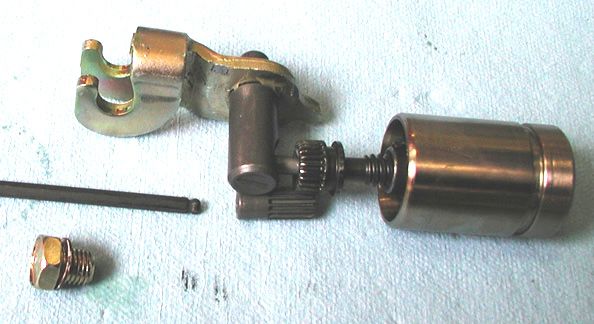

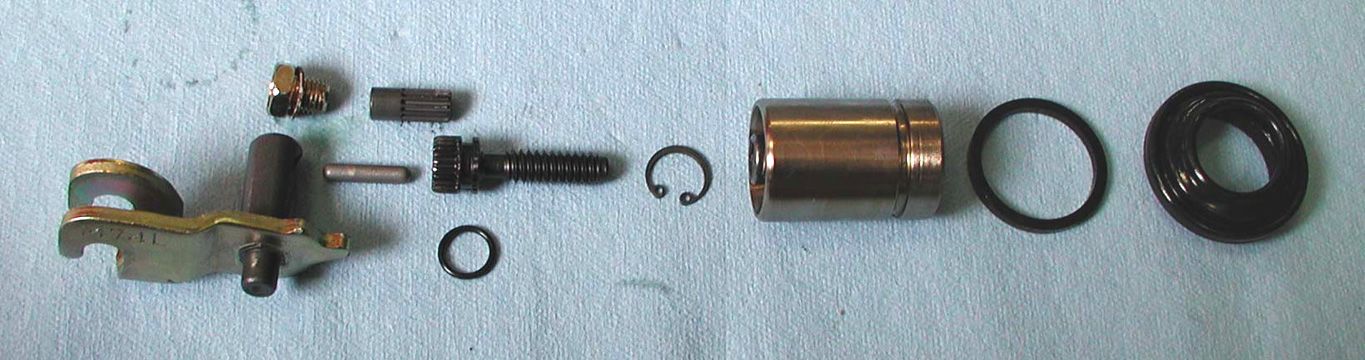

I get the impression that the screw driving the piston forward (and responsible for holding it forward) has worn, and when things heat up the piston can 'skip' over the threads. See:


&
Attached Thumbnails
Bad Pedal Feel, possibly parking brake related?-80-figurej_615a57bb70f75c20b7e2933935aa369d7943f911.jpg   Bad Pedal Feel, possibly parking brake related?-80-figurel_248d9b22ef3af60ede89e89b36ac7c319e9c2452.jpg
TrueChaos is offline   Reply With Quote
Old 05-06-2016, 09:22 PM   #11
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 873
Total Cats: 93
Default

Is there a special procedure for bleeding ABS cars?
acedeuce802 is offline   Reply With Quote
Old 05-06-2016, 09:35 PM   #12
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Quote:
Originally Posted by TrueChaos View Post
The problem is that it seems to bind after around a turn or so, at which point I need to put a bit of weight behind it to get it past whatever is causing the bind. Once it's past whatever is binding it, It'll spin freely for another half to full turn, rinse and repeat.

I get the impression that the screw driving the piston forward (and responsible for holding it forward) has worn, and when things heat up the piston can 'skip' over the threads.
Sounds to me like the threads in the piston are hosed. Since the screw looks okay, I'd assume the other mating thread is the culprit. Stripped out, worn out or just plain the wrong size. Hence the bind/unbind as the screw turns in the piston.
rleete is offline   Reply With Quote
Old 05-08-2016, 02:34 PM   #13
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

I fought with the adjusters until I ditched em. I would adjust em and pedal would be high and solid. Slowly through the track session the pedal would drop. I would readjust and all was good again. I followed the advise of local spec Miata guys and gutted the parking brake stuff inside the caliper. Problem solved!
k24madness is offline   Reply With Quote
