Old 10-18-2009, 05:58 PM   #41
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Thumbs up

Quote:
Originally Posted by Savington View Post
Ducting is key. I still crack Corrado rotors, but the ducting means I can run ATE and not worry about boiling it off.
Just found this:
Triple-R: Dedicated brake ducting

Are RX7 hubs the same/would this fit?
Laur3ns is offline   Reply With Quote
Old 10-23-2009, 09:55 PM   #42
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Alright, I figured this was a good place to dump my retarded question.

So, what advantage save increased mass/cooling area do the Corrado rotors in the M-Tuned brake kit offer compared to just the stock 1.8 set? I understand pad size stays the same, so the overall friction area remains equal yes?
albumleaf is offline   Reply With Quote
Old 10-23-2009, 10:35 PM   #43
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

The fact that the rotor diameter is larger means more braking torque, all else being equal. Geometrically (not thermally speaking), everything else is the same.
ZX-Tex is offline   Reply With Quote
Old 10-24-2009, 01:18 AM   #44
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Ahh, stupid me. I took dynamics, should have thought of that much. Thank you.
albumleaf is offline   Reply With Quote
Old 10-24-2009, 09:54 AM   #45
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If you want to know more, there is a good book called "The Brake Handbook" or something like that. When I designed the braking system on our FSAE car it was my bible.
ZX-Tex is offline   Reply With Quote
Old 10-24-2009, 01:00 PM   #46
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

So someone gave me a set of front RX7 brake calipers for free. They look to me to be a little bigger than dynalites, but not by much. They weigh less than stock calipers as far as I can tell and have 4 pistons. I'm seriously considering a retrofit. It really doesn't look like it'd be impossible. Rx7 Calipers plus corrado rotors would do just fine for me I think at the track.
wayne_curr is offline   Reply With Quote
Old 10-24-2009, 03:48 PM   #47
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Contact TravisR or Savington from Track side engineering, there might be a market for brackets for these calipers, they can be had for very cheap.
curly is offline   Reply With Quote
Old 10-24-2009, 03:51 PM   #48
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I think there was a member that fitted a set, I want to say it was reddroptop...the guy with a mirrored image of his classic red in his sigline.

It would have been almost a year ago.
gospeed81 is offline   Reply With Quote
Old 10-24-2009, 04:01 PM   #49
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
Contact TravisR or Savington from Track side engineering, there might be a market for brackets for these calipers, they can be had for very cheap.
Wilwood Disc Brakes 120-3277 - Wilwood Dynalite Series Brake Calipers - Overview - SummitRacing.com

beat that. Savington's kit is the way to go.
hustler is offline   Reply With Quote
Old 10-24-2009, 04:09 PM   #50
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Mazda RX7 Turbo II/GTU Aluminum 4pot calipers w/pads:eBay Motors (item 160359401320 end time Oct-29-09 21:01:01 PDT)

Two for the price of one. Found some cheaper ones but they were dirtier, and I figured they wouldn't be good enough for you. I'm just saying they can be had for cheap, at least cheaper than brand new ones (free if you're wayne curr) and a mounting bracket should be similar.
curly is offline   Reply With Quote
Old 10-24-2009, 04:20 PM   #51
Junior Member
iTrader: (10)

Join Date: Jan 2008
Location: SF Bay Area
Posts: 291
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
^ That's a link to a single piston caliper. You want something like this:
4-piston caliper

Still a pretty good price.
bryanlow is offline   Reply With Quote
Old 10-24-2009, 04:26 PM   #52
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
That caliper is for unvented dics. Im sure Sav uses something else.
Laur3ns is offline   Reply With Quote
Old 10-24-2009, 04:35 PM   #53
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

ease up bitches, I'm drunk as ****.
hustler is offline   Reply With Quote
Old 10-24-2009, 04:45 PM   #54
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

12:30 on a Saturday afternoon? Really Hustler?
curly is offline   Reply With Quote
Old 10-24-2009, 04:57 PM   #55
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
12:30 on a Saturday afternoon? Really Hustler?
You can't drink all day if you don't start in the morning.
hustler is offline   Reply With Quote
Old 03-16-2010, 06:36 PM   #56
Newb

Join Date: Dec 2007
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Doppelgänger View Post
Rmember that your tire choice has a lot to do with how well your brakes work. One might easily fade HPS at AutoX with DOT-R tires while another may be just fine on a track with far less aggressive tires (like Falken FK452s)..also depends on the track.

I know at Road Atlanta, my sport brakes with HP+ pads and ATE super blue I was able to get fade pretty easilty for 10a when trying to slow from 130mph 50mph and at Talladega Grand Prix(much smaller track) I barely got fade. I finally got some stainless lines, new HP+ pads and fresh fluid in there and couldn't fade the brakes at TGP the last time I went out there. Mind you this was all on Hankook Z211 C50 compound slicks. If I had been on a more streetable tire like Azenis, Z1 SS, RS-2..I probably wouldn't have had any problems at all.

But for ****'s sake, I have since installed a Brembo GT kit consisting of 12.5" rotors and 4 piston calipers
When you wrote "I finally got some stainless lines, new HP+ pads and fresh fluid in there and couldn't fade the brakes at TGP the last time I went out", did you mean to say something besides HP+? It looks like you said the only difference was your lines between the two setups. I didn't think lines made any difference besides "pedal feel".

Did you mean to say Hawk Blue instead of HP+?
spacejunkiehsv is offline   Reply With Quote
Old 03-16-2010, 07:32 PM   #57
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Here is a good picture of the RX7 Calipers on an E30. Pretty common upgrade in their camp. I still haven't even eyeballed the calipers on the miata spindle so I'm not sure how they'll mount or if it will be easier or more difficult than this E30 application.

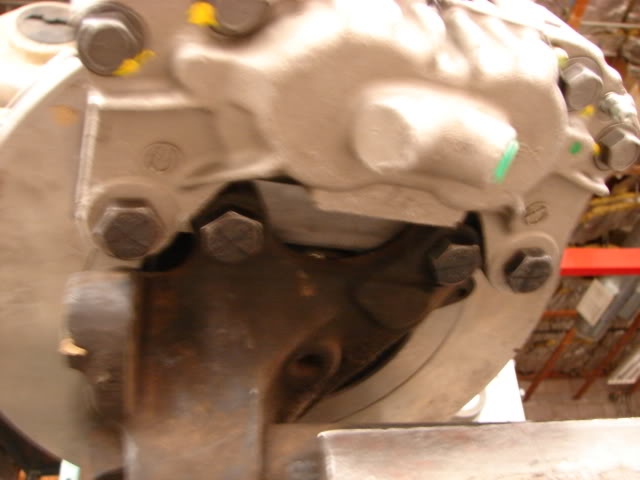

Here is the back of the caliper installed
Name:  DSC07384.jpg
Views: 25
Size:  34.7 KB
And the bracket.
Name:  DSC07392.jpg
Views: 46
Size:  33.6 KB

It cant possibly be that easy in a Miata.

Edit:

And another pic of them on a volvo.
