I started the assembly of my rear today, pinion preload is set to 12 in-lbs rotational torque using Weir performance solid pinion spacer kit. Backlash is set to around .0035"

I checked my contact pattern as i changed to a 3.636 R+P, i reused my distance spacer to see where i stand for pinion depth, this is what i got

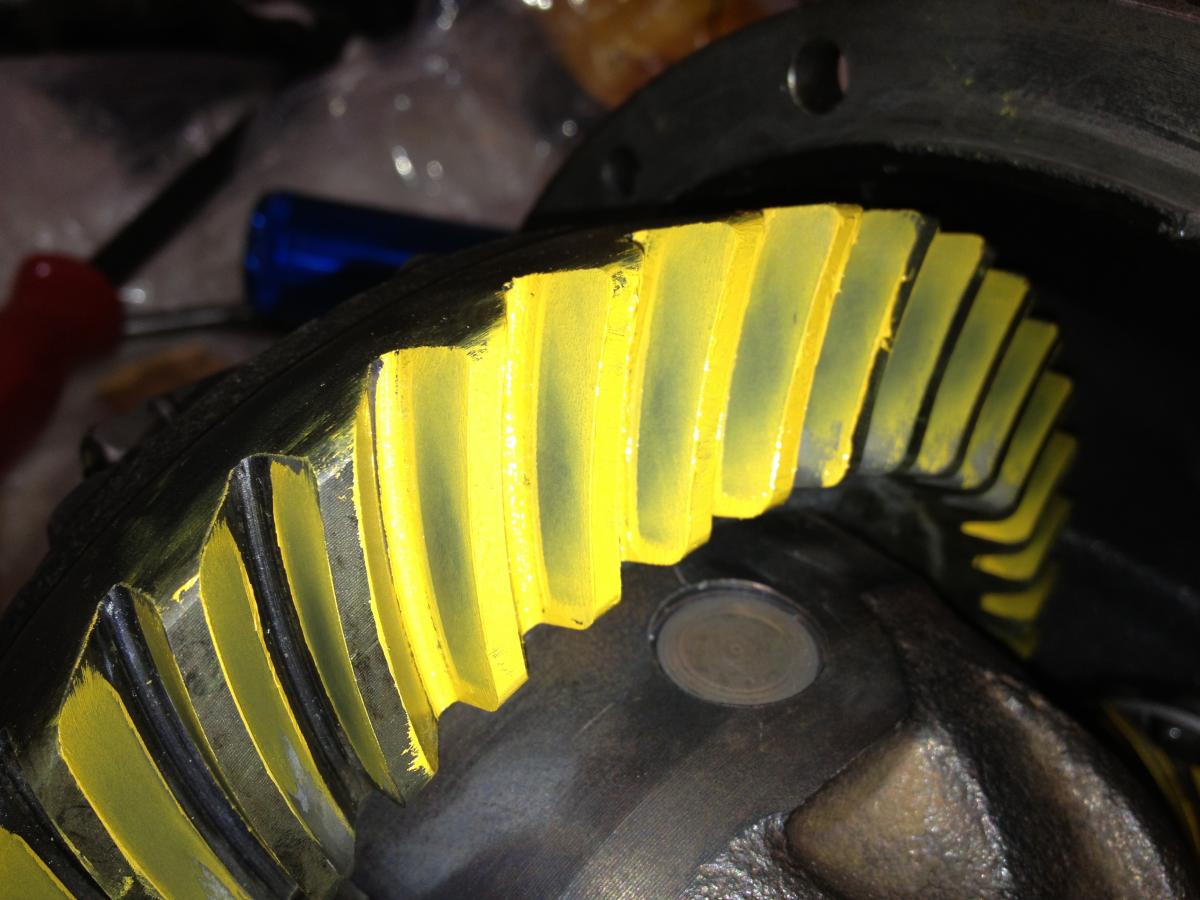

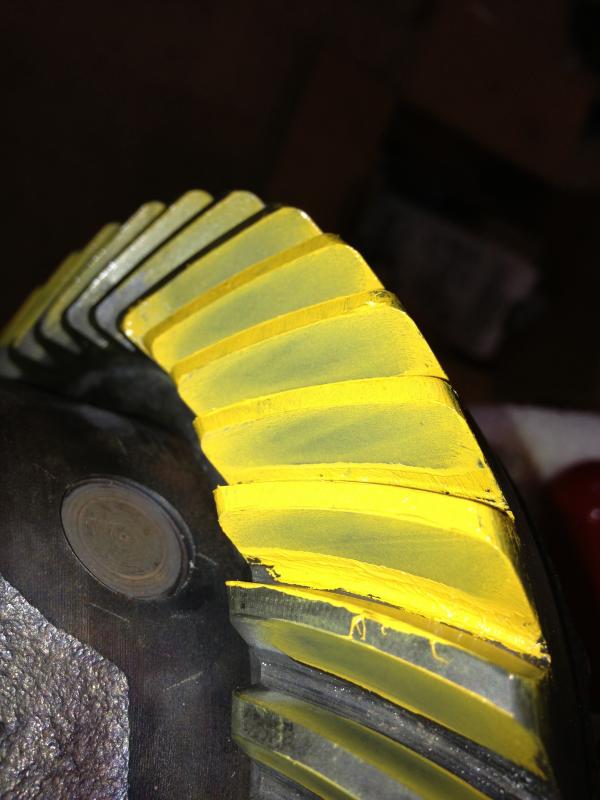

DRIVE SIDE

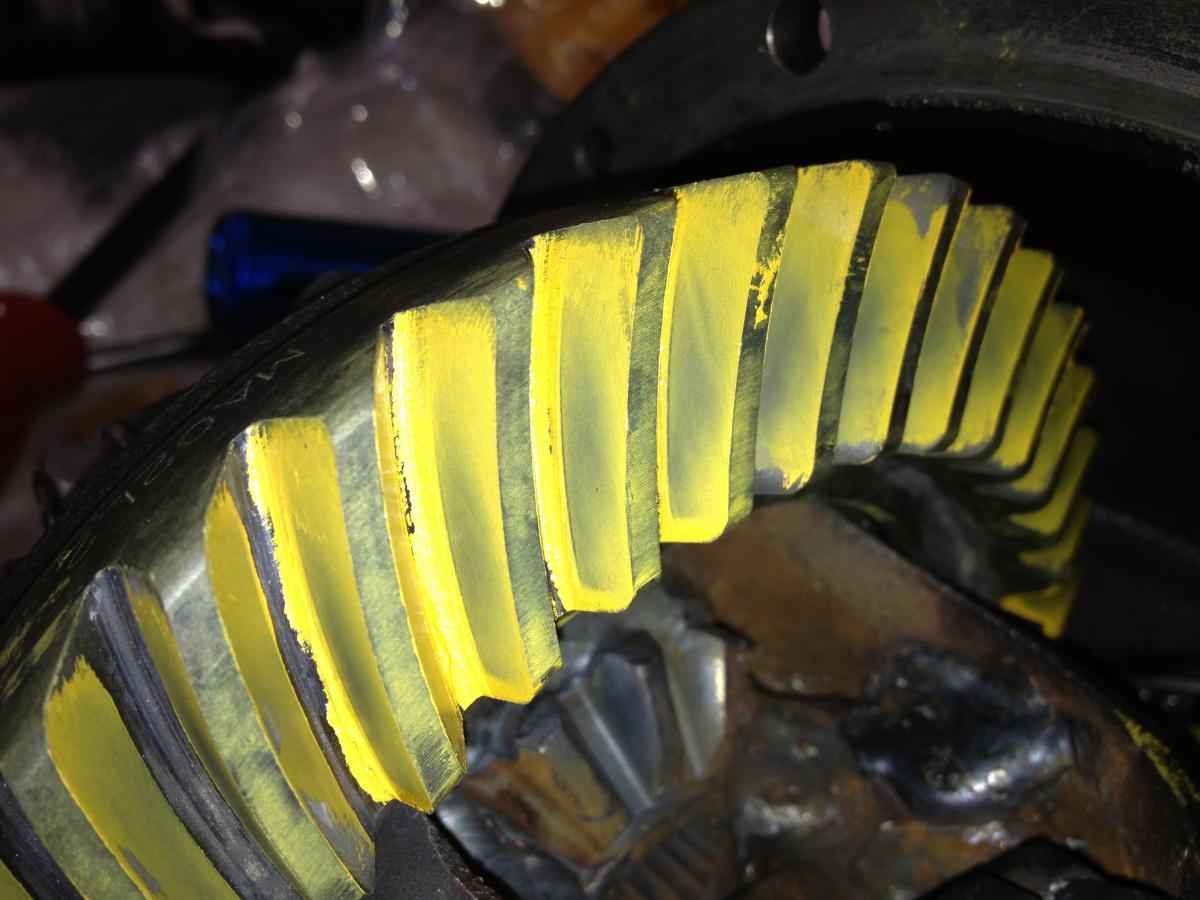

COAST SIDE
Attached Thumbnails
Check my contact pattern-img_0221.jpg   Check my contact pattern-img_0222.jpg   Check my contact pattern-img_0222-1_zps91ba064b.jpg   Check my contact pattern-img_0221_zps22494f96.jpg   Check my contact pattern-img_0220_zpsc5f5b8bd.jpg

ctdrftna is offline   Reply With Quote
Old 04-06-2013, 09:18 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Looks great. There's a lot of maths involved in finding the pitch circle, which is where the gears touch. But it's roughly 1/2-2/3rds down the tooth. So that looks good. Follow the writeup on m.net for setting the bearing preload and backlash and you'll be fine.
curly is online now   Reply With Quote
Old 04-06-2013, 09:30 PM   #3
Junior Member
iTrader: (3)

Join Date: Jun 2011
Location: Charlotte, NC
Posts: 277
Total Cats: 24
Default

RussellT94 is offline   Reply With Quote
Old 04-06-2013, 09:38 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Nice link, his contact looks "ideal" to me then.
curly is online now   Reply With Quote
Old 04-07-2013, 08:06 AM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

awsome, your the third to confirm it looks good. I cant believe i didnt have to change the pinion spacer, i thought for sure i would be doing this multiple times to get the pinion depth set right


if anything it looks between performance and ideal. They call it performance because when you load the teeth hard they deflect, So you set the it so when they deflect they make better contact.
