Old 04-20-2008, 11:09 AM   #21
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

my twin plate doesn't even have dowel pins. still light torque. and I run washers between resurfacings because the twins require a .100 step height (mounting surface to friction surface on the flywheel) so when I get a new friction insert, the step is too big and i have to space it up some.
y8s is offline   Reply With Quote
Old 04-20-2008, 11:59 AM   #22
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by tronik View Post
have to remember to bribe you guys with some booze when I do the clutch/diff/ & super to turbo swaps this summer! Had a car with a puck clutch once, I really hated it, but they sure can hold a lot of power..
For payment we accept Big Boobed Blonde Disease Free hookers and a case of Blue Moon for me. Scott would probally want some Fancy Tequila.
shuiend is offline   Reply With Quote
Old 04-20-2008, 03:18 PM   #23
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Quote:
Originally Posted by mrtonyg View Post
Use the correct clutch assembly...that's a rig.

You are risking that clutch assembly coming apart, not to mention the possibility of clutch shudder.



that's a Clutchnet disc and Clutchnet PP. It's called a shim. It's not a rig. The disc itself it too thick that when the throw out bearing is fully pressing the diaphragm down it still cannot lift the friction surface off the disc. Thus it's permanently engaged. Google "pressure plate shim" I'm not the first and won't be the last.

Would I have rather not have had to do it? hell yes. Dropping the tranny twice in one day is not my idea of fun.
Braineack is online now   Reply With Quote
Old 04-20-2008, 03:25 PM   #24
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

geez. glad i didnt buy from them. ebay clutch FTW
Marc D is offline   Reply With Quote
Old 04-20-2008, 03:33 PM   #25
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

the ebay F1 Stage III is a clutchnet disc and PP

the problem isn't the hardware, the problem is Clutchnet failed to say "hey shim your PP ******. now where's my vodka."
Braineack is online now   Reply With Quote
Old 04-20-2008, 03:34 PM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

it hasn't blown up yet?
m2cupcar is offline   Reply With Quote
Old 04-20-2008, 03:39 PM   #27
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

no, but overboost at 1psi is no fun.

New wheel feels perfect, it's in the perfect spot and around corners it feels amazing, smaller diameter helped significantly with the amount of effort my puny arms have to produce.

The issue is a hunting idle after driving, on first start it idles fine, drive around and get up to temp and it hunts....so i got lots of tuning to do still, running a DIY basemap. But I was able to drive it to the store and back and fill it up with 93 octane...so far so good.

dropping it off at a shop tomorrow to fix the exhaust...rattles like the dickens....guess my zipties aren't enough
Braineack is online now   Reply With Quote
Old 04-20-2008, 03:44 PM   #28
Junior Member
iTrader: (2)

Join Date: Jul 2006
Posts: 482
Total Cats: 0
Default

scott, more pictures!!!!! Hey you all wanna help pull my trans out this week sometime???
rappadan is offline   Reply With Quote
Old 04-20-2008, 03:52 PM   #29
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Not really. I sore.

Lars needs to post to picture of the extension we used....collectively we had about 5' of extension rods at our disposal.

I stopped taking pictures...after we finally got mine running, we installed EBC on lars' and got him hitting 13psi dropping to around 11.5psi at redline (best we could do).

then i spent all night cleaning the garage and didnt leave until after 10pm; started at 7:30am.
Braineack is online now   Reply With Quote
Old 04-20-2008, 03:56 PM   #30
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
I read about somebody else installing one of these and was provided shims (washers) to increase the pp clearance.

That was me...and by provided shimms, I mean I wen to Lowes and took some. (c'mon, they were not even in bags. That would mean that they were free...right?)

Still working fine over here, 2,000 mi later.
coastertrav is offline   Reply With Quote
Old 04-20-2008, 04:57 PM   #31
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by rappadan View Post
scott, more pictures!!!!! Hey you all wanna help pull my trans out this week sometime???


When you plan on doing it Dan? I will help if it is one night after work and if you got all the right tools. Send me a pm.

Lars
shuiend is offline   Reply With Quote
Old 04-20-2008, 04:59 PM   #32
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

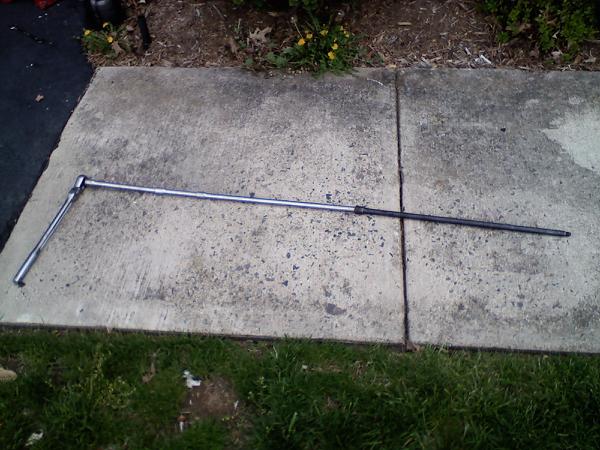

watch your ***:
Attached Thumbnails
Clutch Pwned Me. Then I Pwned it.-downsized_0419081753.jpg
Braineack is online now   Reply With Quote
Old 04-20-2008, 05:15 PM   #33
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

^^^^^
hahaha


So un-necessary but whatever works.
Savington and I did 2 transmission swaps in miatas and a GT3076r install on my STi all in one night, not the most fun. And the day before we had done a clutch install.
crashnscar is offline   Reply With Quote
Old 04-20-2008, 05:33 PM   #34
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

been there on the twice in one day. or maybe it was two days. the point = sucks *****.

also use the same kind of extension setup. but I use it with my light duty impact. sometimes it makes like a broken helicopter and smacks things, but it's not too strong so it doesn't hurt much.

Here's the BOMB of tranny R&R:


http://www.harborfreight.com/cpi/cta...emnumber=31203

stack those 3/8" bitches from shortest to longest with a 17mm on one end and a flex handle on the other and it's money. you can also just throw the 1/4" ones in the trash so they dont break when you use them the first time.
y8s is offline   Reply With Quote
Old 04-20-2008, 05:51 PM   #35
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

we only used the one extension with a swivel 17mm and 14mm bit, super easy. removing it is the easiest part.
Braineack is online now   Reply With Quote
Old 04-20-2008, 06:18 PM   #36
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post



that's a Clutchnet disc and Clutchnet PP. It's called a shim. It's not a rig. The disc itself it too thick that when the throw out bearing is fully pressing the diaphragm down it still cannot lift the friction surface off the disc. Thus it's permanently engaged. Google "pressure plate shim" I'm not the first and won't be the last.

Would I have rather not have had to do it? hell yes. Dropping the tranny twice in one day is not my idea of fun.

Scott,

1- Did you use machined shims or regular washers? Those look like regular stamped washers.

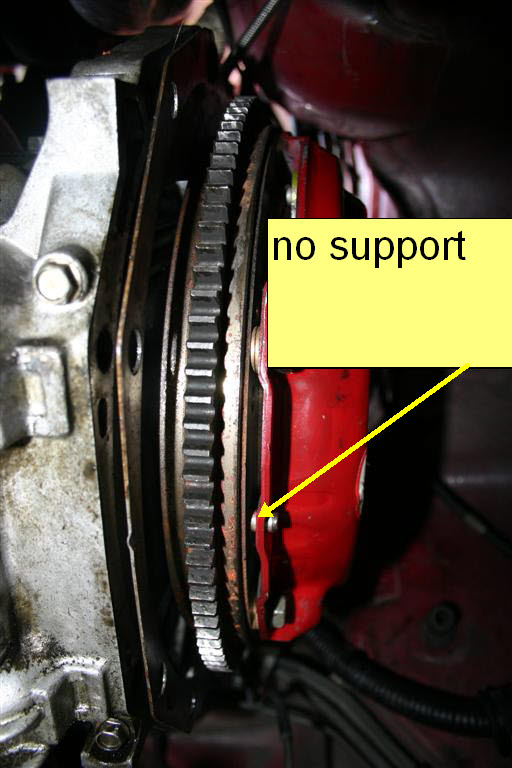

2- Since you had to use the shims, the dowel pins should have been shimmed also. The contact points of the pressure plate in the dowel pin area are meant to be used as a support. Here is what I mean:


Clutch Pwned Me. Then I Pwned it.-shims.jpg

Last edited by mrtonyg; 04-20-2008 at 06:59 PM.
mrtonyg is offline   Reply With Quote
Old 04-20-2008, 06:23 PM   #37
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

ok- I'll the first one to admit tony is right about shimming everything. I missed that- and I shimmed everything when I did the fidanza- they included enough shims for two at each bolt and pin point. - rob
m2cupcar is offline   Reply With Quote
Old 04-20-2008, 06:25 PM   #38
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

and i'll say this again: there are no dowel pins on my clutch
y8s is offline   Reply With Quote
Old 04-20-2008, 06:43 PM   #39
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

and I'll say that every mating surface needs to be shimmed
m2cupcar is offline   Reply With Quote
Old 04-20-2008, 06:56 PM   #40
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

Quote:
Originally Posted by m2cupcar View Post
and I'll say that every mating surface needs to be shimmed

Exactly!

Tony
mrtonyg is offline   Reply With Quote
