Old 01-20-2009, 02:55 AM   #41
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post
yes 27 ft / lbs. ive read the install about 5 times for the clutch job. my act ZM2-XTSS and prolite flywheel should be here thursday. this will make for a fun install. Btw did u replace any of the accesable seals?
I put in the 10 lb fly, 6 puck and rear main, new coolant plug, New TOB and pilot, input shaft seal, rear transmission seal, cas seal Might as well while you have it all off trust me it sucks taking it all right back off
turbobluemiata is offline   Reply With Quote
Old 01-20-2009, 08:34 AM   #42
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Call me crazy, but it looks like the clutch disc is too big and will hit the inside of the pressure plate wall from the pictures shown.

On a 1.8, a six puck does not go all the way to the outside diameter as shown on your 1.6. I don't have a 1.6 setup around to compare or I would check it.

Anybody?
olderguy is offline   Reply With Quote
Old 01-20-2009, 12:13 PM   #43
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

it does look a bit on the large side, but it is hard to imagine that he would get the correct plate and not the right disc

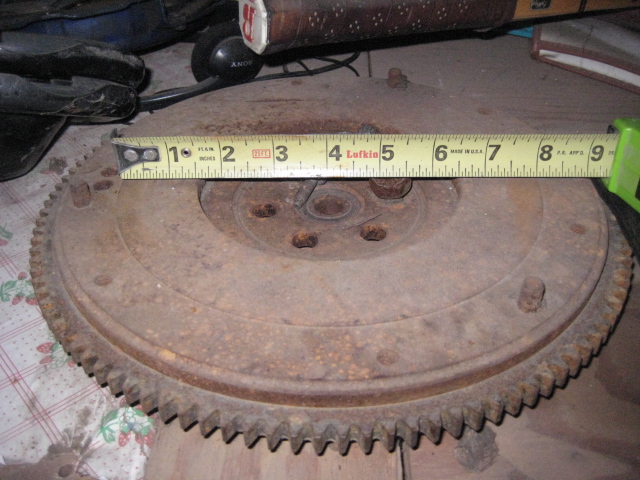

I just went out and measured a 1.6 flywheel I have sitting in my shed, looks like the mating surface is 8" across (or more, looks like i didnt center the tape well). I think you should get in touch with someone who can measure these parts for you so that you can verify weather or not you have the right parts.
Attached Thumbnails
clutch slave help!-turbo-parts.jpg
akaryrye is offline   Reply With Quote
Old 01-20-2009, 03:09 PM   #44
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Looks big to me too. My disk has about a 1/8'' gap all the way around when layed on the PP and flywheel. That one seems to hang off the sides.
NA6C-Guy is offline   Reply With Quote
Old 01-20-2009, 03:56 PM   #45
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Well I know I ordered a 1.6 disc from ACT direct and the pp was purchased from someone on here with a 1.6? and when I measure the pp its a little bit over 7 3/4" and the disc is slightly under and the flywheel is right at 8", also I didn't have them lined up exactly when I took that one picture? But I dunno it seems like the disc lays perfectly on the PP
turbobluemiata is offline   Reply With Quote
Old 01-20-2009, 04:13 PM   #46
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

well i took it off again and the disc definitely measures 7 3/4" and PP 7 7/8" and flywheel right at 8
turbobluemiata is offline   Reply With Quote
Old 01-20-2009, 04:16 PM   #47
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

But I cant really figure out how to torque the bolts correctly It takes more than 27 ft lbs to pull the PP to the flywheel?
turbobluemiata is offline   Reply With Quote
Old 01-20-2009, 04:24 PM   #48
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Only thing I could think of is the PP frozen up or in a bind. Ive never seen a faulty PP in that respect, but thats the only thing I can think of that wouldnt let the PP pull up tight to the flywheel. Maybe force the fingers on the PP down and tighten the bolts? But again, Ive never heard of this before, so I dont know. Strange problem, Im curious to see what it ends up being.
NA6C-Guy is offline   Reply With Quote
Old 01-20-2009, 04:59 PM   #49
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Try putting the PP on without the disk. See if it goes on flat then.
patsmx5 is online now   Reply With Quote
Old 01-20-2009, 05:30 PM   #50
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

I can tighten it down flat but It takes a 1/2" ratchet?
turbobluemiata is offline   Reply With Quote
Old 01-21-2009, 03:04 AM   #51
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Do the bolts thread smoothly into the flywheel holes? This is puzzling. Maybe its a manufacturing flaw, holes may be out of alignment or something. Any little thing could cause a big pain in the ***.
NA6C-Guy is offline   Reply With Quote
Old 01-21-2009, 03:37 AM   #52
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

I can turn them in by hand smoothly then turn them with a ratchet easily til their is a gap like the first set of pics I posted, then It takes a bit of effort to pull the PP against the flywheel, but I fixed the clutch fork and I'm just gonna tighten the bolts back up as best as possible and see what happens
turbobluemiata is offline   Reply With Quote
Old 01-21-2009, 07:31 AM   #53
Junior Member

Join Date: Jan 2006
Location: West Palm Beach Fl
Posts: 242
Total Cats: -2
Default

Maybe thepp cover got bent a little and when you torque it some your putting it back in shape. I think if you find you have a little free movement in the front of the fork to the housing youll be okay
gman3 is offline   Reply With Quote
Old 01-21-2009, 03:24 PM   #54
Junior Member

Join Date: Dec 2008
Location: Ft. Lauderdale, FL
Posts: 273
Total Cats: 7
Default

OK, I'm going out on a limb here, but are you sure you're using the right bolts to mount the pressure plate to the flywheel? If the bolts are too long, they will bottom out, and not tighten pressure plate down. Looks to me like, the disc might be installed backwards. Can you take a picture of the disc from the top looking down, the slimest view, viewed like it would be installed and you were looking up from the ground at it? Not sure if that is the best description.
MX5RACER is offline   Reply With Quote
Old 01-21-2009, 04:05 PM   #55
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Quote:
Originally Posted by MX5RACER View Post
OK, I'm going out on a limb here, but are you sure you're using the right bolts to mount the pressure plate to the flywheel? If the bolts are too long, they will bottom out, and not tighten pressure plate down. Looks to me like, the disc might be installed backwards. Can you take a picture of the disc from the top looking down, the slimest view, viewed like it would be installed and you were looking up from the ground at it? Not sure if that is the best description.
Im using the stock pressure plate bolts and loc-tite the non permanent kind, and the disc has a sticker for the flywheel side so Im sure I have it right this time
turbobluemiata is offline   Reply With Quote
Old 01-21-2009, 06:56 PM   #56
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by turbobluemiata View Post
I can turn them in by hand smoothly then turn them with a ratchet easily til their is a gap like the first set of pics I posted, then It takes a bit of effort to pull the PP against the flywheel, but I fixed the clutch fork and I'm just gonna tighten the bolts back up as best as possible and see what happens
Please don't do that. It would suck if that sucker broke loose and came through the tranny tunnel. Something is definitely off there. I second the too-long PP bolt gig. Measure the hole depth and check. threads buggered?

ps dude, you got nice pink/red grease on your carpet in that pic. Your old lady is gonna kick your ***.
thymer is offline   Reply With Quote
Old 01-22-2009, 02:16 AM   #57
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Its the old pressure plate bolts? and same flywheel so I dont see why that would be wrong and I have a badass carpet cleaner
turbobluemiata is offline   Reply With Quote
Old 01-22-2009, 02:28 AM   #58
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

If you put the PP on the flywheel without the disc, and you use OEM bolts, and it's still rough, the only thing that it's contacting are the dowel pins. Are any of them bent? It could be the photo, but one of them looks tweaked in one of your photos.
Savington is offline   Reply With Quote
Old 01-22-2009, 09:44 AM   #59
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by turbobluemiata View Post
I can turn them in by hand smoothly then turn them with a ratchet easily til their is a gap like the first set of pics I posted, then It takes a bit of effort to pull the PP against the flywheel, but I fixed the clutch fork and I'm just gonna tighten the bolts back up as best as possible and see what happens
Please make sure you take video of this fail.
ArtieParty is offline   Reply With Quote
Old 02-01-2009, 05:45 PM   #60
Senior Member
Thread Starter
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

UPDATE: Well I found out the threads on the flywheel were damaged first off... and the factory clutch flywheel bolts were to long for the new PP and lightweight flywheel, and the shift fork pivot wasnt 100% on so all those together its all put back together and it went back together like it should , but now my ? is do I have to line up the starter any special way???
turbobluemiata is offline   Reply With Quote
