Default Coilover Spring Length

I have a 2003 LS and I'm about to pull the trigger on a set of Bilstein Sports. I've got Allstar sleeves, seats and house-brand springs picked out at Summit. I want to use 400lb front and 275lb rear. I would like to get the hub-to-fender lip measurement at 12.25-12.5" I believe I can get there with a 7" front and 8" rear spring. Does that sound correct?
Brendanj is offline   Reply With Quote
Old 05-04-2013, 11:13 AM   #2
Junior Member

Join Date: May 2009
Location: Dayton, OH
Posts: 291
Total Cats: 12
Default

That's going to be close. Do those sleeves screw all the way down to the perch? My perches only get to within .5" and I needed to go with 6" in the front for 550lb and 7" in the rear for 350lb.
shooterschmidty is offline   Reply With Quote
Old 05-04-2013, 11:53 AM   #3
Newb
Thread Starter

Join Date: Sep 2011
Posts: 23
Total Cats: 7
Default

Quote:
Originally Posted by shooterschmidty View Post
That's going to be close. Do those sleeves screw all the way down to the perch? My perches only get to within .5" and I needed to go with 6" in the front for 550lb and 7" in the rear for 350lb.
Here is a picture of a Bilstein / Allstar combo from elsewhere on this forum.

https://www.miataturbo.net/miata-par...omplete-66803/

Thanks. What height are you at with those rates and lengths? Are the perches as lowest setting now?
Brendanj is offline   Reply With Quote
Old 05-04-2013, 01:41 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

for 475/275

I'd probably go 7/8".
Braineack is offline   Reply With Quote
Old 05-04-2013, 02:53 PM   #5
Newb
Thread Starter

Join Date: Sep 2011
Posts: 23
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
for 475/275

I'd probably go 7/8".
Thank you.
Brendanj is offline   Reply With Quote
Old 05-20-2013, 05:13 PM   #6
Newb

Join Date: Mar 2012
Posts: 3
Total Cats: 0
Default

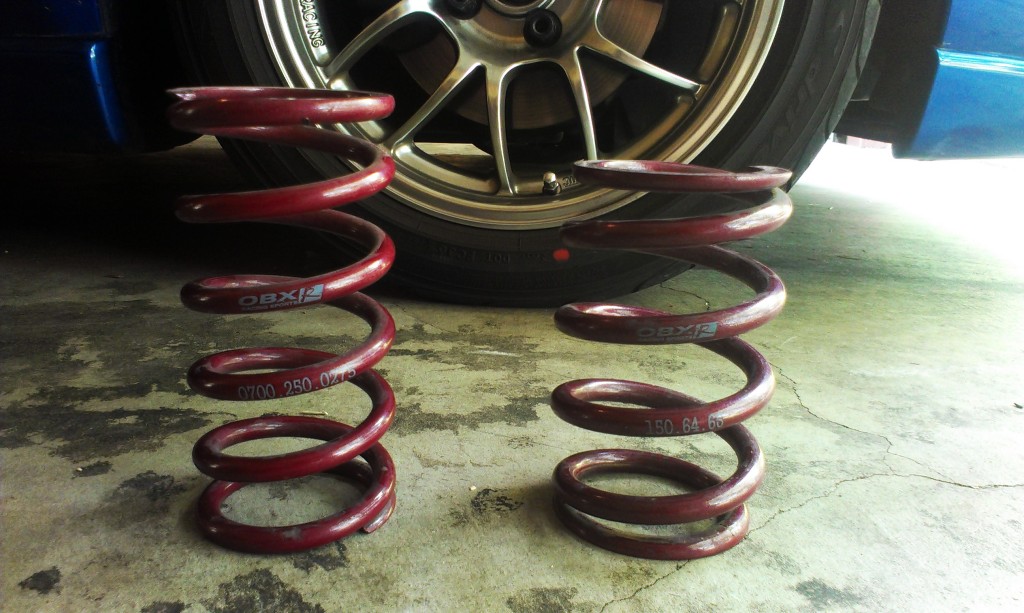

I just removed my obx springs and upgraded to 504/336. The obx were 370/275 and 6"/7" but they actually use much thinner wire than most of the cheaper springs so you get more travel before coil bind. I was at 12.5/12.75 with enough travel to put the tire in the fender liner and didn't get coil bind. I would definitely go 7"/8" to be safe though. My 504 lb front springs are 6" and look dangerously close to coil binding but they are stance springs on ebay because I cheaped out. It really depends on the spring.
Attached Thumbnails
Coilover Spring Length-imag0395.jpg
Shane3 is offline   Reply With Quote
Old 05-23-2013, 02:25 PM   #7
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I had coil bind on 400lb 7" front springs running revalved bilsteins. You might want to try stiffer or slightly taller spring at that rate. I swapped to 500lb 7" and did not have binding issues.

In the rear I ran 250lb 7" and had hella coil bind. Don't run less than 8" if you want under 300lb rear rates. I have since tried 300lb 8" and 180lb 9" with no coil bind issues and I can still adjust the ride height in a reasonable range.
Rallas is offline   Reply With Quote
