Old 02-04-2010, 11:20 AM   #21
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Still thinking out loud. What if you thin out the canard a little in the direction lateral to the car. Then bring the leading edge either close to or touching the deck of the splitter. Then slope or rake the canard to try to blend it's trailing edge with the flare as much as possible within the rules.

Still fixated on trying to smooth the flow around that big meaty tire, especially below the flare. Anyone have a wind tunnel?
webby459 is offline   Reply With Quote
Old 02-04-2010, 11:40 AM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

I like the idea but .....

Is eliminating the tire drag a worthwhile trade off at autocross speeds? I spend a lot of a run with the tire turned anyway, so there is likely a lot of the tire that will be "out in the wind" even if I could effectively shield it in a straight line.

Next year when I cage the car and go faster and straighter for longer it may be more of an issue.

Keep the ideas coming
Chris Swearingen is offline   Reply With Quote
Old 02-04-2010, 01:50 PM   #23
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

Quote:
Originally Posted by Chris Swearingen View Post
I like the idea but .....

Is eliminating the tire drag a worthwhile trade off at autocross speeds? I spend a lot of a run with the tire turned anyway, so there is likely a lot of the tire that will be "out in the wind" even if I could effectively shield it in a straight line.
:
it is not tire drag (at autocross speed) as much as the lift generated by tires. it is true that tires are turned away. but with tire spat, instead of 100% of tire treads not shielded, you have may be 50% of tires shielded.

as you know, at autocross speed, it has to be a BIG wing, and BIG splitter for it to matter, even then, very little. canard really does nothing at these speed imo. it doesn't do much at higher speed either (100mph). they are used for tuning.
bellwilliam is offline   Reply With Quote
Old 02-04-2010, 03:39 PM   #24
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by bellwilliam View Post
it is not tire drag (at autocross speed) as much as the lift generated by tires. it is true that tires are turned away. but with tire spat, instead of 100% of tire treads not shielded, you have may be 50% of tires shielded.

as you know, at autocross speed, it has to be a BIG wing, and BIG splitter for it to matter, even then, very little. canard really does nothing at these speed imo. it doesn't do much at higher speed either (100mph). they are used for tuning.
How do we use them for tuning? The appear to me to be fixed. I would have assumed that they and the splitter were both "set" to produce the most downforce available and that the angle of attack on the rear wing was used for tuning the balance. My "top speed" in second is going from 69 to 74 mph with the gearing change. So we don't see 100, usually closer to 45 but on occasion the forces do build.
Chris Swearingen is offline   Reply With Quote
Old 02-05-2010, 12:39 AM   #25
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

tuning as bigger or smaller canard. some race car use fender size as a tuning device, but it is for 100MPH+ adjustment. I doubt anybody can feel a canard adjustment at 60mph.
Imo, canard adds down force in a Miata, not by the force generated by the device, but from acting as a tire spat, that blocks out air hitting bottom of tires, creating tire lift (which is worse than body lift).

in your case, I would design the canards to block out as much of front tires as possible. both to the side and bottom if possible.
bellwilliam is offline   Reply With Quote
Old 02-05-2010, 06:13 AM   #26
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post


One of my favorite images from SCC. Aint picked up modified yet, maybe next year. GRM is #1 right now I think.

Quote:
Originally Posted by bellwilliam View Post
I doubt anybody can feel a canard adjustment at 60mph. Imo, canard adds down force in a Miata, not by the force generated by the device, but from acting as a tire spat, that blocks out air hitting bottom of tires, creating tire lift (which is worse than body lift).

in your case, I would design the canards to block out as much of front tires as possible. both to the side and bottom if possible.
I like the way you think. I never considered the effect that the tires have on the aerodynamics of the car due to them sticking out behind the bumper.
turotufas is offline   Reply With Quote
Old 02-06-2010, 12:06 PM   #27
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

You've also got to remember that there needs to be support behind the canard. If not, all the force on it is just going to translate to flexing the bumper cover.
Midtenn is offline   Reply With Quote
Old 02-08-2010, 10:31 PM   #28
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by turotufas View Post
One of my favorite images from SCC. Aint picked up modified yet, maybe next year. GRM is #1 right now I think.
Modified is not SCC. SCC went online - here is their new web site:
www.motoiq.com



j_man is offline   Reply With Quote
Old 02-08-2010, 10:35 PM   #29
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks for the above link... Didn't know they moved to that site (well quite a few of the writers/editors).
thagr81 us is offline   Reply With Quote
Old 02-08-2010, 11:24 PM   #30
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

SCC was totally liquidated. Modified got a few contributors and things like the USCC. So its not quite as gay as it used to be. I still refuse to read it do!

That website is cool as **** though. Reminds me of my Nissan days. Eric Hsu, Dave Coleman, and Mike Kojima. Awesome!
turotufas is offline   Reply With Quote
Old 02-09-2010, 06:08 PM   #31
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

Quote:
Originally Posted by turotufas View Post
I like the way you think. I never considered the effect that the tires have on the aerodynamics of the car due to them sticking out behind the bumper.
not just from sticking out behind bumper. but air hitting tires from underneath, and lifting tires off the ground.

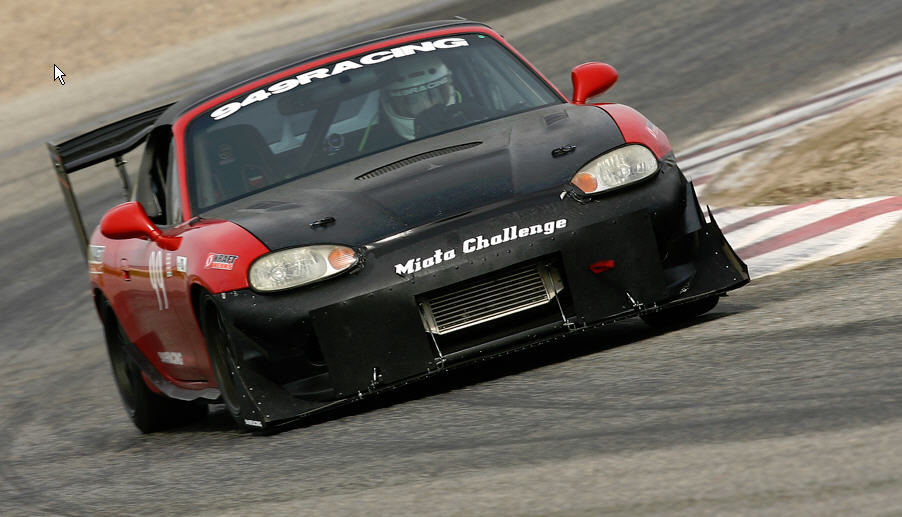

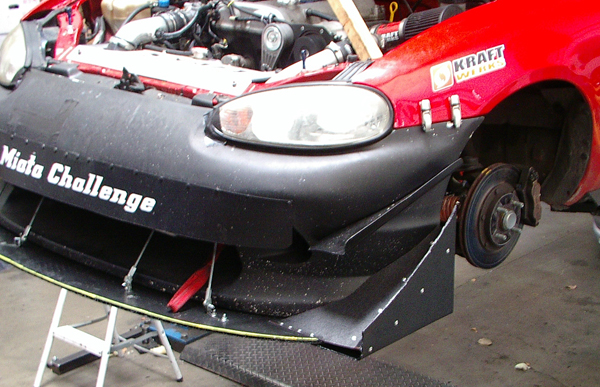

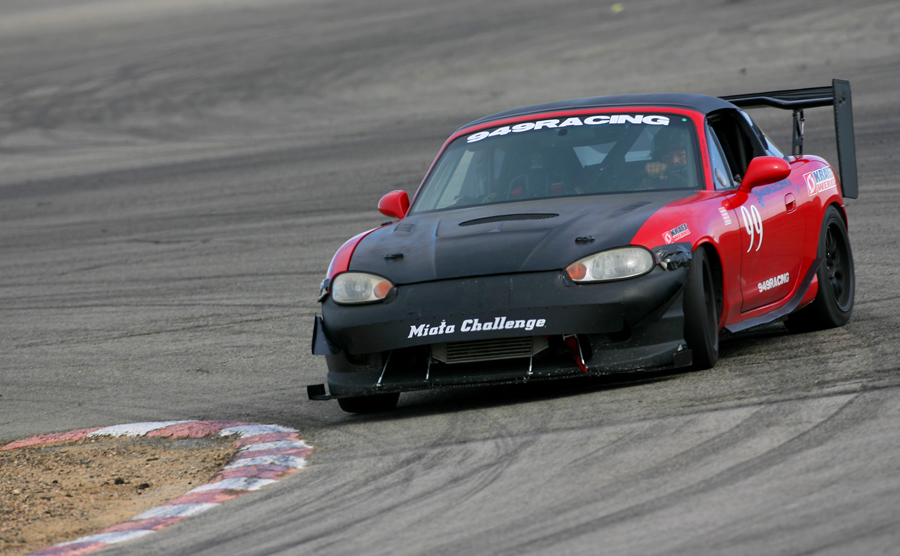

here are some ugly canards, but idea is to use it as a tire spats.

front tire is 13.1% of total drag:
http://autospeed.com/cms/A_2455/article.html

an article on dive plane
http://www.reverie.ltd.uk/Downloads/Aerobytes-Oct08.pdf
Attached Thumbnails
Current state of the art for Canards?-99-miata.jpg   Current state of the art for Canards?-william_nb_diveplane.jpg   Current state of the art for Canards?-william_sow_0110a.jpg

Last edited by bellwilliam; 02-09-2010 at 06:25 PM.
bellwilliam is offline   Reply With Quote
Old 02-09-2010, 07:09 PM   #32
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
Canards

Nissan Skyline Gtr Jgtc Canards
First, the canard redirects the oncoming air's momentum upwards, which causes a downward force on the canard. This is only moderate, since the velocity near the skin is significantly slower than in the free stream.
Yes, flow at the surface of the canard is effectively zero, but at that speed the transition between zero and the "free stream" is going to be tiny. I don't buy that bit.
albumleaf is offline   Reply With Quote
