Differential Type ?? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...

Reply



LinkBack Thread Tools Search this Thread
Old 04-29-2013, 11:09 PM   #1
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default Differential Type ??

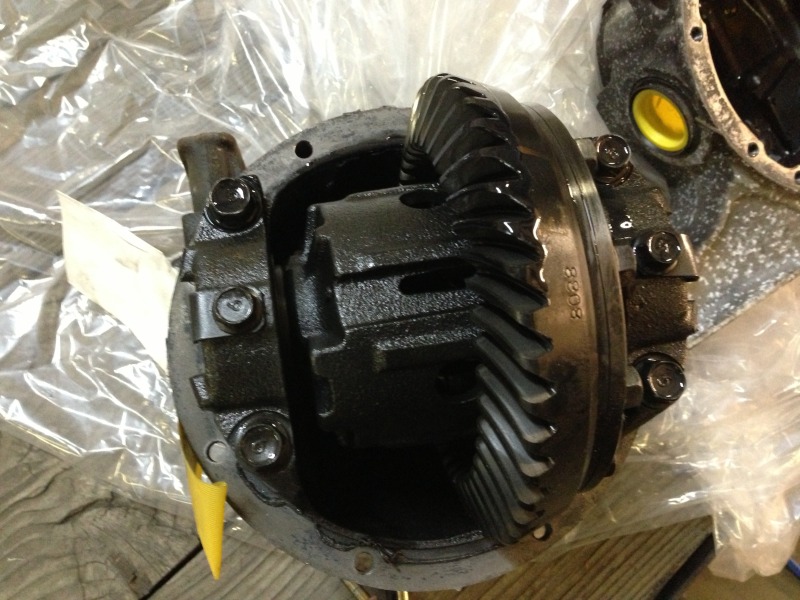

I was wondering if anyone know what type of diff I got here. It acts like open but it doesn't look like one. Is this Torsen ?? Thanks Sean

Attached Thumbnails
Differential Type ??-659577e0-6910-4d31-8193-a7b91c58c11e-4601-0000024e5c1b36cb_zps51263457.jpg
JDMPalace is offline   Reply With Quote
Old 04-29-2013, 11:10 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

If it acts like an open it is an open.
Can't tell anything from pictures
18psi is offline   Reply With Quote
Old 04-29-2013, 11:15 PM   #3
Newb

Join Date: Feb 2012
Location: Québec, Canada
Posts: 19
Total Cats: 0
Default

Torsen type 2 (NB)
David603 is offline   Reply With Quote
Old 04-29-2013, 11:17 PM   #4
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Well, I never actually ran it so I'm not sure how it acts. But just by turning it using my half shafts I can turn one side freely like open. I was told by another person torsen acts like open when it's not under load.

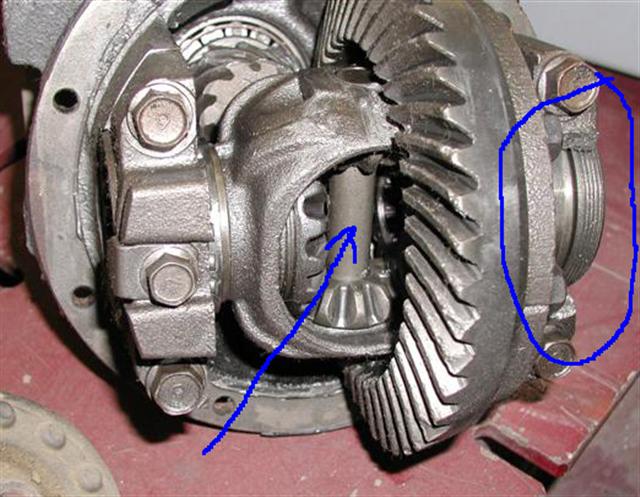

Also most of opens I have seen looks like this,




I will take some better pictures to night.
Attached Thumbnails
Differential Type ??-17.jpg
JDMPalace is offline   Reply With Quote
Old 04-29-2013, 11:20 PM   #5
Newb

Join Date: Feb 2012
Location: Québec, Canada
Posts: 19
Total Cats: 0
Default

Na had

-Open
-Viscous
-Torsen type 1

Nb had

-Open
-Fuji
-Torsen type 2

You have a type 2
David603 is offline   Reply With Quote
Old 04-29-2013, 11:28 PM   #6
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Cool, It's supposed to be torsen, but I was't sure since It was acting like that.

is it better than Fuji or not ??

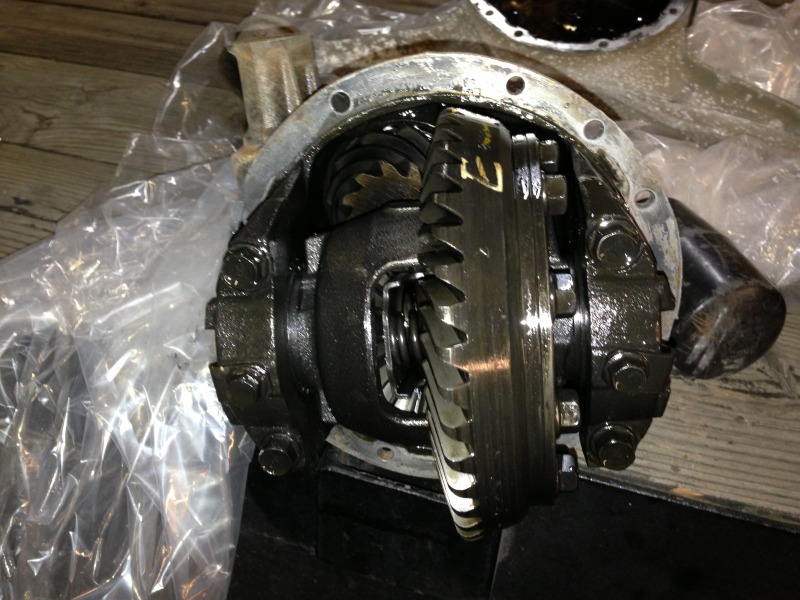

And this one is fuji correct ?

Attached Thumbnails
Differential Type ??-ba3004b0-10be-4388-816b-4f492669ed57-4601-0000024e7839c9d7_zpsa9e86e42.jpg
JDMPalace is offline   Reply With Quote
Old 04-29-2013, 11:36 PM   #7
Newb

Join Date: Feb 2012
Location: Québec, Canada
Posts: 19
Total Cats: 0
Default

Torsen Type 1 and Type 2 will behave like an open diff without load

Don't know if it's better or worst, I've never driven the fuji but since the fuji is a clutch type it will probably need maintenance. The Torsen, on the other side, will not. I don't know the bias differences...

Yes this is a Fuji
David603 is offline   Reply With Quote
Old 04-30-2013, 12:51 AM   #8
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Cool Deal thanks.
Now gotta figure out a price for them, and put them for sale. They are too nice to take apart to install my 3.6 on them.
JDMPalace is offline   Reply With Quote
Old 04-30-2013, 09:14 AM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

So you're gonna sell a diff without confirming what it is and how many miles it has, just based only on what it looks like?
What if its not a Torsen 2? What if its high miles? Or abused? Looks like you got it at pick-n-pull because it still has the tag on it, and are trying to flip it for a profit. Is that the case?

Ugh
18psi is offline   Reply With Quote
Old 04-30-2013, 02:33 PM   #10
Junior Member
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

looks like you have yourself a type 2 torsen. should be 4.30 if from 99-03
graexodus is offline   Reply With Quote
Old 04-30-2013, 02:58 PM   #11
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

99-02 6spd had a Torsen and a 3.9 gear.
04-05 6spd were 4.1
5spd cars had 4.3 IIRC

The T-F diff is not a full clutch type. It has a clutch cone and some torque sensing character to it, I do not know all of the details on it. S2Ks use the same T-F diff IIRC. Some were known to fail, but the T-F being a bad design is way over blown.

I don't know what you have now, but if you have a 3.6 R&P, the T2 would work just fine on it. What are you looking for that you'd rather not take that diff apart?
Doppelgänger is offline   Reply With Quote
Old 04-30-2013, 04:19 PM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by 18psi View Post
So you're gonna sell a diff without confirming what it is and how many miles it has, just based only on what it looks like?
What if its not a Torsen 2? What if its high miles? Or abused? Looks like you got it at pick-n-pull because it still has the tag on it, and are trying to flip it for a profit. Is that the case?

Ugh
sounds like you're quite butthurt.
soviet is offline   Reply With Quote
Old 04-30-2013, 04:20 PM   #13
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Doppelgänger View Post
99-02 6spd had a Torsen and a 3.9 gear.
04-05 6spd were 4.1
5spd cars had 4.3 IIRC

The T-F diff is not a full clutch type. It has a clutch cone and some torque sensing character to it, I do not know all of the details on it. S2Ks use the same T-F diff IIRC. Some were known to fail, but the T-F being a bad design is way over blown.

I don't know what you have now, but if you have a 3.6 R&P, the T2 would work just fine on it. What are you looking for that you'd rather not take that diff apart?
I have a T-F diff and don't have any issues with it.
Fae ran one for ages as well and the Ring & pinion broke before the diff.

If he didn't break it, it's bulletproof.
soviet is offline   Reply With Quote
Old 04-30-2013, 04:25 PM   #14
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
So you're gonna sell a diff without confirming what it is and how many miles it has, just based only on what it looks like?
What if its not a Torsen 2? What if its high miles? Or abused? Looks like you got it at pick-n-pull because it still has the tag on it, and are trying to flip it for a profit. Is that the case?

Ugh

I picked these up with the 6 speed swaps I got, one for my pitcrew and one for race project I'm building. I have an invoice showing the cars had 87K and 101K on them.I already picked up a 3.6 Gear setup from member here so no need to take a apart nice 3.9 setup and istall that specially since I'm using my 2 way. so don't just assume things sir. Thanks
JDMPalace is offline   Reply With Quote
Old 04-30-2013, 04:33 PM   #15
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Quote:
Originally Posted by soviet View Post
I have a T-F diff and don't have any issues with it.
Fae ran one for ages as well and the Ring & pinion broke before the diff.

If he didn't break it, it's bulletproof.

Cool, Thanks.

I just wasn't sure what I got, and yard just says they are LSD and it's not like they open the diffs and see what's inside. They just go by the VIN number. I found out the hard way that I couldn't just install my 96 torsen in my 91 so I ended up getting complete package from them.

I have to take them apart and count the pinion to be sure if they are actually 3.9 or 4.3 since I only counted the ring and it's 43.
JDMPalace is offline   Reply With Quote
Old 04-30-2013, 04:51 PM   #16
Newb
Thread Starter
iTrader: (1)

Join Date: Jul 2011
Posts: 39
Total Cats: 0
Default

Quote:
Originally Posted by Doppelgänger View Post
99-02 6spd had a Torsen and a 3.9 gear.
04-05 6spd were 4.1
5spd cars had 4.3 IIRC

The T-F diff is not a full clutch type. It has a clutch cone and some torque sensing character to it, I do not know all of the details on it. S2Ks use the same T-F diff IIRC. Some were known to fail, but the T-F being a bad design is way over blown.

I don't know what you have now, but if you have a 3.6 R&P, the T2 would work just fine on it. What are you looking for that you'd rather not take that diff apart?
I Picked up my 3.6 set from Samnavy here last year and never used them. I got a Cusco RS 2way so I'm going to swap both of them in a open diff since I have to pay someone to install the 3.6 properly.
JDMPalace is offline   Reply With Quote
Old 04-30-2013, 06:05 PM   #17
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Quote:
Originally Posted by 18psi View Post
So you're gonna sell a diff without confirming what it is and how many miles it has, just based only on what it looks like?
What if its not a Torsen 2? What if its high miles? Or abused? Looks like you got it at pick-n-pull because it still has the tag on it, and are trying to flip it for a profit. Is that the case?

Ugh
Was the drugstore out of butt cream this morning?
Savington is offline   Reply With Quote
Old 04-30-2013, 06:10 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

yep. luckily your mom had some
18psi is offline   Reply With Quote
Old 05-01-2013, 09:36 AM   #19
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by JDMPalace View Post
I Picked up my 3.6 set from Samnavy here last year and never used them. I got a Cusco RS 2way so I'm going to swap both of them in a open diff since I have to pay someone to install the 3.6 properly.
Makes sense.

Quote:
Originally Posted by soviet View Post
I have a T-F diff and don't have any issues with it.
Fae ran one for ages as well and the Ring & pinion broke before the diff.

If he didn't break it, it's bulletproof.
I have no experience with the T-F really, only what I read about them. Maybe it was something about the early ones or something...maybe a servicing issue...I dunno. I just have the impression that the T-F wasn't as "desirable" as a TorSen. But I'm always up for learning new things.

Last edited by Doppelgänger; 05-01-2013 at 09:46 AM.
Doppelgänger is offline   Reply With Quote
Old 05-01-2013, 09:42 AM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Quote:
Originally Posted by JDMPalace View Post
..... so don't just assume things sir. Thanks
My apologies then. Thanks for the clarification
18psi is offline   Reply With Quote
