Drag racing setup


Old 06-01-2019, 03:23 PM
  #121
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

Miata2fast,
do you think switching from a 225 tire (15x8 +25) on the front of the car to stock 185 tires (14x6) will help the car pick up a couple mph trap speed? Less tire poking out.
Going to the strip Wednesday
LownSlow616 is offline
Old 06-01-2019, 10:38 PM
  #122
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

Originally Posted by LownSlow616 View Post
Miata2fast,
do you think switching from a 225 tire (15x8 +25) on the front of the car to stock 185 tires (14x6) will help the car pick up a couple mph trap speed? Less tire poking out.
Going to the strip Wednesday
Definitely faster, but more for reasons of rotational mass.
sixshooter is offline
Old 06-02-2019, 08:15 AM
  #123
Junior Member
Thread Starter

Join Date: Nov 2017
Posts: 95
Total Cats: 4
Default

Originally Posted by sixshooter View Post
Definitely faster, but more for reasons of rotational mass.
So,would a heavier and narrower front setup be quicker than a wider and lighter front?

Also, thanks for the sway bar tips
Dusterbd13 is offline
Old 06-02-2019, 12:47 PM
  #124
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

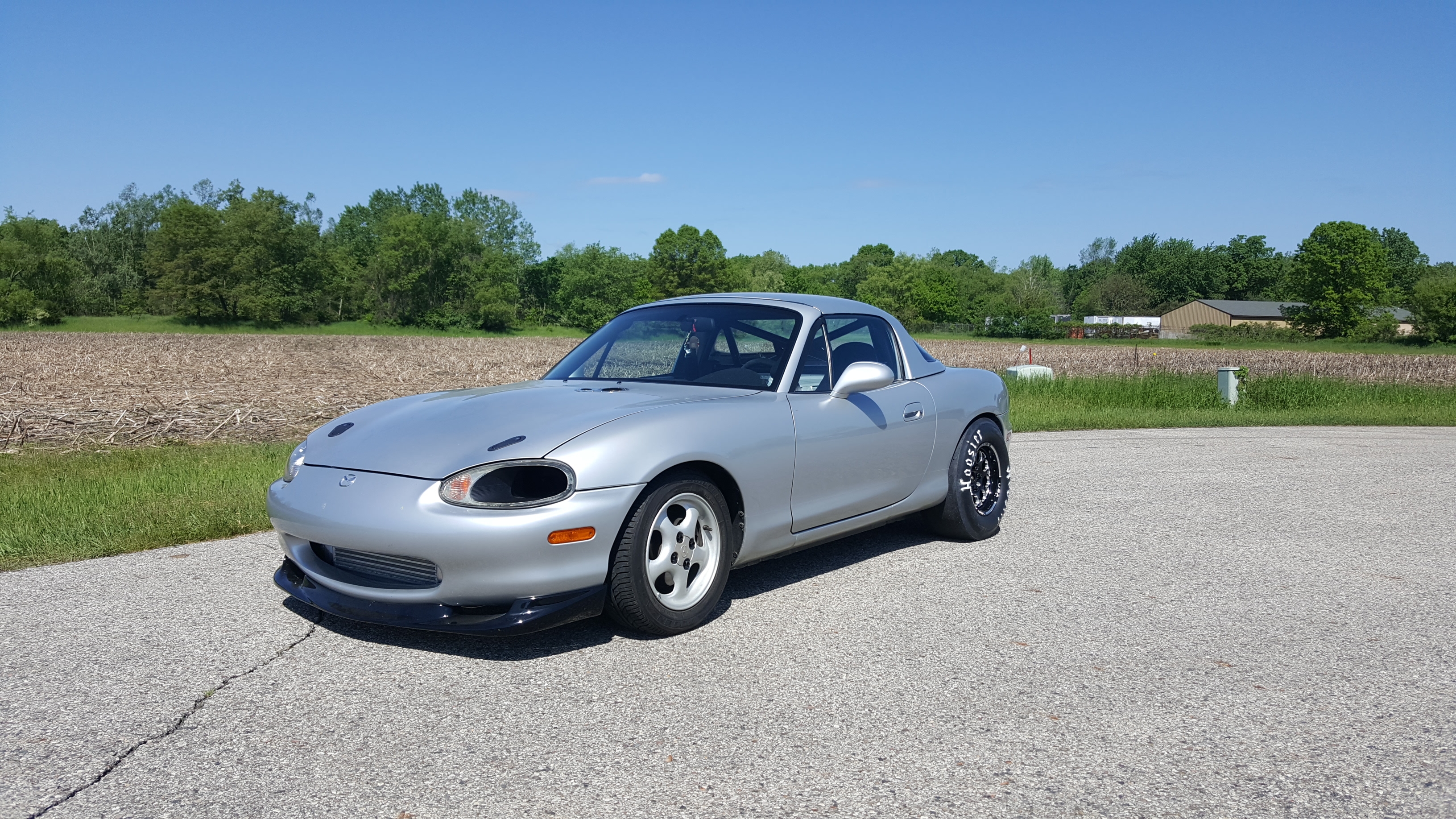

Ready for the strip.

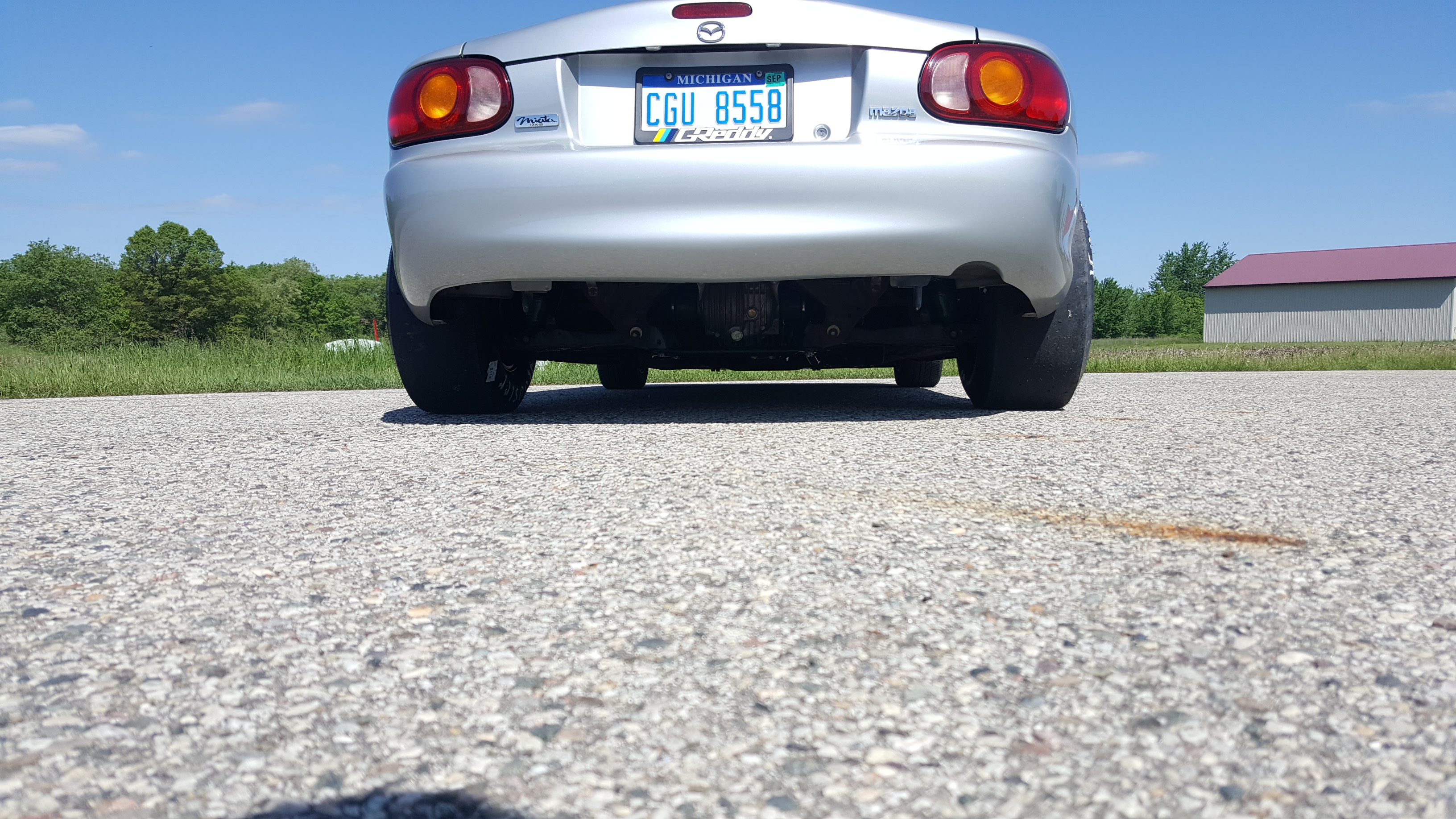

Axles are almost parallel to the ground. Going to raise the rear even more to get them perfectly parallel for maximum strength. Im pretty happy with this fitment for such a big tire on a stock fender

Im honestly scared to ride out 4th gear in this thing. If it making the power i think its making, it should trap over 125. The top of 3rd (~90mph) already scares me. Wish me luck ??

Drag racing setup-20190602_110645.jpg
Drag racing setup-20190602_110913.jpg
Drag racing setup-20190602_111239.jpg
LownSlow616 is offline
Old 06-02-2019, 02:13 PM
  #125
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

Looks like it will cut your sidewalls when the weight transfers to the rear end. I would definitely raise it. Racing isn't about looking just right.

Those stock wheels are a fine choice.
sixshooter is offline
Old 06-02-2019, 04:51 PM
  #126
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

Originally Posted by sixshooter View Post
Looks like it will cut your sidewalls when the weight transfers to the rear end. I would definitely raise it. Racing isn't about looking just right.

Those stock wheels are a fine choice.
I keep moving my coilovers up but its not really doing much for ride height. I think its just compressing the spring more and more. Which will make rear more stiff? Not sure how they work. Theyre just cheap tein adjustment height coilovers
LownSlow616 is offline
Old 06-02-2019, 10:21 PM
  #127
Junior Member

Join Date: Mar 2012
Posts: 96
Total Cats: 24
Default

Originally Posted by LownSlow616 View Post
I keep moving my coilovers up but its not really doing much for ride height. I think its just compressing the spring more and more. Which will make rear more stiff? Not sure how they work. Theyre just cheap tein adjustment height coilovers
If they're the ones without the shock body length adjustment, and only have the spring perch adjust, then you may have already hit the maximum length of the shock.

The shock rod itself may be "topping out"



the easiest way to get more height (assuming the above is what's happening) would be to buy a pair of shock spacers and put them on.
hks_kansei is offline
Old 07-12-2019, 01:41 PM
  #128
Junior Member

Mudflap's Avatar

Join Date: May 2017
Location: Louisville, Co
Posts: 338
Total Cats: 73
Default

Results???
Mudflap is offline
Old 07-12-2019, 03:58 PM
  #129
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 2,027
Total Cats: 54
Default

Man that NB looks beastly
Stealth97 is offline
Old 07-12-2019, 06:48 PM
  #130
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

12.09 @128

Going back with flat shift set up to go 11s and over 130.
Datalog from 128mph run showed .7 seconds average from the time throttle 100% to full boost while shifting
LownSlow616 is offline
Old 07-12-2019, 07:56 PM
  #131
Junior Member

Mudflap's Avatar

Join Date: May 2017
Location: Louisville, Co
Posts: 338
Total Cats: 73
Default

Very impressive. I just went to the dragstrip for the first time in my life last Wednesday. I got a 13.08 @ 122mph. Pretty happy with it. I've got to figure out the wheel hop at the start, had a horrible 2.7second 60'. I'm pulling the diff to get solid mounts this weekend. At this hp level I'd predict to be in the 12s for sure. Just suck at the launch..

Here's a question - I'm running 27psi boost and my MAT goes from 100F to 180F during the run. Is that excessive? Risky? I'm running the FM intercooler.
Mudflap is offline
Old 07-12-2019, 07:58 PM
  #132
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

Originally Posted by Mudflap View Post
Very impressive. I just went to the dragstrip for the first time in my life last Wednesday. I got a 13.08 @ 122mph. Pretty happy with it. I've got to figure out the wheel hop at the start, had a horrible 2.7second 60'. I'm pulling the diff to get solid mounts this weekend. At this hp level I'd predict to be in the 12s for sure. Just suck at the launch..

Here's a question - I'm running 27psi boost and my MAT goes from 100F to 180F during the run. Is that excessive? Risky? I'm running the FM intercooler.
Seems excessive to me. The second my car starts moving (airflow) the iats DROP to ambient or slightly above. I also have a big *** IC and no headlight tho
LownSlow616 is offline
Old 07-12-2019, 08:25 PM
  #133
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,152
Total Cats: 258
Default

I wish he would post here more. He posted this on facebook.

viperormiata is offline
Old 07-12-2019, 09:07 PM
  #134
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,828
Total Cats: 269
Default

Originally Posted by Mudflap View Post
Very impressive. I just went to the dragstrip for the first time in my life last Wednesday. I got a 13.08 @ 122mph. Pretty happy with it. I've got to figure out the wheel hop at the start, had a horrible 2.7second 60'. I'm pulling the diff to get solid mounts this weekend. At this hp level I'd predict to be in the 12s for sure. Just suck at the launch..

Here's a question - I'm running 27psi boost and my MAT goes from 100F to 180F during the run. Is that excessive? Risky? I'm running the FM intercooler.
Yes, and costing you time too. I think mine is more like a 25-30*F rise now, it used to be a lot worse like yours.

Wheel hop fix takes a lot, I had to make several changes to fix that.
patsmx5 is offline
Old 07-13-2019, 01:54 AM
  #135
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: New Fucking Jersey
Posts: 3,957
Total Cats: 109
Default

Originally Posted by patsmx5 View Post
Yes, and costing you time too. I think mine is more like a 25-30*F rise now, it used to be a lot worse like yours.

Wheel hop fix takes a lot, I had to make several changes to fix that.
Pat!
ridethecliche is offline
Old 07-13-2019, 09:59 AM
  #136
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 4,982
Total Cats: 423
Default

Big soft squishy tires. That's the best way to solve hop.

And get a better intercooler.
Erat is offline
Old 07-13-2019, 10:37 AM
  #137
Junior Member

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 441
Total Cats: -29
Default

Originally Posted by Erat View Post
Big soft squishy tires. That's the best way to solve hop.

And get a better intercooler.
100% true. I had 0 wheel hop with the big side wall hoosiers. Even when it hooked after burnout
LownSlow616 is offline
Old 07-13-2019, 11:20 AM
  #138
Junior Member
Thread Starter

Join Date: Nov 2017
Posts: 95
Total Cats: 4
Default

What kind of roll bars or roll cages are you guys running at these times? I was told I would need an NHRA 5 point bar to go quicker than 13.49
Dusterbd13 is offline
Old 07-13-2019, 11:32 AM
  #139
Newb

Join Date: Dec 2016
Posts: 37
Total Cats: 4
Default

Originally Posted by Dusterbd13 View Post
What kind of roll bars or roll cages are you guys running at these times? I was told I would need an NHRA 5 point bar to go quicker than 13.49
Yep. This is true, and they are supposed to be weld in on steel plates. However many of the smaller tracks are rather lenient on the rules. I just ordered an Alston 8 point setup from jegs. They aren't that expensive. Getting it fitted and welded is another story.
Newaza is offline
Old 07-13-2019, 11:55 AM
  #140
Newb

Join Date: Dec 2016
Posts: 37
Total Cats: 4
Default

Also when you get it sorted out and make some passes please post your times and setup required to achieve those times on my thread titled " post your 1/8th and 1/4 mile times". I figured if people would post there times and setups in one place it will be easier for people to find and see what works and what doesn't.
Newaza is offline
