Old 04-20-2010, 04:43 PM   #21
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

Looking like a real interesting thread. Keep it up.
j555pre is offline   Reply With Quote
Old 04-20-2010, 06:09 PM   #22
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by chpmnsws6 View Post
They won't with ATS 15x7's. Went down that road, had to trash the idea. It'd be interesting to see if they'd fit on 6UL's. If they did, I'd be tempted to dump the Wilwood setup in favor of these.
Yeah.. They would not fit with my 16" Volks either, or some crappy noname 17"s I had kicking around. They all hit the spokes.
M-Tuned is offline   Reply With Quote
Old 04-20-2010, 06:16 PM   #23
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by [email protected] View Post
Yeah.. They would not fit with my 16" Volks either, or some crappy noname 17"s I had kicking around. They all hit the spokes.
Ahhh, i see how it doesn't fit. Hmm, might have to run wheel spacers then :(

Man I really hope I dont have that problem.
wayne_curr is offline   Reply With Quote
Old 04-20-2010, 06:41 PM   #24
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

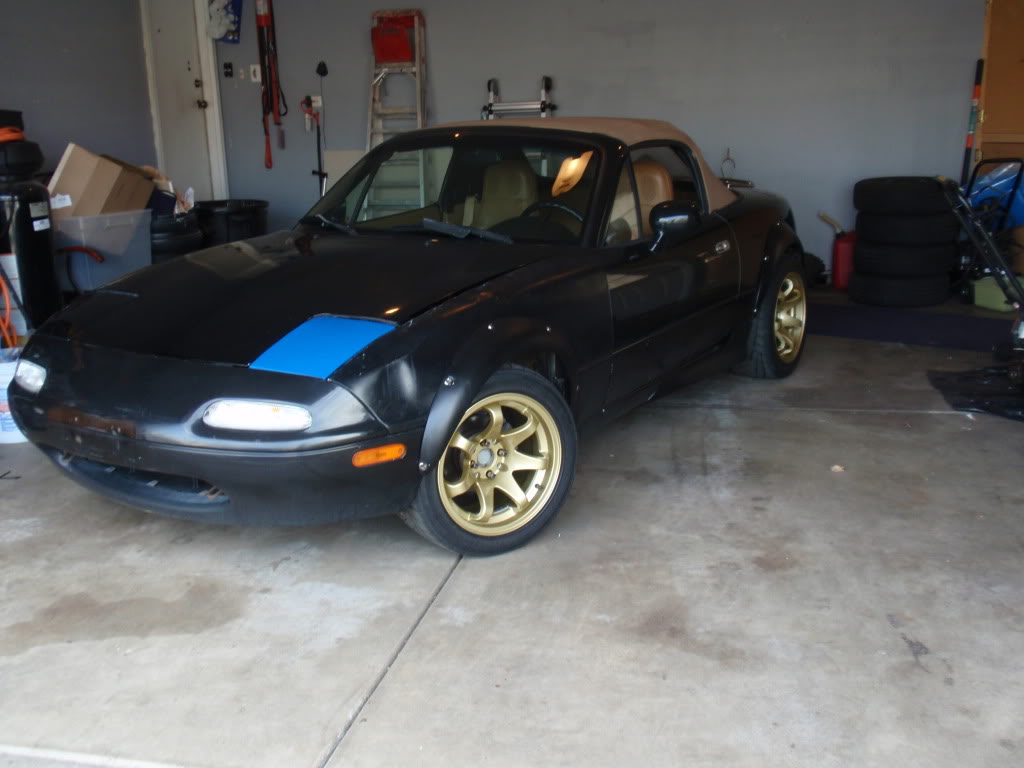

just got home from work and the camara is dead. time to hunt for the charger then ill yank off the 1.8l **** so you can see how they dont hit. but if you look at the spokes you can get an idea of the amount of room these have.

Name:  P4020102.jpg
Views: 4
Size:  87.8 KB

(yes i know my car is a beat pile of ****. if anyone has a black fender for sale around chicago let me know!)
aarontrini85 is offline   Reply With Quote
Old 04-20-2010, 06:50 PM   #25
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

yeah.. You might be okay as you have those funky wheels...
M-Tuned is offline   Reply With Quote
Old 04-20-2010, 06:51 PM   #26
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by aarontrini85 View Post
just got home from work and the camara is dead. time to hunt for the charger then ill yank off the 1.8l **** so you can see how they dont hit. but if you look at the spokes you can get an idea of the amount of room these have.



(yes i know my car is a beat pile of ****. if anyone has a black fender for sale around chicago let me know!)
I really dont want to have to run +0 offset wheels to make it possible to run these. I would, however, consider a wheel spacer plus flares.
wayne_curr is offline   Reply With Quote
Old 04-20-2010, 08:30 PM   #27
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
I really dont want to have to run +0 offset wheels to make it possible to run these. I would, however, consider a wheel spacer plus flares.
a spacer on the 15x9 tr motorsports wheels would work i can try and get a pic that tomorrow to. but as for now my charger is lost and the g1 cam sucks so it will have to wait
aarontrini85 is offline   Reply With Quote
Old 04-20-2010, 08:45 PM   #28
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I saw earlier mentioned sport miata rotor, but is that the same thickness as the RX7 unit?
shlammed is offline   Reply With Quote
Old 04-20-2010, 08:52 PM   #29
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

Quote:
Originally Posted by shlammed View Post
what rotor do you plan on running with this setup?

I saw earlier mentioned corrado rotor, but is that the same thickness as the RX7 unit?

both 22mm thick according to racingbrake
aarontrini85 is offline   Reply With Quote
Old 04-20-2010, 09:23 PM   #30
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by aarontrini85 View Post
both 22mm thick according to racingbrake
He was right, he saw earlier mention of sport rotors which is what i'm using. I do not want to use Corrado rotors. Their larger size will not do me any good since they aren't vented.
wayne_curr is offline   Reply With Quote
Old 04-20-2010, 09:46 PM   #31
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

ok, and both of those are 22mm?

Hmmm...

I am intrigued.
i have a set of spare knuckles that im interested in trying.

What about the back? im unfamiliar with rx7's what did they use in the back for an emergency brake?
shlammed is offline   Reply With Quote
Old 04-20-2010, 09:56 PM   #32
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by shlammed View Post
ok, and both of those are 22mm?

Hmmm...

I am intrigued.
i have a set of spare knuckles that im interested in trying.

What about the back? im unfamiliar with rx7's what did they use in the back for an emergency brake?
I dont know if they are 22mm.

RX7 rear brakes, from what i've seen, look much like miata rear brakes but slightly larger. So they have the ebrake function unlike many aftermarket calipers.
wayne_curr is offline   Reply With Quote
Old 04-20-2010, 10:05 PM   #33
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

Quote:
Originally Posted by shlammed View Post
ok, and both of those are 22mm?

Hmmm...

I am intrigued.
i have a set of spare knuckles that im interested in trying.

What about the back? im unfamiliar with rx7's what did they use in the back for an emergency brake?

its cable on the back of the rx7 like a miata the monstermiata kit uses rx7 rears. but i think you could get away with an adjustable prop valve and the mtuned rears just fine.

pics of the monster miata setup
aarontrini85 is offline   Reply With Quote
Old 04-20-2010, 10:08 PM   #34
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by aarontrini85 View Post
its cable on the back of the rx7 like a miata the monstermiata kit uses rx7 rears. but i think you could get away with an adjustable prop valve and the mtuned rears just fine.

pics of the monster miata setup
Someday i'll be baller enough to buy 2 piece rotors.
wayne_curr is offline   Reply With Quote
Old 04-21-2010, 10:21 PM   #35
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

How thick do you guys think the caliper bracket should be? I'm pricing metal right now and not sure what to get.

.5" aluminum would be affordable but not sure if that's thick enough. I may just use steel to get everything roughed together and think about going with aluminum in the future if it proves to be a significant weight advantage. Would .25" steel cut it?
wayne_curr is offline   Reply With Quote
Old 04-21-2010, 10:30 PM   #36
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
How thick do you guys think the caliper bracket should be? I'm pricing metal right now and not sure what to get.

.5" aluminum would be affordable but not sure if that's thick enough. I may just use steel to get everything roughed together and think about going with aluminum in the future if it proves to be a significant weight advantage. Would .25" steel cut it?


i was thinking .5" steel. steel isnt that bad its what the mtuned brackets are and no one complains about them. id rather the extra weight then a caliper through my wheel.
aarontrini85 is offline   Reply With Quote
Old 04-21-2010, 10:41 PM   #37
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by aarontrini85 View Post
i was thinking .5" steel. steel isnt that bad its what the mtuned brackets are and no one complains about them. id rather the extra weight then a caliper through my wheel.
Agreed. I'm having a hard time finding .5" steel plate though :(
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 12:43 PM   #38
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

try mcmaster.com ?

http://www.mcmaster.com/#steel-plates/=6rt9ka

I will be doing custom brakes of some sort this summer.. I am liking this setup bigtime!
240_to_miata is offline   Reply With Quote
Old 04-22-2010, 02:50 PM   #39
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Its not going to work. I'd have to space my wheels atleast 1/2", maybe even 5/8" from the rotors to fit these wide *** calipers. :(:(:(:(

/thread
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 02:53 PM   #40
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I still might try it this summer. I plan on doing bodywork / paint/ wheels anyway.. Id run some 16 x 9 wheels with a 25mm spacer and some flaresall around so i can have big *** brakes.

I just need to find wheels I actually like in 16"
240_to_miata is offline   Reply With Quote
