Old 04-22-2010, 03:49 PM   #41
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by 240_to_miata View Post
I still might try it this summer. I plan on doing bodywork / paint/ wheels anyway.. Id run some 16 x 9 wheels with a 25mm spacer and some flaresall around so i can have big *** brakes.

I just need to find wheels I actually like in 16"
Tire offerings in the 16" size really blow.

Besides, these calipers would fit 15" wheels, they'd just have to be 0 offset.
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 03:57 PM   #42
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

That's a shame. I was going to say though that .5" steel might be over kill, that's cereal plating. So are the wilwood calipers thinner, or only two pot? Contact cueball, he has mini calipers like bbundy, I bet he'd throw some spare change your way to make some good brackets.
curly is offline   Reply With Quote
Old 04-22-2010, 03:58 PM   #43
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by wayne_curr View Post
Tire offerings in the 16" size really blow.

Besides, these calipers would fit 15" wheels, they'd just have to be 0 offset.
I smell a goldmine.

1. Complete the retrofit and figure out what you need to do about brackets.
2.Find reliable suppliers and put together kits.
3.Market on Club Roadster.
4. Profit.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-22-2010, 04:02 PM   #44
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
I smell a goldmine.

1. Complete the retrofit and figure out what you need to do about brackets.
2.Find reliable suppliers and put together kits.
3.Market on Club Roadster.
4. Profit.
You know you might just be onto something there.

Curly, I think the wilwoods are just a lot narrower. These RX7 calipers are unusually humongous (width wise). From the rotor hat, they stick out 1 3/4" toward the wheel spokes. There is only 1 1/4" clearance at best to the spokes on my wheel from the rotor hat right now. Probably less.
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 05:50 PM   #45
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by wayne_curr View Post
Besides, these calipers would fit 15" wheels, they'd just have to be 0 offset.
wheel offset has nothing to do with brake clearence.

its all wheel face design. you could still be +30 with a different face.
shlammed is offline   Reply With Quote
Old 04-22-2010, 06:00 PM   #46
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by shlammed View Post
wheel offset has nothing to do with brake clearence.

its all wheel face design. you could still be +30 with a different face.
I dont believe you when you say wheel offset has nothing to do with it. There isn't going to be any wheel face design that any of us would use that would clear these brakes with a reasonable offset. The spokes would have to come WAY outside of the edge of the rim or they would have to be so thin that they would surely not even last any amount of time at all.
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 09:48 PM   #47
Newb

Join Date: Mar 2010
Posts: 7
Total Cats: 0
Default

wayne_curr:


Have you tried spacing the wheel off with some washers to see if spacing a moderate amount (20mm to 30mm) will get the wheel far enough away from the caliper?

If so I have an idea that could be a solution to your mounting bracket....
ian99rt is offline   Reply With Quote
Old 04-22-2010, 09:52 PM   #48
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

looking at the the tr motorsports wheels im fairly sure they can fit with a smaller spacer but still not enough to fit under stock body as far as this other mounting solution post it!!!

this place seems to have the best prices on raw materials that ive found so far http://www.onlinemetals.com/index.cfm
aarontrini85 is offline   Reply With Quote
Old 04-22-2010, 10:06 PM   #49
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

just to give you guys an idea of how dumb *** wide they are i ran to the garage to grab a couple quick pics of the 1.6 caliper and bracket next to the fc caliper

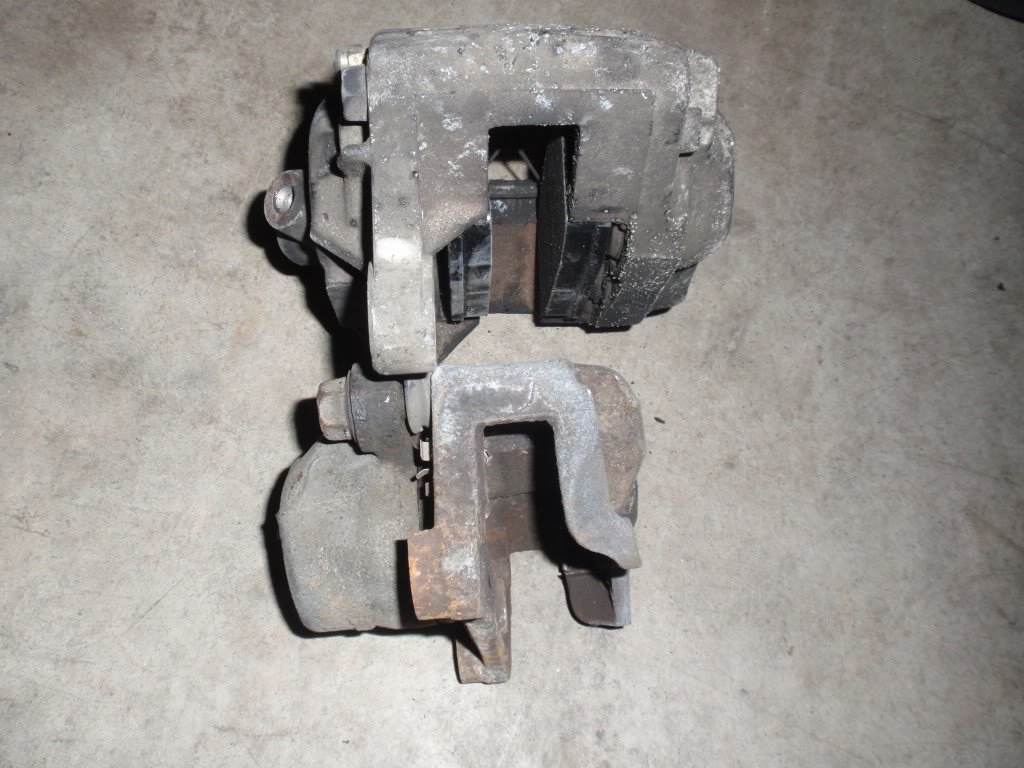

Name:  P4220165.jpg
Views: 6
Size:  142.6 KB

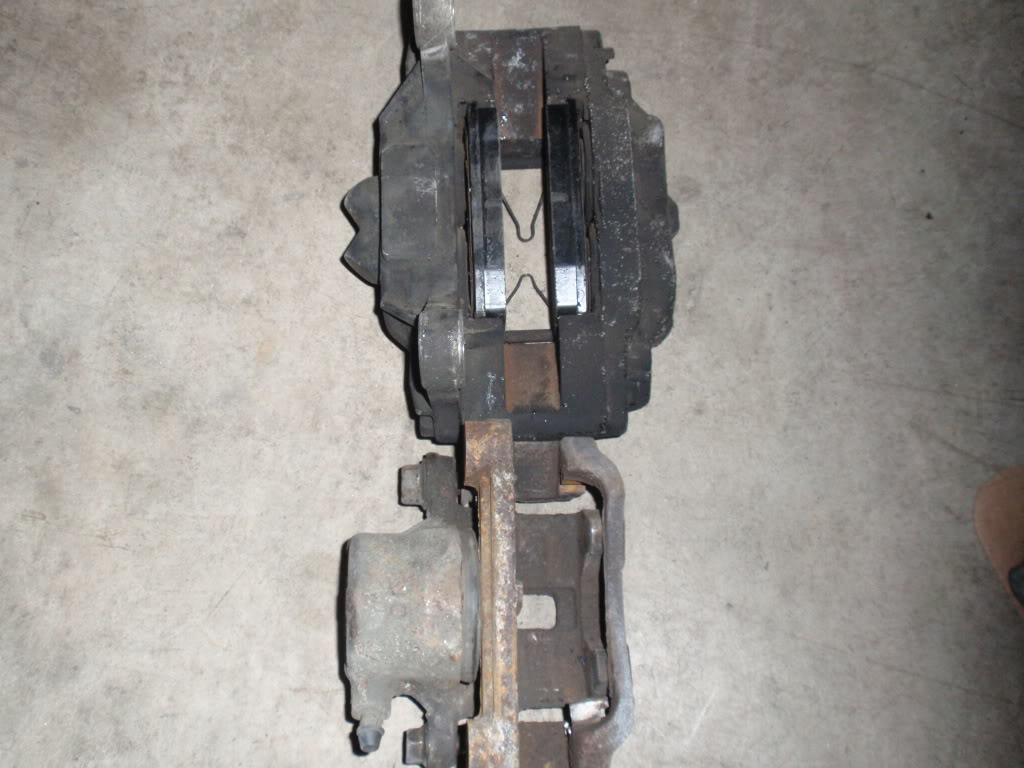

Name:  P4220166.jpg
Views: 6
Size:  114.0 KB

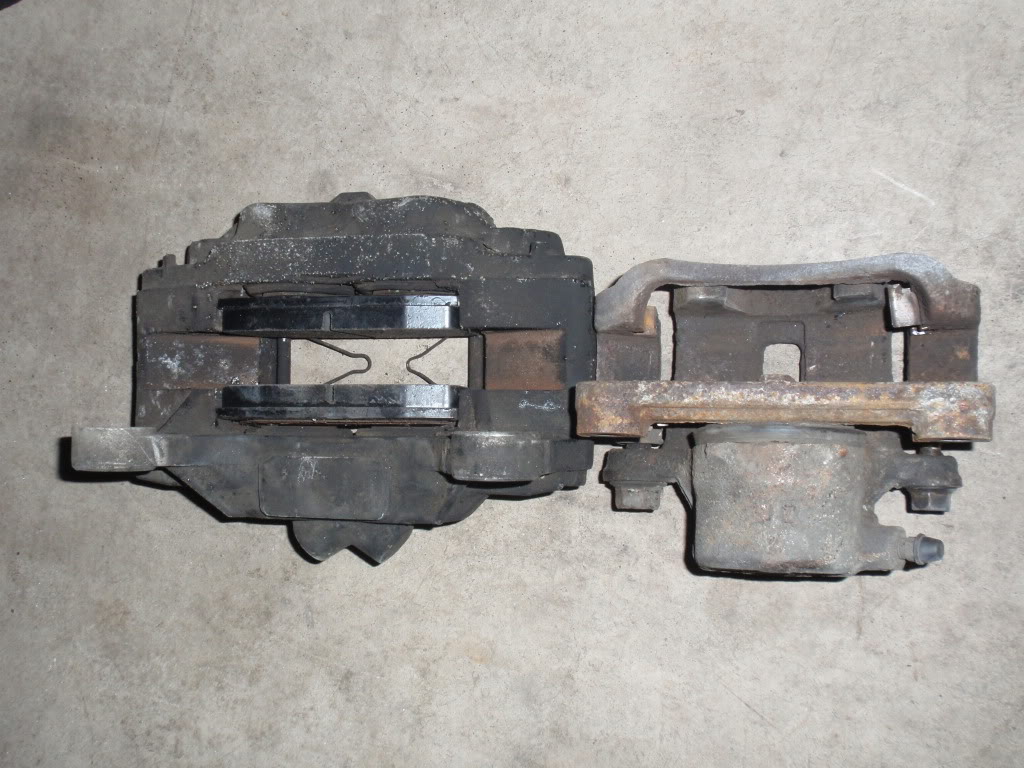

Name:  P4220168.jpg
Views: 6
Size:  157.6 KB

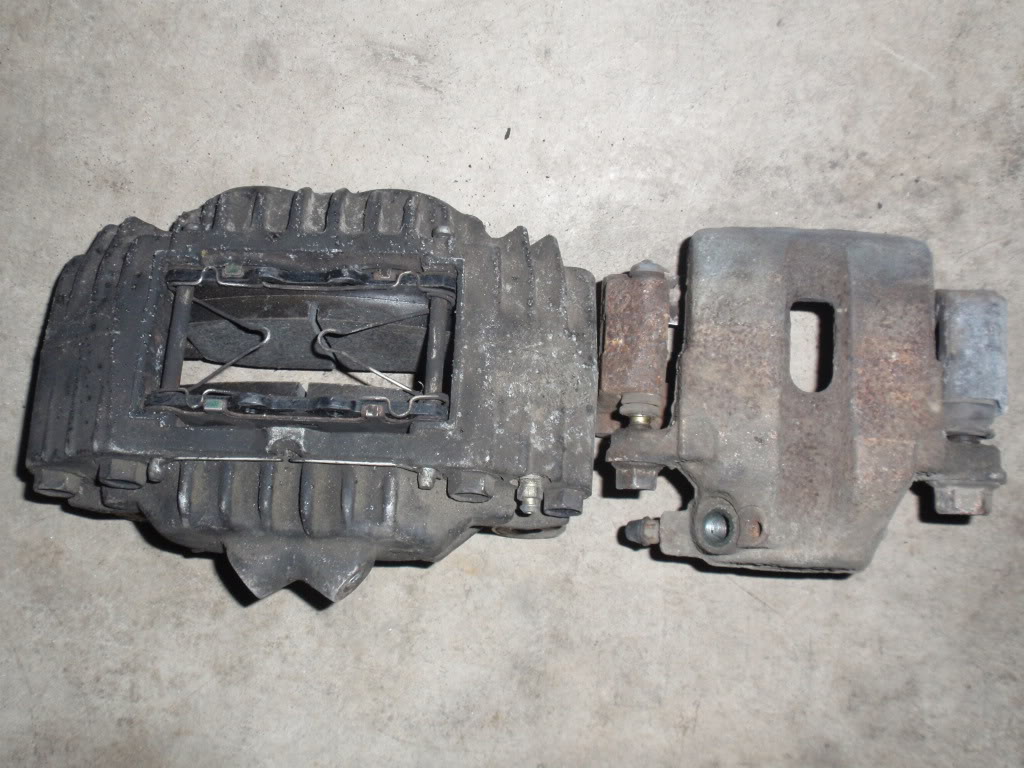

Name:  P4220169.jpg
Views: 6
Size:  146.1 KB
aarontrini85 is offline   Reply With Quote
Old 04-22-2010, 10:30 PM   #50
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I'm going yard hunting again! For brakes this time. I hope that they're cheap.
turotufas is offline   Reply With Quote
Old 04-22-2010, 10:55 PM   #51
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by aarontrini85 View Post
looking at the the tr motorsports wheels im fairly sure they can fit with a smaller spacer but still not enough to fit under stock body as far as this other mounting solution post it!!!

this place seems to have the best prices on raw materials that ive found so far http://www.onlinemetals.com/index.cfm
Yes and that place is in seattle so I dont have to worry about shipping, I can order online and go pick it up at will call

By my rough measurements, calculations and precision eyeballing, I really think its going to take a .5" spacer to clear my spokes. Maybe thats not as bad as i'm making it out to be in my head. .5" is what, less than 20mm? Its just nuts how wide these ******* things are.
wayne_curr is offline   Reply With Quote
Old 04-22-2010, 11:08 PM   #52
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

0.5" ~ 12.7mm

The Pro Race 1's have ~2" from the mounting surface to the inside of the spoke near the hub. Going by the picture it looks like you'd need ~2.5" to clear the calipers.
TurboRoach is offline   Reply With Quote
Old 04-22-2010, 11:09 PM   #53
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by TurboRoach View Post
0.5" ~ 12.7mm

The Pro Race 1's have ~2" from the mounting surface to the inside of the spoke near the hub. Going by the picture it looks like you'd need ~2.5" to clear the calipers.
I measured ~1 7/8" from rotor hat to the very edge of the caliper.

Edit: also, there is more clearance to the spokes further out from the hub atleast on my wheels anyway.
wayne_curr is offline   Reply With Quote
Old 04-23-2010, 01:19 AM   #54
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

deciving part of that caliper is the little bump on the end of it im probly going to grind that down on the spare one i picked up tonight to see if any of that can be take away with out hurting but thats the worst part as far as fitment goes on wheels ive tried.

and as far as price just to give people an idea. i got 4 front calipers thats 2 left 2 right for 100 shipped on ebay and the one i got tonight was was $10 localy from a friend who has owned a few fc3 he said they arent worth much since most of the fc guys are doing evo brembos now and just to give an idea of how easy they can fit once we have a bracket fabbed to fit the rx7 brakes asuming we dont cut the stock mounts off...

http://www.rx7club.com/showthread.php?t=719567
aarontrini85 is offline   Reply With Quote
Old 04-23-2010, 02:57 AM   #55
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by wayne_curr View Post
I measured ~1 7/8" from rotor hat to the very edge of the caliper.

Edit: also, there is more clearance to the spokes further out from the hub atleast on my wheels anyway.
Oops, I missed that the first time you mentioned it. So thats ~1 7/8" from the top of the hat where the wheel meets the rotor or from the rotor pad surface?

My wheels do the same. I went with close in because it looks like the caliper is still thick near the hub.
TurboRoach is offline   Reply With Quote
Old 04-23-2010, 11:42 AM   #56
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by wayne_curr View Post
I dont believe you when you say wheel offset has nothing to do with it. There isn't going to be any wheel face design that any of us would use that would clear these brakes with a reasonable offset. The spokes would have to come WAY outside of the edge of the rim or they would have to be so thin that they would surely not even last any amount of time at all.
Believe it or not, you can do it.
For example... look at those pictured XXR wheels in this thread... they are 0 offset and stick out past the lip. (face design)
where the same spec of wheel in a different face and hub mounting design with a straight spoke (say XXR 002) has considerably less bbk clearence.


You could get a 6ul spec'd wheel with bbk clearence by adding to the mounting surface (similar to a spacer without the shittiness of a spacer), but your face would be closer to the exterior of the wheel.

1.75" is quite a bit to do on a track spec wheel, but not impossible (you just wont have a lip, the spokes will be even with the face like a honda wheel.
shlammed is offline   Reply With Quote
Old 04-23-2010, 12:30 PM   #57
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by TurboRoach View Post
Oops, I missed that the first time you mentioned it. So thats ~1 7/8" from the top of the hat where the wheel meets the rotor or from the rotor pad surface?

My wheels do the same. I went with close in because it looks like the caliper is still thick near the hub.
It is still thick there but as Aaron mentioned, there is a little nub at the very edge that causes the most issues.

I'm going to bring a caliper to JayL's house on sunday so we can all try our wheels and see if anything fits and perhaps how much spacer would be needed.
wayne_curr is offline   Reply With Quote
Old 04-24-2010, 02:50 PM   #58
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Anyone ever see the bolt-on brackets to retro fit the FC calipers that are sold on Yahoo Japan?
railz is offline   Reply With Quote
Old 04-24-2010, 08:40 PM   #59
Junior Member
iTrader: (2)

Join Date: Mar 2010
Posts: 51
Total Cats: 0
Default

Quote:
Originally Posted by railz View Post
Anyone ever see the bolt-on brackets to retro fit the FC calipers that are sold on Yahoo Japan?
think i seen them somewhere when browsing a few months back also seem to remember a price tag around $300 plus shipping
aarontrini85 is offline   Reply With Quote
Old 04-24-2010, 11:47 PM   #60
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by aarontrini85 View Post
think i seen them somewhere when browsing a few months back also seem to remember a price tag around $300 plus shipping
**** that noise. I'm done paying full price.
turotufas is offline   Reply With Quote
