Default FML! Snapped BOLT What next? Rear Shock bolt

I have a 92 NA a rear spring snapped the other day I was in the process of replacing it.

All the bolts were PB blasted the day before sat over night everything came out
except the 17 mm bolt that holds the bottom of the strut in.
As i was turning the bolt. It turned a decent amount of times maybe 10 or so then i felt it break loose or what i thought
but now it just spins on its own wont back out wont move just spins
looking from underneith looks like other part of bolt has not moved at all.

This makes me think that the bolt has snapped.

well what are my options at this point?
Do i need a new control arm?

This is for the passenger side rear.
thanks
Xuracing is offline   Reply With Quote
Old 10-03-2012, 03:04 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

do this:




hold the busted squre nut in place.

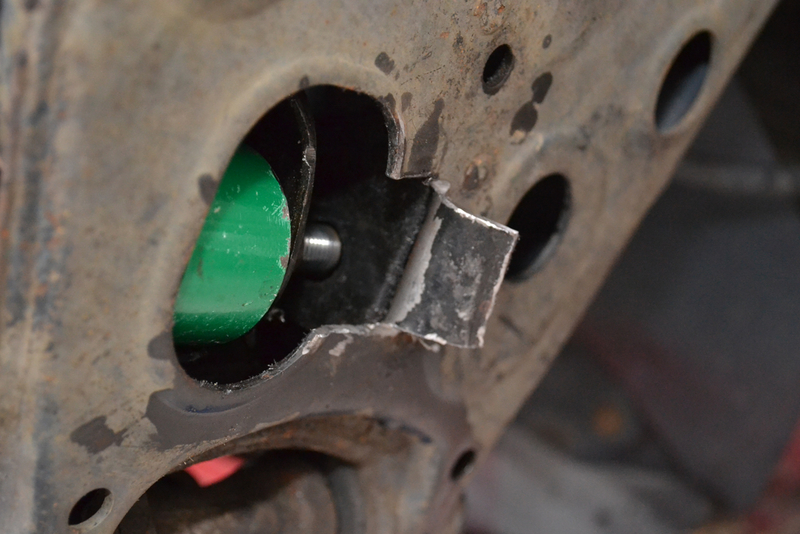

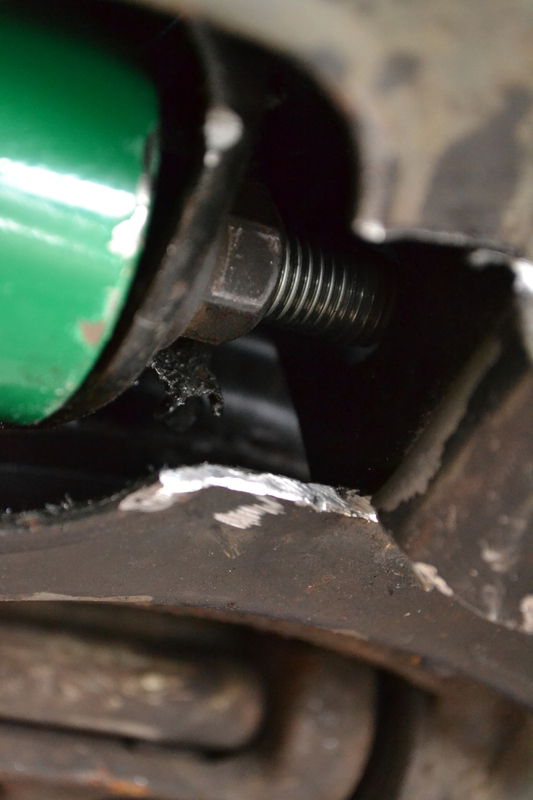

and replace with a new one like this:

Attached Thumbnails
FML! Snapped BOLT What next? Rear Shock bolt-dsc_0939.jpg   FML! Snapped BOLT What next? Rear Shock bolt-dsc_0940.jpg
Braineack is offline   Reply With Quote
Old 10-03-2012, 03:15 PM   #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

you can also get another lower control arm
soviet is offline   Reply With Quote
Old 10-03-2012, 03:22 PM   #4
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Did the same damn thing on my '99 when I was taking the suspension out. Its such a shitty design. I did the same thing Brain suggested, that seemed to be pretty much the only reasonable option to get it out.
pdexta is offline   Reply With Quote
Old 10-03-2012, 04:20 PM   #5
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

Brian i am not quite sure what you did.
I am pretty sure my nut is busted mid way through since the shock still is on it and wont come out.

are you drilling it and sticking a new bolt through?
Or did you break the square nut off and just pull it out?
Xuracing is offline   Reply With Quote
Old 10-03-2012, 04:30 PM   #6
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

And this is from underneath the control arm?
I dont think i have a cut off wheel small enough to each into there. All of them are pneumatic as well. My car is at my house and my garage is 10 miles away....
maybe there is a electric version?

I have an angle grinder. and a jigsaw..
Xuracing is offline   Reply With Quote
Old 10-03-2012, 04:30 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

there's a nut on the other end, it's square and held on by weak clips.

the clips broke and the nut is spinning with the bolt.

you must cut out that section in order to access the nut, hold it with pliers of sorts, unscrew the bolt, pull out the nut, and then bolt it back up with a replacement that you can hold a wrench to.
Braineack is offline   Reply With Quote
Old 10-03-2012, 04:31 PM   #8
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

ps what is the green thing your shock?
Xuracing is offline   Reply With Quote
Old 10-03-2012, 04:33 PM   #9
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

Quote:
Originally Posted by Braineack View Post
there's a nut on the other end, it's square and held on by weak clips.

the clips broke and the nut is spinning with the bolt.

you must cut out that section in order to access the nut, hold it with pliers of sorts, unscrew the bolt, pull out the nut, and then bolt it back up with a replacement that you can hold a wrench to.
Ahh i see..
I hope thats where the problem is.

So when i unscrew the bolt the next time i re insert a bolt i have to have that nut back in place?
thanks!
Xuracing is offline   Reply With Quote
Old 10-03-2012, 04:33 PM   #10
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

and this is accessing from under the car?
Xuracing is offline   Reply With Quote
Old 10-03-2012, 04:34 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

correct sir. but you need a replacement nut, as the one that's failed will not be held by a wrench. it has little tabs welded to it making it difficult.
Braineack is offline   Reply With Quote
Old 10-03-2012, 04:41 PM   #12
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

It's a pain to hold the spinning bolt in place, especially with the tabs in your way. Make sure you take a hammer and punch/old screwdriver that you can use bend the broken tabs out of the way so you can grab onto the bolt.
pdexta is offline   Reply With Quote
Old 10-03-2012, 05:09 PM   #13
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

This is going to suck, i will let you guys know how it turns out!
thanks Much appreciated!
Xuracing is offline   Reply With Quote
Old 10-04-2012, 04:37 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Why do I feel a sawzall fail coming...
curly is offline   Reply With Quote
Old 10-06-2012, 03:19 AM   #15
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

I used an angle grinder to cut and open it up Sweet success with some effort extreme difficulty securing square bolt got the whole assembly out!
thanks guys!

Only problem now is seems like the shock is blown as well. FML going to have to replace all 4 soon as well
Xuracing is offline   Reply With Quote
Old 10-06-2012, 04:33 AM   #16
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

Also for reference for anyone searching for the same problem The Nut fits inside a 17mm Wrench fine, Its a little big so it could be Standard size (i dont know why)
Maybe a 16 but its large enough that you wont have any issues with a 17.

Last edited by Xuracing; 10-06-2012 at 11:15 PM. Reason: Typo 17mm not 17 inch
Xuracing is offline   Reply With Quote
Old 10-06-2012, 01:49 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

A 17 inch wrench? Holy cow, and here I thought I had all the tools I'd ever need...
curly is offline   Reply With Quote
Old 10-06-2012, 03:38 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by curly View Post
A 17 inch wrench? Holy cow, and here I thought I had all the tools I'd ever need...



i had to use needle nose pliers, as those tabs were in the way to hold the square nut, then I replaced it with the nut off the lower shock bolt on the front end.
Braineack is offline   Reply With Quote
Old 10-06-2012, 06:30 PM   #19
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I need a picture of this impossible-to-wrench nut.
curly is offline   Reply With Quote
Old 10-06-2012, 11:15 PM   #20
Newb
Thread Starter

Join Date: Sep 2011
Posts: 38
Total Cats: -10
Default

Sorry correction 17mm. Must have lost my mind
!
Xuracing is offline   Reply With Quote
