Old 04-27-2009, 03:36 AM   #21
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Quote:
Originally Posted by JayL View Post
Could you guys explain this one a bit more? When I did my swap, the plugs on the 5 and 6 speed were identical and all I had to do was just plug them in and everything worked.
The connectors are reversed on the NB trannies, then. When installing the 6-speed in an NA, you cut the two connectors off both switches and install them on the opposite switch, then plug it in as normal once it's in the car.
Savington is offline   Reply With Quote
Old 12-22-2009, 03:09 PM   #22
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

I take it the clutch assemblies are indentical for NB 5sp and 6sp trannies ??
Landrew is offline   Reply With Quote
Old 12-22-2009, 05:35 PM   #23
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Yep.
Savington is offline   Reply With Quote
Old 12-23-2009, 03:29 PM   #24
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Savington View Post
The connectors are reversed on the NB trannies, then. When installing the 6-speed in an NA, you cut the two connectors off both switches and install them on the opposite switch, then plug it in as normal once it's in the car.
No need to cut connectors off just unscrew the switches and put them in the other holes If they are in fact reversed. The two switches would be identical if it wasn’t for the connectors.

Bob
bbundy is offline   Reply With Quote
Old 12-24-2009, 10:51 AM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I used the stock plate from my 1991 with my 6-speed.
hustler is offline   Reply With Quote
Old 01-14-2010, 09:10 AM   #26
Newb

Join Date: Aug 2009
Posts: 40
Total Cats: 1
Default

Quick question, is there a different driveshaft needed when dropping in a 6 spd into a NA?
Graeter is offline   Reply With Quote
Old 01-14-2010, 10:24 AM   #27
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Nope.
RotorNutFD3S is offline   Reply With Quote
Old 01-14-2010, 10:29 AM   #28
Newb

Join Date: Aug 2009
Posts: 40
Total Cats: 1
Default

^Wonderful, thankyou!
Graeter is offline   Reply With Quote
Old 04-01-2010, 01:46 PM   #29
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Looks like I'm going down the 6-speed (probably a 2002 NB tranny) into my 1997 NA car.

So, from what I gather, I'll need to do (or not):

1) get the NB trans plate (thin metal)
2) swap the connectors/switches for the wires to reverse and neutral? bbundy or anyone that's done this, can you confirm....or was this speculation?

3) No need to change anything w/ the driveshaft, u-joint, etc.

4) Does the PPF bar for the 5-speed mate up, or does the 6-speed take up more real estate? Do I need to get the 6-speed one from an NB (if so, does it match up w/ the NA bolt holes)?
saint_foo is offline   Reply With Quote
Old 04-01-2010, 02:45 PM   #30
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I'm about to put my six speed in. Quick question. I have two six speed speedo gear assemblies, (gear color yellow and red) , and a five speed speedo gear assembly (white gear, looks to be stained purple)

Which one should I use with the 4.10 gears?
miatauser884 is offline   Reply With Quote
Old 04-01-2010, 02:47 PM   #31
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by bbundy View Post
No need to cut connectors off just unscrew the switches and put them in the other holes If they are in fact reversed. The two switches would be identical if it wasn’t for the connectors.

Bob
Good call!
miatauser884 is offline   Reply With Quote
Old 04-01-2010, 03:18 PM   #32
!!! NOT CONFIRMED !!!
iTrader: (1)

Join Date: Oct 2008
Location: Cleveland Ohio
Posts: 67
Total Cats: 0
Default

whats the point of the transmission plate?
mrtbon is offline   Reply With Quote
Old 04-01-2010, 03:19 PM   #33
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

keeps **** out of the area where you fly wheel and clutch spins! i get a pic up in a sec!
WonTon is offline   Reply With Quote
Old 04-01-2010, 03:32 PM   #34
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

BTW, is there anything else we may have missed if we've got an NA (in my case a 1997 1.8) motor/body and are installing the NB 6-speed?

Do I need to do anything w/ the speedo (keep the 6-speed's, use my existing?)? Will my speedo be off? Also, will I see higher cruising rpms at 70mph w/ my existing LSD?
saint_foo is offline   Reply With Quote
Old 04-01-2010, 03:42 PM   #35
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

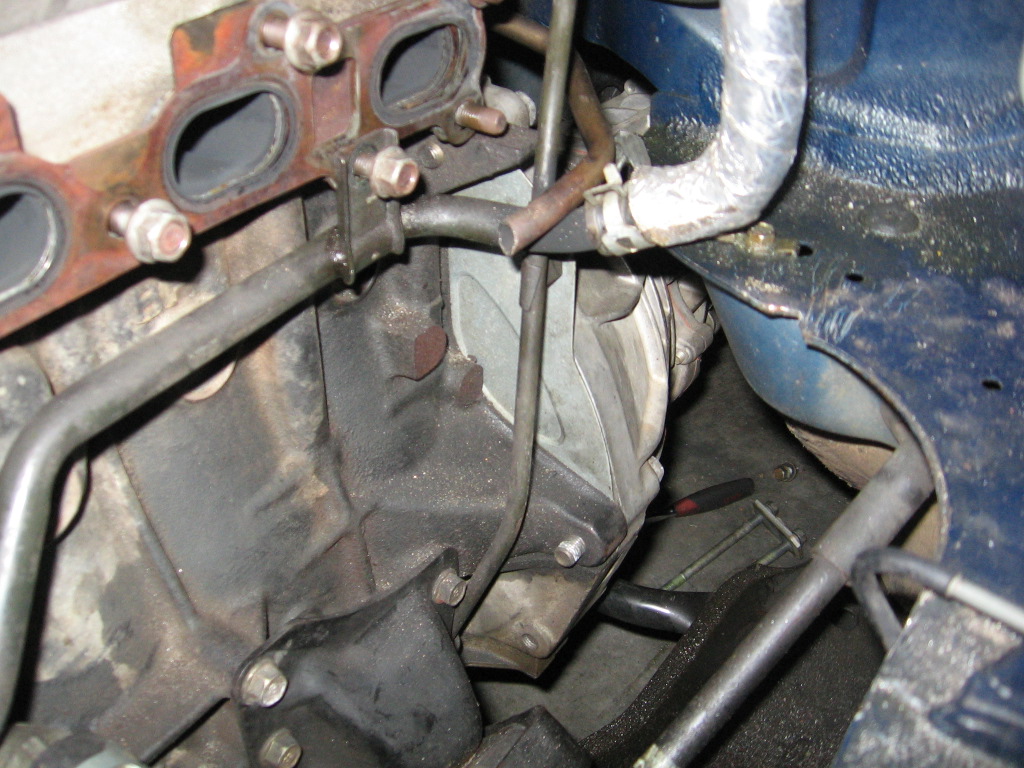

here is the pic!

i used the speed gear out of my 5 speed! you just take out one bolt and it pops right into the 6 speed!

i also used the 6 speed starter!
Attached Thumbnails
Help me guys with 6 speed swap!!!-img_0106.jpg
WonTon is offline   Reply With Quote
Old 04-03-2010, 09:26 PM   #36
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by WonTon View Post
here is the pic!

i used the speed gear out of my 5 speed! you just take out one bolt and it pops right into the 6 speed!

i also used the 6 speed starter!
Nice cut EGR
rider384 is offline   Reply With Quote
Old 04-03-2010, 09:43 PM   #37
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by saint_foo View Post
BTW, is there anything else we may have missed if we've got an NA (in my case a 1997 1.8) motor/body and are installing the NB 6-speed?

Do I need to do anything w/ the speedo (keep the 6-speed's, use my existing?)? Will my speedo be off? Also, will I see higher cruising rpms at 70mph w/ my existing LSD?
I just put in a 6 speed last weekend into my 94. I reused my speed sensor from my 5speed. I simply unbolted the 10mm and left it hanging when I swap trannys and then bolted it into the 6 speed. You will also have to splice some cables for lights. Cutler had already done that so I did not have to worry about it. You will leave out one of the starter bolts if you use the 5 speed plate. It was the top one on the right that I left out. So far my speedo has seemed to read correct. The cruising rpms are about the same as the 5 speed I had in before. If you come up to the Dyno day next weekend you can drive my car and see how it is.
shuiend is offline   Reply With Quote
Old 04-04-2010, 09:53 PM   #38
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Ed today I was out driving and was tuning also. Cruising at 70mph in 6th gear put me at ~3500rpms in Tunerstudio. My teach showed one like below 4000rpms. At 85mph TS showed ~3800rpms and the tach showed about 4k.
shuiend is offline   Reply With Quote
Old 04-07-2010, 05:08 PM   #39
Junior Member

Join Date: Jan 2008
Location: Ashburn, VA
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by shuiend View Post
Ed today I was out driving and was tuning also. Cruising at 70mph in 6th gear put me at ~3500rpms in Tunerstudio. My teach showed one like below 4000rpms. At 85mph TS showed ~3800rpms and the tach showed about 4k.


So confused!

Okay, so if I swap the speedo (keep the 5-speed speedo gear) back into the 6-speed tranny, my speed will be correct (mph)?

But my rpms will be off? Which is correct...TunerStudio or gauge?

Can't teach an old pitbull new word problems.
saint_foo is offline   Reply With Quote
Old 04-09-2010, 08:58 PM   #40
Junior Member

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

it is very common for factory standard tachometers (and speedo's) to read a bit high at the top of the scale. Porsche 911 speedo's are off by 20 mph up top (says you are doing 200 and you are really at 180-185). I doubt the tranny swap has anything to do with an inaccurate tach,can't think of any way they are related anyway.
Blaize is offline   Reply With Quote
