Default How to remove a fux0red nut

Seriously, tell me. I figured it was about time to swap out the 4x4 NB springs on the 91 miata. Every nut and bolt came off with ease, except for the drivers side topmount one.

I spent the last hour chiseling away at it. Won't budge. I wasn't planning on torching it since it's 3 inches away from the gastank.

No room for drill, I have no welding equipment here, no cutting disks for a dremel and shops are closed.

Except for setting this ************ on fire, what do?

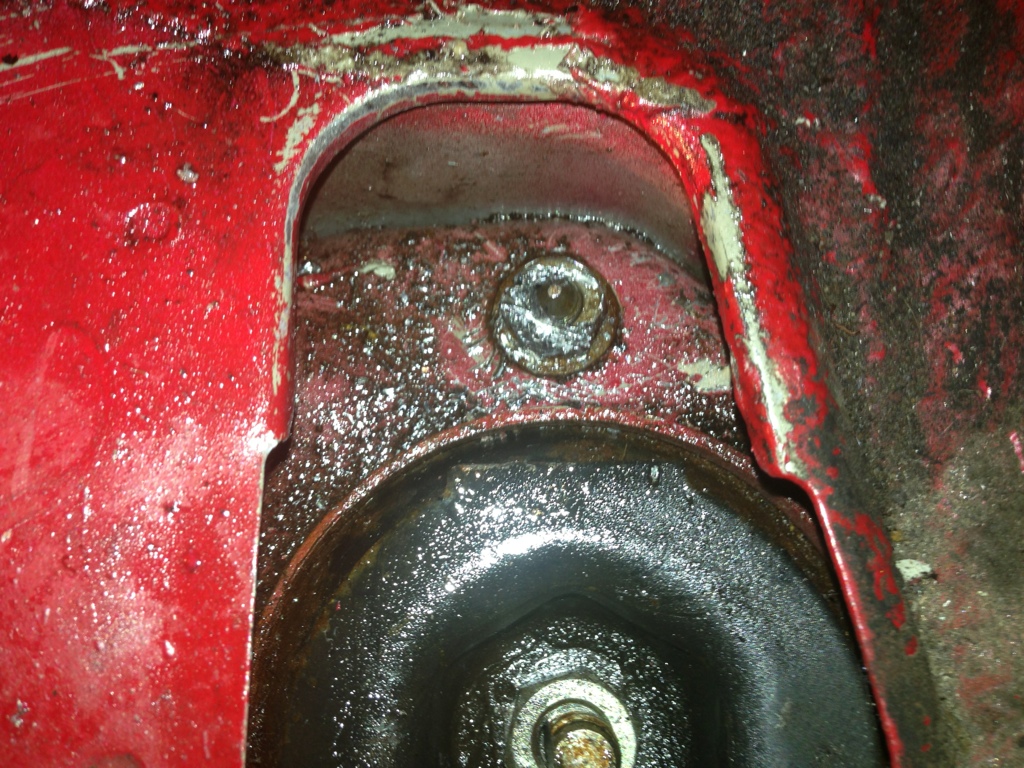

Also, picture:

Attached Thumbnails
How to remove a fux0red nut-2015da11-1b0f-42b2-bccc-b44514b35b93-23224-00001201cb78b7e4.jpg
Oscar is offline   Reply With Quote
Old 01-05-2013, 12:25 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Hammer a slightly undersized SAE socket onto it.
Or get one of the tools designed to bite into rounded off nuts.
Splitime is offline   Reply With Quote
Old 01-05-2013, 12:46 PM   #3
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

These bad boys These bad boys
, saved my life when all the nuts for the turbo on the subie rounded out with 6 point sockets. I bought this set for my dad for christmas. They're like an ez-out, but external. SO when you spin them to loosen they cut into the nut. They're 3/8 drive though and I sheared off a HF tools 3/8 extension with them, But they have a hex on the outside for a socket or wrench so you can put a big socket over it with a 1/2" drive if you need some real ******* leverage.
Leafy is offline   Reply With Quote
Old 01-05-2013, 02:50 PM   #4
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

yip i am with leafy on this one - otherwise a dremel with a small cutting wheel and keep cutting the nut away until you can hammer it off in pieces - but you will probably be working almost blind in that hole
3barboost is offline   Reply With Quote
Old 01-05-2013, 04:33 PM   #5
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Sears has a similar set of nut removers, probably in-stock at your local store.
rleete is offline   Reply With Quote
Old 01-05-2013, 04:36 PM   #6
Junior Member
iTrader: (5)

Join Date: Mar 2012
Location: Gilbert, Az
Posts: 337
Total Cats: 26
Default

I've never used one, but maybe there's enough room for one of these to work:
Craftsman Nut Cracker - Tools - Mechanics & Auto Tools - Automotive Specialty Tools
SJP0tato is offline   Reply With Quote
Old 01-05-2013, 05:41 PM   #7
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

So I have no SAE sockets, nor a nut cracker or torch. Here's the kicker, I need this POS on the road to get to work on monday. **** me
Oscar is offline   Reply With Quote
Old 01-05-2013, 05:46 PM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Oscar View Post
So I have no SAE sockets, nor a nut cracker or torch. Here's the kicker, I need this POS on the road to get to work on monday. **** me
Just go to lowes and buy the kit I showed, or the smaller version of it.
Leafy is offline   Reply With Quote
Old 01-05-2013, 05:46 PM   #9
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Oscar View Post
So I have no SAE sockets, nor a nut cracker or torch. Here's the kicker, I need this POS on the road to get to work on monday. **** me
Then leave the MF as-is and don't take jumps?
Laur3ns is offline   Reply With Quote
Old 01-05-2013, 05:55 PM   #10
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Leafy View Post
Just go to lowes and buy the kit I showed, or the smaller version of it.
It's saturday, 11PM here sweety.

Quote:
Originally Posted by Spookyfish View Post
Then leave the MF as-is and don't take jumps?
I could, but I'd have to swap back the spring on the passenger side. Again.
Oscar is offline   Reply With Quote
Old 01-05-2013, 05:57 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Wait till tomorrow? Keep soaking it with PB blaster all night.
Leafy is offline   Reply With Quote
Old 01-05-2013, 06:47 PM   #12
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

Alta_Racer is offline   Reply With Quote
Old 01-05-2013, 07:04 PM   #13
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Try putting the weight of the car back on the spring. Might give you just that smidge you need.
Miater is offline   Reply With Quote
Old 01-05-2013, 09:15 PM   #14
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Start the car, open the gas cap, then use a hose to divert the exhaust into the gas tank (you're displacing oxygen that way), and torch away at that nut till your heart's content.
Godless Commie is offline   Reply With Quote
Old 01-06-2013, 10:48 AM   #15
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Still no dice. Figured I'd swap the other spring back, can't get the nut off that I put on yesterday. Socket must've slipped when tightening it. So I'm now stuck with mismatched rear springs and 2 nuts that are effectively a perfect circle. Wonder if there's any room for a

I am seriously contemplating setting it on fire and getting a non-POS with the insurance money. ****!
Oscar is offline   Reply With Quote
Old 01-06-2013, 10:54 AM   #16
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Oscar, have you tried the method I described in my previous post?
Godless Commie is offline   Reply With Quote
Old 01-06-2013, 10:55 AM   #17
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Sharp cold chisle + BFH + time = cut nut

This is the redneck way and is a true PITA
BogusSVO is offline   Reply With Quote
Old 01-06-2013, 10:57 AM   #18
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Godless Commie View Post
Oscar, have you tried the method I described in my previous post?
I would, but no torch here.

Quote:
Originally Posted by BogusSVO View Post
Sharp cold chisle + BFH + time = cut nut

This is the redneck way and is a true PITA
I'ma put a chisel in the fridge for a while and try again. I already bent one chisel so far
Oscar is offline   Reply With Quote
Old 01-06-2013, 11:28 AM   #19
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Oscar View Post
I'ma put a chisel in the fridge for a while and try again. I already bent one chisel so far
Fairly sure he meant a cold Forged chisel. Harder stuff than typical cheap ones.
Splitime is offline   Reply With Quote
Old 01-06-2013, 11:46 AM   #20
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

How in the hell do you strip 2 nuts by the same problem? Anyways no dremel to cut them?
triple88a is offline   Reply With Quote
