Default Identify this differential

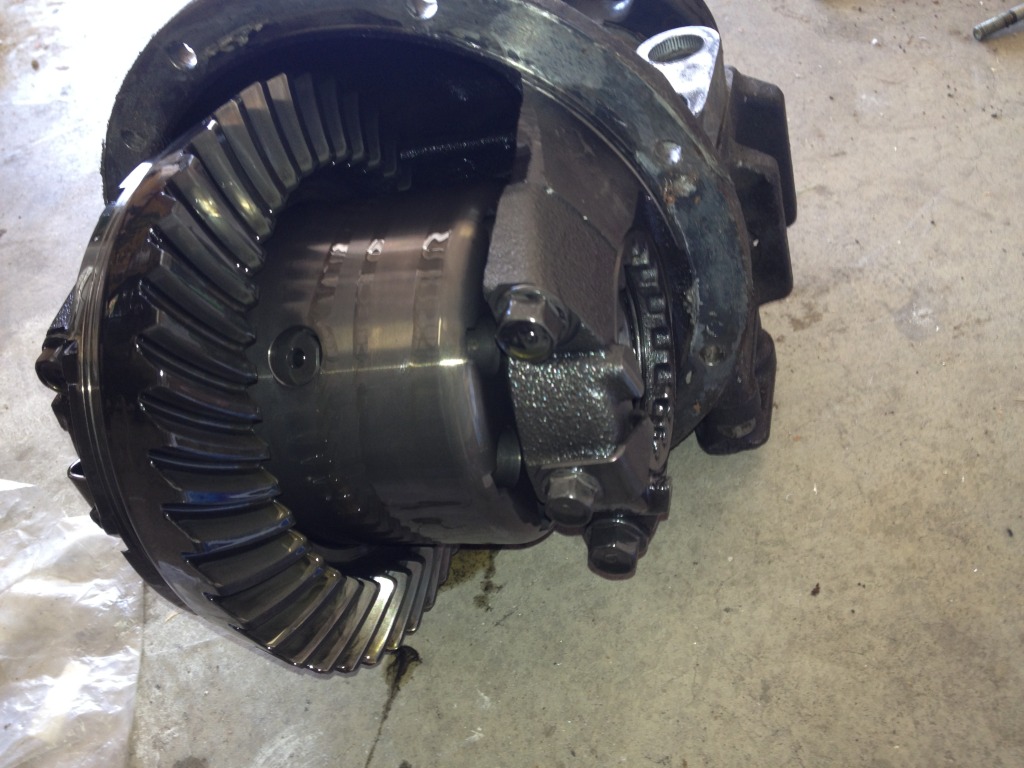

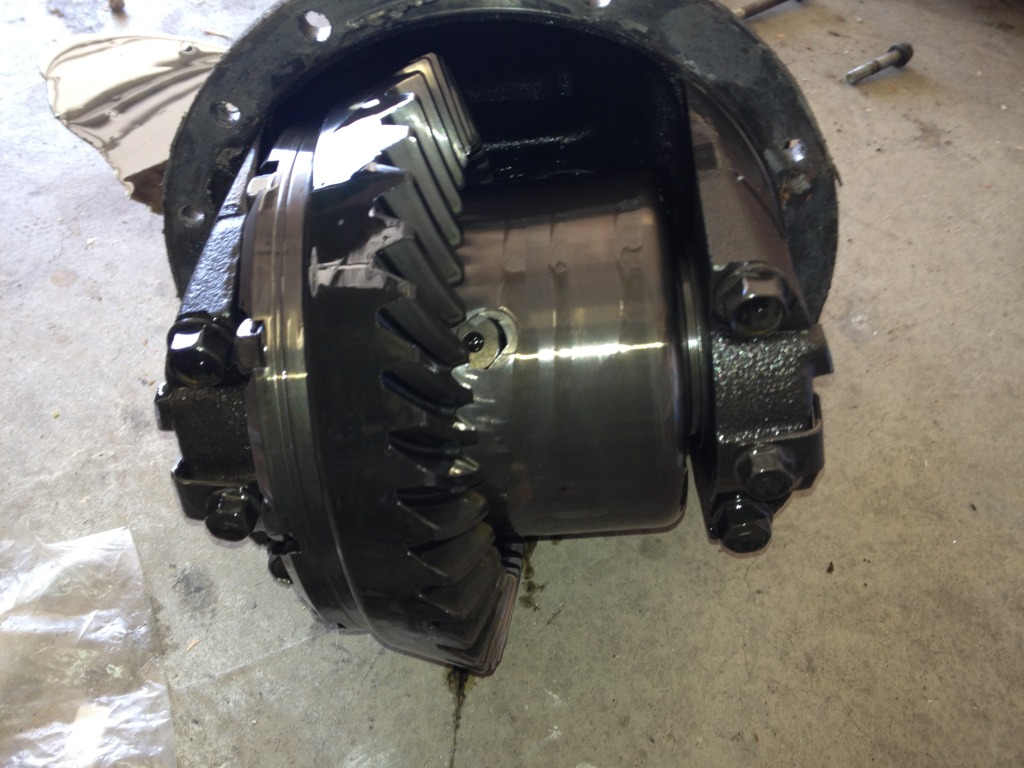

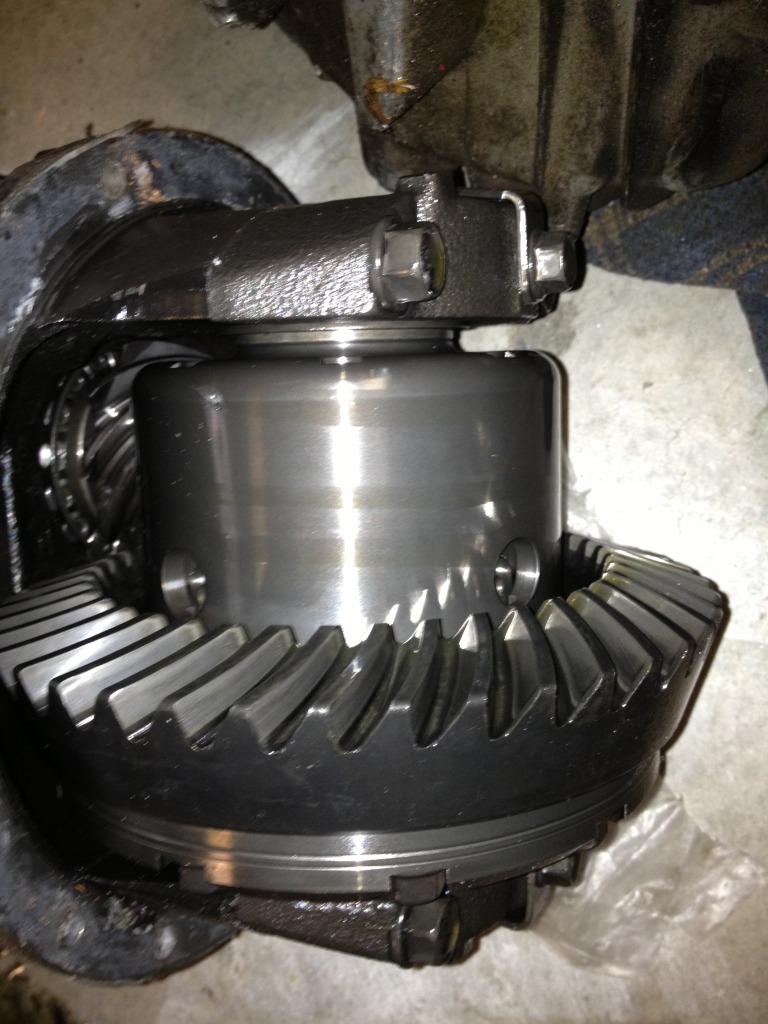

I bought a car and parted it out a while back. The guy I bought it from claimed that it had a rx7 differential in it. After doing some research, I found that it was owned by a drifter named ej. In the video he said it had a kaaz 1.5 differential.

I've looked at pictures to try to see if I can identify it. It looks like a kaaz from pictures I've seen. I couldn't find any marking to identify it.

So can anyone confirm that this is a kaaz or rx7 or what?



Attached Thumbnails
Identify this differential-null_zps38a33264.jpg   Identify this differential-null_zpsc1201abc.jpg   Identify this differential-null_zps781fe5cc.jpg
Dot3 is offline   Reply With Quote
Old 06-04-2013, 01:38 AM   #2
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

pretty sure its not An Rx7. If I remember right the Rx7 clutch type has a cast like housing rather than looking like it was machined from billet.
bbundy is offline   Reply With Quote
Old 06-04-2013, 02:28 AM   #3
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

From the pictures I think it could also be an OS-Giken
bbundy is offline   Reply With Quote
Old 06-04-2013, 02:44 AM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I think it could be an OS Giken

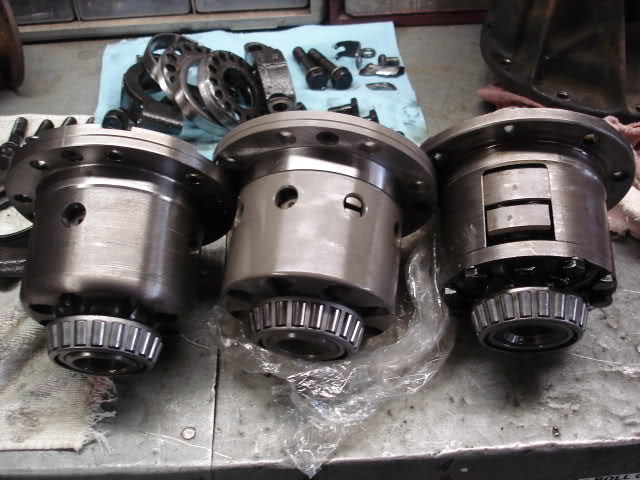

For reference -
OS Giken, KAAZ, AE86 diff
Attached Thumbnails
Identify this differential-2qsw7km.jpg
soviet is offline   Reply With Quote
Old 06-04-2013, 03:18 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

That's interesting. Is there another angle I could take a picture of to help identify?
Dot3 is offline   Reply With Quote
Old 06-04-2013, 03:23 AM   #6
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I say KAAZ, as it's less rounded. Just like in the Giken vs KAAZ picture.
Impuls is offline   Reply With Quote
Old 06-04-2013, 03:55 AM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

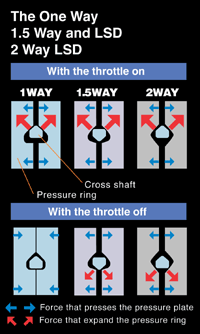

Take a closer picture of the adjuster thing in the middle. It will tell how the diff is setup.

Attached Thumbnails
Identify this differential-lsdaction.gif
soviet is offline   Reply With Quote
Old 06-04-2013, 05:16 AM   #8
Bax
Newb

Join Date: Apr 2006
Location: Athens, Greece
Posts: 13
Total Cats: 1
Default

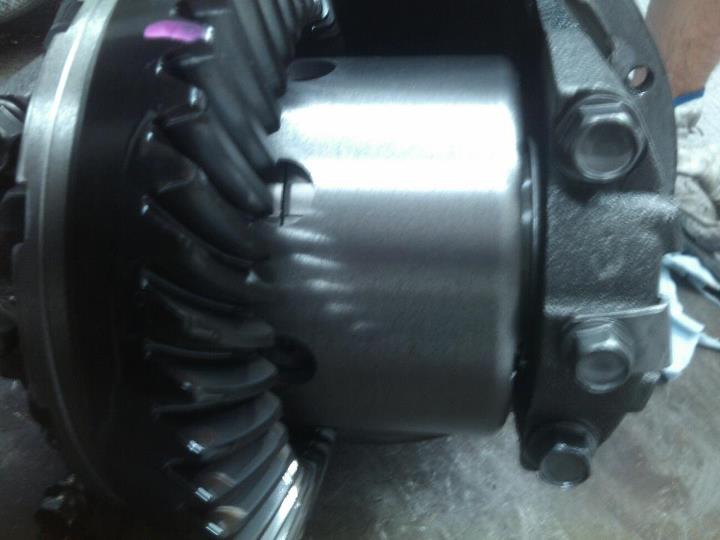

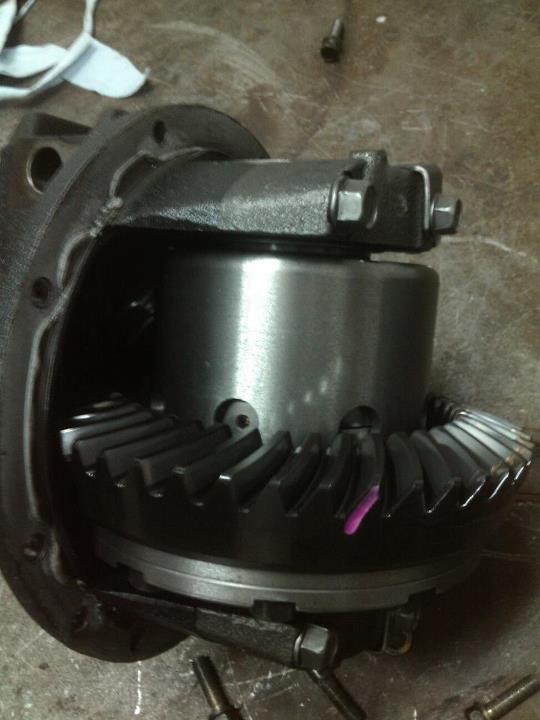

Here is my diff too. Came from a japanese car. It is a 1.5 way for sure. Didn't manage to identify it though.



Attached Thumbnails
Identify this differential-54328410150681726607706.jpg   Identify this differential-56076410150681727407706.jpg
Bax is offline   Reply With Quote
Old 06-04-2013, 09:36 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Its a Salisbury type of some sort. It is not a giken, the giken have a sort of textured finish on them and say giken on them, and the salisbury cam setup doesnt look as clean and professional as a giken. Could be a kaas or custco.
Leafy is offline   Reply With Quote
Old 06-04-2013, 10:45 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

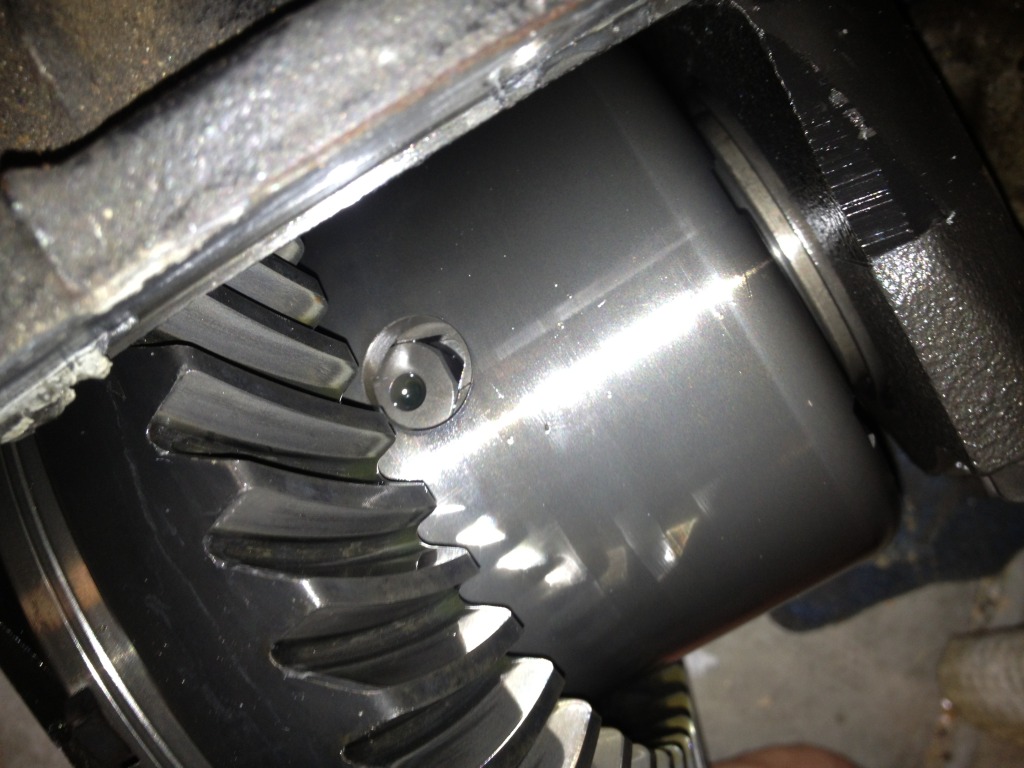

Attached Thumbnails

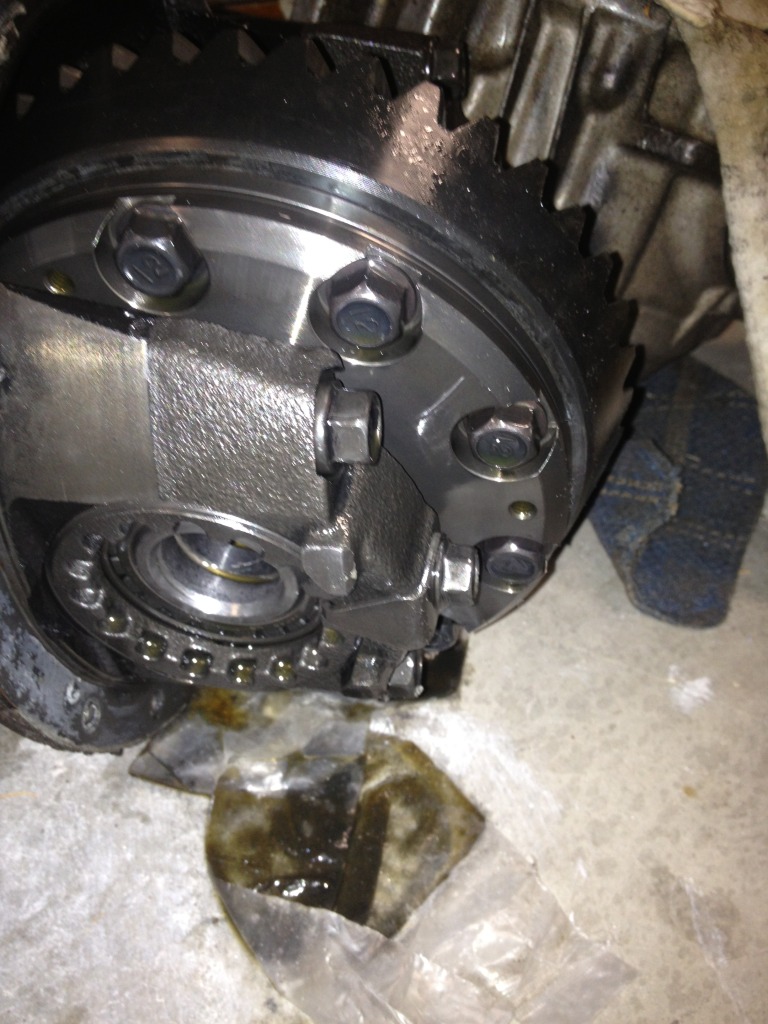

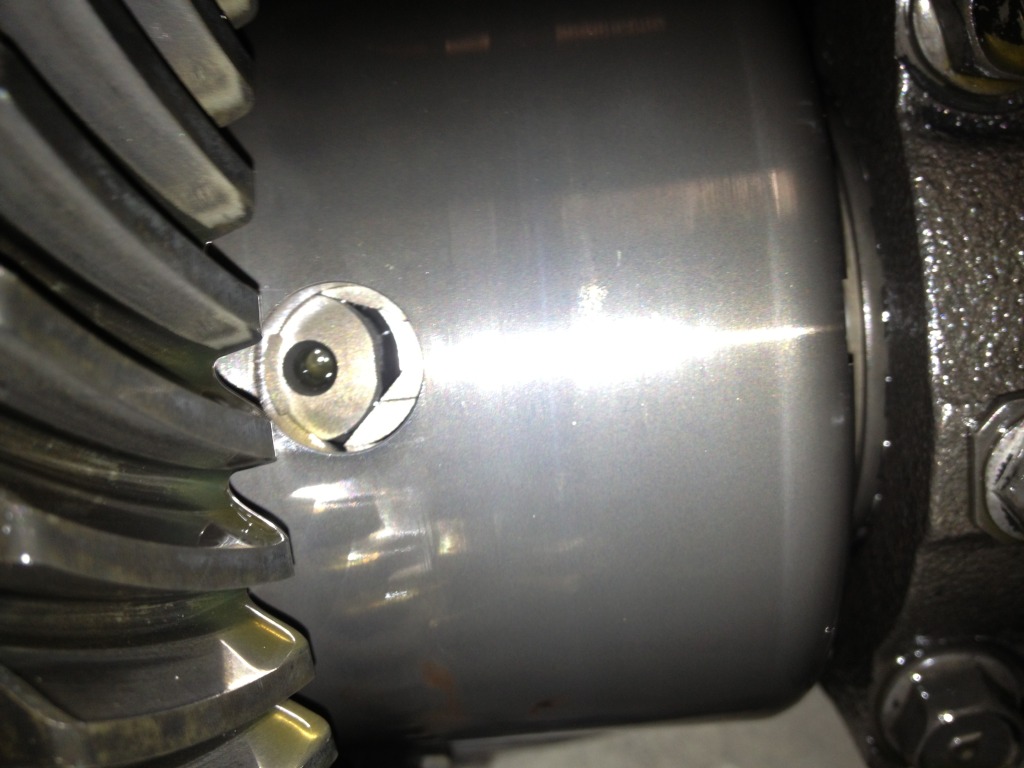

Identify this differential-null_zps6b14500c.jpg   Identify this differential-null_zps8e1bb190.jpg   Identify this differential-null_zps0474e4a8.jpg
Dot3 is offline   Reply With Quote
Old 06-04-2013, 02:24 PM   #11
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by soviet View Post
I think it could be an OS Giken

For reference -
OS Giken, KAAZ, AE86 diff
Are you sure that order is right? I don't remember my OS-Giken as having that rounded shoulder. I'm almost certain it didn't look like that. closer looking to the middle one.

I also seem to remember OS giken logo laser etched into the cover plate on the drive flange side of the diff. Looked like the Picture on 949's website.
bbundy is offline   Reply With Quote
Old 06-04-2013, 02:26 PM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Yeah the middle one looks more like a giken in that picture.
Leafy is offline   Reply With Quote
Old 06-04-2013, 02:36 PM   #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by Leafy View Post
Yeah the middle one looks more like a giken in that picture.
+1, the middle diff is a Giken.

Pretty sure the OP's diff is a Kaaz.
Savington is offline   Reply With Quote
Old 06-04-2013, 03:15 PM   #14
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Yeah, I messed up the order.
soviet is offline   Reply With Quote
Old 06-04-2013, 03:24 PM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Quote:
Originally Posted by soviet View Post
Yeah, I messed up the order.
I got excited for a second. What do you guys think? Is a kaaz worth keeping? Or would a rx7 or torsen be better? I'll probably be driving it as a daily but I still want take it to the track. Will be na for now but want to turbo it soon.
Dot3 is offline   Reply With Quote
Old 06-04-2013, 03:26 PM   #16
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I'd rather have the kaaz than the rx7, but I'd rather have the torsen over both of them unless the car had to be setup in a way that could just not keep the inside rear down then I would favor the kaaz.
Leafy is offline   Reply With Quote
Old 06-04-2013, 05:12 PM   #17
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Anything is better then an open.
If you don't keep the diff, what do you plan on getting?
Impuls is offline   Reply With Quote
Old 06-04-2013, 05:15 PM   #18
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

sell the KAAZ on cr.net, buy diff of choice?
soviet is offline   Reply With Quote
Old 06-04-2013, 05:16 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Welded

Ill probably use it but if I plan to get another I might consider a giken. But just because of what I've read of kaaz vs giken. I don't know enough about differentials now to know what would be better.
Dot3 is offline   Reply With Quote
Old 06-05-2013, 12:54 AM   #20
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Dot3 View Post
Welded

Ill probably use it but if I plan to get another I might consider a giken. But just because of what I've read of kaaz vs giken. I don't know enough about differentials now to know what would be better.
Gikens are crazy expensive.
I wouldn't mind welded, I have a strong hate for my open.
Impuls is offline   Reply With Quote
