Default Identifying NB Sport Non-ABS booster

I am putting a Wilwood master cyl on my 93. I had ordered what I thought was an 01-05 Sport Non-abs booster but I don't think that's what I got.

From what Ive researched there are 3 types of boosters:

1990-2000 (90* vacuum fitting)
01-05 Sport/Non-ABS (45* vacuum fitting)
01-02 Non sport or 01-05 ABS (big fat sucker)

I ended up receiving on with a 90* vacuum fitting but the seller swears its from a 01 SE Sport non-ABS car.

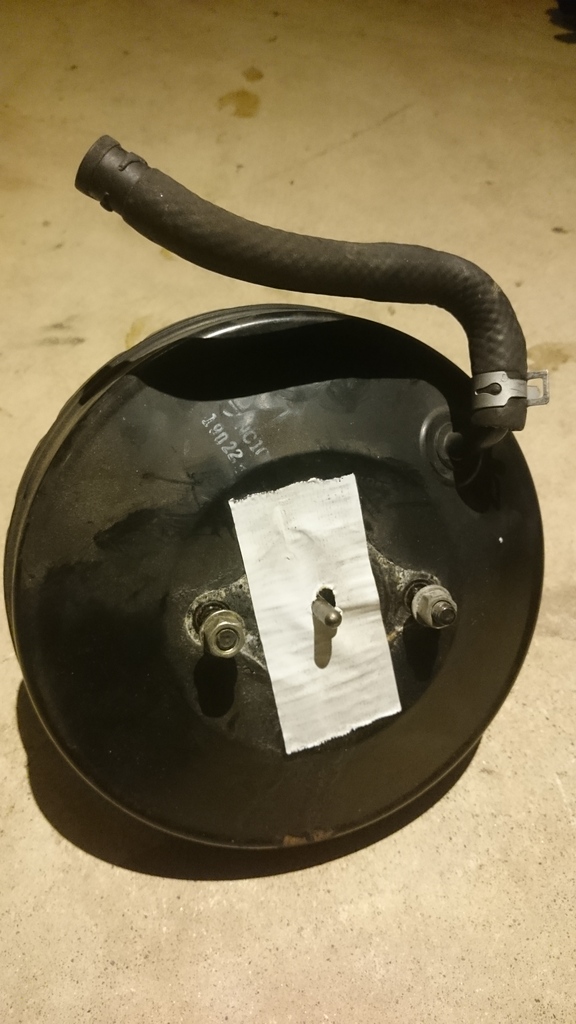

Picture of what I received:



Is my research wrong or did the seller mix up the boosters. Im just trying to get this resolved.
Attached Thumbnails
Identifying NB Sport Non-ABS booster-dsc_0470_zpsqm7khqam.jpg

Last edited by Neilv; 12-21-2015 at 03:36 PM.
Neilv is offline   Reply With Quote
Old 12-21-2015, 03:40 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

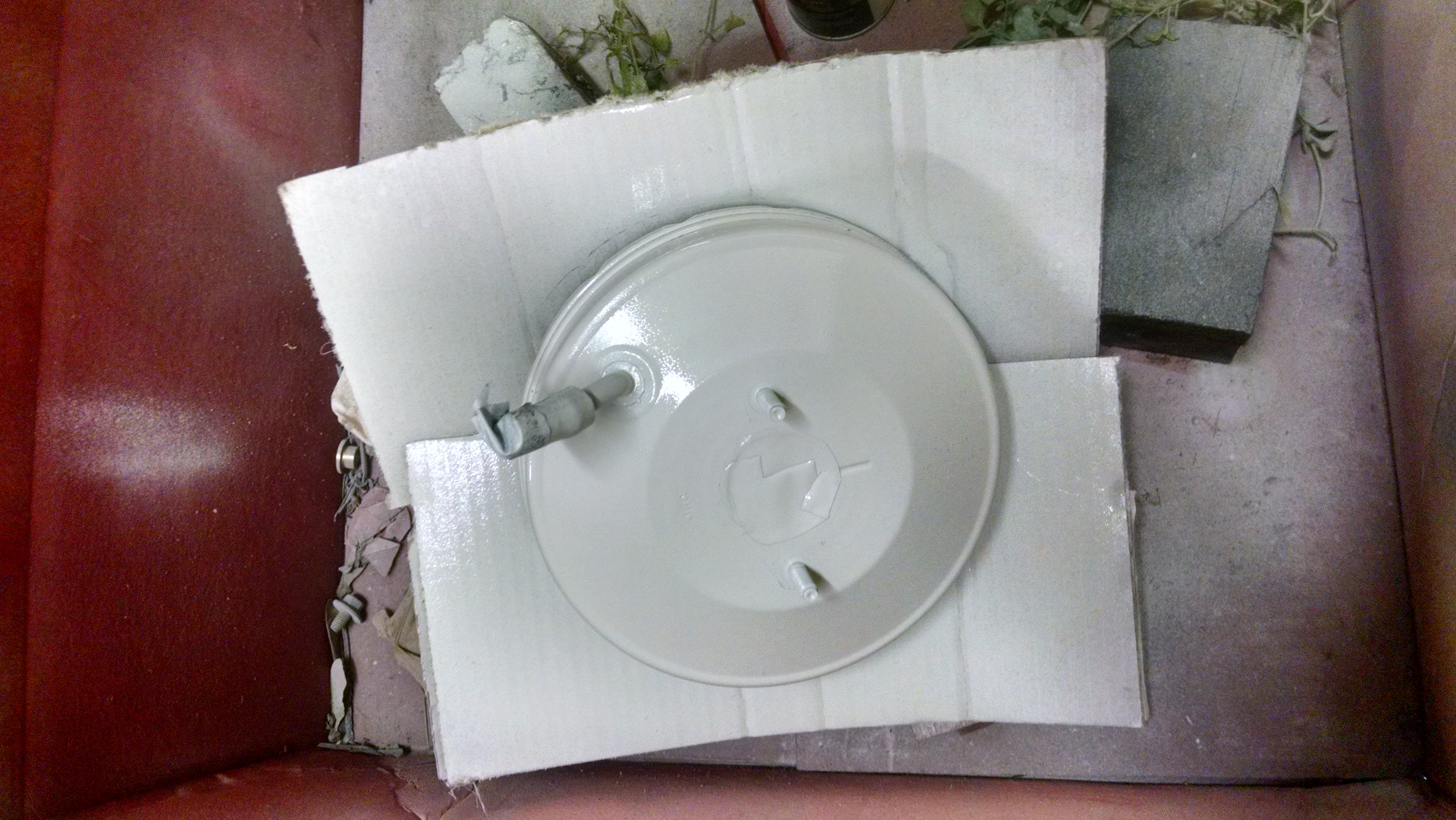

My 01 SE non-ABS car has a 45* fitting.

Mine also doesn't have the pushrod sticking out like that.

Attached Thumbnails
Identifying NB Sport Non-ABS booster-icf6nrr.jpg
aidandj is offline   Reply With Quote
Old 12-21-2015, 05:00 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

That is exactly what the picture showed on the website so that is what I thought I was getting. I must have been shipped the wrong one.

thanks for your quick response ill return what I have and get the proper one.

I also forgot about the push pin length difference. I will definitely have to make an adapter for that and the wildwood.
