Old 07-02-2014, 10:39 AM   #21
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

DIYPNP here. Fidanza flywheel, working a/c. It's not a problem. Idle bumps to 1000rpms when A/C is on. GSlender code.
concealer404 is offline   Reply With Quote
Old 07-04-2014, 02:58 PM   #22
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

I have stock ECU but 10# FM Steel FW and A/C. You just have to learn how to drive two totally different cars. With A/C and without. :P

Planning on swapping to NB A/C components with a Sanden 505 compressor, though, so that should change.
TheScaryOne is offline   Reply With Quote
Old 07-04-2014, 07:42 PM   #23
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Does the nb compressor run smoother?
Rallas is offline   Reply With Quote
Old 07-05-2014, 01:47 PM   #24
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

The Sanden 505 isn't the NB compressor. It's a smaller unit that uses less power to turn. I'm also going to load it full of envirosafe Propane/Isobutane blend refrigerant, which works at lower pressures than R-12 or R-134a.

I'm going to use an NB condenser and evaporator, as both are parallel flow designs which are the highest efficiency for the most cooling, compared to the NA's serpentine condenser and tube and fin evaporator.

The goal is ice cold A/C that plays well with my super light flywheel. Throttle tip in varies a lot between no A/C and A/C on, and is worse when the A/C compressor suddenly kicks back on.
TheScaryOne is offline   Reply With Quote
Old 07-05-2014, 04:50 PM   #25
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by TheScaryOne View Post
The Sanden 505 isn't the NB compressor. It's a smaller unit that uses less power to turn. I'm also going to load it full of envirosafe Propane/Isobutane blend refrigerant, which works at lower pressures than R-12 or R-134a.

I'm going to use an NB condenser and evaporator, as both are parallel flow designs which are the highest efficiency for the most cooling, compared to the NA's serpentine condenser and tube and fin evaporator.

The goal is ice cold A/C that plays well with my super light flywheel. Throttle tip in varies a lot between no A/C and A/C on, and is worse when the A/C compressor suddenly kicks back on.
So which model Sanden 505 compressor has the mounting holes and dimensions like the Miata NB compressor?
bahurd is offline   Reply With Quote
Old 07-05-2014, 05:36 PM   #26
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

There isn't one. You need to fab up some brackets.
TheScaryOne is offline   Reply With Quote
Old 08-21-2014, 02:30 PM   #27
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

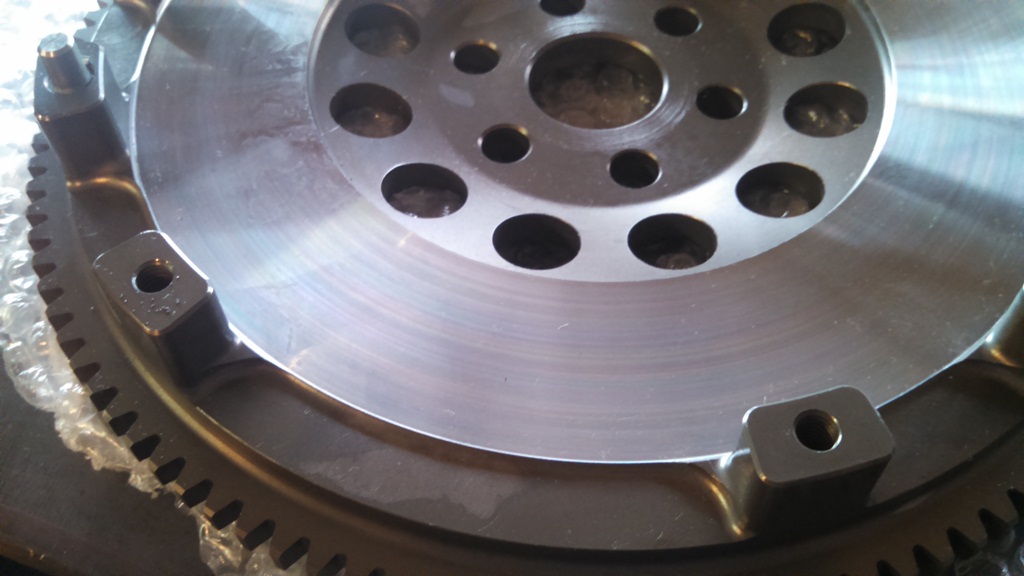

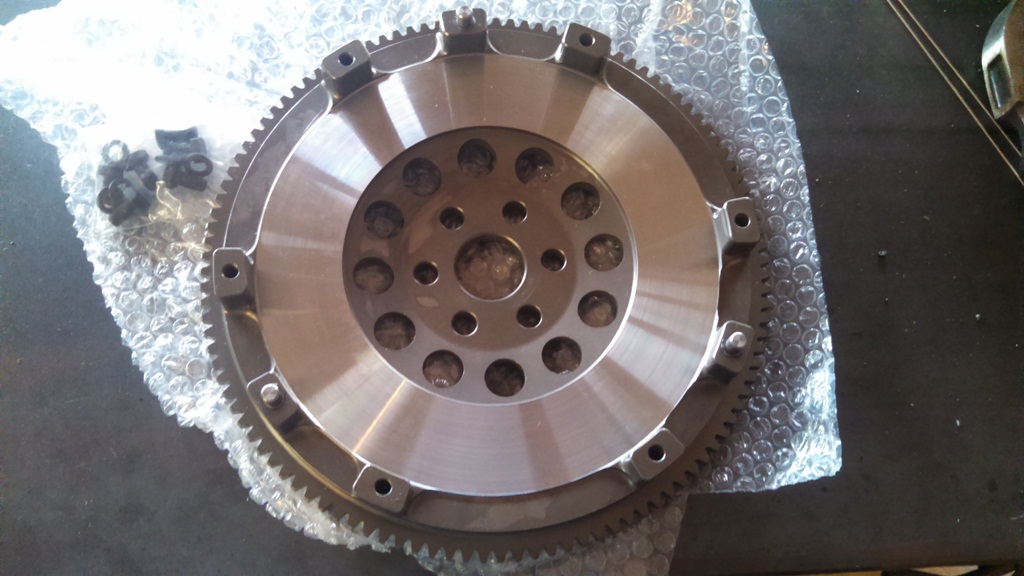

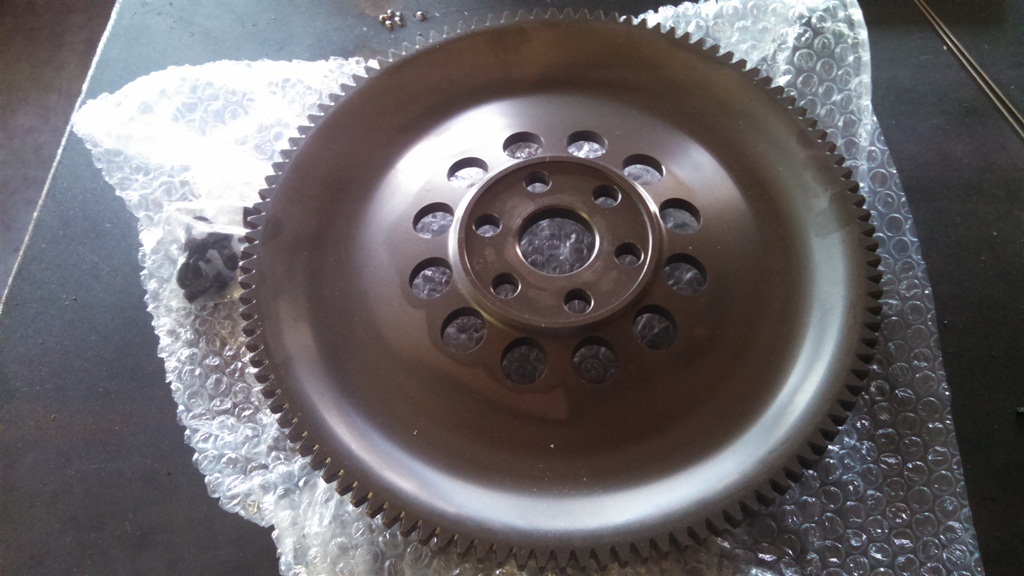

I ended up getting a FX Racing Chromoly 11.7lb forged 4140 flywheel. After doing a lot of searching I found several good reviews. Some minor issues with pressure plate bolts not matching the factory bolts, but other than the usual "its ebaycrap, dont use it" no major issues that I could find. I did look for a descent used Fidanza, FM or 949 wheel with no luck.

This one looks very well made. Hopefully I will find some time to install this with the 949 sport clutch soon! I will report back once I get this on the road.





Attached Thumbnails
Lighten factory flywheel or eBay flywheel-img_20140820_185422_752.jpg   Lighten factory flywheel or eBay flywheel-img_20140820_185428_693.jpg   Lighten factory flywheel or eBay flywheel-img_20140820_185438_220.jpg
Rallas is offline   Reply With Quote
Old 08-21-2014, 03:14 PM   #28
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

That's the one I've had since ~2009. I've found it to have no flaws.
Yes, the PP bolts are the same size as stock but a different thread pitch.
sixshooter is online now   Reply With Quote
Old 08-21-2014, 05:53 PM   #29
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by sixshooter View Post
Yes, the PP bolts are the same size as stock but a different thread pitch.
M8-1.25 x 20mm works
bahurd is offline   Reply With Quote
Old 10-28-2014, 02:19 PM   #30
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I finally got the flywheel and 949 Sport Organic Sprung clutch installed this past weekend. The flywheel went in fine and the supplied M8 bolts worked. The combination works very well so far. I will have to wait until I get at least a basic breakin period done before checking for any performance gains due to the lighter flywheel. I have noticed a quicker response when heel toe'ing and a slight (tolerable) increase in drivetrain noise when downshifting and engine braking. I believe the added noise is just part of going to a lighter FW and has nothing to do with it being an "ebay FW".

I really like the 949 Sport clutch so far. The pedal is only a little heavier, the only time I could really tell is when I got in my wife's stock 97 right after driving my 91. It has a great engagement feel and allows you to control the clutch much better than other racing on/off clutches I have driven in the past. I can't speak to it's torque capacity yet, but I should be way below the 260 ft/lb limit with my MSM turbo (only 190 ft/lb on virtual dyno). It is a great clutch that I would recommend for any sub 250 ft/lb setup.
Rallas is offline   Reply With Quote
