Old 08-27-2014, 03:18 PM   #21
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,705
Total Cats: 269
Default

5 speed. I think that is what Joe has, but I could have made it plain.
DNMakinson is offline   Reply With Quote
Old 08-27-2014, 04:41 PM   #22
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by 18psi View Post
it's also probably a good idea to replace the bottom shifter bushing with one from 5X or something.

if yours is worn, it could be mis-aligning and causing the notchiness/etc
Does the 5x bushing make a difference? Reviews seemed bad for the first generation bushing.
kenzo42 is offline   Reply With Quote
Old 08-27-2014, 06:27 PM   #23
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

My 5 speed was grinding when quickly going into 3rd both upshifting and downshifting. I tried shockproof in it upon recommendation from someone (I would give credit but I don't recall) and it solved the problem immediately.

Cold? What's that?
sixshooter is online now   Reply With Quote
Old 08-27-2014, 07:56 PM   #24
Junior Member

Join Date: Aug 2010
Location: Texas
Posts: 162
Total Cats: 11
Default

Quote:
Originally Posted by curly View Post
Redline worked ok for most track guys until it gets super hot, then it starts shifting like crap, hence the switch to Amsoil for most track guys.
I'm in Texas where it is like 150F on the track surface and my Redline filled transmission (MT-85) seems to shift just fine. How hot does it have to get before it starts shifting like crap?

Stock power levels, though, but I'm not exactly pussyfooting it around.

robert
robertcope is offline   Reply With Quote
Old 08-27-2014, 09:55 PM   #25
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by Joe Perez View Post
I've never quite understood what people mean when they describe shifting as "notchy." Personally, I find that having a discernible tactile delineation between "in gear" and "not in gear" to be a desirable attribute in a shifter
Absolutely agree that you should be able to tell by feel if the shifter is in a gear or not, and that you should feel resistance moving out of and into gear.

The notchiness ... the shift isn't quite right. It starts to snick into gear, then it's as if it starts to grind, the synchro finally synchros, and then it goes into gear. So there's just a catch, or notch, a momentary about-to-grind hesitation when going into gear. Often audible as well as being felt through the shifter. It's an interruption to the snick into gear.

I use Motorcraft and change it once a season. It has made my 6 speed shift better than when I got it, but it's still not perfect. At this point in the cars' life it sees about equal track to street miles. I have driven the car in below freezing temps and had no shifting issues - it might have been a bit stiffer, but still felt fine. (That's what she said)
Mobius is offline   Reply With Quote
Old 08-27-2014, 11:23 PM   #26
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Mobius View Post
Absolutely agree that you should be able to tell by feel if the shifter is in a gear or not, and that you should feel resistance moving out of and into gear.
One of the things that I most despised about my '00 Integra (and, to be fair, there weren't many), was the shifter. Even compared to my old VW Beetle it felt amazingly vague, like someone had stuck a ***** into a bucket full of oatmeal, with a few pieces of string connecting it to the syncro forks. You couldn't really tell when it was in gear other than by the fact that you'd hit the stop at the end of the gate.
Joe Perez is offline   Reply With Quote
Old 08-28-2014, 02:18 AM   #27
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Mitsubishi Diaqueen for the Evo8/9 MR 6 speed trans transformed my '92 5spd from a notchy, stiff disappointment to a smooth-at-any-temp delight. Once I swap in my 6spd I'll be using it again.
matthewdesigns is offline   Reply With Quote
Old 08-28-2014, 04:43 AM   #28
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

I prefer Motul 75-90 over the FoMoCo stuff. It shifts nicer.

Still waiting to loosen the drain plus and replace the FoMoCo stuff with Amsoil... I still fear stripping the plug, so the FoMoCo stuff stays.

But, seriously, the Motul works way better on the other Miata with 50% more miles and a beat up 2nd gear syncro.
SchmoozerJoe is offline   Reply With Quote
Old 08-28-2014, 09:07 AM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Joe Perez View Post
... like someone had stuck a ***** into a bucket full of oatmeal, with a few pieces of string connecting it to the syncro forks.
have you ever seen how a FWD shifter is connected to the trans?
Braineack is offline   Reply With Quote
Old 08-28-2014, 09:35 AM   #30
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
have you ever seen how a FWD shifter is connected to the trans?
In the case of the aforementioned '00 Integra, it was connected to the transmission via a metal rod with a U-joint at either end, along with a bar similar to the PPF which anchored the shifter base to the transmission near the point at which the selector rod entered it. It was very much like the shifter arrangement on a Beetle / 911, where the bar rotated as the shifter was moved left to right, and slid fore-aft to convey the same motion at the shifter.

Other FWD cars (Toyotas in particular), use two braided metal cables, one which relays the fore-aft motion of the shifter and another which relays the side-to-side motion.

The oatmealness of the Acura's shifter seemed much less to do with any vagueness in the coupling between the shifter and the transmission, and more in that there seemed to be no perceptible gating, and the act of engaging or disengaging a gear was not accompanied by any significant tactile feedback.
Joe Perez is offline   Reply With Quote
Old 08-28-2014, 10:26 AM   #31
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
have you ever seen how a FWD shifter is connected to the trans?
Based on his description I thin he has.
Leafy is offline   Reply With Quote
Old 08-28-2014, 10:50 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Leafy View Post
Based on his description I thin he has.
yeah, cause it seemed pretty accurate.
Braineack is offline   Reply With Quote
Old 08-28-2014, 11:48 AM   #33
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

I've said in several of these threads that the DSM guys use BG Synchroshift, and it really is magical. It will turn a recalcitrant piece of junk into a useful transimission.
vehicular is offline   Reply With Quote
Old 08-28-2014, 01:13 PM   #34
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by vehicular View Post
I've said in several of these threads that the DSM guys use BG Synchroshift, and it really is magical. It will turn a recalcitrant piece of junk into a useful transimission.
We've found that the only good fluid to use in DSM trannies is the Diaqueen I mentioned above, or Redline MT90 if the former is not available. We actually void warranties on our builds if any other fluid is used because of accelerated wear issues.

This DSM info of course has no bearing on whether BG will work well in a Miata trans, but given that both their synchros are unlined bronze the contact will be similar in both, and thus their behavior in a given fluid will as well.
matthewdesigns is offline   Reply With Quote
Old 08-28-2014, 01:17 PM   #35
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

I've never used Diaqueen, except in EVOs that require it. I HAVE used BG in several DSMs, and like I said, it turned unshiftable junk into good transmissions.

Diaqueen smells like a rotting corpse, so it's probably good stuff.
vehicular is offline   Reply With Quote
Old 08-28-2014, 01:21 PM   #36
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by vehicular View Post
I've said in several of these threads that the DSM guys use BG Synchroshift, and it really is magical.
I'll keep that in mind if anyone on DSMTurbo.net ever asks me which transmission lubricant does a good job of un-sticking the 1-2 shift on a DSM.
Joe Perez is offline   Reply With Quote
Old 08-28-2014, 01:45 PM   #37
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Well, it does seem only appropriate for this forum that a product called "Diaqueen" would make a good tranny lube.
Mobius is offline   Reply With Quote
Old 08-28-2014, 01:53 PM   #38
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

I use the Diaqueen in my daily driver, which is a turbocharged 99 galant with an eclipse 5spd trans. I have tried running all sorts of fluid in it, from straight Redline, to Diaqueen, and also the Scot Grey mix which is : 2x Redline MTL SAE 70w-80 API GL-4 Gear Oil
1x BG SyncroShift Part# 790 since my trans takes 3 quarts of fluid. The Diaqueen is by far the best solution so far with the second choice being the Grey mix.

Ill be performing a 6spd swap into Lazarus soon and Im wondering if I should just run the Diaqueen in that as well since I already have a copious quantity and dont want to deal with the a holes at the ford dealer. Based on the discussion in this thread it seems like the synchros in the transmissions are similar which means it should work quite nicely. I will report back soon with results.

Ive been running Redline in my now dead 5 spd, and when it was cool/warm it was great, but after 10 minutes into a track session the tranny would become a tad notchy which I can assume stemmed from the overheating of the redline fluid. It became worse and worse the more days I did on the same trans fluid. On the other hand the diaqueen in my galant gets changed once a year despite many miles of daily driving and a decent amount of track abuse, and I would say that it shifts better than just about any miata 5/6spd Ive ever driven.
greddygalant is offline   Reply With Quote
Old 08-28-2014, 01:57 PM   #39
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
have you ever seen how a FWD shifter is connected to the trans?
To expound on my previous, here's a diagram of the shifting linkage on an Integra, which I believe is common to all B-series Hondas:



#12 is the shift linkage itself. #13 is the PPF-like device which anchors to the transmission case at #15, and contains the socket into which the shifter ball sits at the rear. Thus, the spatial relationship between the shifter and transmission is rigidly enforced.

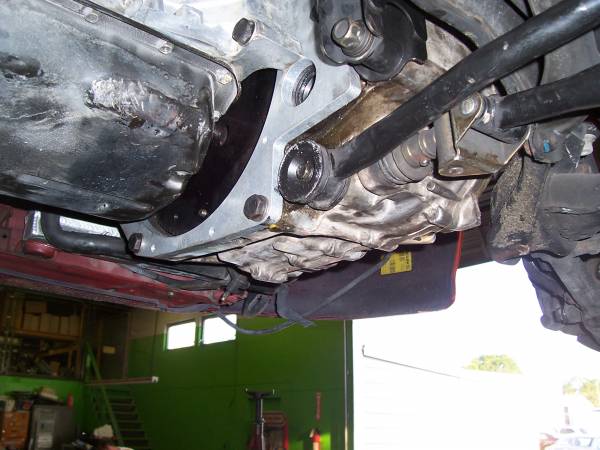

Here's what it looks like IRL, on the transmission side:

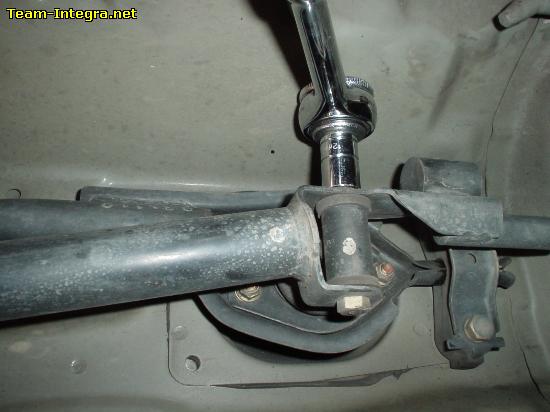

And beneath the shifter:







For comparison, here's a diagram of a cable-type shifter:




And now you know what a FWD shift linkage looks like.
Attached Thumbnails
Lube my Tranny-shift-linkage.gif   Lube my Tranny-f20b_install_045.jpg   Lube my Tranny-ss_step05.jpg
Joe Perez is offline   Reply With Quote
Old 08-28-2014, 02:02 PM   #40
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by greddygalant View Post
I use the Diaqueen in my daily driver...and I would say that it shifts better than just about any miata 5/6spd Ive ever driven.
This. Glad to see there's another heretic here.
matthewdesigns is offline   Reply With Quote
