Default Metal salad in my 5-speed, MLV and sound.

So, driving around tuning fuel, gearbox goes boom.


For now I am dropping in a replacement 5-speed. Is there any difference in the early 1.6, early 1.8 of later 1.8 gearboxes?

Wasn't expecting it to blow this soon...
Attached Thumbnails

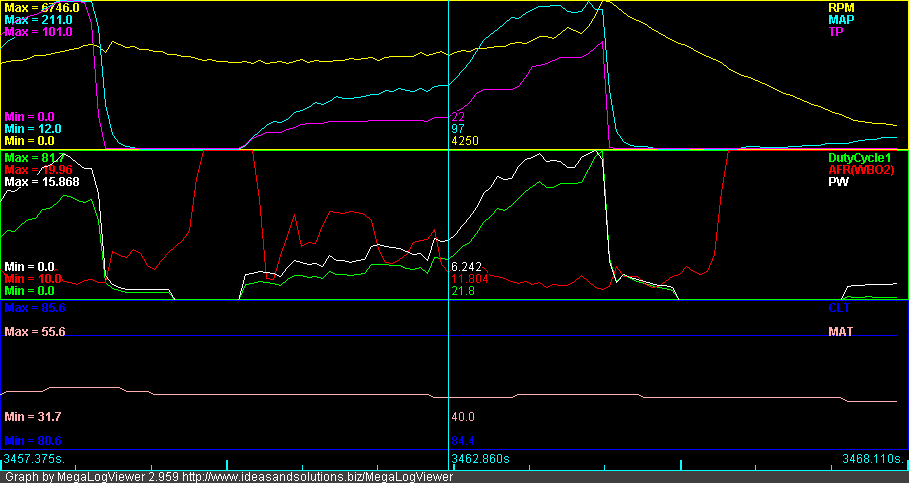

Metal salad in my 5-speed, MLV and sound.-rpmspike_gearbox-fail.png
Laur3ns is offline   Reply With Quote
Old 06-03-2010, 03:16 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

ouch..
18psi is offline   Reply With Quote
Old 06-03-2010, 03:17 PM   #3
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Spookyfish View Post
Is there any difference in the early 1.6, early 1.8 of later 1.8 gearboxes?
No, and apparently there's no difference between the 5spds and a 6spd either, just an extra gear. You need to convert to an OEM transmission engineered and spec'd for the kind of torque you're putting down.
gospeed81 is offline   Reply With Quote
Old 06-03-2010, 03:20 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

god damn it....and here I'm aiming for mid 300's very soon


regarding 6 speeds: I'm pretty sure they are capable of holding a bit more than the 5 sp, simply due to the fact that the gears are shorter and closer, as well as having a more rigid bellhousing allowing for less flex, and less torque load going from gear to gear. just my uneducated guess.
18psi is offline   Reply With Quote
Old 06-03-2010, 03:28 PM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I was in 3rd or 4th, can't remember actually.

Who is running the Quaife gearset? The wide ratio w/my 4.1 Torsen is tempting. But only if it will never break.
Laur3ns is offline   Reply With Quote
Old 06-03-2010, 03:29 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

try it and see
18psi is offline   Reply With Quote
Old 06-03-2010, 03:37 PM   #7
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Would you pay more to get a 15.000mi NB 5spd over any old 100.000m NA box?
Laur3ns is offline   Reply With Quote
Old 06-03-2010, 03:45 PM   #8
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Spookyfish View Post
Would you pay more to get a 15.000mi NB 5spd over any old 100.000m NA box?
Yes, NB 5 speeds shift soooo much smoother than NA 5 speeds.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-03-2010, 04:15 PM   #9
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

What's the write-up for this R&R?
- Drain gearbox
- Remove speedo cable and wiring clips
- Unbolt PPF and move it to the side
- Unbolt drive shaft and move aside
- Tilt engine slightly backwards
- Unbolt range of 14 and 17mm bolts, including starter
- Remove?

Missing something?
Laur3ns is offline   Reply With Quote
Old 06-03-2010, 04:17 PM   #10
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Big exhaust? Unbolt downpipe and remove.

My 6-spd wont come out with the 3" downpipe in place.
fooger03 is offline   Reply With Quote
Old 06-03-2010, 04:18 PM   #11
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Quote:
Originally Posted by Spookyfish View Post
What's the write-up for this R&R?
- Drain gearbox
- Remove speedo cable and wiring clips
- Unbolt PPF and move it to the side
- Unbolt drive shaft and move aside
- Tilt engine slightly backwards
- Unbolt range of 14 and 17mm bolts, including starter
- Remove?

Missing something?
Just lifting the car off the ground
boileralum is offline   Reply With Quote
Old 06-03-2010, 04:27 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

taking it out is cake. aligning the input shaft when putting it back on is a bitch.
18psi is offline   Reply With Quote
Old 06-03-2010, 04:27 PM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

- Lift car up HIGH
- Remove shifter as a whole
- Remove cat back
- Drain gearbox
- Remove speedo cable and wiring clips
- Unbolt PPF and move it to the side
- Unbolt drive shaft and move aside
- Tilt engine slightly backwards
- Unbolt range of 14 and 17mm bolts, including starter
- Remove?
Laur3ns is offline   Reply With Quote
Old 06-03-2010, 04:28 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

disconnect shifter
18psi is offline   Reply With Quote
Old 06-03-2010, 04:40 PM   #15
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by Spookyfish View Post
Who is running the Quaife gearset?
Cue Huster's millionth anti Quaife tirade.
rccote is offline   Reply With Quote
Old 06-03-2010, 05:59 PM   #16
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

http://www.toysport.com/catalog/PET%...Conversion.htm

buy Bell Housing from there "S-RWD W or T bellhousing"

buy W58 supra tranny

buy 3SGTE adapter plate from me

enlarge your tunnel, make some mounts and a custom driveshaft

profit?
therieldeal is offline   Reply With Quote
Old 06-03-2010, 06:06 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by rccote View Post
Cue Huster's millionth anti Quaife tirade.
Quaife sucks because I bought a $900 differential from them, had a pro install it for $500...then one of the first times I ran the car on the freeway in 4th gear at 480whp the diff's case broke. I called quaife and those ******s told me they would only warranty the internal gears, not the case and they'd sell me another one at a reduced priced.

I told them to eat my **** on toast and Gary Peloquin chimed in and cut me a deal on his differentaial that was fine in my car and my friend's 900whp car. I wish he'd made differentials for us...time for me to call.

It will be a cold day in hell before I give Quaife a god damn red cent.
hustler is offline   Reply With Quote
Old 06-03-2010, 08:25 PM   #18
Junior Member
iTrader: (2)

Join Date: Aug 2008
Location: Mobile,AL
Posts: 185
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Quaife sucks because I bought a $900 differential from them, had a pro install it for $500...then one of the first times I ran the car on the freeway in 4th gear at 480whp the diff's case broke. I called quaife and those ******s told me they would only warranty the internal gears, not the case and they'd sell me another one at a reduced priced.

I told them to eat my **** on toast and Gary Peloquin chimed in and cut me a deal on his differentaial that was fine in my car and my friend's 900whp car. I wish he'd made differentials for us...time for me to call.

It will be a cold day in hell before I give Quaife a god damn red cent.

Peloquin > Quaife. I have never heard one bad thing about Peloquin and they are cheaper with a better warranty!
K20 Mini is offline   Reply With Quote
Old 06-03-2010, 08:53 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by K20 Mini View Post
Peloquin > Quaife. I have never heard one bad thing about Peloquin and they are cheaper with a better warranty!
Peloquin offers a "no questions asked" warranty and apparently no one has ever broken one. I want him to make diffs for us but not sure if the planetary diff works as well as a clutch diff.
hustler is offline   Reply With Quote
Old 06-03-2010, 09:55 PM   #20
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Toasted gearboxes are never fun. My secondary shaft broke in half on my first kill.
