Default MSM clutch delay valve?

My newly acquired msm acts like it has a clutch delay valve (a la BMW). When you release it any quicker than a little spiritedly it returns slowly back to normal position. Running or not. Seems to be something in the hydraulic system keeping the fluid to return to the master, hence my question.

Do MSM's have a clutch delay valve?
vteckiller2000 is offline   Reply With Quote
Old 03-11-2014, 06:59 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,360
Total Cats: 1,323
Default

No.
Savington is online now   Reply With Quote
Old 03-11-2014, 07:02 PM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

What causes it, then? I've driven 3 different MSMs (including the one in question many many times) and they all did it.
concealer404 is offline   Reply With Quote
Old 03-11-2014, 07:03 PM   #4
Junior Member
iTrader: (3)

Join Date: Jun 2011
Location: Charlotte, NC
Posts: 277
Total Cats: 24
Default

Try bleeding the clutch.
RussellT94 is offline   Reply With Quote
Old 03-11-2014, 07:17 PM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Savington View Post
No.
It is fine until you release it fastly.

There is something wayyyyy different here than my NA.
vteckiller2000 is offline   Reply With Quote
Old 03-11-2014, 07:31 PM   #6
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I've driven all generations and currently have an MSM. Nothing different in the engagement.
Preluding is offline   Reply With Quote
Old 03-11-2014, 08:15 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

they work just like a regular nb. you have a problem
18psi is offline   Reply With Quote
Old 03-11-2014, 08:26 PM   #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

vteckiller2000 is offline   Reply With Quote
Old 03-11-2014, 10:36 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,360
Total Cats: 1,323
Default

Other people have the same problem as you. I've driven MSMs after installing and bleeding a clutch, they drive exactly the same as any other NA or NB, probably because it's exactly the same hydraulic system.
Savington is online now   Reply With Quote
Old 03-11-2014, 11:01 PM   #10
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Savington View Post
Other people have the same problem as you. I've driven MSMs after installing and bleeding a clutch, they drive exactly the same as any other NA or NB, probably because it's exactly the same hydraulic system.
What do you think it is? Hopefully it isn't the master then as it is the only thing I am not replacing when the clutch goes in.
vteckiller2000 is offline   Reply With Quote
Old 03-12-2014, 01:02 AM   #11
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Quote:
Originally Posted by vteckiller2000 View Post
What do you think it is? Hopefully it isn't the master then as it is the only thing I am not replacing when the clutch goes in.
Replacement master is <$20.
I got a master and a slave from amazon for $33.29 shipped.
I bought
Exedy SC825 (slave) Exedy SC825 (slave)
and
Exedy MC229 (master) Exedy MC229 (master)
.

edit: those links bring you to the more expensive vendor for whatever reason. I bought from SpeedShopUSA for much cheaper. Just search on their Amazon storefront.
scenturion is offline   Reply With Quote
Old 03-12-2014, 09:21 AM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Savington View Post
Other people have the same problem as you. I've driven MSMs after installing and bleeding a clutch, they drive exactly the same as any other NA or NB, probably because it's exactly the same hydraulic system.

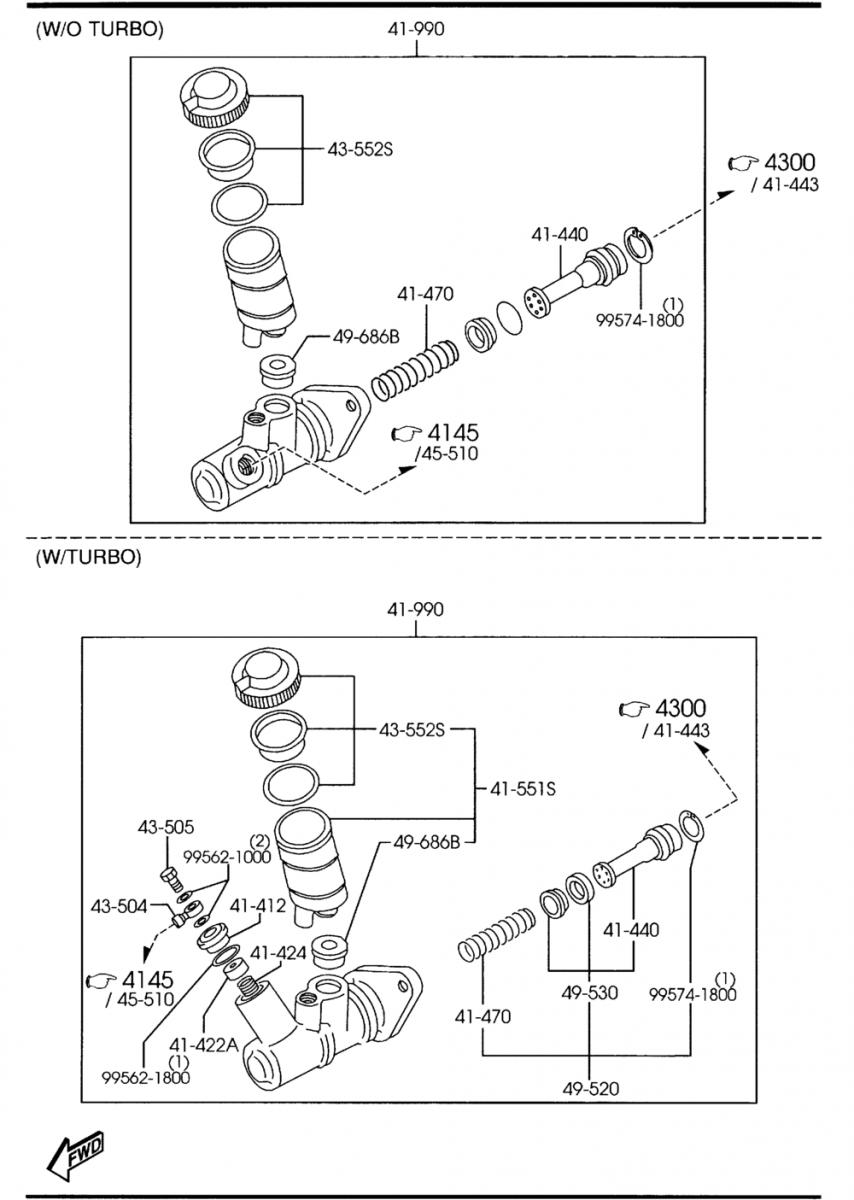

Yup, exact same hydraulics, nothing different about the turbo model at all. The turbo master isnt completely different.

Attached Thumbnails
MSM clutch delay valve?-1n39792_1000.jpg
Leafy is offline   Reply With Quote
Old 03-12-2014, 09:26 AM   #13
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Are the slaves interchangeable? In my experience, those clutch release valves tend to be in the slave.

There was one in my Tiburon, and the very first "mod" I did to that car was delete the stupid thing. I hated it. It made the clutch so unpredictable.
mlev is offline   Reply With Quote
Old 03-12-2014, 09:27 AM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The MSM and the normal car have different clutch hardpipes, so you'd also have to spend the $20 or so to get a new one of those.
Leafy is offline   Reply With Quote
Old 03-12-2014, 09:31 AM   #15
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by Leafy View Post
Yup, exact same hydraulics, nothing different about the turbo model at all. The turbo master isnt completely different.

The outlet of that master looks different and has what looks like a banjo bolt adapter thingy and some other junk that the standard one doesn't have?
vteckiller2000 is offline   Reply With Quote
Old 03-12-2014, 11:15 AM   #16
Senior Member
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by vteckiller2000 View Post
The outlet of that master looks different and has what looks like a banjo bolt adapter thingy and some other junk that the standard one doesn't have?
I believe leafy was being sarcastic.
mlev is offline   Reply With Quote
Old 03-12-2014, 11:17 AM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Quote:
Originally Posted by mlev View Post
I believe leafy was being sarcastic.
I haz a dumb.
vteckiller2000 is offline   Reply With Quote
Old 03-12-2014, 01:36 PM   #18
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 339
Total Cats: 39
Default

Quote:
Originally Posted by vteckiller2000 View Post
I haz a dumb.
Hah, I didn't know the MSM had a different clutch master either. Oops.
scenturion is offline   Reply With Quote
Old 03-15-2014, 04:32 PM   #19
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Cedar Rapids
Posts: 673
Total Cats: 29
Default

Where can I get the non msm hard line from the master to the junction to the soft line? I swapped the clutch, soft line and slave and it is exactly the same. I want to swap the master and hard line to the non msm ones now.
vteckiller2000 is offline   Reply With Quote
Old 03-15-2014, 11:19 PM   #20
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The dealer.
Leafy is offline   Reply With Quote
