Default MSM differential issue in 1990 miata

I have been swapping from my 1.6 open diff to a MSM diff today, using the original parts from the donor car (axles and driveshaft). Everything fits, except when I start to tighten the axle nuts, I can no longer rotate the axle. Even as little as 100 ft lb of torque on the nut will freeze the axle. If the nut is hand tight, the axle will rotate. The only point of contact that I can find is the seal between the bearing and axle.

From what I have found, this should fit into a 1990 Miata.

In in my searching, I have found some reference to a parts diagram that shows a 2005 Miata assembly, without the seal that is making contact. Has anyone here experienced the same issue? Do you remove the seal, or is there a different seal that I should be replacing it with?
chuck is offline   Reply With Quote
Old 06-12-2016, 11:42 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Pictures would help.
aidandj is offline   Reply With Quote
Old 06-13-2016, 12:20 AM   #3
Newb
Thread Starter

Join Date: Sep 2006
Location: Winkler, MB
Posts: 10
Total Cats: 0
Default

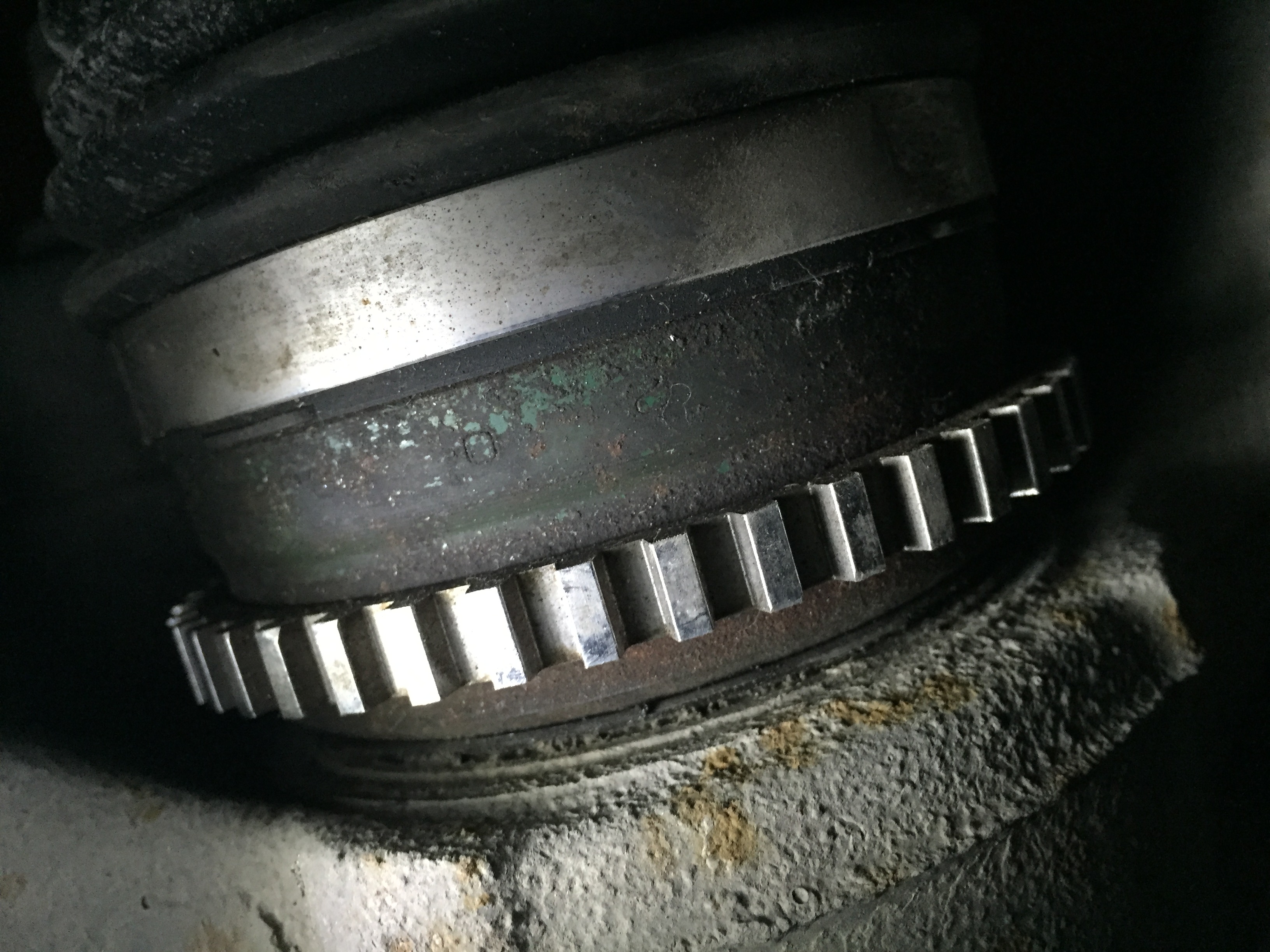

That makes sense. Picture is attached. The axle seems to be pressed pretty hard against the seal. This is the only point of contact that I can find that I think would be causing my problem.
Attached Thumbnails
MSM differential issue in 1990 miata-image.jpeg
chuck is offline   Reply With Quote
Old 06-13-2016, 12:23 AM   #4
Newb
Thread Starter

Join Date: Sep 2006
Location: Winkler, MB
Posts: 10
Total Cats: 0
Default

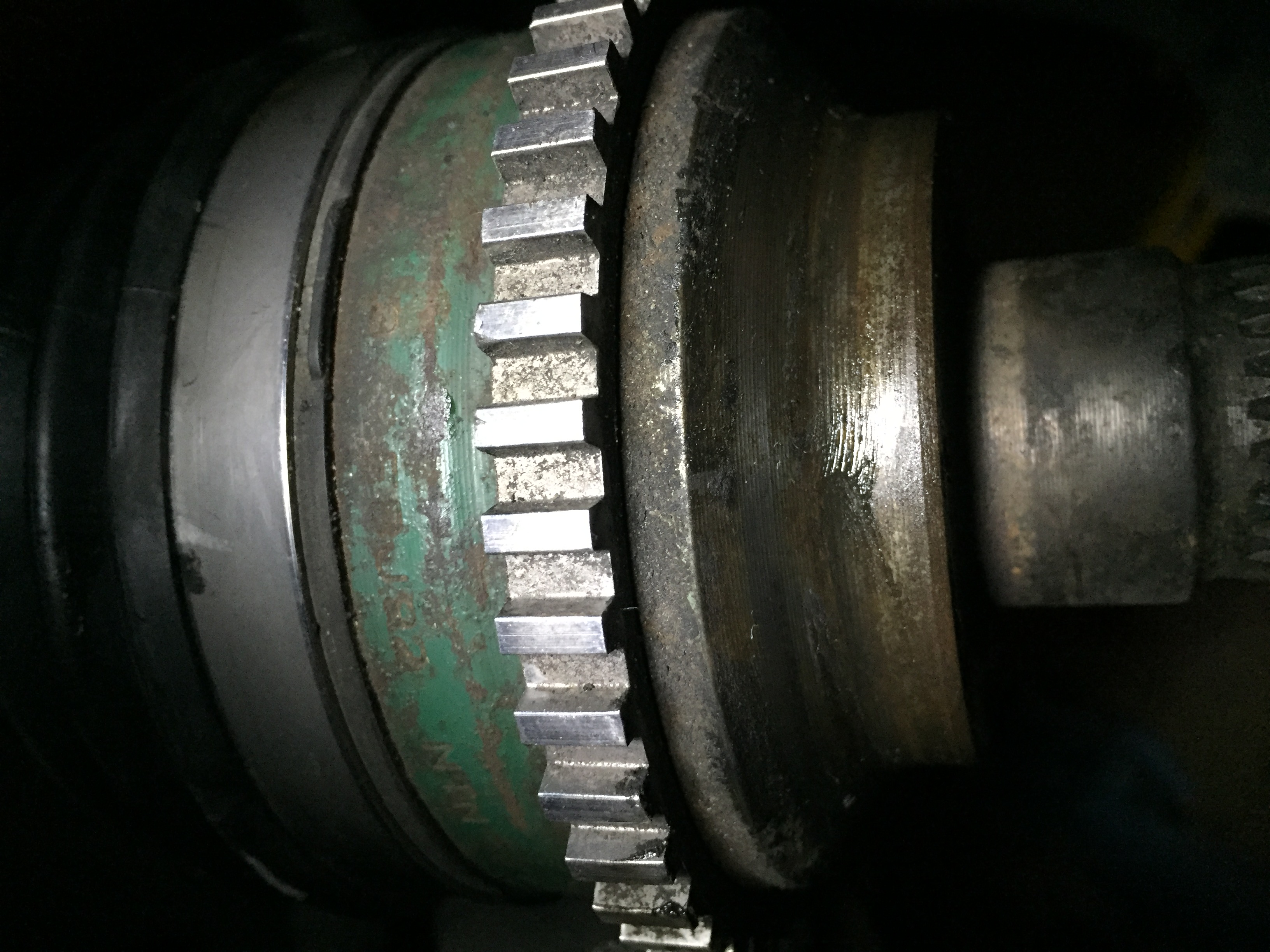

It seems I can only attach one photo at a time on my iPhone.
Attached Thumbnails
MSM differential issue in 1990 miata-image.jpeg
chuck is offline   Reply With Quote
Old 06-13-2016, 10:45 AM   #5
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

Watching with interest. I will be doing this myself shortly.
x_25 is offline   Reply With Quote
Old 06-13-2016, 11:15 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

maybe your hub somehow got pulled apart or pressed out?
18psi is offline   Reply With Quote
Old 06-13-2016, 05:01 PM   #7
Newb
Thread Starter

Join Date: Sep 2006
Location: Winkler, MB
Posts: 10
Total Cats: 0
Default

I have owned the car for almost 15 years, and this is the first time the rear axles have been taken out since I have owned the car. Both came out extremely easy (no rust holding them in). I would be surprised if the bearings or hub were slightly or of place, but I will check on that tonight. My brother who is a mechanic will be coming over tonight to take a look as well. Hopefully we will find a solution.
