Default New SuperMiata Sport Clutch

We're proud to announce the new made in USA SuperMiata Sport clutch kits for B6 and BP engined Miatas. These have been in development for over two years. The very first prototype actually won E2 and finished 8th overall the 2011 Thunderhill 25 hours in Bellwilliam's Miata "Enzo". I'm not sure he knew he was a clutch test guinea pig . We also offer lightweight flywheels to make a complete install.

For full details and specs, visit the website.


emilio700 is online now   Reply With Quote
Old 02-15-2013, 09:52 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Sweet.

Too bad its not for turbo applications
18psi is offline   Reply With Quote
Old 02-15-2013, 09:55 PM   #3
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by 18psi View Post
Sweet.

Too bad its not for turbo applications
que?
emilio700 is online now   Reply With Quote
Old 02-15-2013, 10:03 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

lol I wanted to clarify but already closed the page. 260 crank torque aint much on a turbo car
18psi is offline   Reply With Quote
Old 02-15-2013, 10:10 PM   #5
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by 18psi View Post
lol I wanted to clarify but already closed the page. 260 crank torque aint much on a turbo car

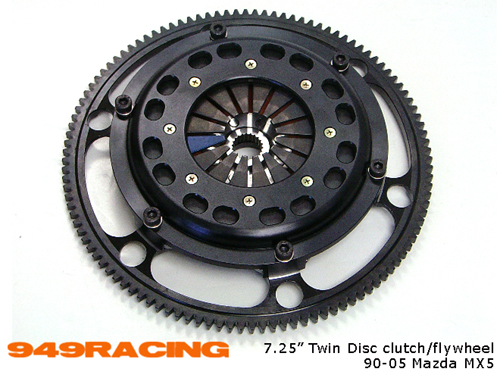

320 whl torque on the 1.8 ceramic. For those that need more we have this fellow.

Attached Thumbnails
New SuperMiata Sport Clutch-949racing_725_twin_clutch.jpg
emilio700 is online now   Reply With Quote
Old 02-15-2013, 10:49 PM   #6
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Dammit Emilio!

I buy cheap *** rims, you release 6UL
I buy FatCat Blisteins, you release XIDA CS
I buy Corrado/Wilwood brake kit, you release SuperMiata Wilwood brake kit
I buy ATI damper, you release SuperMiata Damper
I buy FM clutch kit*, you release SuperMiata Clutch kit

I'm starting to notice a pattern here. I guess for the good of the community, I should go buy a 6 speed?

* For the record, nothing wrong with my FM clutch kit, I just thought it was funny.
EO2K is offline   Reply With Quote
Old 02-16-2013, 01:32 AM   #7
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Any idea how the pedal effort compares to the Flyin Miata Level 1 clutch?
njn63 is offline   Reply With Quote
Old 02-16-2013, 01:47 AM   #8
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by njn63 View Post
Any idea how the pedal effort compares to the Flyin Miata Level 1 clutch?
Nope, haven't driven an FM clutch. Pedal is light with ours. The diaphragm spring is thin gauge and heat treated. The gives it the correct spring rate without requiring a lot of force to bring over center. Not every clutch manufacturer uses heat treated diaphragm springs so you'd have to ask them.

Keeping a light pedal was the original impetus for the design actually. I don't mind a heavy pedal myself but virtually every one of my team drivers complained about the heavy effort Race Twin Rental and Crusher. So we did some tweaking to what became the Sport Clutch design to make it closer to stock effort. Goal was for a small female to be able to handle it easily.
emilio700 is online now   Reply With Quote
Old 02-16-2013, 02:05 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I'm guessing there's a torque difference between the 1.6 and 1.8? Website says 260/320 for both.
curly is offline   Reply With Quote
Old 02-16-2013, 02:18 AM   #10
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by curly View Post
I'm guessing there's a torque difference between the 1.6 and 1.8? Website says 260/320 for both.
Doh. Typo.
230 Organic 1.6
260 Ceramic 1.6

Those are conservative numbers. Pretty sure a new clutch, broken in properly will hold a bunch more. We guarantee the cover and disc against failure (not wear) wait for it.. forever.
emilio700 is online now   Reply With Quote
Old 02-16-2013, 04:01 AM   #11
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by EO2K View Post
Dammit Emilio!
I'm starting to notice a pattern here. I guess for the good of the community, I should go buy a 6 speed?
Inside sources are telling me 949 will be releasing their 7 speed transmission right after you buy a 6 speed. They are also developing an amplifier that goes to 11.
mr_hyde is offline   Reply With Quote
Old 02-16-2013, 08:52 AM   #12
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Looks good. out of curiousity what diameter is the organic 1.8 disc 215mm or 225mm?

I need a more comfortable clutch, the F1 stage 3 I have grabs hard but it is getting tiring to drive the car with it.
duffbuster243 is offline   Reply With Quote
Old 02-16-2013, 04:48 PM   #13
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by duffbuster243 View Post
looks good. Out of curiousity what diameter is the organic 1.8 disc 215mm or 225mm?

I need a more comfortable clutch, the f1 stage 3 i have grabs hard but it is getting tiring to drive the car with it.
215
emilio700 is online now   Reply With Quote
Old 02-16-2013, 04:55 PM   #14
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Are those numbers wtq or at the flywheel? Either way, this makes my decision a lot easier, was thinking of splashing out for the FM Happy Meal, but $300 for a proven clutch and possibly a cheap 1.8 flywheel if need be, and I'll be quite happy. I plan on hitting around 200-210whp on my 1.6 and I'd like the lighter pedal feel of the organic, should I bother with a 1.8 flywheel for the extra grab?

edit: looks like wtq from what you posted earlier in this thread, I'm dumb.
albumleaf is offline   Reply With Quote
Old 02-16-2013, 05:08 PM   #15
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by albumleaf View Post
Are those numbers wtq or at the flywheel? Either way, this makes my decision a lot easier, was thinking of splashing out for the FM Happy Meal, but $300 for a proven clutch and possibly a cheap 1.8 flywheel if need be, and I'll be quite happy. I plan on hitting around 200-210whp on my 1.6 and I'd like the lighter pedal feel of the organic, should I bother with a 1.8 flywheel for the extra grab?

edit: looks like wtq from what you posted earlier in this thread, I'm dumb.
I would suggest the 1.8 for a street or autocross car, 1.6 for a track only car.
emilio700 is online now   Reply With Quote
Old 02-17-2013, 04:24 AM   #16
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

so they are thrust bearing friendly ? Im assuming you guys looked at thurst wear while testing. was there any noticeable wear ?
Gt2560rMiata is offline   Reply With Quote
Old 02-17-2013, 04:59 AM   #17
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by Gt2560rMiata View Post
so they are thrust bearing friendly ? Im assuming you guys looked at thurst wear while testing. was there any noticeable wear ?
Not a criteria I looked at. If thrust bearing wear is a concern, bypass the clutch switch, don't put a weak clutch in it.
emilio700 is online now   Reply With Quote
Old 02-17-2013, 11:23 AM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I can't believe it's orange.


Thanks for making this.
hustler is offline   Reply With Quote
Old 02-17-2013, 01:39 PM   #19
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

Quote:
Originally Posted by emilio700 View Post
I would suggest the 1.8 for a street or autocross car, 1.6 for a track only car.
I would think that the 1.8 would take more abuse, are these backwards?
albumleaf is offline   Reply With Quote
Old 02-17-2013, 02:24 PM   #20
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Quote:
Originally Posted by albumleaf View Post
I would think that the 1.8 would take more abuse, are these backwards?
Track clutch doesnt see the slipping or standing starts a street autocross car will. The higher MO and surdace area of the 1.8 kit makes more sense there.

I love a 1.6 assembly on a street driven 1.8 for the great response and faster shifting but I'm also Ok with the noise and jumpy starts.
emilio700 is online now   Reply With Quote
