Default Now WTF?

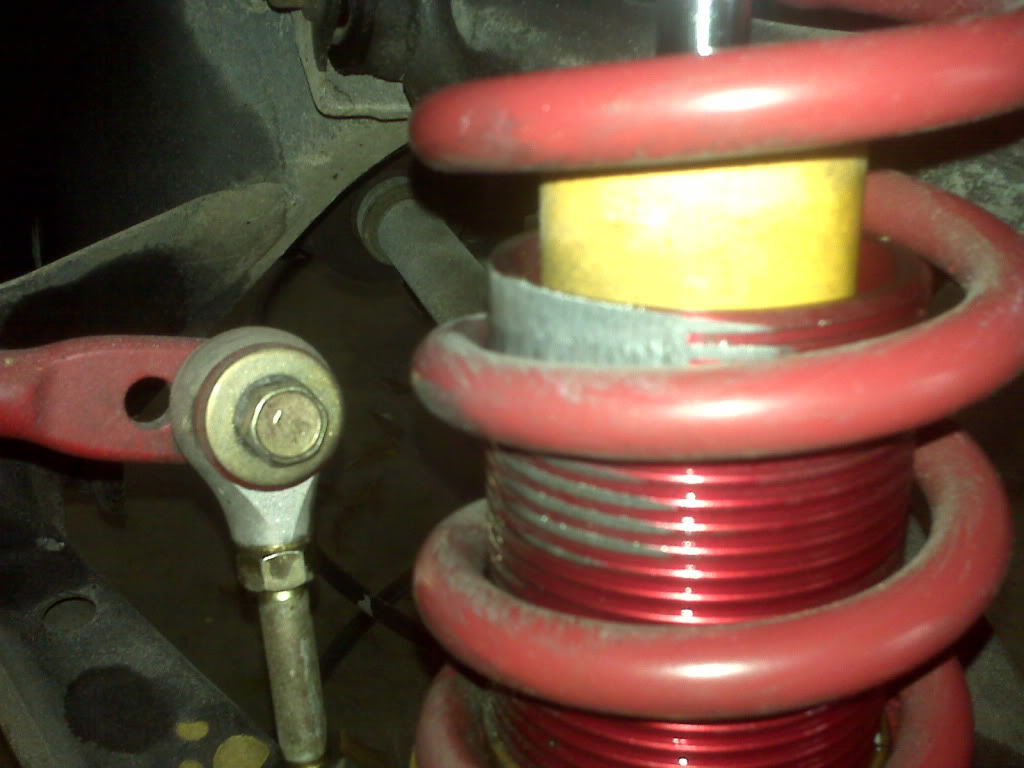

Didnt notice this before - trying to figure out what's going on on my rear setup. They are Koni sports, GC tubes, and Eibach 300# springs - on track only. Anyone else get spring to tube rub?

Name:  IMG00717.jpg
Views: 0
Size:  75.1 KB
GeneSplicer is offline   Reply With Quote
Old 02-19-2011, 10:44 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

mine's done that, just not so bad. are those 2.25" springs? you could cut done the sleeve so it's not so tall.
Braineack is offline   Reply With Quote
Old 02-19-2011, 11:02 AM   #3
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

That's a good idea - it's not like I'm gonna hike it up any higher than what it's set at. I was just worried there might be something twisted/out of spec with the setup.
GeneSplicer is offline   Reply With Quote
Old 02-19-2011, 11:12 AM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Do you have those little plastic spring isolators on the bottom? Insepct them when you disassble and cut the tube.
curly is offline   Reply With Quote
Old 02-19-2011, 11:14 AM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

one solution to this is helper springs. but it looks like you don't have the top spacers in place that keep the spring from moving...
y8s is offline   Reply With Quote
Old 02-19-2011, 11:19 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Hi-res pic of full coilover please.
curly is offline   Reply With Quote
Old 02-19-2011, 11:26 AM   #7
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I've had some rub with mine but not that drastic. Is the spring unloading and shifting at full extension?
wannafbody is offline   Reply With Quote
Old 02-19-2011, 11:43 AM   #8
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Mine are doing the same thing as well, but also not nearly as bad. Koni Race/GC/Eibach Springs.

I could use a set of helper springs since the front shocks can unload at full extension. Then again I believe I saw the same wear on the rear adjuster tubes and the rears do not unload at full extension. The rubber spring retainers on all of the tophats are fine.
ZX-Tex is offline   Reply With Quote
Old 02-19-2011, 01:53 PM   #9
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I'm with everyone else, I have some rubbing but not much.
Gotpsi? is offline   Reply With Quote
Old 02-19-2011, 02:38 PM   #10
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

I've also seen this on my old Billy setup.
jacob300zx is offline   Reply With Quote
Old 02-19-2011, 03:11 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Tenders will solve it, helpers will do the same and improve compliance over curbs.
Savington is online now   Reply With Quote
Old 02-19-2011, 04:01 PM   #12
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

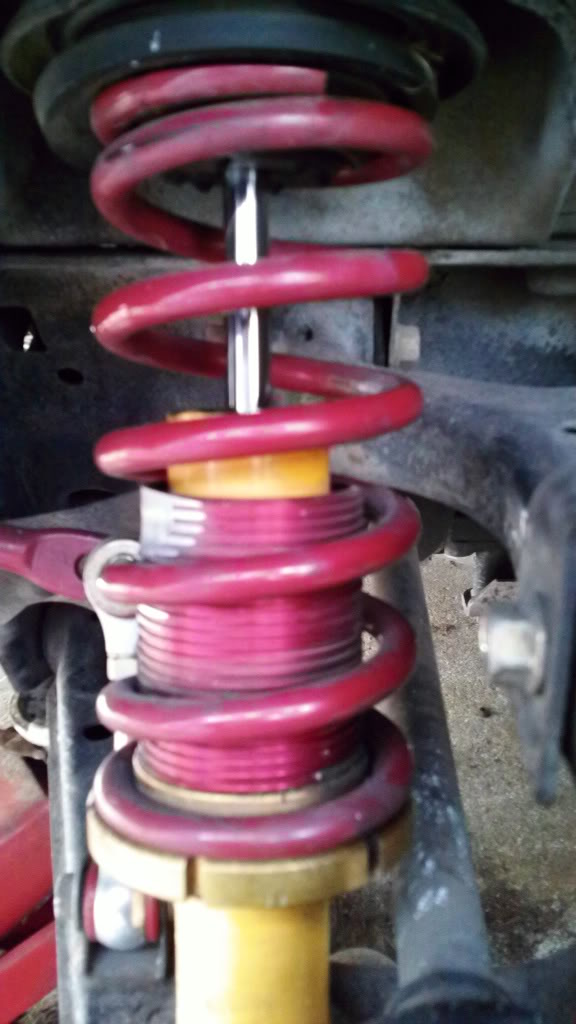

Well, after having some time to inspect, it's quite clear what's going on on the pass rear. However, my camera sucks so excuse the clarity - but it's obvious the spring is not centered on the rubber isolator at the top. I'll have to pull the assembly out and try to 'mold' the isolator where the spring smashed it - or get a new one. Man - wonder how long that's been going on? I had better do more detailed inspection from now on.

Name:  100_0006.jpg
Views: 0
Size:  69.8 KB
Name:  100_0007.jpg
Views: 0
Size:  67.8 KB
GeneSplicer is offline   Reply With Quote
Old 02-19-2011, 04:31 PM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Whose spring isolators are those?
curly is offline   Reply With Quote
Old 02-19-2011, 05:07 PM   #14
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

not a big deal. they all do that. chop it, done.
spoolin2bars is offline   Reply With Quote
Old 02-19-2011, 05:27 PM   #15
Elite Member
Thread Starter
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by curly View Post
Whose spring isolators are those?
No clue - same setup since I bought the car in '09. Hopefully some Xidas in the future for me.

I'll chop 'em and be done with it. Thanks for the input guys
GeneSplicer is offline   Reply With Quote
Old 02-19-2011, 07:30 PM   #16
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

They look like Ground Control.

--Ian
codrus is offline   Reply With Quote
Old 02-19-2011, 11:29 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ground controls come with the rubber ring for the top. guess it wears out.

sav: helpers are the lower rate ones...
y8s is offline   Reply With Quote
Old 02-20-2011, 03:08 PM   #18
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

I have the same problem and I'm using the isolators, they're about as centered as i can get them. Like others said, my sleeves will never go up that high anyway.
MartinezA92 is offline   Reply With Quote
Old 02-20-2011, 06:04 PM   #19
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

So I have been shopping around a bit for helper springs, spacers, and the plastic piece (name?) that goes between it and the main spring. Who sells them at a good price?
ZX-Tex is offline   Reply With Quote
Old 02-20-2011, 06:10 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

He might want to get these too:

Quote:
The isolators are higher-density and wider than the Ground Control isolators, making them a better fit for any setup that uses NB mounts.
http://fatcatmotorsports.com/FCM_Kon...s_NA.htm#mount
