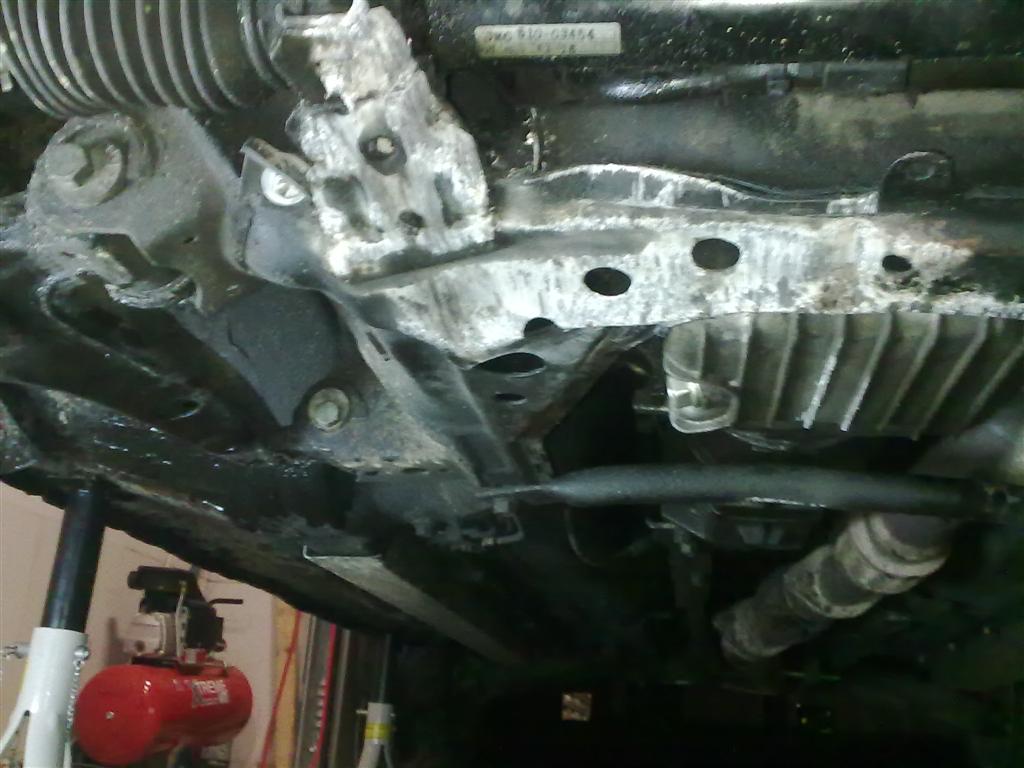

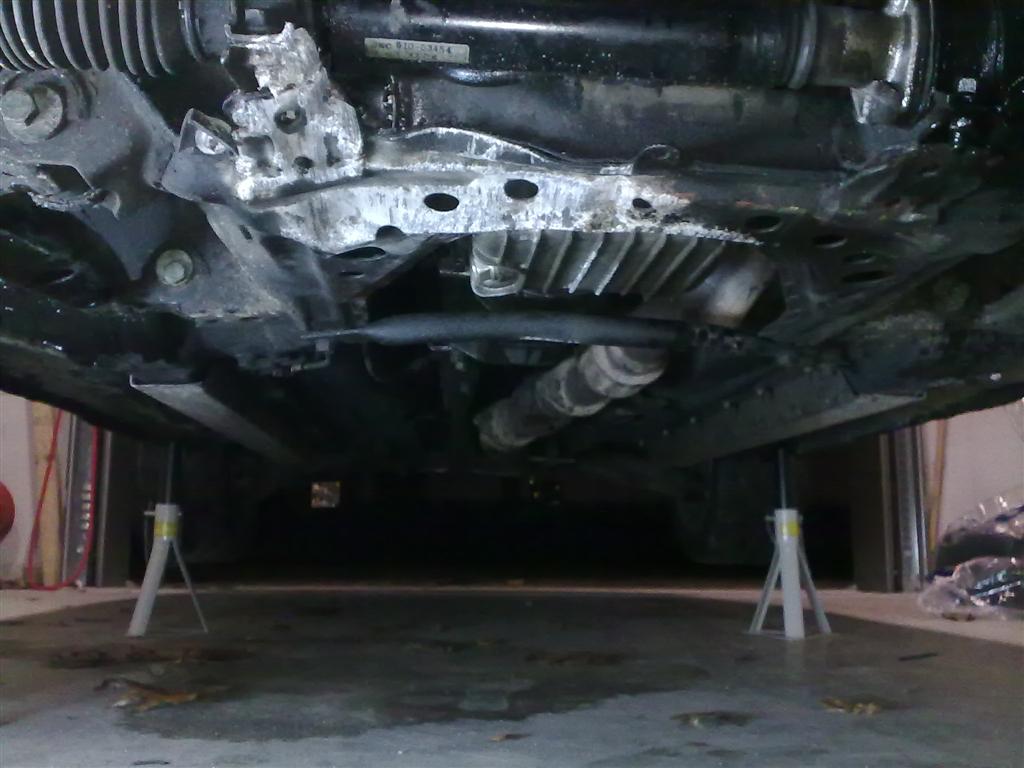

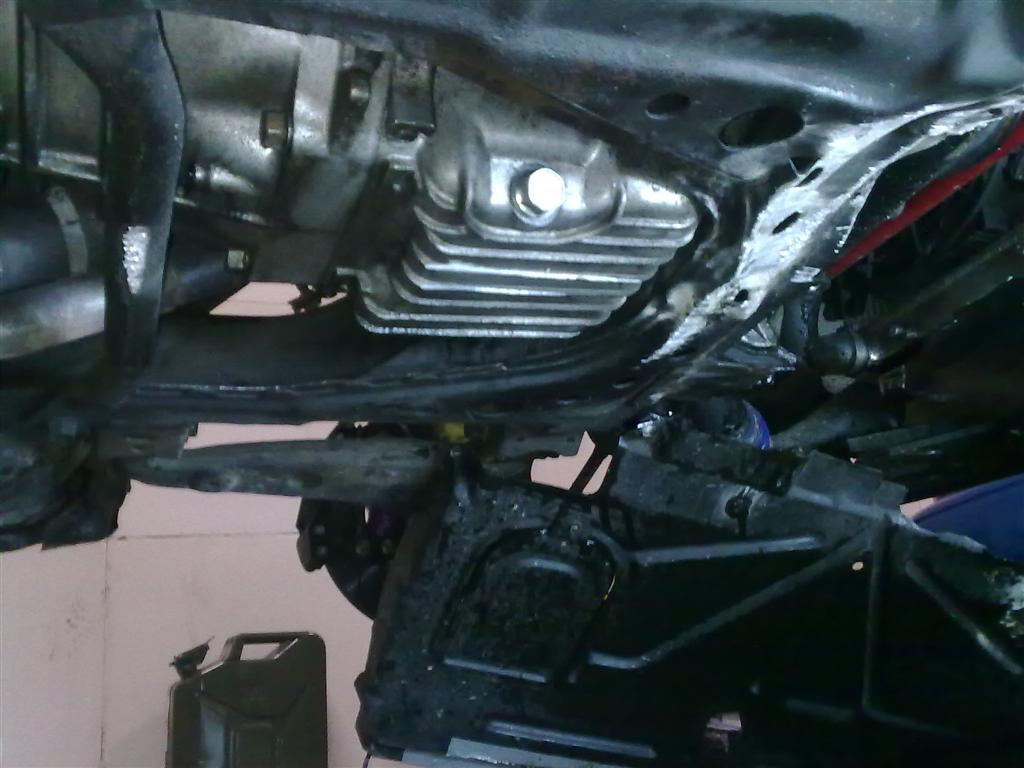

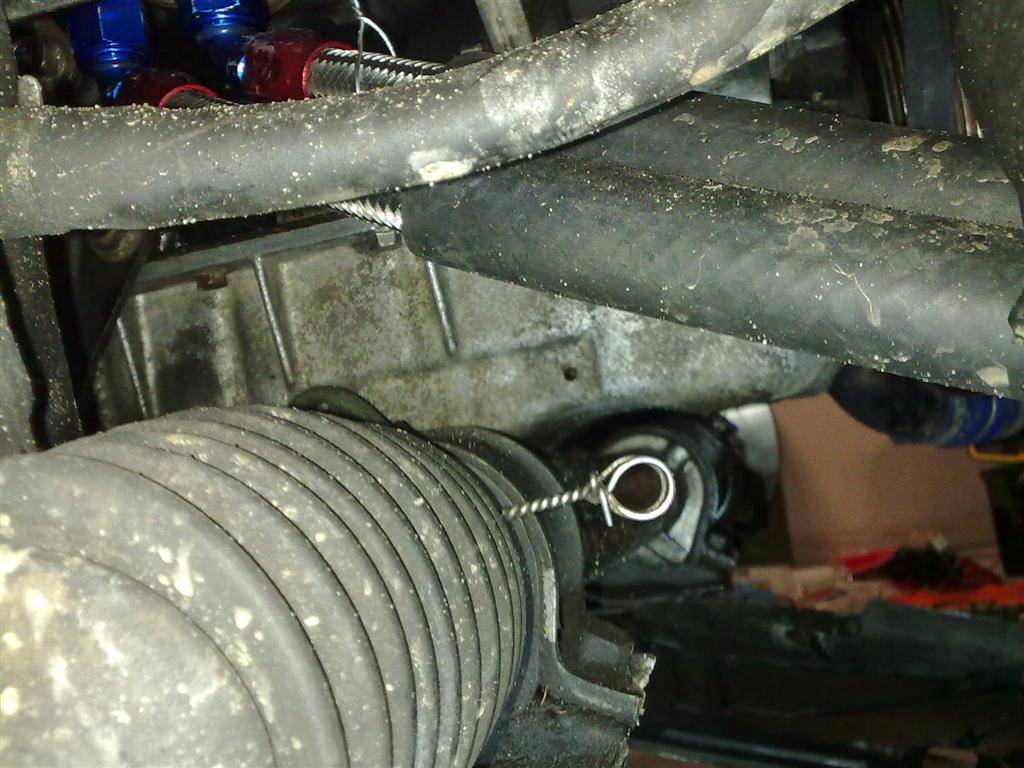

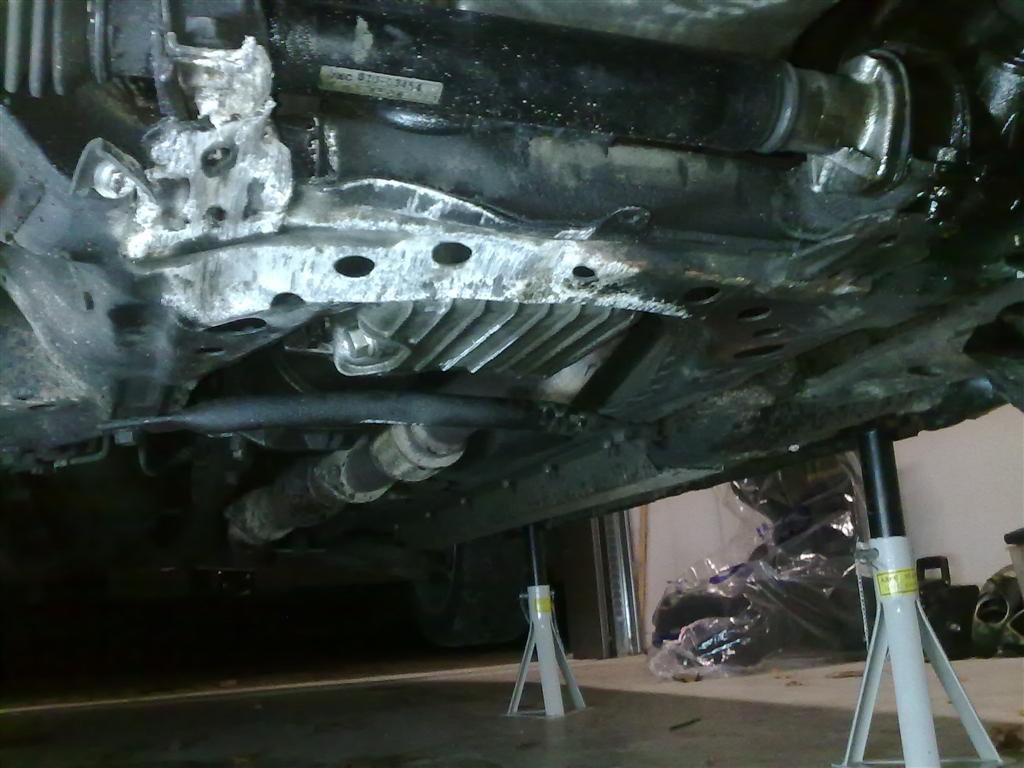

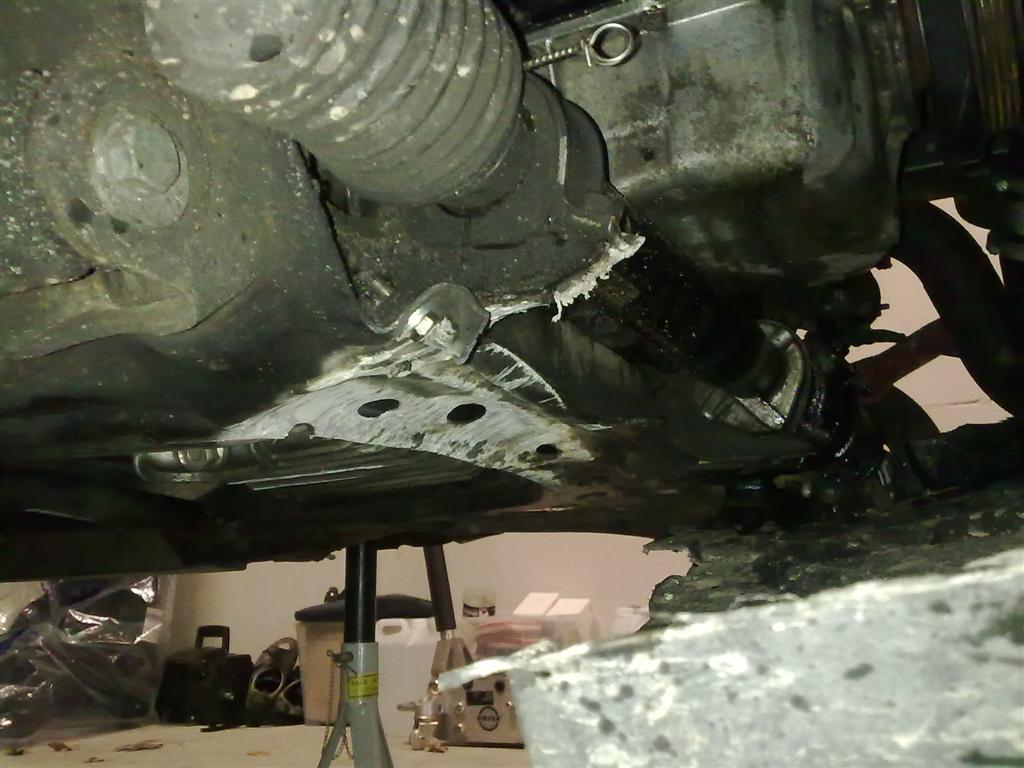

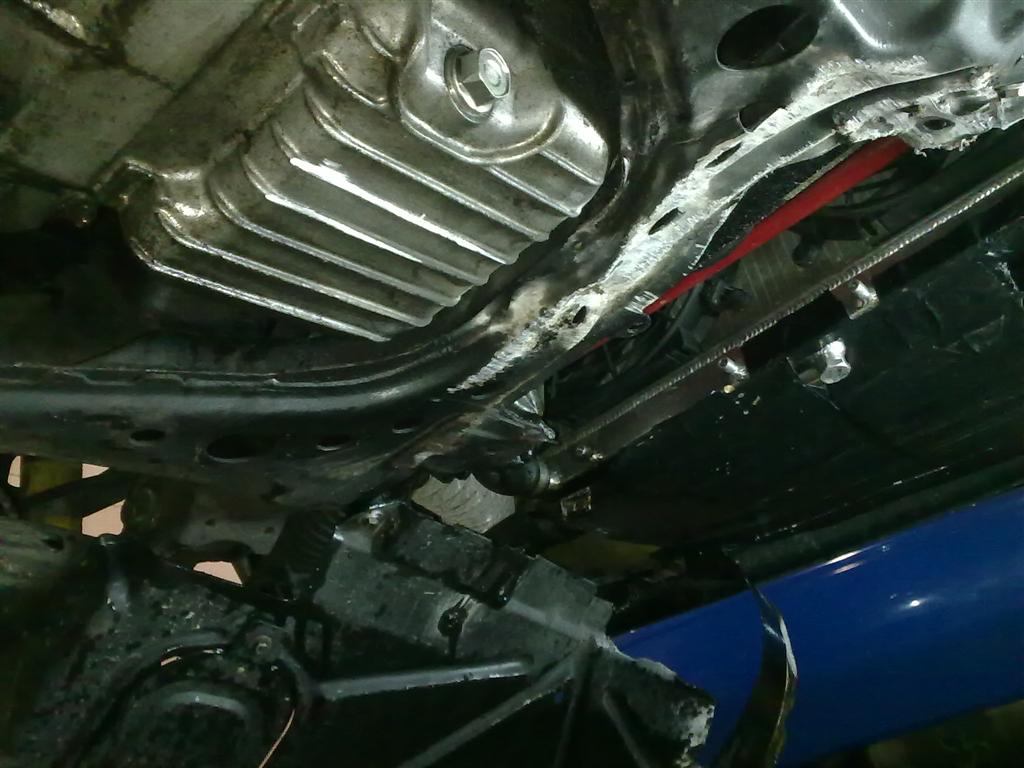

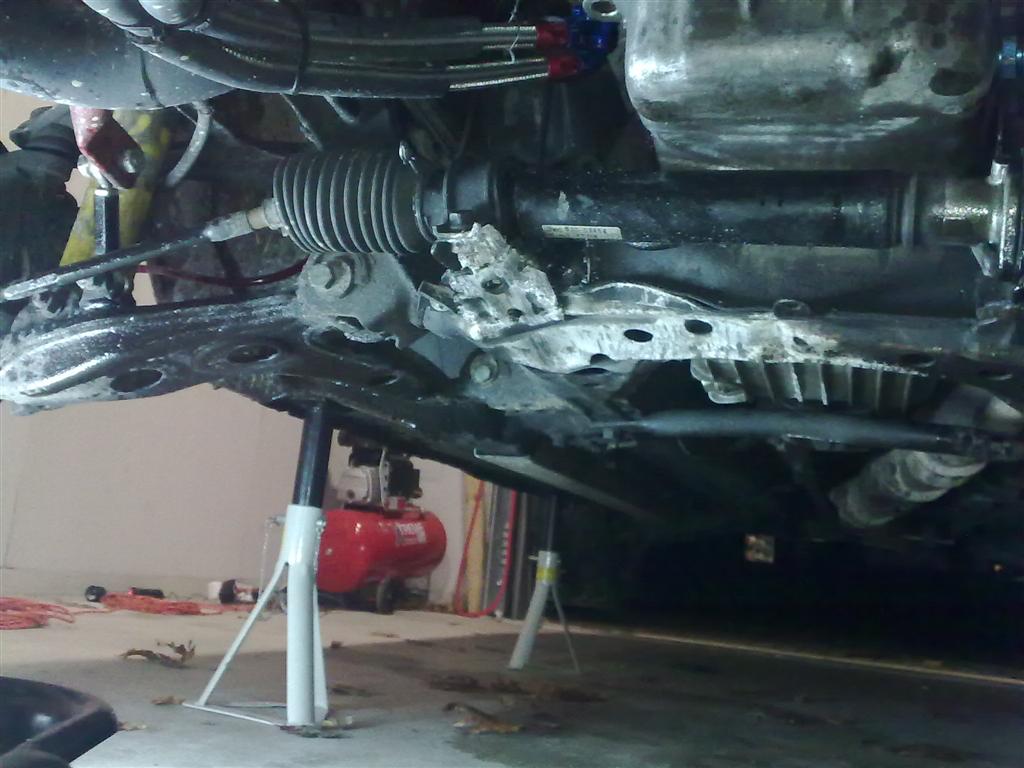

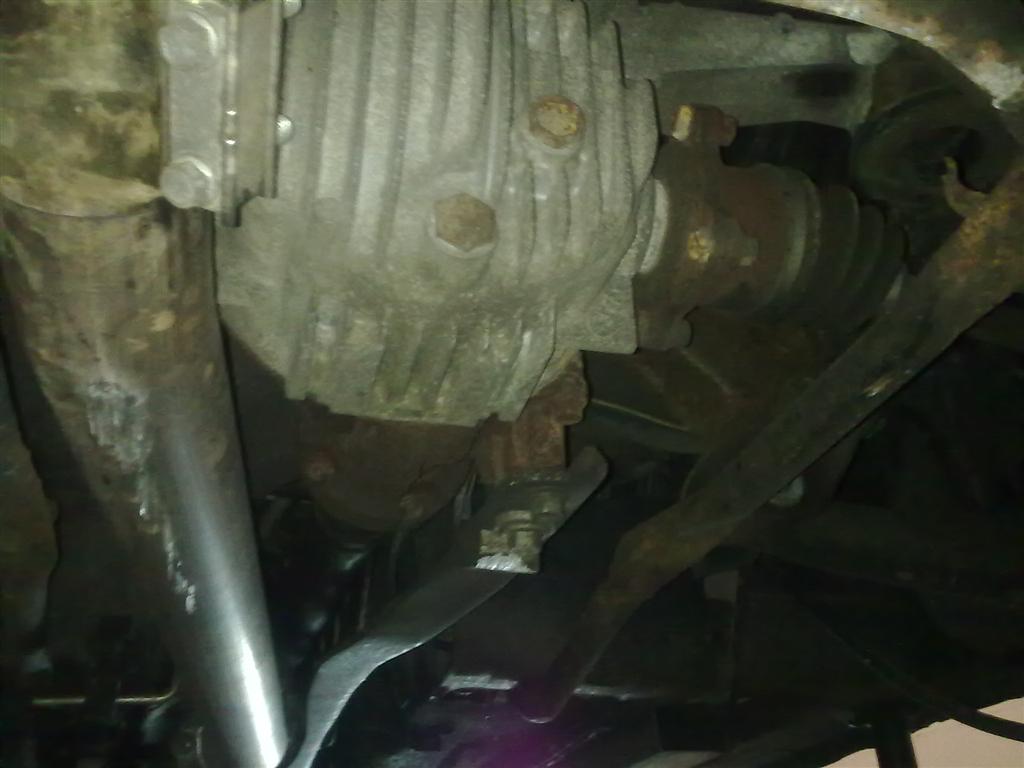

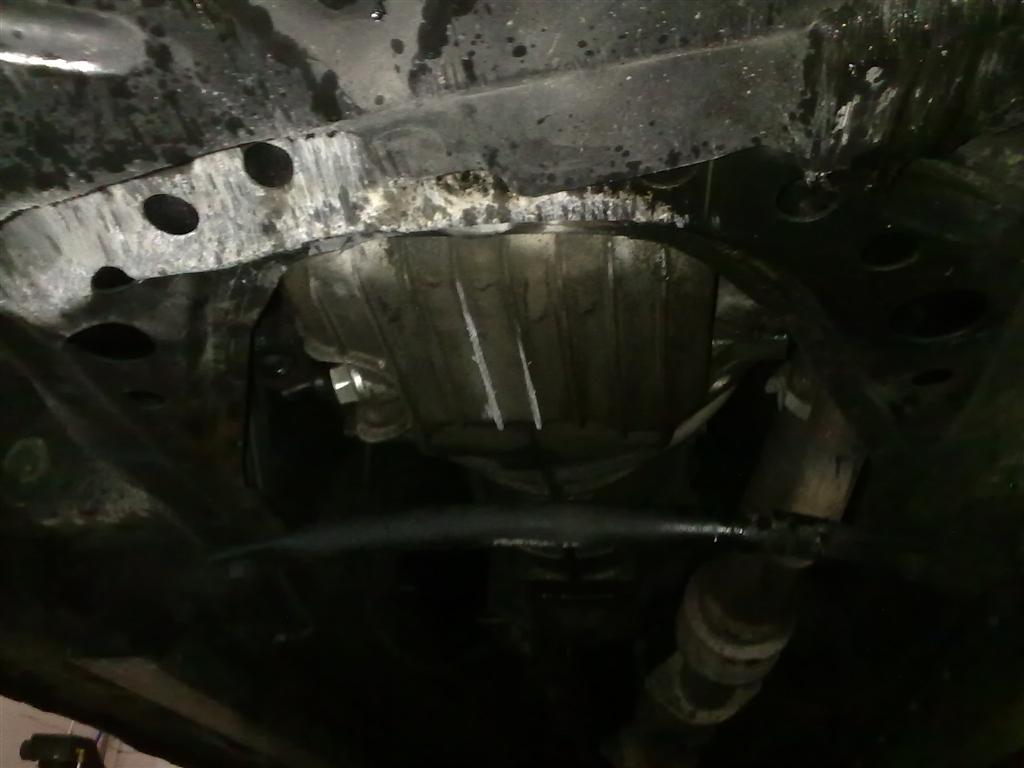

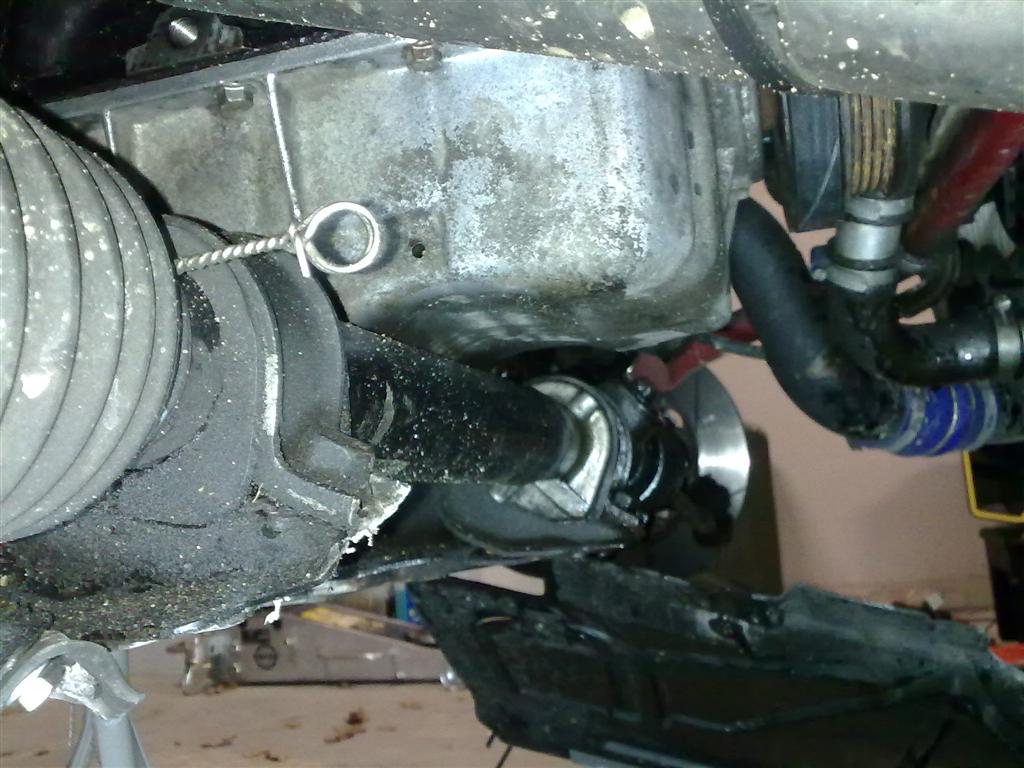

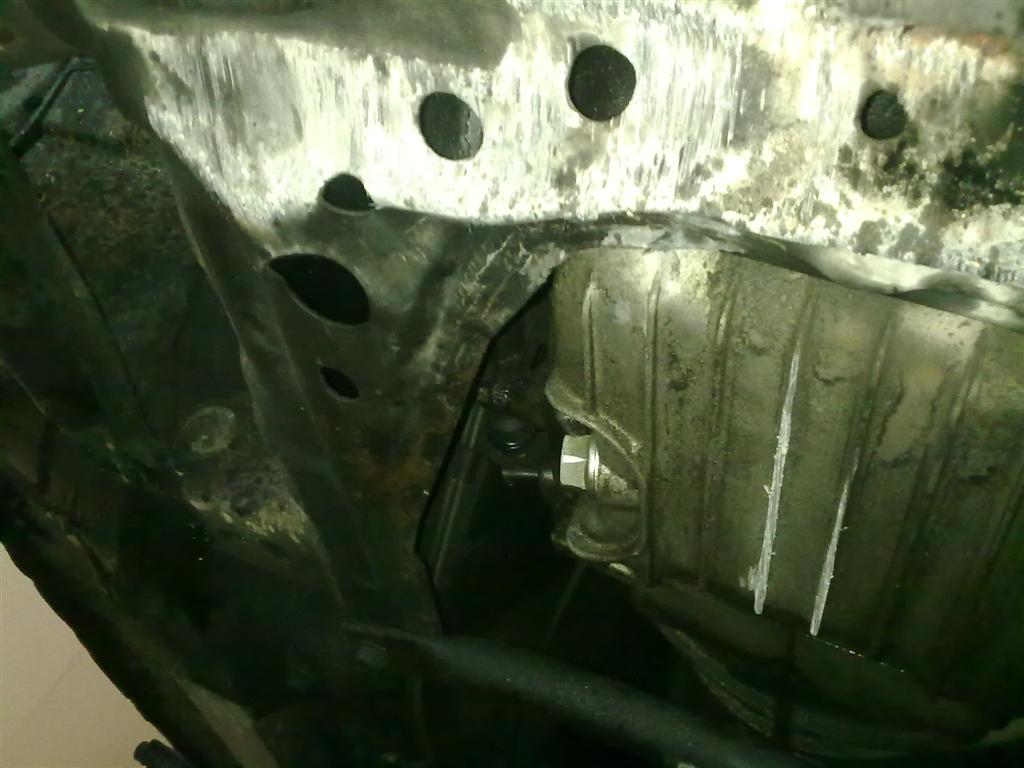

Thumbs down Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@

So, I was taking my car for a drive. Not even a mile from home, going well below the speed limit and my gay *** turned in too soon on a left and hit a curb.

Subframe done
Steering rack done
Oil pan scratched
Oil cooler leaking
Radiator bent
Throttle sticking?!
What else?
Attached Thumbnails
Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009372.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009373.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009374.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009375.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009376.jpg

Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009377.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009378.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009379.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009380.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009381.jpg

Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009382.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009383.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009384.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009385.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009386.jpg

Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009387.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009388.jpg
Laur3ns is offline   Reply With Quote
Old 11-25-2009, 06:46 PM   #2
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

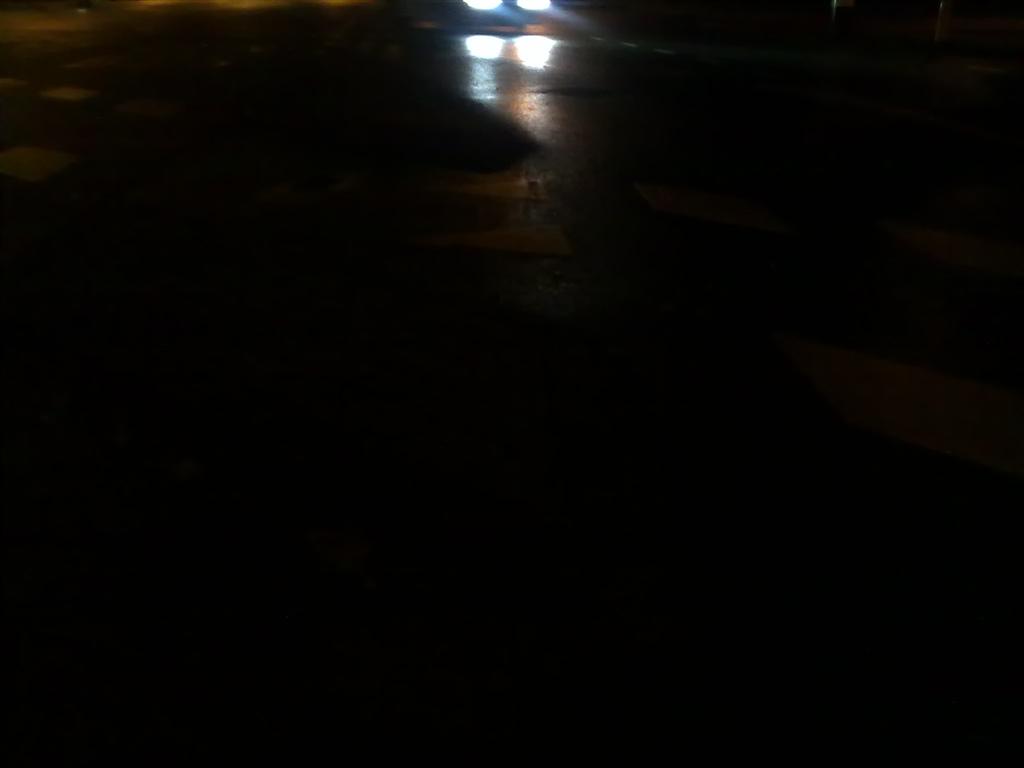

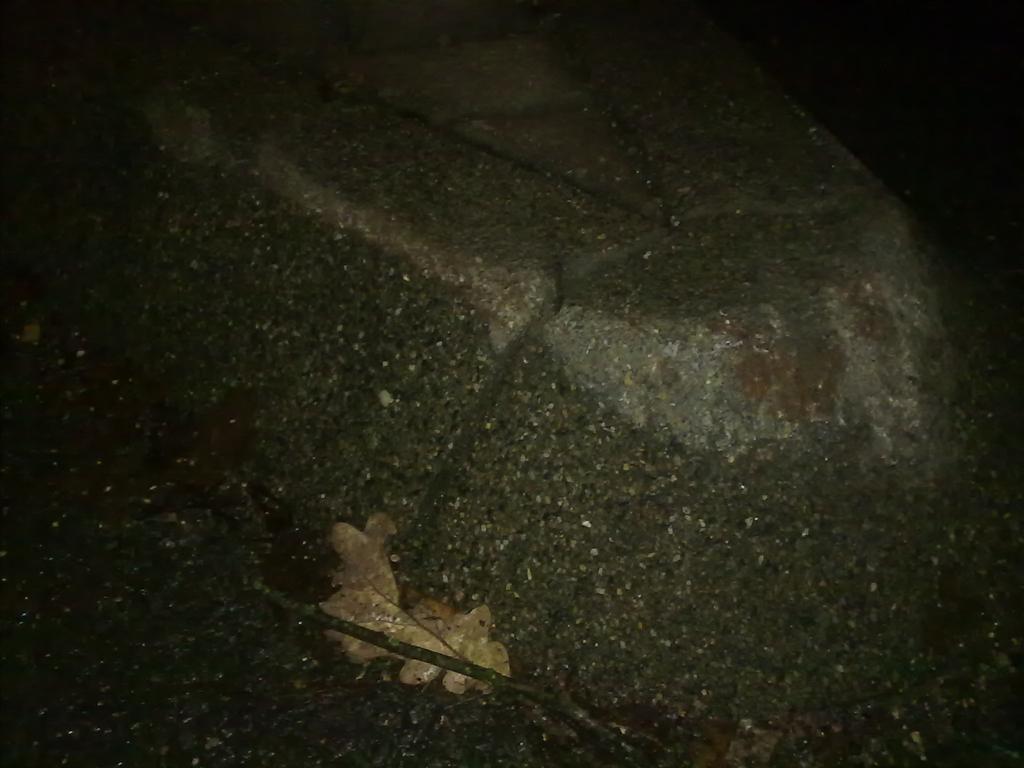

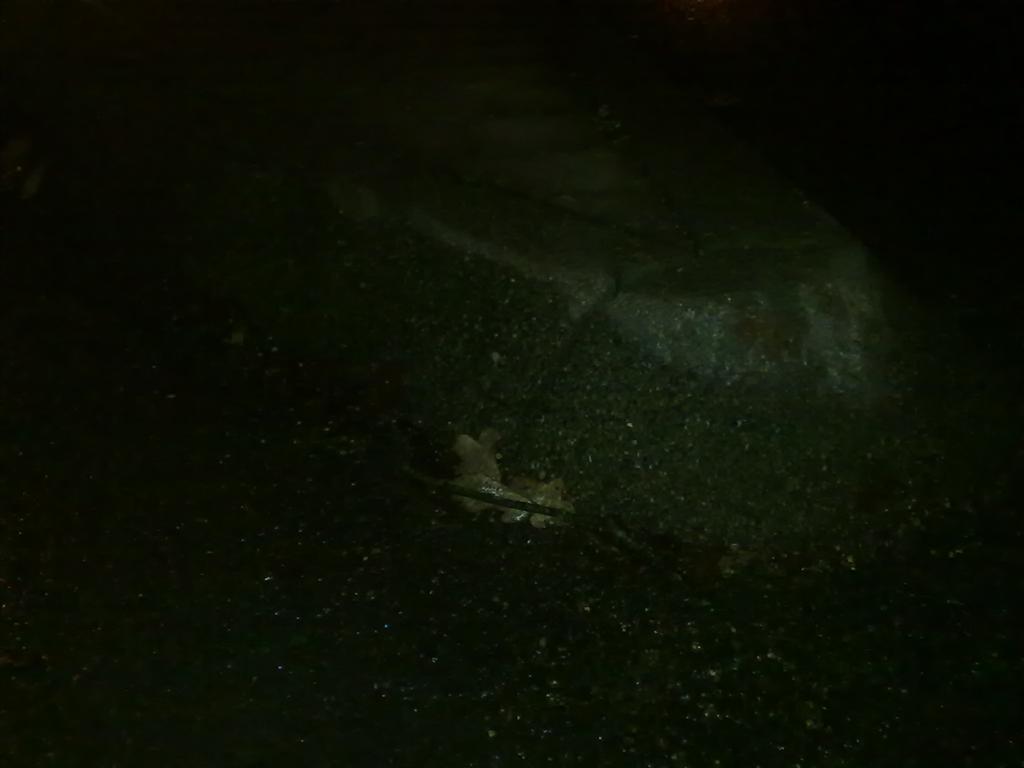

This is what my car did to that curb:
Attached Thumbnails
Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009393.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009394.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009395.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009396.jpg   Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009397.jpg

Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-25112009398.jpg
Laur3ns is offline   Reply With Quote
Old 11-25-2009, 06:52 PM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

What subframes fit? All years? 1.6 also?
What oil pans fit? All 1.8? KIAs?
What steering racks fit? All years? I want to depower another one.

Should I worry about the steering rods, double-A arms?
Laur3ns is offline   Reply With Quote
Old 11-25-2009, 06:55 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

dutch-curb job.

I've done this before in another car...sorry dude.
hustler is offline   Reply With Quote
Old 11-25-2009, 06:57 PM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
dutch-curb job.
I've done this before in another car...sorry dude.
It's all repairable and it's winter anyway... ****!
Laur3ns is offline   Reply With Quote
Old 11-25-2009, 08:06 PM   #6
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

told you that you couldn't drive

j/k, that sucks. Let me know if you need a hand tho
Oscar is offline   Reply With Quote
Old 11-25-2009, 08:24 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Ouch that really sucks. Def. repairable though.
Fireindc is offline   Reply With Quote
Old 11-25-2009, 08:44 PM   #8
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

Spooky -

Sorry to hear about the incident. However, pleased to hear the, "It's winter and I needed a project" mentality.

Good luck on the rebuild.

- L
l_bader is offline   Reply With Quote
Old 11-26-2009, 12:11 AM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default



Time for an LS1 conversion?
dustinb is offline   Reply With Quote
Old 11-26-2009, 12:46 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

If the oil pan's not leaking or showing obvious signs of cracking, is it that risky to keep it in? Steering rack looks fine as long as you replace that U clamp. Everything besides the subframe and oil cooler is cosmetic damage. At least it looks that way.
curly is offline   Reply With Quote
Old 11-26-2009, 01:18 AM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Damn that sucks. I've got a 4-day weekend this week (starting today) so if you come up with parts in time and need another set of hands I'd be wiling to make the trip, miss working on miatas :( . Let me know.
KPLAFIN is offline   Reply With Quote
Old 11-26-2009, 01:53 AM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Quote:
Originally Posted by Spookyfish View Post
What subframes fit? All years? 1.6 also?
What oil pans fit? All 1.8? KIAs?
What steering racks fit? All years? I want to depower another one.

Should I worry about the steering rods, double-A arms?
Any 90-05 subframe should bolt in, I believe. The later cars drop the front A-arm mounting points a little which provides better geometry.

Any 1.8 oil pan fits, except possibly not the MBSP one.

I don't think the steering rack changed. While you're in there, install some spacers to lift it and deal with some bumpsteer.

Check the A-arms, it'll be somewhat obvious if they are bent. If you change the subframe, and it won't align, change them. Change your lower balljoint, though - any sort of touch and I've seen them go bad in Spec Miatas. Same with the tie rods, check them but they're probably fine.

Sucks, dude. That curb would get me too.
Savington is offline   Reply With Quote
Old 11-26-2009, 03:50 AM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

From NA Front Subframe into an NB - MX-5 Miata Forum
Quote:
Originally Posted by Lance Schall
For direct bolt-up compatibility you want a steering rack that matches the subframe. You realize the control arm attach points were moved around to alter (improve?) suspension geometry for the NB?

...the controls arms are interchangeable.
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 11:02 AM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

sounds like a front clip w/out engine from a wrecked NB might be the ticket.
y8s is offline   Reply With Quote
Old 11-26-2009, 11:13 AM   #15
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by y8s View Post
sounds like a front clip w/out engine from a wrecked NB might be the ticket.
I am going to get a 99 sub frame and steering rack with inner tie rods. I am reusing the RE/LE outer tie rods I already have.

They say the control arms of the NB have an extra weld, but I am going to reuse mine. Unless they turn out bend...

Also getting a new 94 oil pan for good measure. Not wanting to go through the trouble of making a newer version with MBSP fit. Unless someone tells me this is easy. I am not looking forward to removing any engine internals/bolts/studs.
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 12:04 PM   #16
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Spookyfish View Post
I am going to get a 99 sub frame and steering rack with inner tie rods. I am reusing the RE/LE outer tie rods I already have.

They say the control arms of the NB have an extra weld, but I am going to reuse mine. Unless they turn out bend...

Also getting a new 94 oil pan for good measure. Not wanting to go through the trouble of making a newer version with MBSP fit. Unless someone tells me this is easy. I am not looking forward to removing any engine internals/bolts/studs.
Keep in mind the swaybar mounts on NBs are different from an NA.
lsc224 is offline   Reply With Quote
Old 11-26-2009, 12:35 PM   #17
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by lsc224 View Post
Keep in mind the swaybar mounts on NBs are different from an NA.
How exactly?

This brace kit is 90-05 and is what I have.
The mount on the LCA is different, but Im keeping mine.
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 12:49 PM   #18
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I would do a complete subframe swap with A-arms and steering rack attached as a unit. That should be easiest and would require the least disassembly/reassembly of individual components. That is, of course, an opinion based on something I have never done and hopefully won't. But I have seen many subframes removed and replaced on other makes, and it can be significantly easier that way. In some cars it is easier to remove the engine with the subframe than pulling just the engine (not the Miata).
sixshooter is offline   Reply With Quote
Old 11-26-2009, 12:51 PM   #19
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by sixshooter View Post
I would do a complete subframe swap with A-arms and steering rack attached as a unit. That should be easiest and would require the least disassembly/reassembly of individual components.
I would still need to replace the ca bushings with the ES I've got. So not much of a win there. It's a 70k mi 99 with dead engine.
I will get the arms if I need to, but if not it will save me .
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 01:10 PM   #20
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Spookyfish View Post
How exactly?

This brace kit is 90-05 and is what I have.
The mount on the LCA is different, but Im keeping mine.
Sorry I meant the swaybar endlink mounts on the control arms.
