Lower ball joint, you mean this one?


Somewhere it says:
Quote:
(uprights should also be exchanged to retain improved NB steering geometry).
What are uprights?
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 05:00 PM   #22
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Interesting!
Quote:
The steering ratios are not the same between the power and manual racks for an NB. They're both faster than the NA equivalent, though.
Turns, lock-to-lock. Rack stroke is the same.
NA manual: 3.36
NA power: 2.80
NB manual: 3.17
NB power: 2.65
And
Quote:
The NA and NB control arms are the same, geometrically speaking. The only difference is the sway bar mounting point. In fact, if you buy an NA replacement control arm you'll get an NB part. The changes in caster came from the control arm mounting point on the subframe, so you'll get them if you install an NB subframe.

The steering arm on the uprights was moved up by 7mm on the NB, IIRC. The rear uprights have 5mm more track per side. The rear subframe is the same other than exhaust and brace mounting points.
Seems I don't need uprights if I just raise the steering rack with spacers?
Laur3ns is offline   Reply With Quote
Old 11-26-2009, 08:16 PM   #23
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Interesting, I didn't know the NB uprights moved the steering arm. The upright is what attaches the hub to the two control arms, the only upright piece in the suspension. It's all aimed at getting the tie rods to sit as level as possible to get rid of bumpsteer.
Savington is offline   Reply With Quote
Old 11-27-2009, 01:20 AM   #24
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,683
Total Cats: 1,561
Default

The subframe is a hell of a lot stronger than the sheet metal bodyshell it bolts to. I sure hope you didn't end up with a tweaked bodyshell. If it was strong enough to bend the subframe like that, it is unfortunately a possibility.

Good luck, brother.
sixshooter is offline   Reply With Quote
Old 11-27-2009, 05:44 AM   #25
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by sixshooter View Post
The subframe is a hell of a lot stronger than the sheet metal bodyshell it bolts to. I sure hope you didn't end up with a tweaked bodyshell. If it was strong enough to bend the subframe like that, it is unfortunately a possibility.
How do we figure that out?

Quote:
Good luck, brother.
Thanks!

I am having the subframe and steering rack with inner tie-rods and an oil pan coming my way.
Laur3ns is offline   Reply With Quote
Old 11-27-2009, 06:39 AM   #26
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Oscar View Post
told you that you couldn't drive
j/k, that sucks. Let me know if you need a hand tho
I will probably wrap it up for now and have the cages build. I already ordered some replacement parts. Would welcome a helping hand!
Laur3ns is offline   Reply With Quote
Old 11-27-2009, 08:51 AM   #27
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

Ouch. Goodluck on the repiar... In AmERRIca you could blame the DOT for that, then require them to paint every curb dayglow yellow... Happened locally for me.

In the Volvo Dealership, we have replaced multiple oil pans becasue of the same thing. Could have been worse for you.
jedduh01 is offline   Reply With Quote
Old 11-27-2009, 11:37 AM   #28
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Spookyfish View Post
How do we figure that out?
you'll know when you mate up a new subframe if they dont sit flush probably.
y8s is offline   Reply With Quote
Old 11-29-2009, 05:01 PM   #29
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Oil cooler is damaged (vanes) but intercooler only had bent mounting tabs.
Laur3ns is offline   Reply With Quote
Old 11-30-2009, 01:39 AM   #30
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Quote:
Originally Posted by y8s View Post
you'll know when you mate up a new subframe if they dont sit flush probably.
as well, they might be able to figure some of it out when aligning the car.

A good idea hear since the car was tweaked would be to go to a good body shop for your alignment, so that you have experienced/competent people who can look at it and tell you whats what.
chance91 is offline   Reply With Quote
Old 12-04-2009, 04:28 PM   #31
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

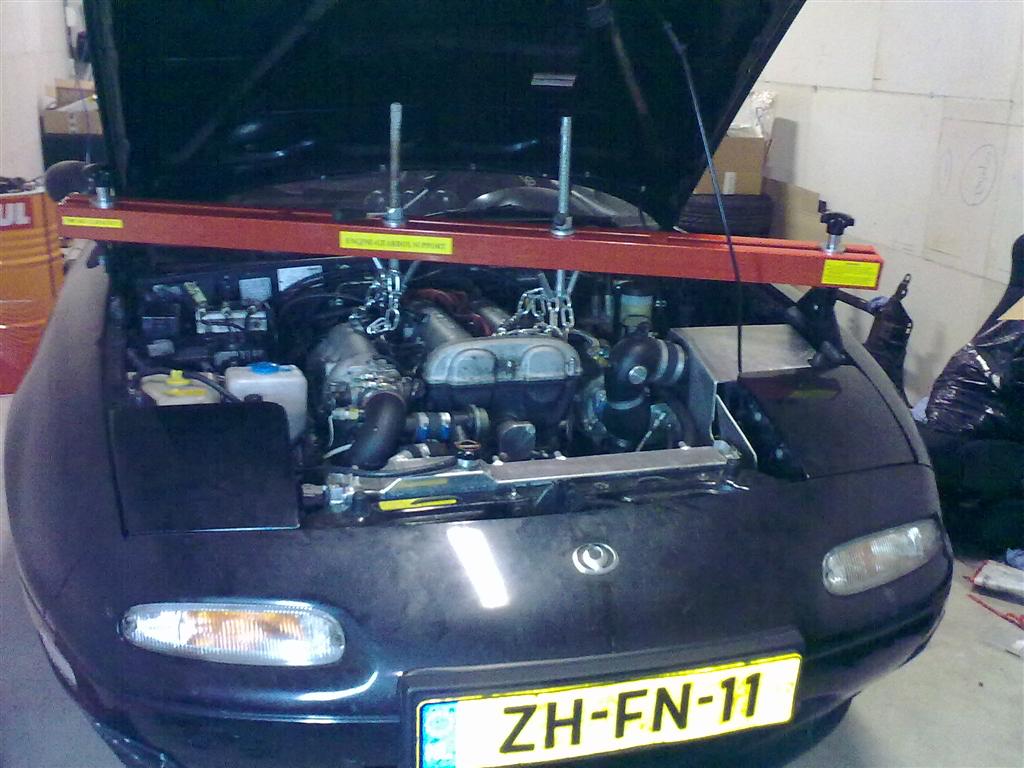

So, starting work on replacing the subframe and steering rack.
Is this how I should fix the engine while I remove the lower parts?

Serious question.
Attached Thumbnails
Oooooooh ffffffffffffuuuuuuuuuu! Subframe bent on curb @#!$%$#@-04122009443.jpg
Laur3ns is offline   Reply With Quote
Old 12-04-2009, 06:11 PM   #32
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,683
Total Cats: 1,561
Default

Wow.
sixshooter is offline   Reply With Quote
Old 12-04-2009, 06:30 PM   #33
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Spookyfish View Post
So, starting work on replacing the subframe and steering rack.
Is this how I should fix the engine while I remove the lower parts?

Serious question.
is it supported by the fenders?
Oscar is offline   Reply With Quote
Old 12-04-2009, 06:38 PM   #34
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by Spookyfish View Post
So, starting work on replacing the subframe and steering rack.
Is this how I should fix the engine while I remove the lower parts?

Serious question.
It it's on the seam for the fenders, then no. It'll just curl.
dustinb is offline   Reply With Quote
Old 12-04-2009, 06:38 PM   #35
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by sixshooter View Post
Wow.
Wow whut?

Yes - on the fender rails, thats how it's supposed to be used.
Laur3ns is offline   Reply With Quote
Old 12-04-2009, 07:19 PM   #36
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

if that's how it is supposed to be, go for it
Oscar is offline   Reply With Quote
Old 12-05-2009, 06:06 AM   #37
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by dustinb View Post
It it's on the seam for the fenders, then no. It'll just curl.
You know so or you think so?
Laur3ns is offline   Reply With Quote
Old 12-05-2009, 10:59 AM   #38
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

That engine steady is perfectly fine the way it is... we use that method all the time for Volvo repairs. (subframes , oil pans , power steering rack replace etc) Typically we have two... but that one should suffice...

The fender is bolted to the inner fender... which is the structual part of the front end.

Your good to go...
jedduh01 is offline   Reply With Quote
Old 12-05-2009, 11:49 AM   #39
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by jedduh01 View Post
That engine steady is perfectly fine the way it is... we use that method all the time for Volvo repairs. (subframes , oil pans , power steering rack replace etc) Typically we have two... but that one should suffice...

The fender is bolted to the inner fender... which is the structual part of the front end.

Your good to go...
Thanks
Laur3ns is offline   Reply With Quote
Old 12-05-2009, 05:33 PM   #40
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Laur3ns is offline   Reply With Quote
