I'm looking for a full set of parts to swap an OBX diff into a Miata carrier.

I had no problem finding the axle bearings and the oil seals, but I've had a devil of a time finding the crush collars for a 94-05 however.

Weir Performance - Solid Pinion Spacer Kits are the only place I've successfully located a purchaseable set. Where the heck do you source them normally?
blaen99 is offline   Reply With Quote
Old 04-01-2013, 02:12 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Mazda.
Savington is offline   Reply With Quote
Old 04-01-2013, 02:50 AM   #3
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Savington View Post
Mazda.
Got a part #, Sav?
blaen99 is offline   Reply With Quote
Old 04-01-2013, 03:53 AM   #4
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

Where these crush collar needs to be installed when swapping an OBX diff into a miata carrier ?

I am currently doing this job and the only parts that I need are the oil seals and the axle bearings (part# NTN 4T-32008X), am I missing something ?
joeldc13 is offline   Reply With Quote
Old 04-01-2013, 06:10 AM   #5
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

you dont need the crush collar, or weir pinion spacer. you should not be removing the pinion unless your are changing the pinion bearings. If thats the case then you might be be opening up a can of worms. The bearing could change the pinion depth and you would need to reset that based on contact pattern.

I would leave the pinion alone and just get the carrier bearings and seals, put the diff in, set backlash and preload and be done. Odd's are the diff is gonna let go before the pinion bearings will
ctdrftna is offline   Reply With Quote
Old 04-01-2013, 06:19 AM   #6
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

Ok thanks, that's exactly what i've done so far, rebuilt the OBX with new belleville washers, new bolts, and remove the old diff without touching the pignon :











Are people using new bolts to fix the ring to the LSD ? Or everyone reuse the existing bolts ?

Thks
Attached Thumbnails

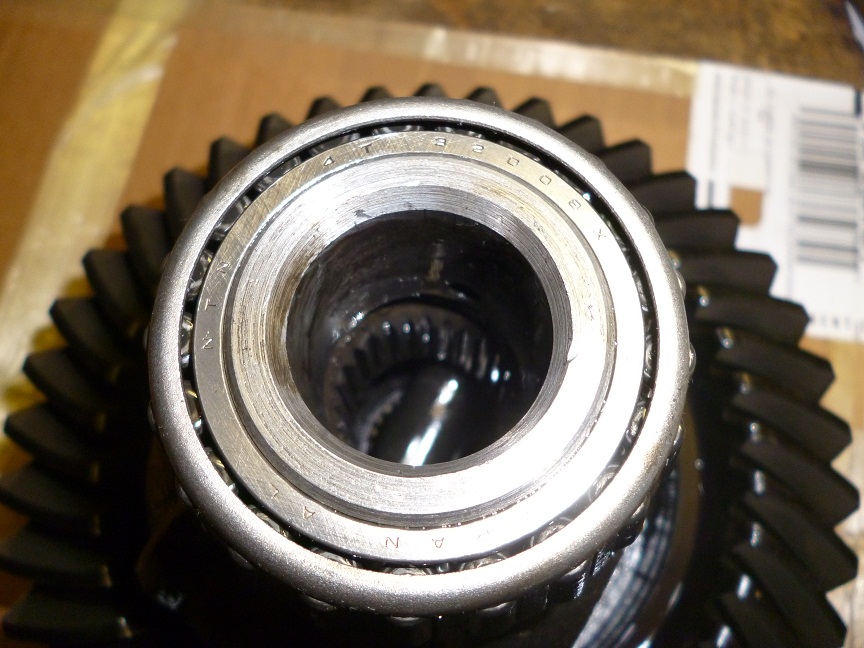

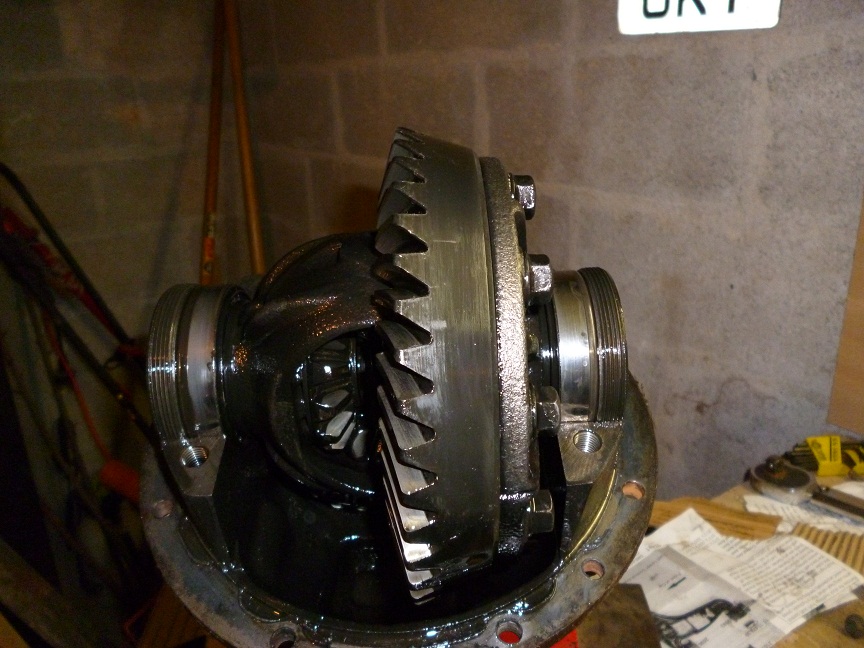

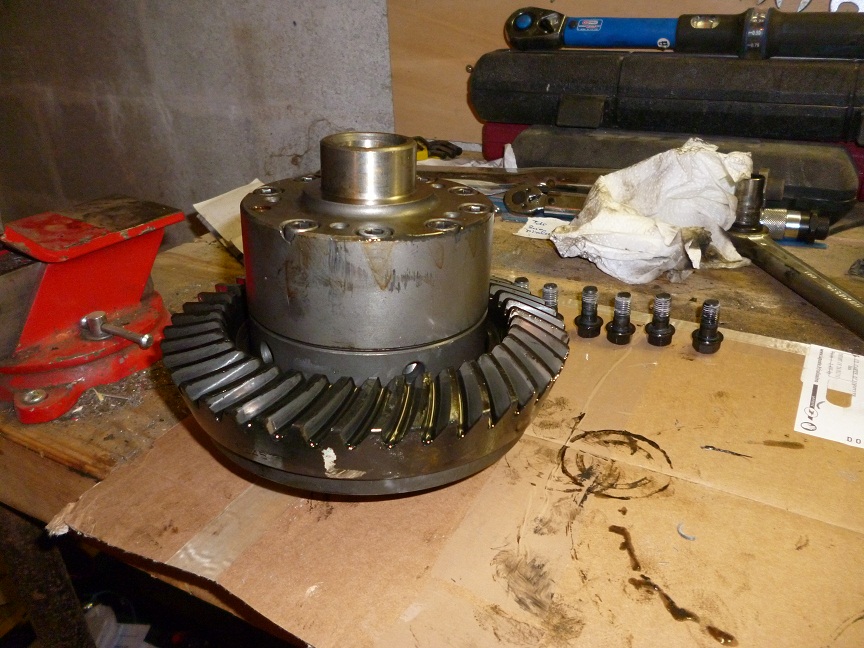

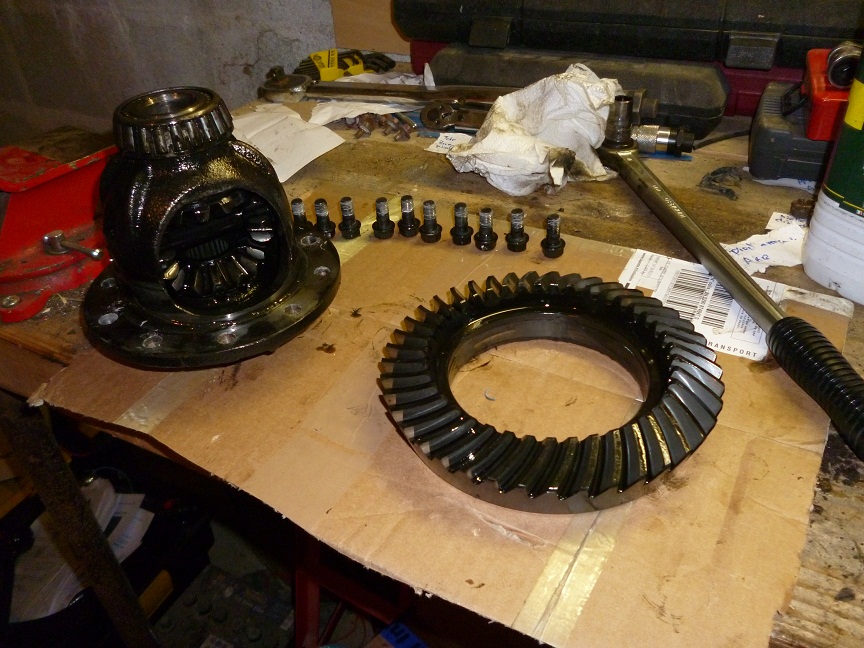

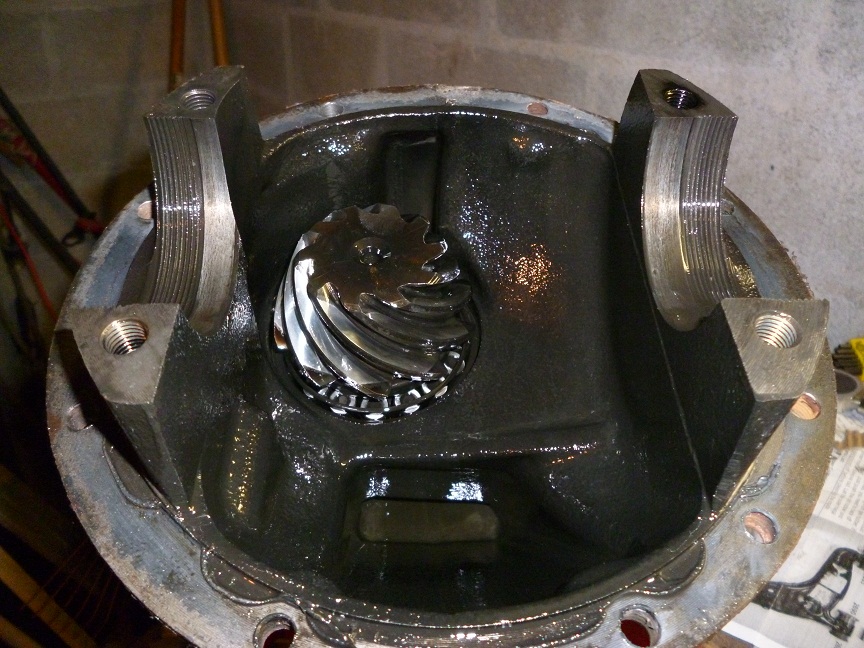

Parts for diff swap-p1240099.jpg   Parts for diff swap-p1240105.jpg   Parts for diff swap-p1240107.jpg   Parts for diff swap-p1240113.jpg   Parts for diff swap-p1240114.jpg

joeldc13 is offline   Reply With Quote
Old 04-01-2013, 07:50 AM   #7
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

M035-27-171 - Pinion Sleeve $19.00

M025-27-210 - Pinion Bearing $58.89

0223-27-401A though 0223-27-415A Pinion Depth Spacers in .03mm incriments starting with 3.08mm and ending with 3.47mm @ $10 each

8051-27-235(10,2mm) OR 8051-27-236(10,0mm) Ring Gear Bolts $5.50 each
TNTUBA is offline   Reply With Quote
Old 04-01-2013, 11:16 AM   #8
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

I'm swapping to a 3.9 or 3.6 R&P as well, ladies.

I kind of have to swap all the things. ALL THE THINGS!

Last edited by blaen99; 04-01-2013 at 11:30 AM.
blaen99 is offline   Reply With Quote
Old 04-01-2013, 02:06 PM   #9
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

You are welcome
TNTUBA is offline   Reply With Quote
Old 04-02-2013, 08:04 PM   #10
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,109
Total Cats: 48
Default

Quote:
Originally Posted by blaen99 View Post
I'm swapping to a 3.9 or 3.6 R&P as well, ladies.

I kind of have to swap all the things. ALL THE THINGS!
Thats a horse of a diffrent color!


Im doing a full diff rebuild right now as well,

i bought my pinion bearings,pinion seal,diff bearings, and axle seals all from jim ellis mazda parts.
total for those were $275 ish

I just got a 3.636 ring and pinion through racingbeat for $500.50
and i got the weir performance distance piece.

your gonna need a beam or dial type torque wrench to check pinion rotational torque, and yellow lead to check contact patern. Also a 7-8" micrometer to set differential preload. You can buy a tool from mazda to calculate pinion spacer size, im just gonna reuse mine and check contact then adjust as needed.
