Ppf/diff brace ideas need opinions
08-16-2019, 03:12 PM
#1
Senior Member
Thread Starter
Join Date: May 2015
Location: Grand Rapids, MI
Posts: 504
Total Cats: -23
Ppf/diff brace ideas need opinions
Im going to make a diff brace that picks up on the stock ladder brace bolts (think kmiata ppf delete)
Going to be made from steel square tubing
Option 1: square tube from side to side, drill a hole in ppf, and through bolt ppf to square tubing.

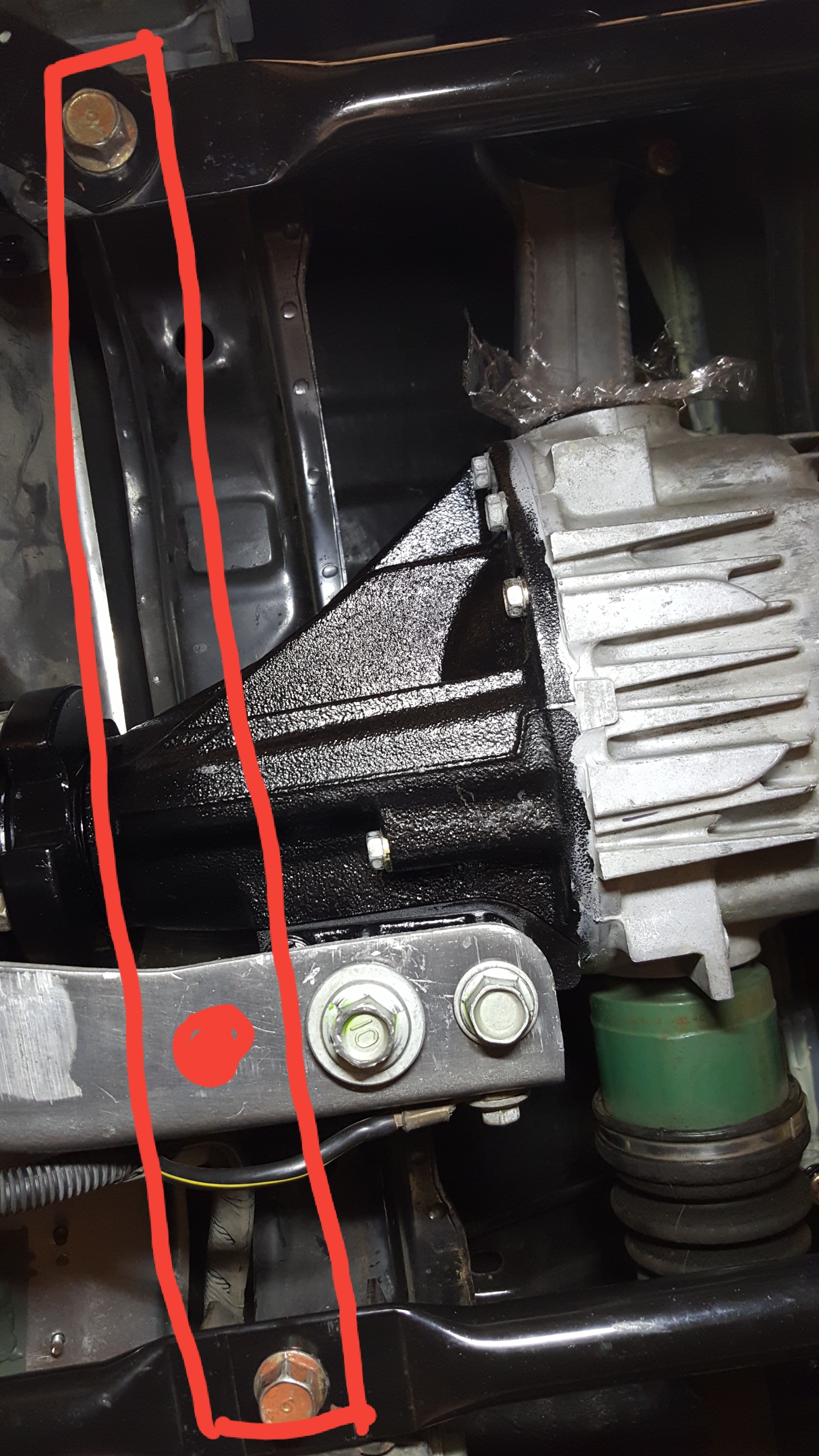

Red dot represents bolt/nut

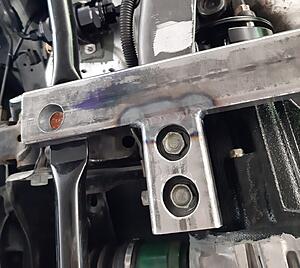

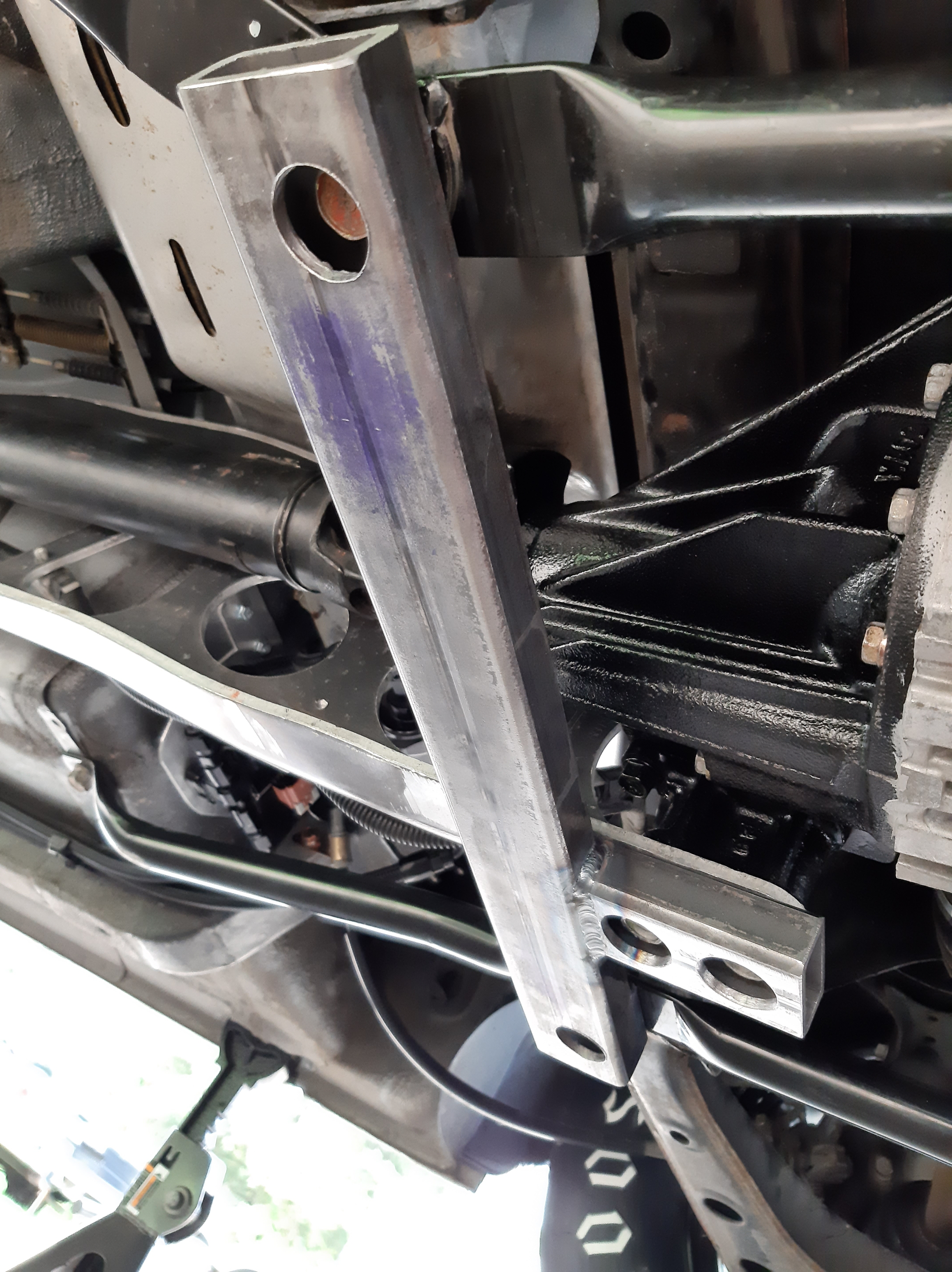

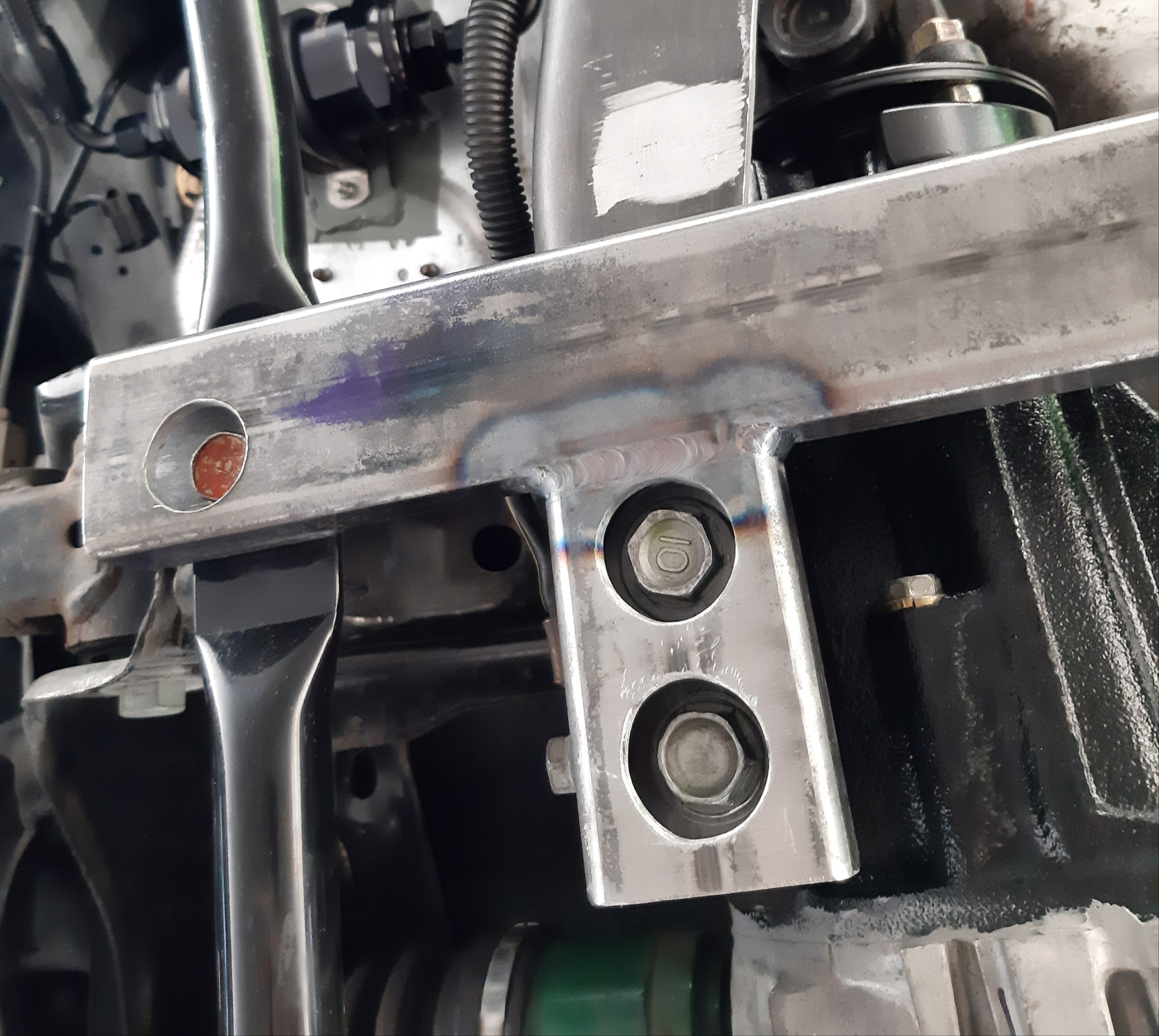

Option 2: square tube from side to side, weld on another square tube that picks up on stock ppf long bolts. Picture a "T" shape. Using the 2 stock ppf/diff bolts
Going to be made from steel square tubing
Option 1: square tube from side to side, drill a hole in ppf, and through bolt ppf to square tubing.
Red dot represents bolt/nut
Option 2: square tube from side to side, weld on another square tube that picks up on stock ppf long bolts. Picture a "T" shape. Using the 2 stock ppf/diff bolts
