Default Rear 10.75 Goodwin v4 disc failure (now with PIC)

So what happened here?
Too much heat in rear?

Attached Thumbnails

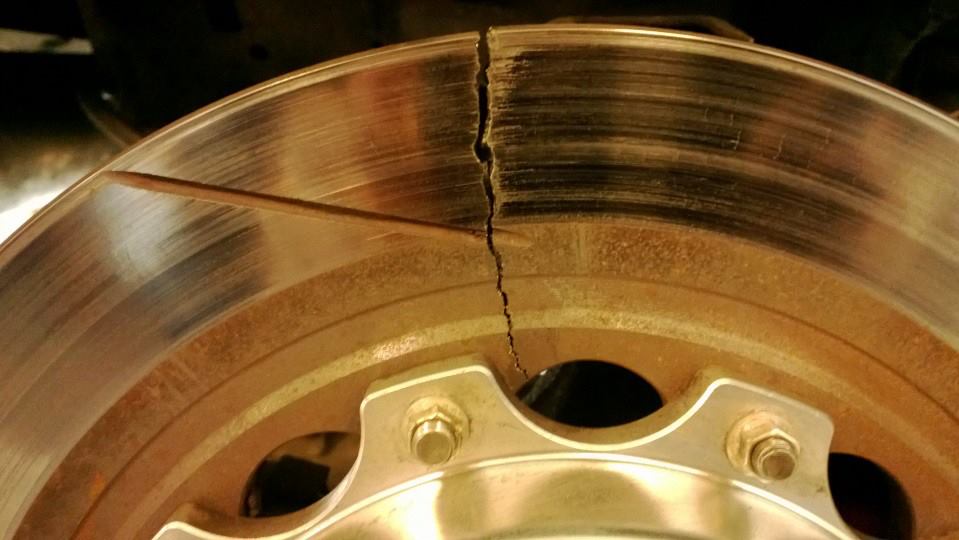

Rear 10.75 Goodwin v4 disc failure (now with PIC)-933894_584430928244597_1755815665_n.jpg

Last edited by Laur3ns; 05-27-2013 at 03:36 AM.
Laur3ns is offline   Reply With Quote
Old 05-26-2013, 01:56 PM   #2
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

I want pictures of failure!
RyanRaduechel is offline   Reply With Quote
Old 05-26-2013, 02:28 PM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Attached Thumbnails
Rear 10.75 Goodwin v4 disc failure (now with PIC)-933894_584430928244597_1755815665_n.jpg
Laur3ns is offline   Reply With Quote
Old 05-26-2013, 06:47 PM   #4
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

hmm... thats odd.... i cant imagine THAT much heat building up in the rear, especially being big and slotted, and... in the REAR... maybe a manufacturers defect????
how old are they?
supercooper is offline   Reply With Quote
Old 05-27-2013, 03:35 AM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Dunno what happened. Rotor fairly new (2 days) and torqued to spec.
Or I missed a minor crack and this developped?!
Laur3ns is offline   Reply With Quote
Old 05-28-2013, 01:10 AM   #6
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Should dissipate heat better-LOL
wannafbody is offline   Reply With Quote
Old 05-28-2013, 01:24 AM   #7
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

2 days, or 2 track days?

The only time I've cracked a rotor (a front) was after a tranny failure at Laguna where I pulled off track and wound up sitting there with my foot on the brake for 5 minutes (so it didn't roll downhill back onto the track) waiting for the tow truck. The lack of a cooldown lap really does make a big difference.

--Ian
codrus is offline   Reply With Quote
Old 05-28-2013, 05:53 AM   #8
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

I had an identical crack (2-3mm gap at the rim) in a OEM rear rotor (251mm) that I noticed first when I was preparing for the next race. I have no idea if it developed during the race or sometime afterward (small elves killing rotors). That crack was clearly noticeable so I don't think I could have missed it at the track.

Wet race meaning sudden cool down?
NiklasFalk is offline   Reply With Quote
Old 05-28-2013, 06:57 AM   #9
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I've done no wet on this rotor. The only thing I can think of would be no-cool-down-lap-pit-in-handbrake-on-crack.
Laur3ns is offline   Reply With Quote
Old 05-29-2013, 09:12 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

My vote is on a sticking caliper/caliper sliders. I see other thermal cracks as well. Rears should last 20 days, not 2.
Savington is offline   Reply With Quote
Old 05-30-2013, 04:43 AM   #11
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Savington View Post
My vote is on a sticking caliper/caliper sliders. I see other thermal cracks as well. Rears should last 20 days, not 2.
If that includes overtightened parking brake adjust, you could have a point... switching to M-tuned kit with sport rotors soon so I can at least source replacement parts locally.
Laur3ns is offline   Reply With Quote
Old 05-30-2013, 09:06 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Sometimes you just get a bad rotor.
hustler is offline   Reply With Quote
Old 06-02-2013, 04:16 PM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Switching to M-Tuned and sport rotors in rear: cheaper and easier replacement.
