Default Is it the same differenial housing in between open diff and Torsen LSD

I'm trying to swap a M-edition torsen LSD to my 97 Miata.

The problem is the Torsen LSD housing arm is broke.

What's should I do about that?
Should I just find a open diff housing and swap it over?

Thx many!
Wyman is offline   Reply With Quote
Old 03-11-2011, 05:51 AM   #2
Junior Member

Join Date: Feb 2010
Location: Oslo, Norway
Posts: 219
Total Cats: 1
Default

1994-2005 have the same housing. 90-93 has a smaller one.
Loki79 is offline   Reply With Quote
Old 03-11-2011, 02:18 PM   #3
Newb
Thread Starter

Join Date: Dec 2009
Location: SF, CA
Posts: 38
Total Cats: 0
Default

cool.
Thx a lot!
Wyman is offline   Reply With Quote
Old 03-11-2011, 02:28 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

too bad i cant combine the three threads he has on this over at CR.net and M.net..
Braineack is offline   Reply With Quote
Old 03-15-2011, 11:50 PM   #5
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

Last week I saw a 99 Torsen swapped into a 92 case - bolted right in no problems.

This is no kidding folks - it runs and drives perfectly. Full NA6 case/cover but 99 axles/driveshaft.
BAHKACK is offline   Reply With Quote
Old 03-16-2011, 09:37 PM   #6
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by BAHKACK View Post
Last week I saw a 99 Torsen swapped into a 92 case - bolted right in no problems.

This is no kidding folks - it runs and drives perfectly. Full NA6 case/cover but 99 axles/driveshaft.
Please elaborate. This is against everything I've read.
kenzo42 is offline   Reply With Quote
Old 03-16-2011, 09:43 PM   #7
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I call BS.
Doppelgänger is offline   Reply With Quote
Old 03-16-2011, 09:47 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Quote:
Originally Posted by BAHKACK View Post
Last week I saw a 99 Torsen swapped into a 92 case - bolted right in no problems.

This is no kidding folks - it runs and drives perfectly. Full NA6 case/cover but 99 axles/driveshaft.
I highly doubt this.
Savington is offline   Reply With Quote
Old 03-16-2011, 11:14 PM   #9
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

Savington, I saw it with my own eyes.

Torsen from a 99 10AE swapped into an early case. I will request pics of the unit - it is out of the car again (a Locost) while frame is painted. Steve Keene did the conversion and said there was NO modification to the case needed. Everything bolted up.
BAHKACK is offline   Reply With Quote
Old 03-17-2011, 01:17 PM   #10
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

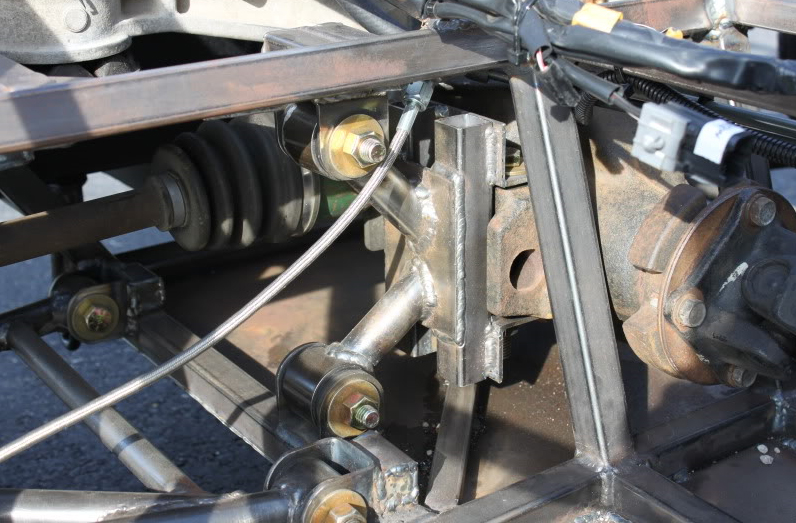

this is only image I have of the diff at the moment - came from Steve's site. NB front case and NA6 aluminum rear case.

His wife said he'd take another picture while the diff is out ~ it will be easy to identify the NA6 case.

No machining needed folks haha.

The car is very near Parts Group in Alabama.
Attached Thumbnails
Is it the same differenial housing in between open diff and Torsen LSD-oldcase.jpg

Last edited by BAHKACK; 03-17-2011 at 02:09 PM.
BAHKACK is offline   Reply With Quote
Old 03-17-2011, 02:05 PM   #11
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Must have pushed really really hard.

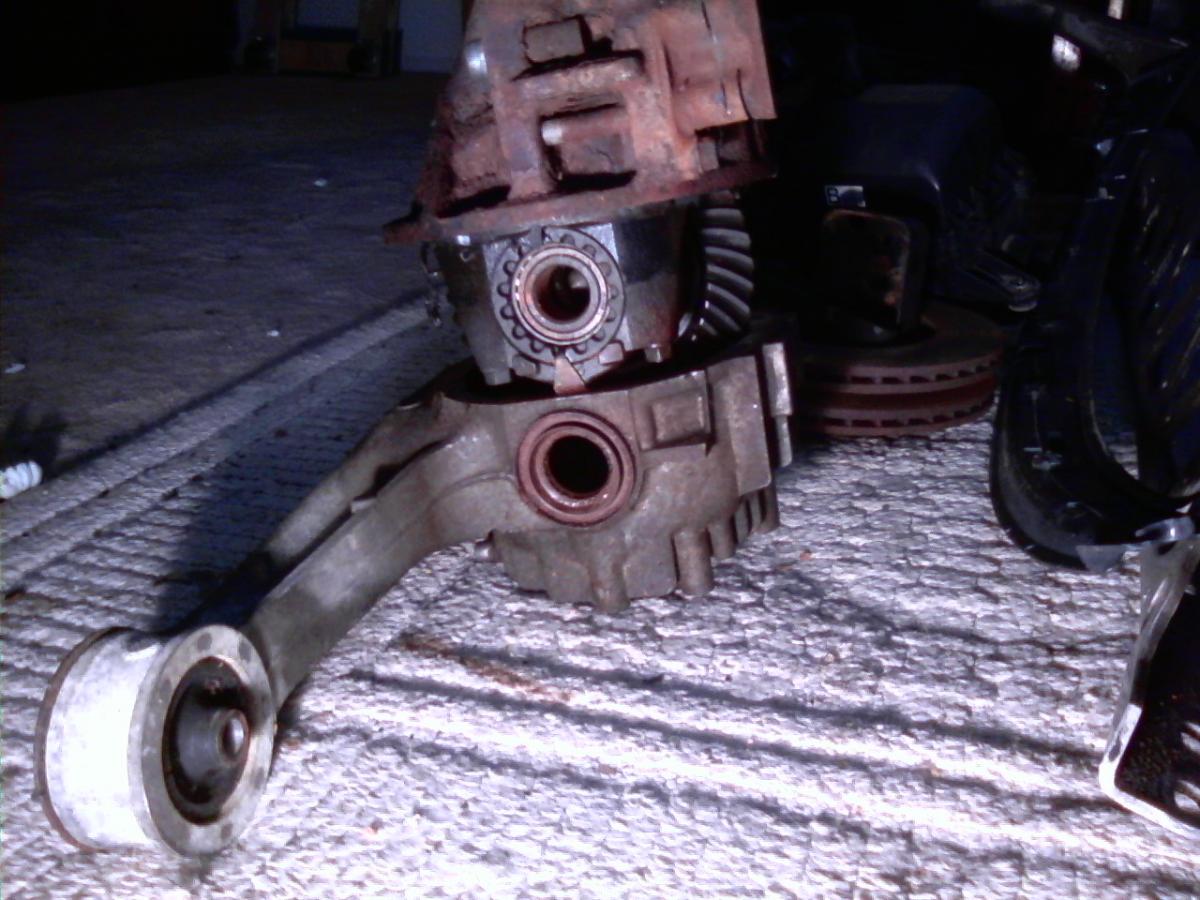

Seriously, the ring gear will not even start to enter and if it did fit inside, the holes don't line up.

Perhaps the early Miata he took it out of had already been converted to a 1.8
Attached Thumbnails
Is it the same differenial housing in between open diff and Torsen LSD-0317011249.jpg
olderguy is offline   Reply With Quote
Old 03-17-2011, 02:54 PM   #12
Newb

Join Date: Oct 2009
Location: A2 Michigan (UofM!)
Posts: 32
Total Cats: 0
Default

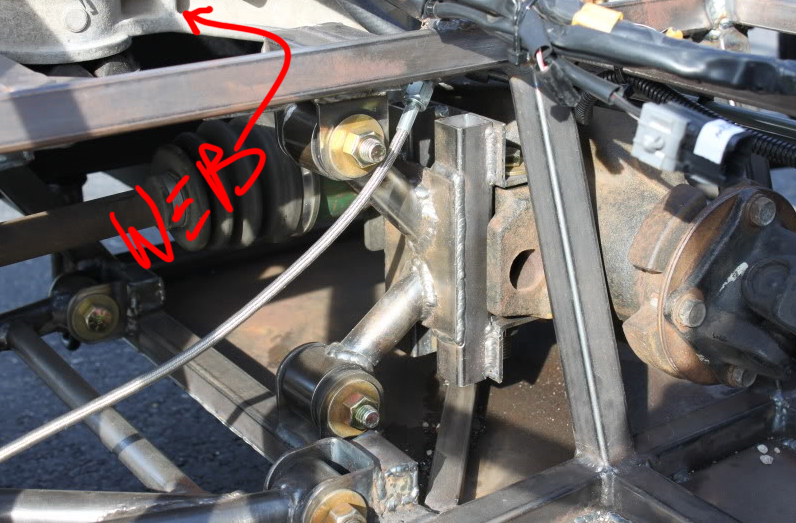

-implicated by my own image...

It is a 7" case. See that web...

Dang. Saw the thing, heck I helped load it on the trailer he took to Alabama - and because he said it came from a '92 it registered as an older case to my brain. I have 3 smooth case '90 diffs and a Torsen in my garage and I didn't catch it.

Must be the junkyard had the year wrong or that '92 indeed had a 7" upgrade.

I'll go eat dirt now.
Attached Thumbnails
Is it the same differenial housing in between open diff and Torsen LSD-oldcase.jpg
BAHKACK is offline   Reply With Quote
Old 03-17-2011, 11:57 PM   #13
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 257
Total Cats: -1
Default

May I ask what kind of a car this is in the picture?
Tube frame chassis, or just subframe?

D
d k is offline   Reply With Quote
Old 03-18-2011, 12:27 AM   #14
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

Quote:
Originally Posted by d k View Post
May I ask what kind of a car this is in the picture?
Tube frame chassis, or just subframe?

D
It's a locost, as mentioned earlier in the thread.
saedrin is offline   Reply With Quote
Old 03-18-2011, 12:36 AM   #15
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 257
Total Cats: -1
Default

My bad...


I'm trying to swap a M-edition torsen LSD to my 97 Miata.

The problem is the Torsen LSD housing arm is broke.

What's should I do about that?
Should I just find a open diff housing and swap it over?
d k is offline   Reply With Quote
