Old 02-27-2014, 08:46 AM   #21
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Just go spend a week or two with the car. You will get used to it pretty quickly. dropping caster would help some.
Seefo is offline   Reply With Quote
Old 02-27-2014, 03:30 PM   #22
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

If you need both of your arms to turn the wheel at anything over a walking pace, then something is wrong.

How hard is it to turn the wheel with both front tires off the ground? It should take nearly zero effort. If not, then the problem is in your rack. If it is super easy then the problem is with your arms and reducing caster from 4.5 to 3.5 would help.
DaveC is offline   Reply With Quote
Old 02-27-2014, 03:46 PM   #23
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,659
Total Cats: 76
Default

I turn the wheel with one hand.

While outside using the other hand to push the car around the garage.

(FM depower)
z31maniac is offline   Reply With Quote
Old 02-27-2014, 05:07 PM   #24
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

I started with a looped line rack then went to welded pinion and gutted rack. No real difference in effort but the welded pinion was a great change. Nice tight feel without any slop.
k24madness is offline   Reply With Quote
Old 02-27-2014, 06:23 PM   #25
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

If you have ridiculous camber or zero offset tires or any other stupid modifications it can make it much worse.

Mine was 5.2 and was reduced to 4.5 after I looped the lines and it is fine to drive, even with 15x8 6uls and 225s. When I bled the rack I grabbed the tire and slammed the steering angle from left lock to right lock as quickly as I could to get every bit of the fluid I could out of it. I couldn't have spun the steering wheel that fast.

What are the rest of your alignment settings and wheel and tire offset?
sixshooter is offline   Reply With Quote
Old 02-27-2014, 06:29 PM   #26
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Camber F 2.3 R 2.0
Caster 4.3
Toe 1/16 in f&r
15x7 +32
205/50 Rivals
Gt2560rMiata is offline   Reply With Quote
Old 02-27-2014, 07:00 PM   #27
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by Gt2560rMiata View Post
Camber F 2.3 R 2.0
Caster 4.3
Toe 1/16 in f&r
15x7 +32
205/50 Rivals
No way you should be having an issue. Something is wrong. Actually, wait, that's a 32mm offset? That's like 1.25". That can't be right?! You have 5.75" outer wheel width and 1.25" inner wheel width measures from the mounting surface? If that is really the case, I think we've identified the issue.
guttedmiata is offline   Reply With Quote
Old 02-27-2014, 07:07 PM   #28
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

15x7 Trmotorsport C1m nothing funny about the offset
Gt2560rMiata is offline   Reply With Quote
Old 02-27-2014, 07:08 PM   #29
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by guttedmiata View Post
No way you should be having an issue. Something is wrong. Actually, wait, that's a 32mm offset? That's like 1.25". That can't be right?! You have 5.75" outer wheel width and 1.25" inner wheel width measures from the mounting surface? If that is really the case, I think we've identified the issue.
Your math is off.

That's not a strange wheel spec at all.
concealer404 is offline   Reply With Quote
Old 02-27-2014, 07:53 PM   #30
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by concealer404 View Post
Your math is off.

That's not a strange wheel spec at all.
Hah, I had back spacing in my head instead of offset.
guttedmiata is offline   Reply With Quote
Old 03-08-2014, 12:54 PM   #31
Newb
iTrader: (2)

Join Date: Oct 2011
Location: Long Island, NY
Posts: 36
Total Cats: 1
Default

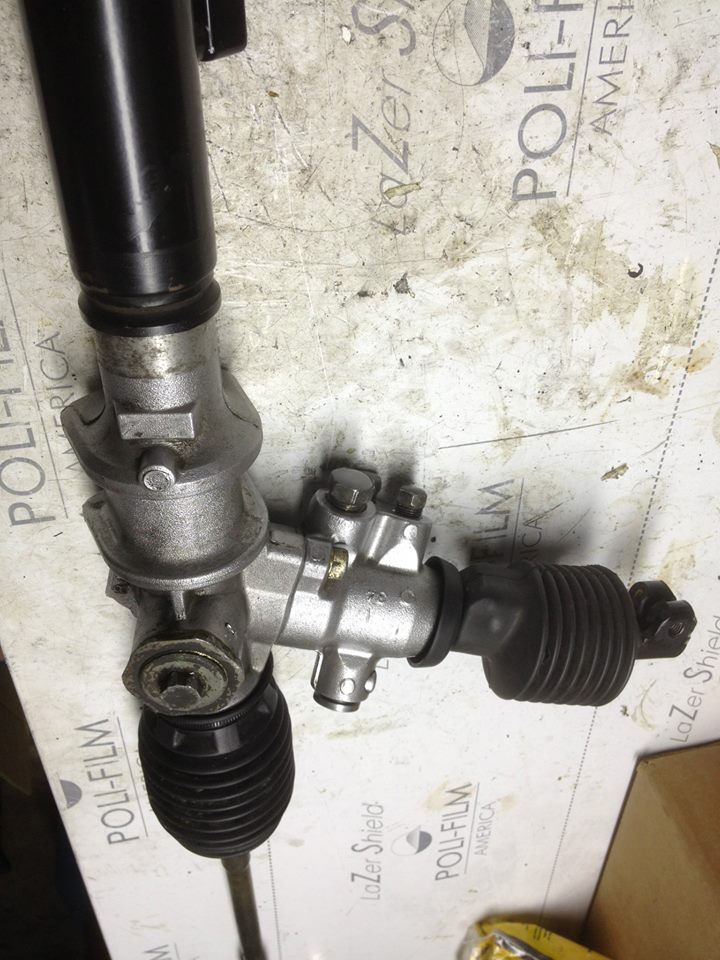

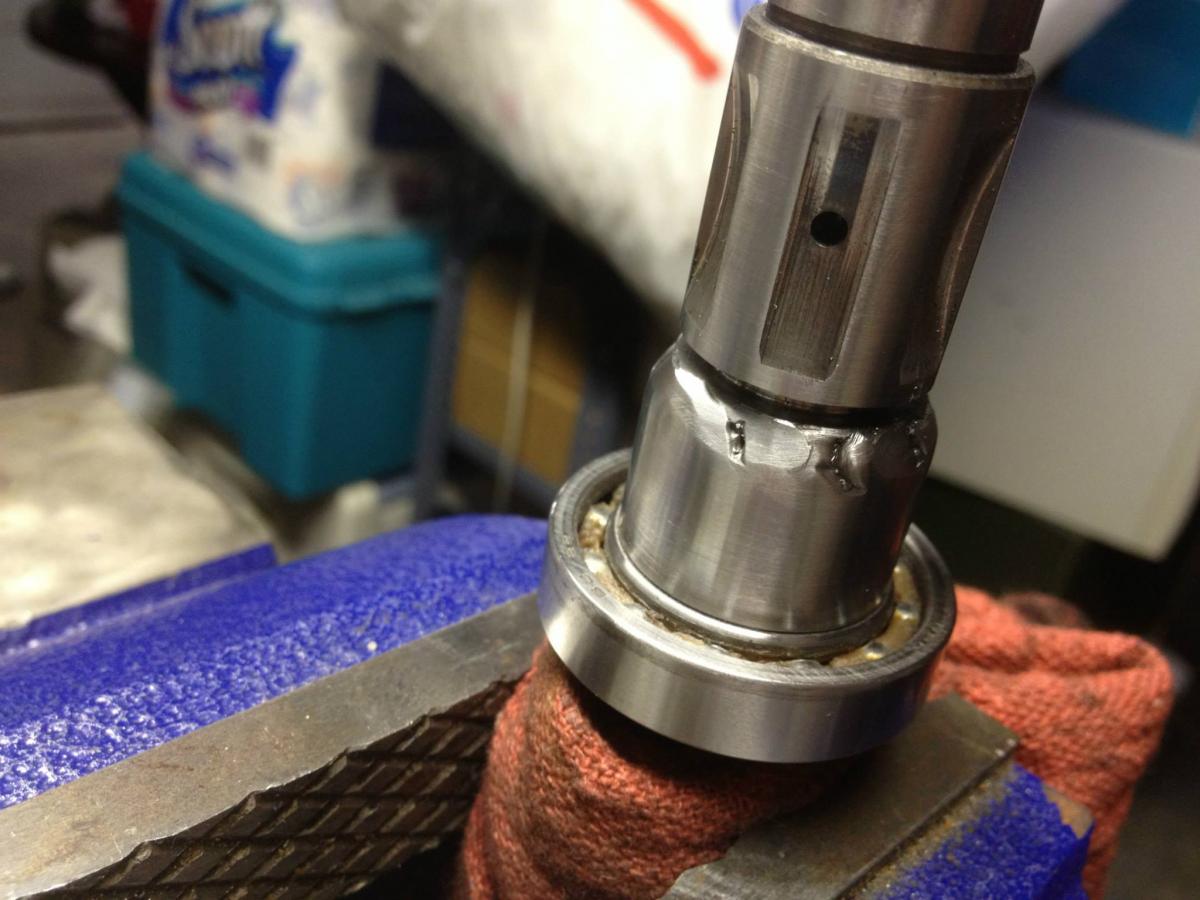

i performed a proper depower over the winter, piston removed, welded pinion, etc. was a bit startled at the effort at low and medium speeds. checked my old alignment specs, caster was over 5

had my car re-aligned this past week, changed caster to a more reasonable 3.5, made a HUGE difference. much happier now.



notice the homemade jb-weld plugged hardline fittings - couldn't justify buying that entire set of plugs. i bought the pair of larger ones though, and only one was the right size.

Attached Thumbnails
Steering effort, FmDepower vs Line loop-1913453_10201703504093509_2140642633_o.jpg   Steering effort, FmDepower vs Line loop-1779090_10201703504133510_1920963692_n.jpg

Last edited by ruthless013; 03-08-2014 at 01:10 PM.
ruthless013 is offline   Reply With Quote
Old 03-08-2014, 05:38 PM   #32
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Gt2560rMiata View Post
Im thinking ill go back to PS, super pissed at myself for cutting the hardlines now, someone pm me if you have ps rack hardlines for a 95 you would sale
Willing to sell your cut hard lines?
triple88a is offline   Reply With Quote
