Old 06-22-2009, 07:17 AM   #21
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Quote:
Originally Posted by mrtonyg View Post
You don't, you get an adjustable one.
I was simply quoting him as saying I could tweak it, I know the stock valve has no adjustment.
zoomin is offline   Reply With Quote
Old 06-22-2009, 08:20 AM   #22
Guest
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by zoomin View Post
I was simply quoting him as saying I could tweak it, I know the stock valve has no adjustment.
I made a mistake.. Thought you had an adjustable one. Sorry
M-Tuned is offline   Reply With Quote
Old 06-22-2009, 05:52 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by mrtonyg View Post
You don't, you get an adjustable one.
yes...use a sealant on the npt adapter threads so your life is easier than mine was.

I'm not overheating my rear 1.8 brakes on the track with a properly dialed-in bias valve...so why go with this mod? Is it just so the rears can look big?
hustler is offline   Reply With Quote
Old 06-22-2009, 08:16 PM   #24
Junior Member

Join Date: Nov 2008
Location: San Diego
Posts: 65
Total Cats: 0
Default

No matter how fast you are, it means nothing if you cant stop. Can never have to much Brakes IMO. It usually only happens once when your messing around going way to fast for that turn one off the front stright and that brake pedal falls right to the floor. Knowing the session before the brakes were so hot you can lit a cig off the rotors and the brake fluid was already boiling over. WHAT DO YOU DO? kiss the car goodbye? and if you save it? change your shorts and do a brake up-grade asap I did the both while yelling OOOHHH ****! lol it many never happen to most but to the few that have felt brake fade know what i am talking about, and its some scary *** ****. my .02 cents.
LowBoostn is offline   Reply With Quote
Old 06-22-2009, 08:23 PM   #25
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by hustler View Post
I'm not overheating my rear 1.8 brakes on the track with a properly dialed-in bias valve...
Cause you drive like a girly man. Also explains why you were not overheating your engine

I think we need a Group Buy Package Deal on an M-Tuned front and rear conversion kit!
ZX-Tex is offline   Reply With Quote
Old 06-22-2009, 10:57 PM   #26
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by LowBoostn View Post
Knowing the session before the brakes were so hot you can lit a cig off the rotors and the brake fluid was already boiling over. WHAT DO YOU DO?
You went back out after knowing that you got your brakes that hot and didn't bleed them? It takes all of what 15 minutes to bleed all 4 corners?

I am not saying that these aren't merrited, but your justification is far from rational.
rharris19 is offline   Reply With Quote
Old 06-23-2009, 12:19 AM   #27
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by ZX-Tex View Post
I think we need a Group Buy Package Deal on an M-Tuned front and rear conversion kit!
Post #18 above anybody?
samnavy is offline   Reply With Quote
Old 06-23-2009, 12:40 AM   #28
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

So what is the point of doing this? I see absolutely no merit in this mod.
crashnscar is offline   Reply With Quote
Old 06-23-2009, 01:07 AM   #29
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

These are really just for track cars or for those who really need a big brake look through the back wheels. Guys, 1.6 brakes with race pads have been proven to be great for SM (N/A) racers. People usually upgrade to a good street pad and 1.8 brakes when they're turbo'd, and 1.8 brakes with race pads of it's a tracked turbo'd car.

These kits are for the racers who have wide r-comps, race pads on all four corners, 11" rotors in the front, and their adjustable proportioning valve can't get them enough rear bias for their particular driving style.

I hate to go all m.net on everyone (racers excluded), and possibly sway buyers from m-tuned's great product, but don't buy these if you only drive your car on the street! It took me five 60-0 runs to get a little fade out of 1.6 brakes with hawk HPS+ pads (that's 60mph-0mph-60mph-0mph-60mph-0mph-60mph-0mph-60mph-0mph, slamming the brakes each time almost to the point of lock up). You will NEVER do that on the street! Well, I did, but it was a test. You'll only be adding rotational mass to your back end, after you just spent that money buying the ultra-light-can-actually-see-through-the-spokes-and-see-your-brakes-wheels. Just my
curly is offline   Reply With Quote
Old 06-23-2009, 01:55 AM   #30
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by curly View Post
These are really just for track cars or for those who really need a big brake look through the back wheels. Guys, 1.6 brakes with race pads have been proven to be great for SM (N/A) racers. People usually upgrade to a good street pad and 1.8 brakes when they're turbo'd, and 1.8 brakes with race pads of it's a tracked turbo'd car.

These kits are for the racers who have wide r-comps, race pads on all four corners, 11" rotors in the front, and their adjustable proportioning valve can't get them enough rear bias for their particular driving style.

I hate to go all m.net on everyone (racers excluded), and possibly sway buyers from m-tuned's great product, but don't buy these if you only drive your car on the street! It took me five 60-0 runs to get a little fade out of 1.6 brakes with hawk HPS+ pads (that's 60mph-0mph-60mph-0mph-60mph-0mph-60mph-0mph-60mph-0mph, slamming the brakes each time almost to the point of lock up). You will NEVER do that on the street! Well, I did, but it was a test. You'll only be adding rotational mass to your back end, after you just spent that money buying the ultra-light-can-actually-see-through-the-spokes-and-see-your-brakes-wheels. Just my
Track cars don't need these brakes....

With a prop valve, you CAN get enough rear bias; even a former go-karter who likes rear lockup to help rotate the car entering corners can get enough rear bias.

Hawk HPS and HP+ pads are two different kinds, so not sure which you were using, but either way that's a street pad, so fading them is not surprising.

Agreed on the adding un-sprung rotational mass to the car. Completely useless.
crashnscar is offline   Reply With Quote
Old 06-23-2009, 02:08 AM   #31
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Quote:
Originally Posted by ZX-Tex View Post
Cause you drive like a girly man.
Neither do I. I hate to say it, but this is purely for looks and peace of mind. Larger rear brakes are absolutely unnecessary.
Savington is online now   Reply With Quote
Old 06-23-2009, 02:32 AM   #32
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by crashnscar View Post
Track cars don't need these brakes....

With a prop valve, you CAN get enough rear bias; even a former go-karter who likes rear lockup to help rotate the car entering corners can get enough rear bias.

Hawk HPS and HP+ pads are two different kinds, so not sure which you were using, but either way that's a street pad, so fading them is not surprising.

Agreed on the adding un-sprung rotational mass to the car. Completely useless.
Well I was assuming discussion have gone on that I haven't read where larger rear brakes were required, I know I don't need them, I just figured others did.

I was running Hawk's HPS pad, my apologies for the confusion. My point was that with street pads and 'puny' 1.6 brakes it takes a lot of abuse to get any fade.

I don't mean to sound argumentative, we're on the same side. Perhaps we should drop it though, help mark make some $$$.
curly is offline   Reply With Quote
Old 06-23-2009, 03:38 AM   #33
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by curly View Post
I don't mean to sound argumentative, we're on the same side. Perhaps we should drop it though, help mark make some $$$.
If it was a useful product (like the corrado front rotor adapter), I'd be all for it.

I just don't want people to think they need bigger rear brakes for ANYTHING other than looks.
crashnscar is offline   Reply With Quote
Old 06-23-2009, 03:44 AM   #34
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I wonder why Mazda did it if it weighs more than the standard 1.8 brakes.
JasonC SBB is offline   Reply With Quote
Old 06-23-2009, 12:17 PM   #35
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I'm going to add my from this past weekend at barber. I've got the 1.8 upgrade on fronts and rears. Slotted rear rotors, $30 front rotors. Rear pads are Hawk blacks, Fronts are a race pad from FM, and an adjustable proportioning valve. Brakes were bled before the event so that the fluid was fresh (synthetic DOT3/DOT4). My instructor who was also driving his GTA car this past weekend drove a few laps in my car to show me the capabilities. He said the brakes were fantastic. He thought with a few sessions he could get within 5sec of his gta cars lap times. I completed 2hrs of total track time.

From my limited real world track experience, this upgrade doesn't seem necessary.
miatauser884 is offline   Reply With Quote
Old 06-23-2009, 01:43 PM   #36
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Marc,will this kit fit the 1.6 cars,or will we need to purchase the 1.8 calipers?
spike is offline   Reply With Quote
Old 06-23-2009, 03:43 PM   #37
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Savington View Post
Neither do I.
Yeah just giving Hustler a hard time. He was going faster than me at the MSR track day.

I have managed to throughly fade my stock 1.8 brakes in the twisty roads NW of San Antonio in the Hill Country. They faded to the point where I had to stop and let them cool off, and they were definitely outgassing (I could smell them). But this is on low-speed twisty roads where there is not much speed, or time, for them to cool off. IIRC I brought this up in a previous discussion.

At the track day I did not push my brakes real hard, and in fact backed off a bit as soon as I felt them start to fade in a session where I was braking more aggressively. This is with fresh brake fluid, but stock rotors and ceramic street brake pads. No ducting. No prop' valve.

Soooo... I was seriously considering going to at least the Corrado rotors on the front. It is interesting to hear Sav say the rear upgrade is not needed for the track. I do not have enough track time in a Miata to argue that point one way or the other.
ZX-Tex is offline   Reply With Quote
Old 06-23-2009, 04:10 PM   #38
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by ZX-Tex View Post
Yeah just giving Hustler a hard time. He was going faster than me at the MSR track day.

I have managed to throughly fade my stock 1.8 brakes in the twisty roads NW of San Antonio in the Hill Country. They faded to the point where I had to stop and let them cool off, and they were definitely outgassing (I could smell them). But this is on low-speed twisty roads where there is not much speed, or time, for them to cool off. IIRC I brought this up in a previous discussion.

At the track day I did not push my brakes real hard, and in fact backed off a bit as soon as I felt them start to fade in a session where I was braking more aggressively. This is with fresh brake fluid, but stock rotors and ceramic street brake pads. No ducting. No prop' valve.

Soooo... I was seriously considering going to at least the Corrado rotors on the front. It is interesting to hear Sav say the rear upgrade is not needed for the track. I do not have enough track time in a Miata to argue that point one way or the other.
Bigger rotors wont help if you are using THE WRONG COMPOUND PAD
crashnscar is offline   Reply With Quote
Old 06-23-2009, 05:23 PM   #39
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yeah I am definitely not using a racing pad right now. It is my DD. I should probably pick up a set of pads for the track and swap them out as needed.
ZX-Tex is offline   Reply With Quote
Old 06-23-2009, 09:59 PM   #40
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Until you are demolishing race pads on stock-sized rotors, larger rotors are not necessary.

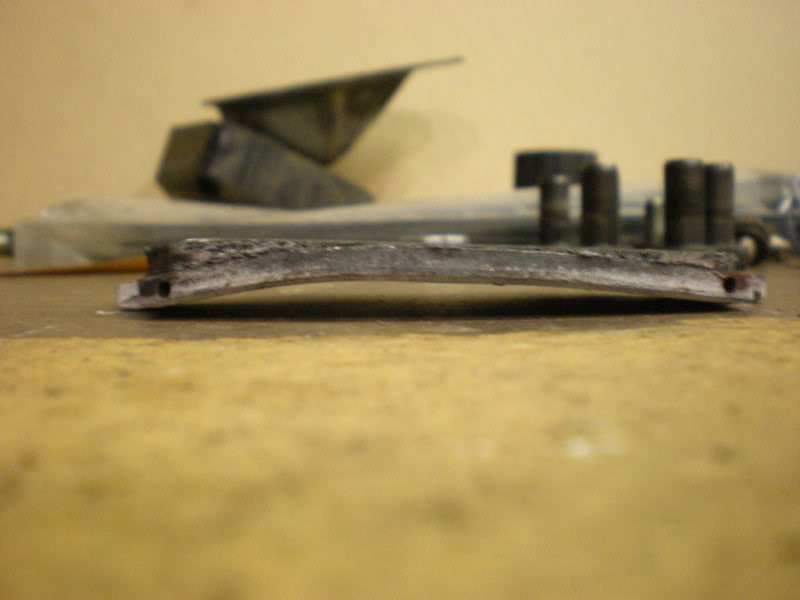

I only upgraded to the Corrado fronts after doing this to a set of XP12s:

Name:  DSCN1356.jpg
Views: 13
Size:  33.8 KB

I have destroyed a set of XP12s, a set of XP10s, and a set of Raybestos ST43s, and my original set of rear Carbotech XP10s still have 50% of their life left. This is WITH a prop valve.
Savington is online now   Reply With Quote
