Default Torsen axles assembly question

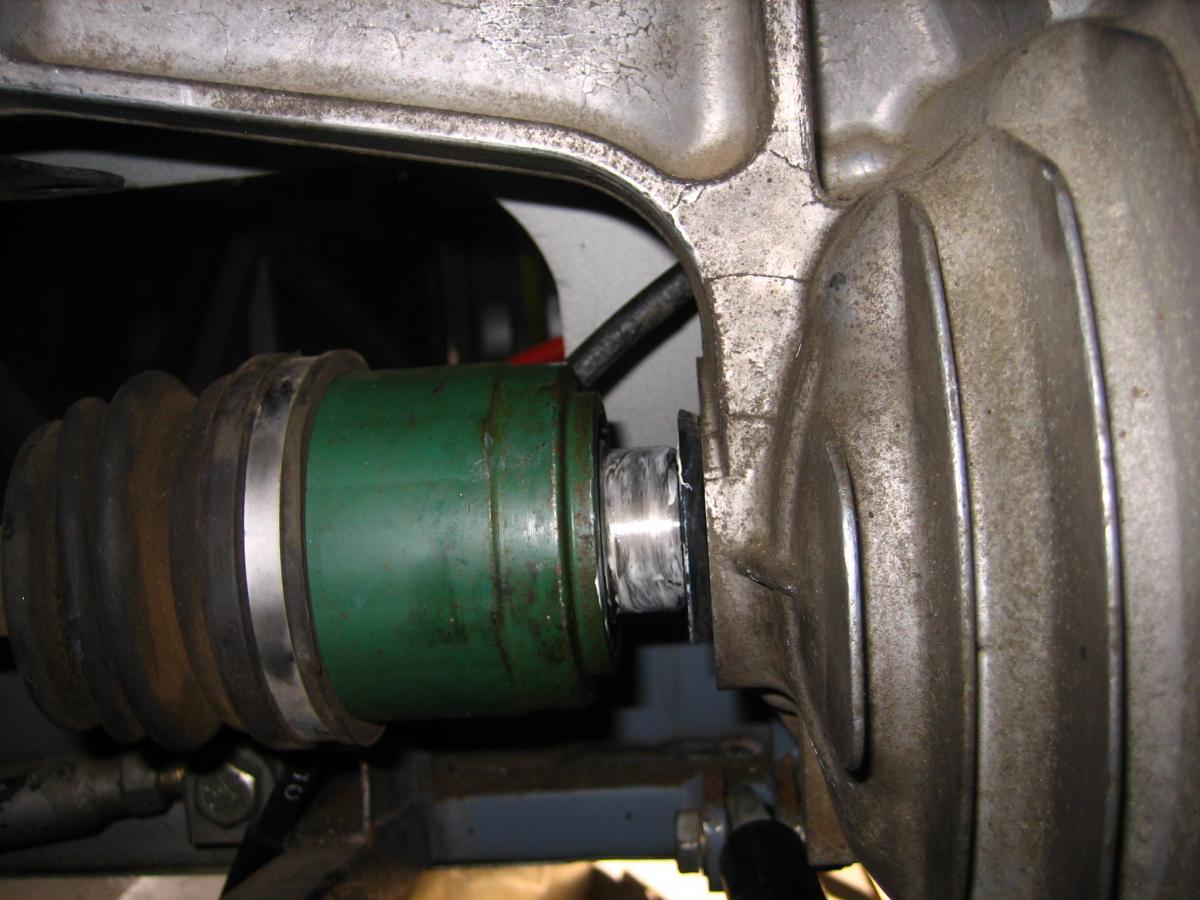

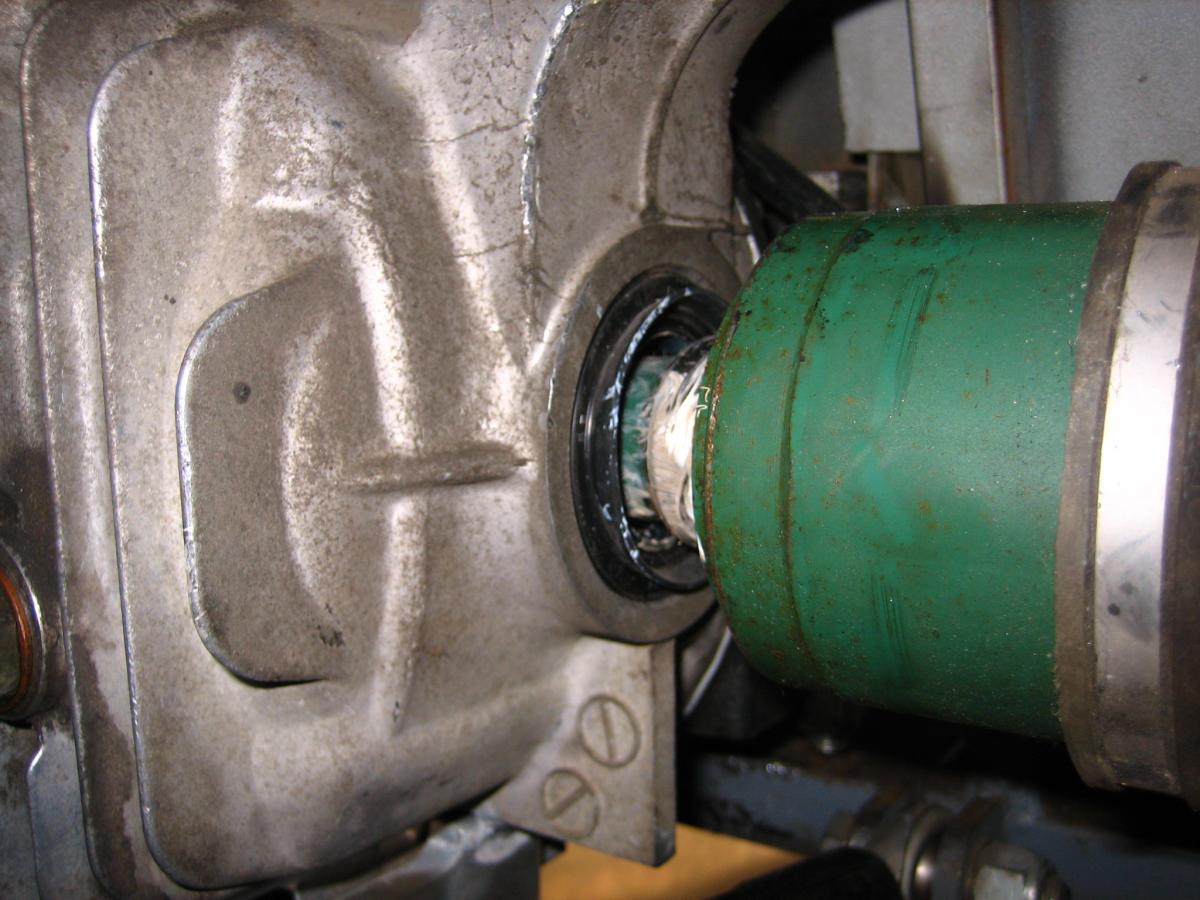

Changing out from a 1991 open diff to a 95? torsion diff in a Kit car. I haven't seen a normal torsion install but this isn't look right, the gap from seal to axle is over 1/2 inch. the outside ends of the axle fit up fine. I used white grease to lube on the install. The previous axles were not lengthened so I don't understand how the distance could be wrong. Any help appreciated.
Attached Thumbnails
Torsen axles assembly question-004.jpg   Torsen axles assembly question-001.jpg
twpipe is offline   Reply With Quote
Old 07-02-2011, 01:01 PM   #2
Newb

Join Date: Dec 2008
Location: Houston, TX
Posts: 9
Total Cats: 0
Default

Nope keep pushing till the snap ring engages.
jrlara93 is offline   Reply With Quote
Old 07-02-2011, 03:09 PM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2009
Posts: 117
Total Cats: 0
Default

Thanks, should I use a heavy sledge padded by wood block ? Or is just getting the right straight angel ? I had met my comfort level in trying to get them earlier.
twpipe is offline   Reply With Quote
Old 07-02-2011, 05:14 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2009
Posts: 117
Total Cats: 0
Default

its together just supported axle for a straight push and a slight tap with a "larger " hammer thanks
twpipe is offline   Reply With Quote
Old 07-02-2011, 07:23 PM   #5
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

You should be able to push them in without a hammer.
falcon is offline   Reply With Quote
Old 07-03-2011, 12:13 PM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by falcon View Post
You should be able to push them in without a hammer.
This. Sometimes you may need to apply a good bit of force, but they snap right in.

You are using the 95 axles in the 95 diff correct? Not trying to use the 91 axles in the 95 diff?
miatamania is offline   Reply With Quote
Old 07-03-2011, 12:39 PM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2009
Posts: 117
Total Cats: 0
Default

It worked with a heavy sledge and padded with wood on the axle, most of the problem is inexperience but having the car up on roller stands and it weighing 1000 lbs less than a miata, the car was moving while I was pushing so it needed a little rap to push in.
After a half year stall I'm back working on the car. Now to finish up welding the turbo exhaust manifold, cooling, etc. Too much life put the car on hold it was supposed to take 30 days. All those days of driving fun I'm missing.
twpipe is offline   Reply With Quote
