Default who sells these 11" friction rings w 8 bolts?!

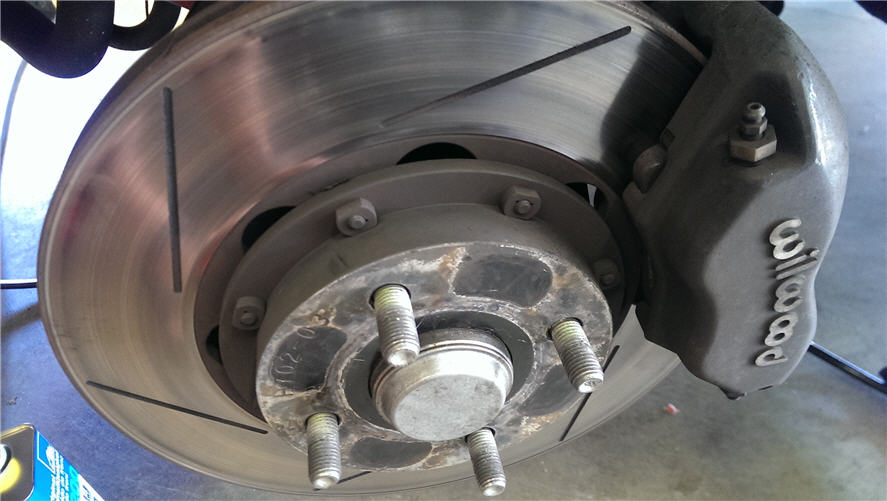

I bought em used, I think they're Goodwin V3's, which are now out of production... ditto replacement rings.

Attached Thumbnails
who sells these 11" friction rings w 8 bolts?!-rotors.jpg
JasonC SBB is offline   Reply With Quote
Old 08-26-2014, 08:38 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

I thought the V2's were out of production. The V3's are from DBA I think.
hornetball is offline   Reply With Quote
Old 08-26-2014, 11:11 PM   #3
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Pretty sure those are fastbrake. The iron that fastbrake uses is not compatible with all brand of brake pad according to them. Note sure what the offset is or if other rotor/hat combos line up. Maybe Brian would be willing to share that.

I get the occasional call for rings for some obscure Miata wilwood kit (there have been many). Thus, we offer our SPM 11" and 11.75" wilwood kits optionally without calipers.
emilio700 is offline   Reply With Quote
Old 08-26-2014, 11:31 PM   #4
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I've been using them with XP8's... braking is excellent, but the rotors seem to be wearing fast.

What dimensions are needed to figure out if I can use other 2-piece rotors? Diameter, thickness and offset? Which way is offset measured? Inside surface of hat to outside surface of friction ring?
JasonC SBB is offline   Reply With Quote
Old 08-27-2014, 12:06 AM   #5
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,308
Total Cats: 1,326
Default

Quote:
Originally Posted by JasonC SBB View Post
Inside surface of hat to outside surface of friction ring?
That is readily transferable. I'd make Goodwin your first call.
emilio700 is offline   Reply With Quote
Old 08-27-2014, 09:34 PM   #6
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

I would replace hat's and rotors with something more common. That older one off stuff is tough. I really liked the 949 directional rotors when I ran them. That's a standard kit with wilwood hats that will not have obsolete problems that the goodwin kit did down the road.
k24madness is offline   Reply With Quote
Old 08-29-2014, 02:14 AM   #7
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Fresno CA
Posts: 137
Total Cats: 3
Default

Quote:
Originally Posted by JasonC SBB View Post
I've been using them with XP8's... braking is excellent, but the rotors seem to be wearing fast.

What dimensions are needed to figure out if I can use other 2-piece rotors? Diameter, thickness and offset? Which way is offset measured? Inside surface of hat to outside surface of friction ring?
They are made by Racing Brake. For replacement friction rings you can go to Coleman Racing, send them the specs for your rings or just send the used rings, let them know what features you want, i.e. floating, gas slots, directional, cryo, etc... and they will set you up. FWIW, 949 sells a'la carte so it MAY be cheaper to get new rotor brackets and wilwood hats/friction rings if you opt for all of the bells and whistles on your replacement rings.
twothirdsCobra is offline   Reply With Quote
