Old 06-29-2016, 09:30 PM   #1
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default Wilwood 11.75 Rotor Defect

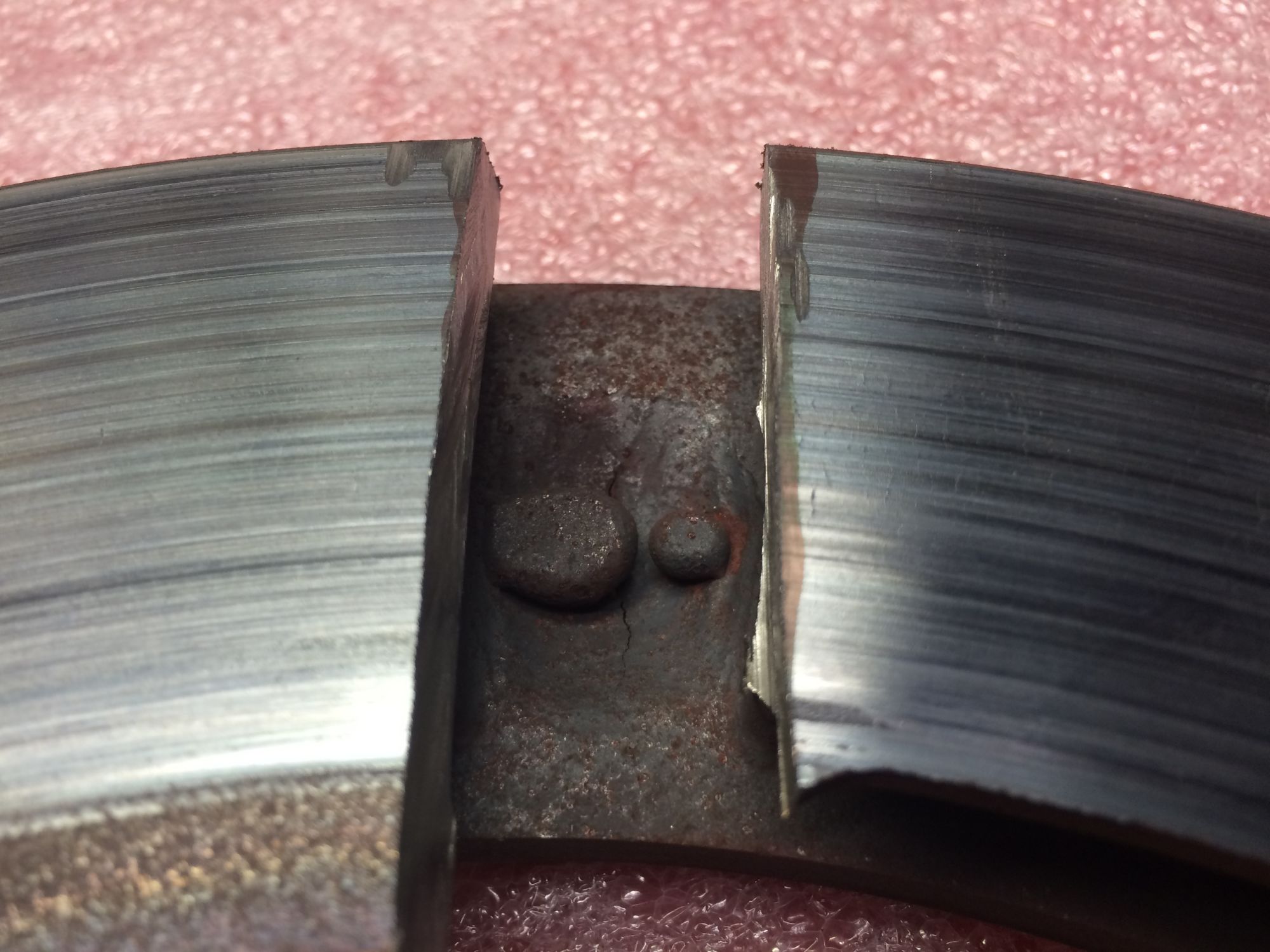

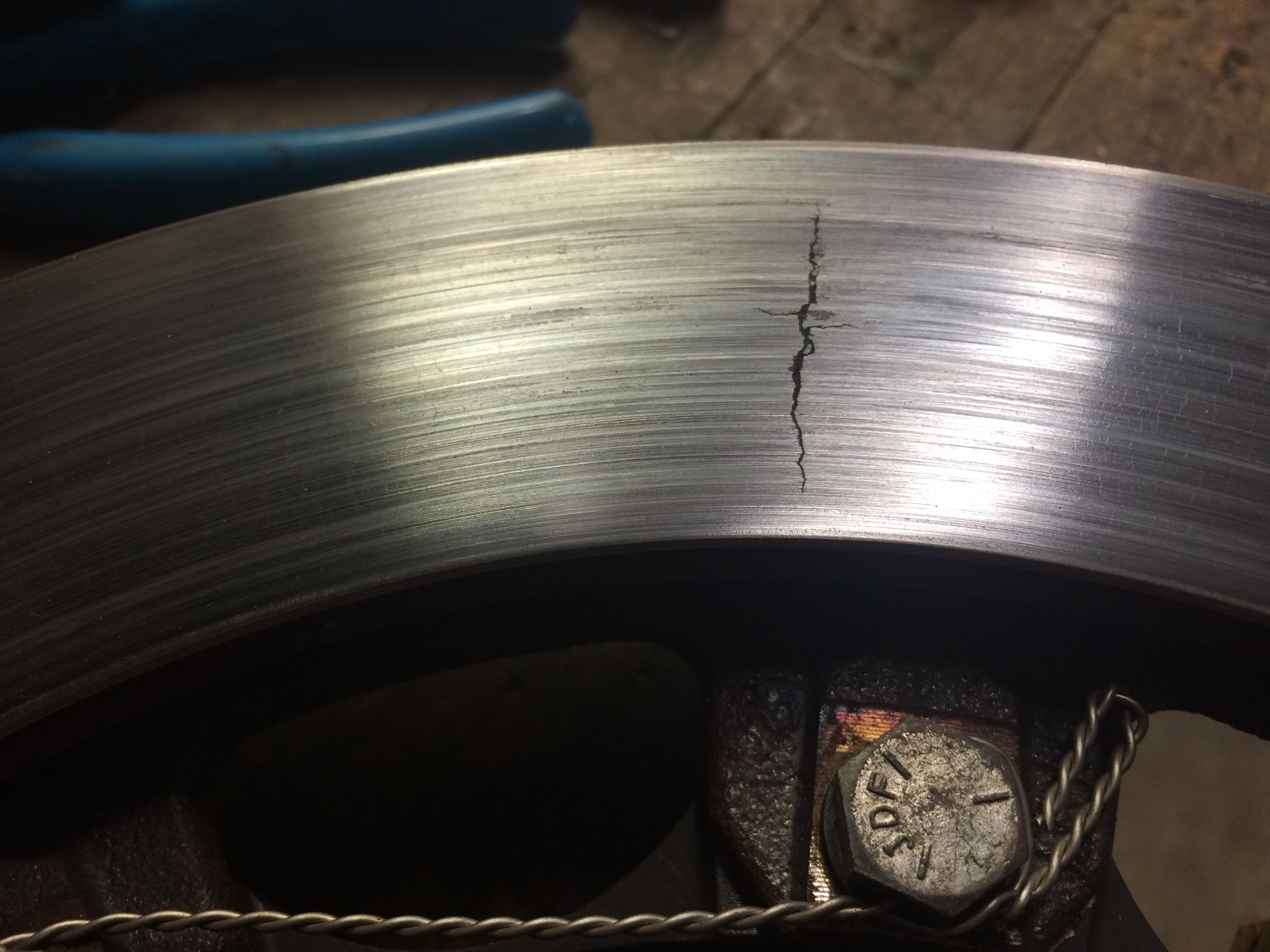

Up until recently I have been running the inexpensive Wilwood rotors for 5 years without incident. After two track days on a new set of rotors I discovered a substantial crack. I inspected the failed rotor and something did not seem right inside the vented area. In order to get a better view I cut away the opposite surface. What I discovered was that the rotor was literally missing material which I believe to be the result of a defect when the rotor was cast.

I shipped the rotor to Wilwood for inspection and they maintain that the crack is the result of "excessive heat" which was caused by track use or the fact that I cut away the opposite side. I find their explanation to be complete and utter bravo sierra.

Just thought I'd share in the name of safety. I'll be sure to inspect every part that goes on my car more thoroughly in the future.



Attached Thumbnails
Wilwood 11.75 Rotor Defect-80-img_8247_9e53e5ff869e2193212f0b6d8037f1a68898c414.jpg   Wilwood 11.75 Rotor Defect-80-img_8248_741cac40031eea2651733fd540ab5741f4a59df3.jpg

Last edited by supersuckers; 06-30-2016 at 08:28 AM.
supersuckers is offline   Reply With Quote
Old 06-29-2016, 09:44 PM   #2
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Navarre, Fl
Posts: 203
Total Cats: 3
Default

the area that cracked seems thinner and the two circular pieces seem out of place. My guess is that the people at wilwood are high.
ericsbestshot is offline   Reply With Quote
Old 07-01-2016, 04:22 PM   #3
Newb

Join Date: Oct 2010
Posts: 28
Total Cats: 3
Default

I'd agree the rotor is suspect due to what we're seeing after you cut it away.

But in their defense; you pretty much lost me here: "I have been running the inexpensive Wilwood rotors for 5 years without incident. After two track days....."

Knowingly running the "inexpensive" rotors was a choice. And you got 5yrs out of them. Seems every expectation has been met. Make the move to the GT castings and be done with it.
Todd TCE is offline   Reply With Quote
Old 07-01-2016, 04:24 PM   #4
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,762
Total Cats: 47
Default

this is why my car has no wilwood products.... except for the master cylinder reservoir. how do you screw up a plastic bottle.
OGRacing is offline   Reply With Quote
Old 07-01-2016, 05:01 PM   #5
Newb

Join Date: Oct 2010
Posts: 28
Total Cats: 3
Default

You've told me that many times Johnny...and I'm sure I'll be the first to hear of it when somehow it does fail you!. LOL!

Have a great weekend, and if you're racing; shiny side up!
Todd TCE is offline   Reply With Quote
Old 07-01-2016, 05:28 PM   #6
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,762
Total Cats: 47
Default

you if they mess up a little plastic container i will let you know haha.
OGRacing is offline   Reply With Quote
Old 07-01-2016, 06:39 PM   #7
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

[QUOTE=Todd TCE;1342882]I'd agree the rotor is suspect due to what we're seeing after you cut it away.

But in their defense; you pretty much lost me here: "I have been running the inexpensive Wilwood rotors for 5 years without incident. After two track days....."

Knowingly running the "inexpensive" rotors was a choice. And you got 5yrs out of them. Seems every expectation has been met. Make the move to the GT castings and be done with it.[/QU

I typically replace my rotors every 2-3 sets of pads since they are so inexpensive. So I've gone through quite a few in my time. No issue with the value. Just letting folks know in case they're using the same bits.

The plan is to go with a different manufacturer in the future. I don't think I can handle another game of run around with Wilwood.
supersuckers is offline   Reply With Quote
Old 07-01-2016, 07:22 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,356
Total Cats: 1,322
Default

The nice thing about the standard 11.75" .810"-thick 8x7.00" rotors is that you can buy high-quality ones from several manufacturers (including Wilwood - their directional castings are higher quality than the inexpensive straight-vanes).
Savington is online now   Reply With Quote
Old 07-01-2016, 07:25 PM   #9
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,309
Total Cats: 1,328
Default

The Willwood econo line of rotors are made in Mexico. The rest of their line is US made. The commonly used Miata 11" is the 160-5840, the 11.75 is the 160-0471, both Mexico. Fine for street or autocross use but we have always recommended a US made rotor for track use. We have our own US made Supermiata versions of these which are left and right directional. The 11.75 econo wilwood retails for $36 IRC. You get what you pay for.

Quote:
Originally Posted by supersuckers View Post
The plan is to go with a different manufacturer in the future. I don't think I can handle another game of run around with Wilwood.
To be fair, there was no runaround. You bought a cheap rotor for the wrong application and it failed. Real race brakes aren't always cheap. Consider yourself thusly educated
emilio700 is online now   Reply With Quote
Old 07-07-2016, 11:28 PM   #10
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Well I guess I'm just the odd ball as I switched from running the straight vein 11.75 rotors, which I've run for 3 or 4 yrs without issue changing them out about twice a yr.. I installed a new set of the directionals this last winter thinking they would help extent pad life and the right front did the same wide crack that the op's did with 4 track days on them. I just ordered a set of the cheapo's again from Andrew since I've never had an issue with them. Guess I'm just lucky.
jmann is offline   Reply With Quote
