Default WTF calipers are these??

These came with a Miata I bought....any ideas? Obviously wilwoods and I believe they are older dynalites. They were supposedly for Miata but I haven't tried mounting them yet. They also came with 11" vented rotors.



rlogan is offline   Reply With Quote
Old 02-15-2011, 05:49 PM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Looks a lot like the 949 kit with a different version caliper on it. They make different super lite calipers. Check this link.

http://949racing.com/miatabigbrakewi...hkit90-02.aspx
Sean is offline   Reply With Quote
Old 02-15-2011, 06:41 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that is the billet dynalite. fitment matches the forged dynalite, but the forged one wasn't always available.

it could be:
FM
Goodwin
Panache (v8 miata people from back in the day) http://monstermiata.webs.com/bigbrakekit.htm
secret knock-off version of above

the offset of the mounting bracket looks like it's one of the later designs that fits the 11" rotors under the stock NB 15" wheels.

what kind of rotors does it have? two or one piece?
y8s is offline   Reply With Quote
Old 02-15-2011, 07:53 PM   #4
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Chiming in. These may be going on my car soon as a cheap stop gap before I go for the 11.75" setup. I agree, after a little more digging they look like the dynalite billet.

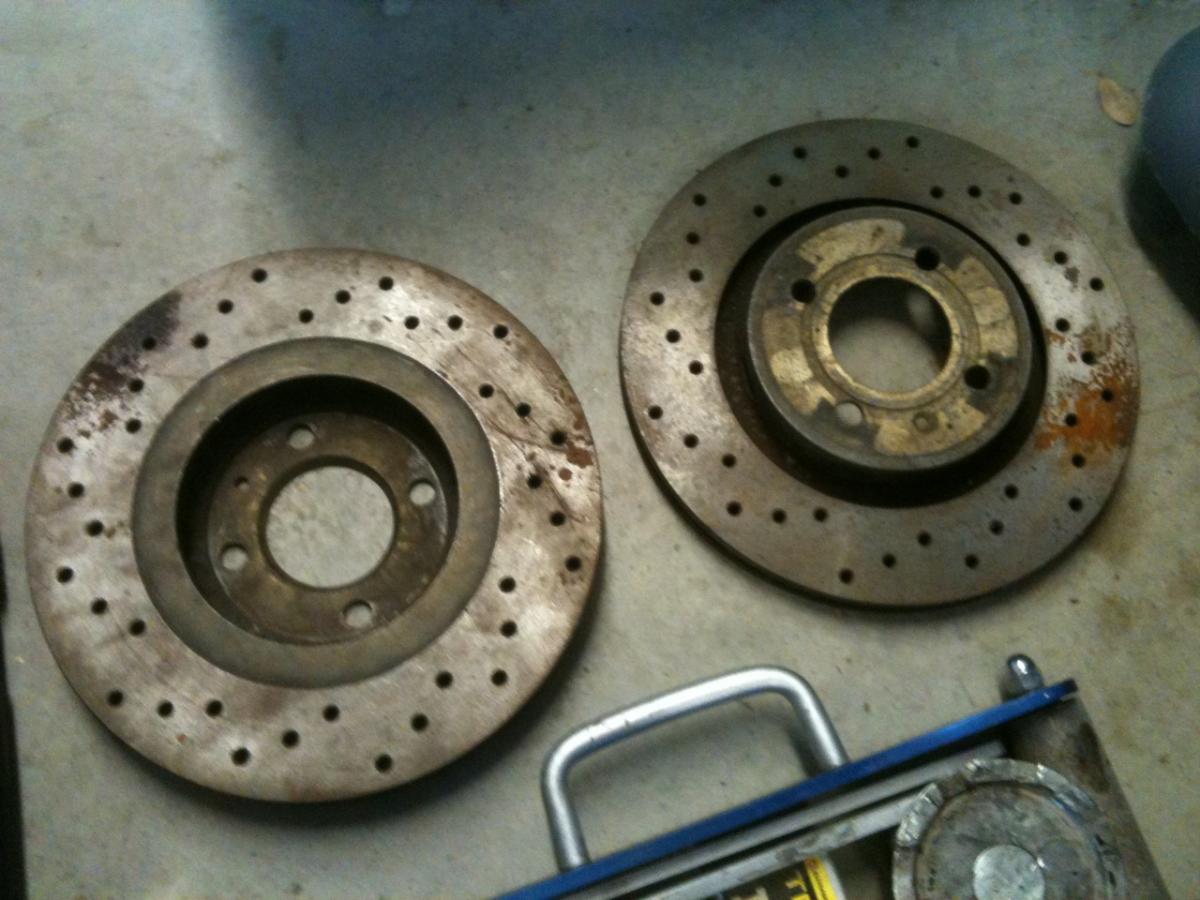

The rotors are one piece, and look a lot like drilled Corrado rotors. I need to compare the offsets to be sure. If they are Corrado rotors I already have a new set to use so I just need some track brake pads to try this out.

Here is a picture.
Attached Thumbnails
WTF calipers are these??-photo.jpg
ZX-Tex is offline   Reply With Quote
Old 02-15-2011, 10:16 PM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

if they're corrado rotors, it's probably the original early FM big brake kit. You could confirm that with them.

note that the offset of the rotors/brackets means they dont fit with the stock 15" NB wheels.
y8s is offline   Reply With Quote
Old 02-16-2011, 12:42 AM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

As long as they fit with 1st gen 15x8 6ULs I am good to go.

Thanks Yates.
ZX-Tex is offline   Reply With Quote
Old 02-21-2011, 10:19 PM   #7
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Well they do not clear the 6UL spokes, but are just baaaarely rubbing. A 5mm wheel spacer should take care of it.
ZX-Tex is offline   Reply With Quote
Old 02-21-2011, 10:53 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

oh damn. guess the 6ul spokes are similar placement to the NB wheels. check these pics:





There's about a 5mm or less gap in some spots.
y8s is offline   Reply With Quote
Old 02-22-2011, 12:23 AM   #9
Senior Member
Thread Starter
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

They will self clearance...
rlogan is offline   Reply With Quote
Old 02-22-2011, 06:14 PM   #10
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by rlogan View Post
They will self clearance...
GREAT idea.
ZX-Tex is offline   Reply With Quote
Old 02-23-2011, 01:09 PM   #11
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by y8s View Post
if they're corrado rotors, it's probably the original early FM big brake kit. You could confirm that with them.

note that the offset of the rotors/brackets means they dont fit with the stock 15" NB wheels.
Early FM kits had red anodized brackets and had FM machined into them. All the early kits had billet dynalites. They existed before wilwood even made the forged version. I donít think the forged dynalites existed before about 2000 or so.

Bob
bbundy is offline   Reply With Quote
Old 02-23-2011, 01:17 PM   #12
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

I have red FM brackets that came with Forged calipers running Corrado rotors.... so at least some existed I guess.

Sokool is offline   Reply With Quote
Old 02-23-2011, 03:11 PM   #13
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Looks like your spoke clearance is also pretty close? Are you using spacers?
ZX-Tex is offline   Reply With Quote
Old 02-23-2011, 03:15 PM   #14
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

No spacers.
Sokool is offline   Reply With Quote
Old 02-23-2011, 04:26 PM   #15
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

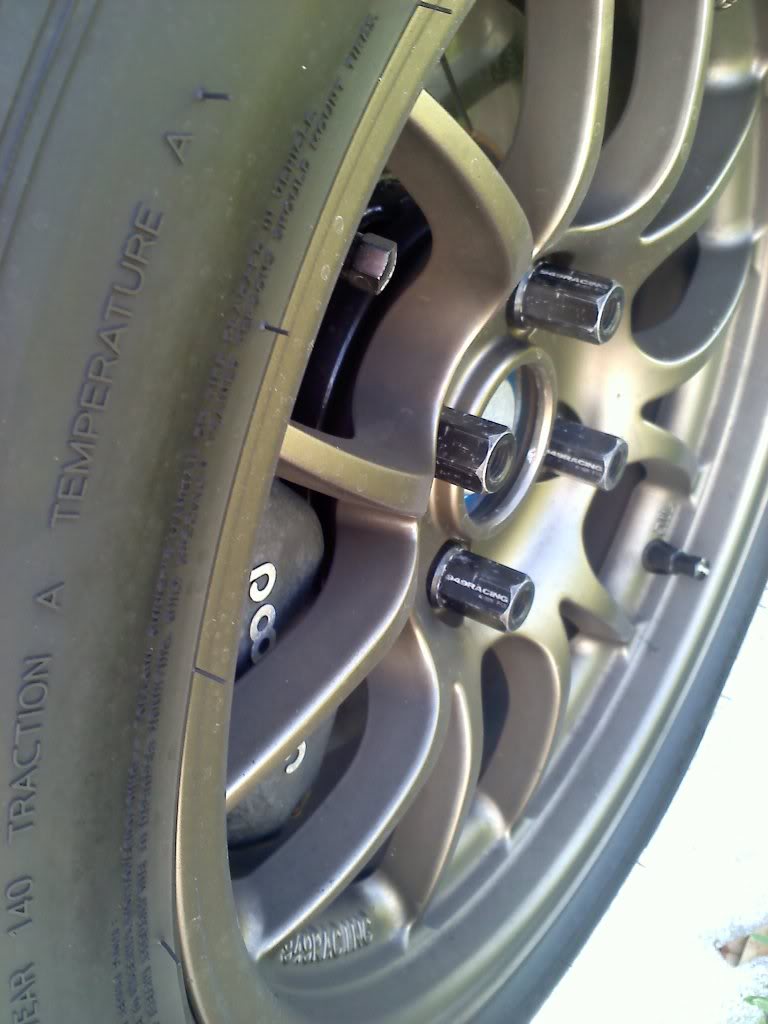

Went out and took a picture for you...

Name:  20110223152127.jpg
Views: 2
Size:  73.6 KB
Sokool is offline   Reply With Quote
Old 02-23-2011, 06:14 PM   #16
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Awesome thanks. Looks like you have about a 3-5mm gap so with the spacers I should be OK.
ZX-Tex is offline   Reply With Quote
Old 02-24-2011, 01:05 AM   #17
Senior Member
Thread Starter
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

You wonder why I offered these up...saves me the time/hassle of dealing with fitment issues. You let me know when you have it all worked out so I know to ask for them back.
rlogan is offline   Reply With Quote
Old 02-24-2011, 11:25 AM   #18
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I hate you and your awesome new E85 turbo car >:P

5mm hubcentric shim plates on the way. Stay tuned.

Last edited by ZX-Tex; 02-24-2011 at 08:38 PM.
ZX-Tex is offline   Reply With Quote
Old 02-25-2011, 03:23 AM   #19
Junior Member

Join Date: May 2009
Location: Bay Area, CA and Portland, OR
Posts: 105
Total Cats: 0
Default

If spacers work to make the NB 15"s fit over the wilwood kits I will be so unbelievably happy. I have been trying to figure out how to put dynalites on my car and make them fit for about 6 months but I keep coming back to needing new (big) wheels and tires. Since I DD the car and won't go back to PS, big wheels and big tires are out, hence the predicament. This looks seriously promising! Anyone here know a good source for 5 or 10 mm spacers and longer studs? Furthermore, I assume that spacers are perfectly strong enough for high performance driving?
gaius49 is offline   Reply With Quote
Old 02-25-2011, 04:32 AM   #20
Newb

Join Date: Nov 2010
Posts: 16
Total Cats: 0
Default

Pretty inexpensive to use 98-02 chevy f-body ARP studs on the front (and back if you have 90-93 hubs).
Joe_Mama is offline   Reply With Quote
