Default Zerk fitting gone wrong

I was finishing the install of my bushings/ control arms. I followed 949's install pics and did my best to check for clearances. Apparently I'm dumb. The front lower inboard bushings zerk hits the sub frame. Dunno if I miss measured or just been to distracted.
Question is- Do I pull it all apart and re drill/tap, might not have enough material though? Or grind the sub frame a hair where it touches and make it clear? It's only the driver side that touches, but the pass side one is REALLY close. Oddly only these two front lower rear ones are funky. Everything else is fine......so far.

Pic for reference.

I'm thinking more toward grinding the spot it touches. Looking for suggestions. Will also accept
TorqueZombie is offline   Reply With Quote
Old 10-05-2012, 01:02 AM   #2
Junior Member
iTrader: (5)

Join Date: Feb 2011
Location: Chicago
Posts: 347
Total Cats: 6
Default

Your pic is busted. I goofed my front right one, it just hits the sub at full extension. I was too lazy to redo it.
flying_solo is offline   Reply With Quote
Old 10-05-2012, 01:57 AM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I'd grind the subframe a hair. Just make sure everything ends up round and smooth to avoid stress risers.

You could also pull the zerk and screw in a short plug. Swap when you want to grease.
hornetball is offline   Reply With Quote
Old 10-05-2012, 02:06 AM   #4
Elite Member
Thread Starter
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Pulling it out and temp plugging it seems like a possibility.

Re-try
Attached Thumbnails

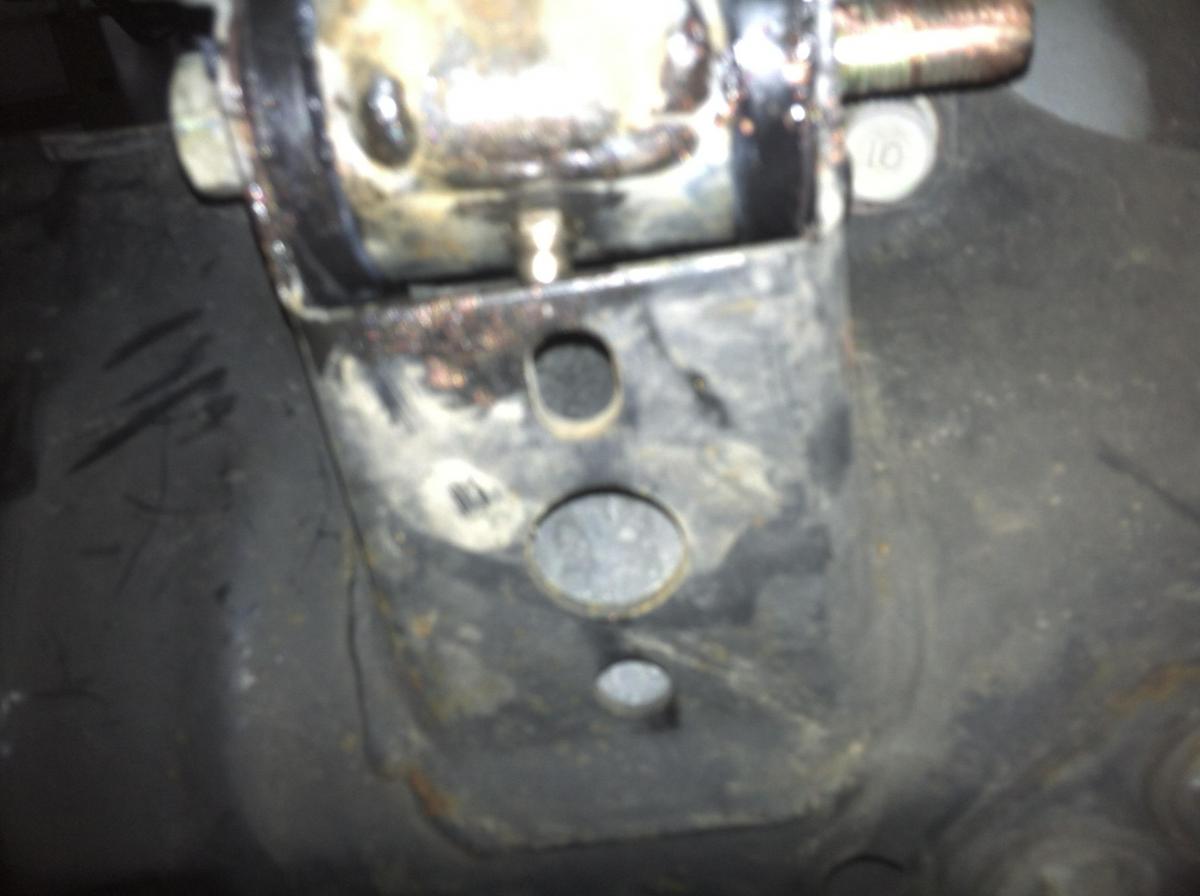

Zerk fitting gone wrong-oehqe.jpg
TorqueZombie is offline   Reply With Quote
Old 10-05-2012, 02:16 AM   #5
Elite Member
Thread Starter
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

It just nicks the housing around it. With the bolt in it will turn as long as it's loose, but if the alainment is set just right it will hit. Almost didn't notice it. It was only when I put the bolts nut on and tried to push up the A arm to bolt the lower shock bolt. I felt it catch just a bit.
TorqueZombie is offline   Reply With Quote
Old 10-05-2012, 02:21 AM   #6
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I know a guy who can help you with this problem.
Bryce is offline   Reply With Quote
Old 10-05-2012, 04:03 PM   #7
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

I did mine in the top of the arm. There is mucho space.

I fucked the rear upper arms though. Same thing. I just redrilled the other side and bunged the holes. Works a charm.
StarletRick is offline   Reply With Quote
