Default MSLabs MS3 Basic @ Trackspeed Engineering - In Stock!

We're excited to announce that we have MSLabs MS3 Basic ECUs in stock for most 90-05 Miatas. Dimitris (Reverant) at MSLabs has done a simply stunning job with these ECUs, and we are excited to stock them at our California facility for immediate shipment to US customers. MSLabs sets their MS3 apart by designing and printing their own custom boards within the ECU to add features that go above and beyond what a homebrew MS3 is normally capable of. We feel that the MS3 Basic is the best value available in a Megasquirt product today, and we're excited to add them to our catalog. Our development NB2 will be using an MS3 Basic as well.

These will be available on our website shortly at $1050 and we're able to offer free UPS Ground shipping to the lower 48 states as well. We have ECUs in stock now for all years except 96-97 (available upon demand), and we do intend to keep these units in stock for immediate shipment. To order, email me at [email protected] and I will contact you with payment and shipping details.

Many of you are already well versed in Reverant's boxes, but for those of you who are just stumbling across them for the first time, here's a list of the major features of these boxes.
  • Direct Fit plugs into OEM harness with no cutting/splicing needed
  • Preloaded firmware and basemap
  • Full step-by-step install documentation included with each ECU
  • MS3 processor
  • 16x16 VE (fuel) and ignition tables
  • Map-switching support (multiple fuel/ignition tables)
  • Flex Fuel E85 support (Continental sensor)
  • EGO Feedback (fuel trim via Wideband O2) with 12x12 AFR target table
  • Onboard MAP sensor (supports up to 21psi of boost external MAP support for more boost)
  • 4 injector outputs, 4 ignition outputs (sequential spark and fuel support)
  • Closed Loop Idle control (including A/C idle-up)
  • Electronic boost control (solenoid sold separately) and Overboost Protection
  • Coolant fan and Condenser fan control
  • Tachometer output (important for those of you looking to run LS or IGN-1A coils)
  • VICS/VTCS control
  • Alternator control for 99-05
  • Battery light control for 99-05 (alerts to high/low voltage conditions via factory battery light)
  • VSS input (94-05)
  • VVT control (including 90-00 with 01-05 cylinder head)
  • CEL control (configurable via software to alert you to sensor failures)
  • 3 spare programmable outputs
  • 4 spare digital inputs
  • 5 spare analog inputs (oil pressure, oil temperature, etc)
  • Knock module installed as standard (90-97 must add sensor)
  • RTC module installed as standard, complete with battery (for SD card logging)

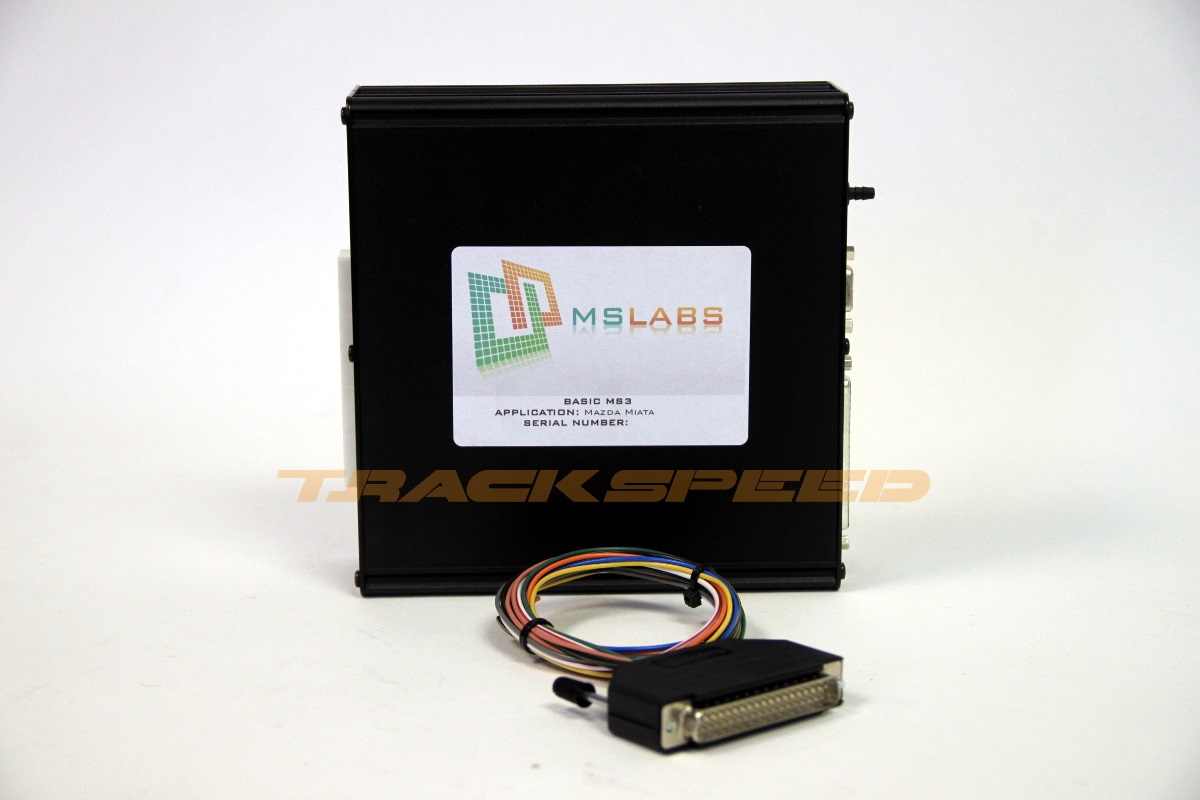

The box itself. Nice machined case, fully contained.

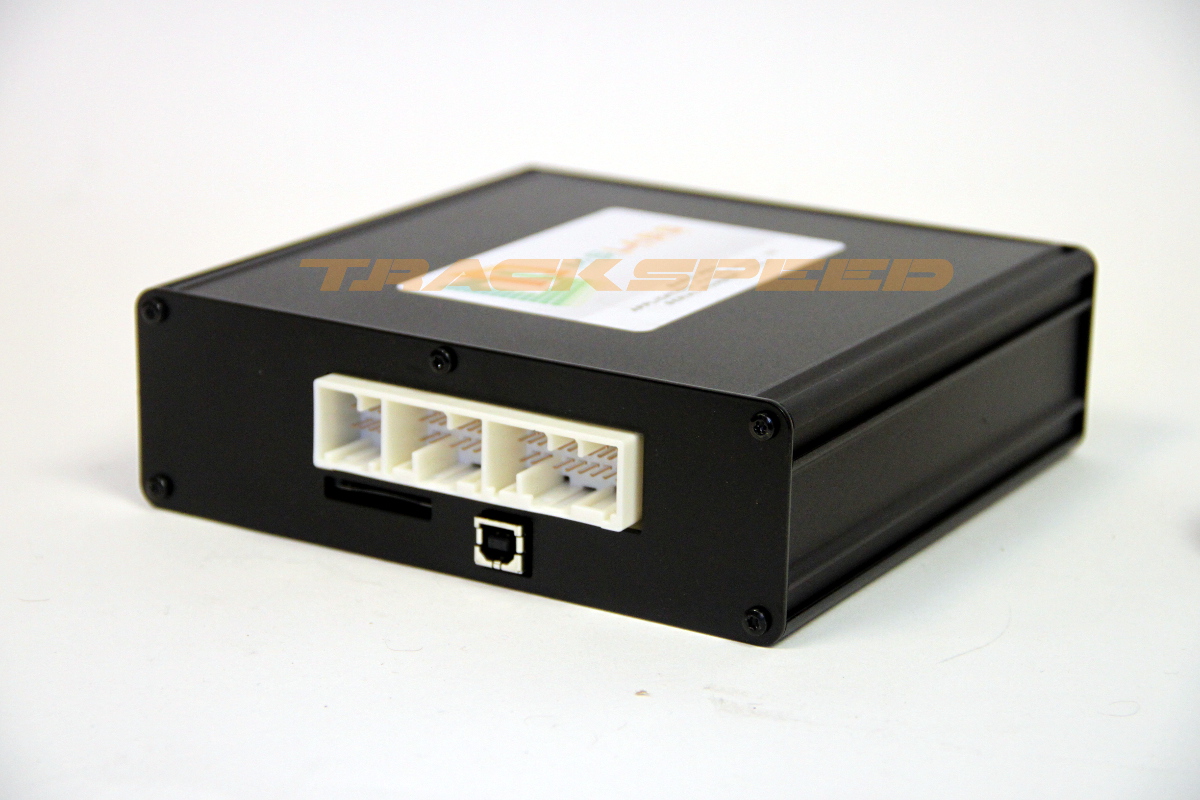

Left side. Integrated ECU plugs mean this plugs in just like a factory ECU. You can also see the integrated USB-Serial adapter connector and the SD card slot.

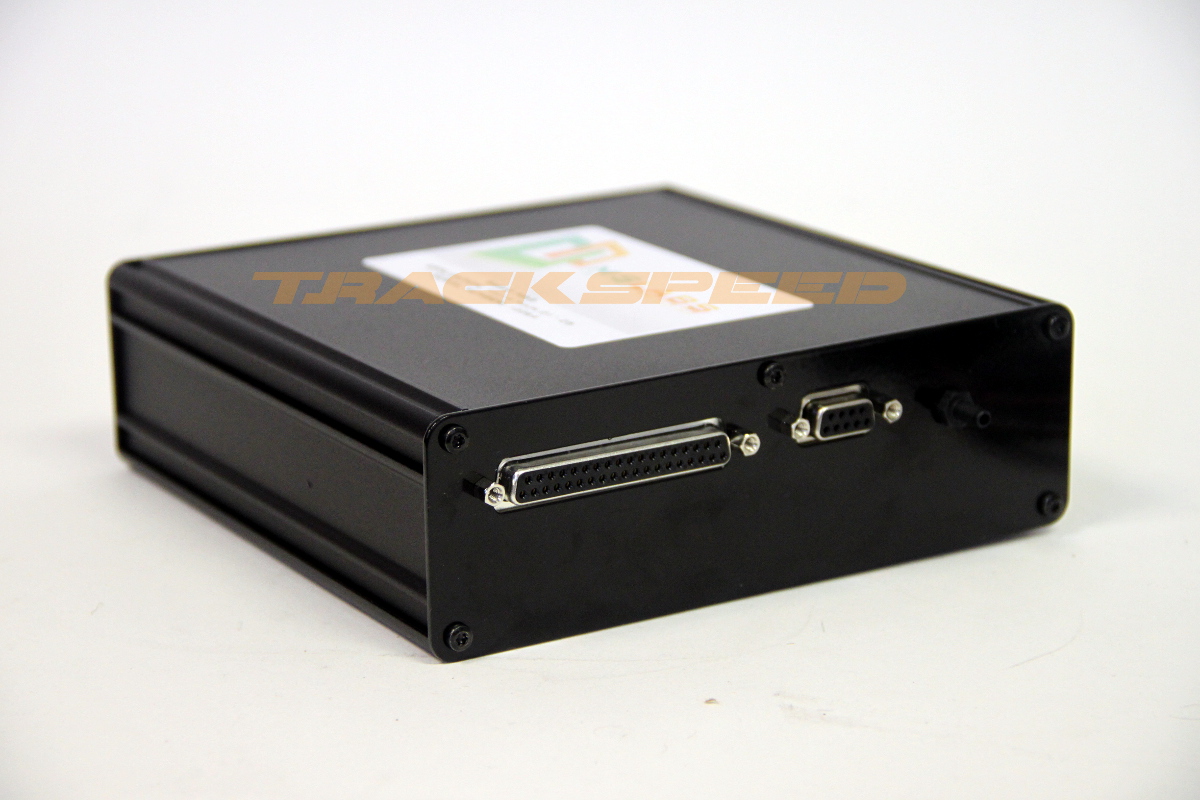

Right side. DB37 connector provides access to the multitude of additional features available, such as VVT control for 90-00 users, knock sensor input for 90-97 users, sequential spark triggers, sequential fuel triggers for 90-93 federal cars, and lots more. There's also a serial output for those of you with your own serial-USB adapters, as well as the onboard MAP sensor input.

Attached Thumbnails
MSLabs MS3 Basic @ Trackspeed Engineering - In Stock!-ms3basic.jpg   MSLabs MS3 Basic @ Trackspeed Engineering - In Stock!-ms3basic-side1.jpg   MSLabs MS3 Basic @ Trackspeed Engineering - In Stock!-ms3basic-side2.jpg
Savington is offline   Reply With Quote
Old 03-14-2015, 11:16 PM   #2
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

This is awesome.
turbofan is offline   Reply With Quote
Old 03-15-2015, 03:24 PM   #3
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Very cool!
ThePass is offline   Reply With Quote
Old 03-15-2015, 03:53 PM   #4
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I like the nipple on this case better than the one I got from him. Mine is inside the case and there's no way to hold it on. Plus this ones black.. Black makes it way cooler.
TorqueZombie is offline   Reply With Quote
Old 03-16-2015, 09:16 PM   #5
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Thanks Andrew, this just what I've been waiting for.
williams805 is offline   Reply With Quote
Old 05-27-2015, 03:40 PM   #6
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Bump, fresh batch of these arrived yesterday. I've also got Reverant's Wideband/OBDII CAN module in stock as well.
Savington is offline   Reply With Quote
Old 05-27-2015, 04:08 PM   #7
Newb

Join Date: Nov 2014
Location: NRH, TX
Posts: 37
Total Cats: 1
Default

I've messaged him about his wideband module. But if I can get it from you guys in the states that would be much simpler. What's the pricing on the wideband module?
Gibbs is offline   Reply With Quote
Old 05-27-2015, 04:33 PM   #8
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

$149 shipped within the lower 48.
Savington is offline   Reply With Quote
Old 05-27-2015, 07:14 PM   #9
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Get the CAN module if you are buying this. Very worth it. Solid afr's in TS that match the gauge in my dash.

Just one note... Make sure your 37 pin pigtail has the CAN wires in it. If not you have to solder wires on which is not a big deal. Would have saved me some time if I knew this before installing the ecu in the car.
williams805 is offline   Reply With Quote
Old 05-27-2015, 08:06 PM   #10
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by williams805 View Post
Get the CAN module if you are buying this. Very worth it. Solid afr's in TS that match the gauge in my dash.

Just one note... Make sure your 37 pin pigtail has the CAN wires in it. If not you have to solder wires on which is not a big deal. Would have saved me some time if I knew this before installing the ecu in the car.
+1, the CAN bus module rocks, it made my LC-2 work a ton better than trying to use the analog output.

--Ian
codrus is offline   Reply With Quote
Old 05-29-2015, 01:26 PM   #11
Junior Member
iTrader: (2)

Join Date: Oct 2011
Location: Chicago Il
Posts: 111
Total Cats: 2
Default

I'd love to pickup a CAN module for my Enhanced MS2 but I can't find it on your website. What's the best way to order?
akbloom is offline   Reply With Quote
Old 06-21-2015, 12:55 AM   #12
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

More ECUs and CAN modules arriving at the end of the month.
Savington is offline   Reply With Quote
Old 11-09-2015, 07:38 PM   #13
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Bump. Huge batch of ECUs and CAN modules arrived today to fill all pending orders. 90-93, 94-95, 99-00, and 01-05 boxes (including MSM) are in stock.
Savington is offline   Reply With Quote
Old 11-10-2015, 09:23 AM   #14
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Awesome. I can't wait. I am so stoked to have OBD2 PID data that I can use in Solostorm for Autocross next year.
stoves is offline   Reply With Quote
Old 04-26-2016, 06:13 PM   #15
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Bump, fresh batch of MS3 Basics and CAN modules arrived yesterday!
Savington is offline   Reply With Quote
Old 04-27-2016, 01:01 AM   #16
Junior Member
iTrader: (1)

Join Date: May 2015
Location: Salem, OR
Posts: 363
Total Cats: 40
Default

Quote:
Originally Posted by Savington View Post
Bump, fresh batch of MS3 Basics and CAN modules arrived yesterday!
CAN module ordered!
dleavitt is offline   Reply With Quote
Old 04-24-2017, 03:57 PM   #17
Newb

Join Date: Mar 2017
Posts: 7
Total Cats: 0
Default

Finally ordered a MS3 basic from Trackspeed for my 2004 MSM. Very excited to finally go Megasquirt! Feels like I have been reading forever--really only 8 months. I have read tons of info here (this is a great site) and got a book by Banish on tuning. I have my MTX-L wideband,GM IAT, TunerStudio registration, USB and even the mounting bracket from Singular, so I'm ready........I'm thinking about disconnecting my FM O2 signal modifier just to remind myself how bad this MSM ECU really is before installing the Megasquirt. Anyway, the signal modifier was just a band aide, and I'll be happy to have a permanent, fun solution that can take full advantage of future upgrades.
