Trackspeed Engineering NA Triple-Pass Dual-Core Race Radiator - ETA and Price Update
06-30-2012, 06:58 AM
#21
Yeah, I just thought it was ironic after the last email I got from you. :P
Anyway, would you let me know about the whole outlet thing? If it's moved over too much I just can't fit it there, but it doesn't seem to be too much, but want to make sure.
Anyway, would you let me know about the whole outlet thing? If it's moved over too much I just can't fit it there, but it doesn't seem to be too much, but want to make sure.
0
07-20-2012, 04:48 AM
#27
mkturbo.com
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,177
Total Cats: 1,681
I highlighted the word that scares me. What is awesome is the radiator should show up right when I am putting my engine back in my car. So I can drop it in and do ducting at the same time.
0
07-31-2012, 07:51 PM
#29
Former Vendor
Thread Starter
iTrader: (31)
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,099
If you have an NA radiator on order, it shipped out today! If you didn't get a tracking number via our automated system, let me know via email and I will look it up for you.
0
08-07-2012, 11:53 AM
#32

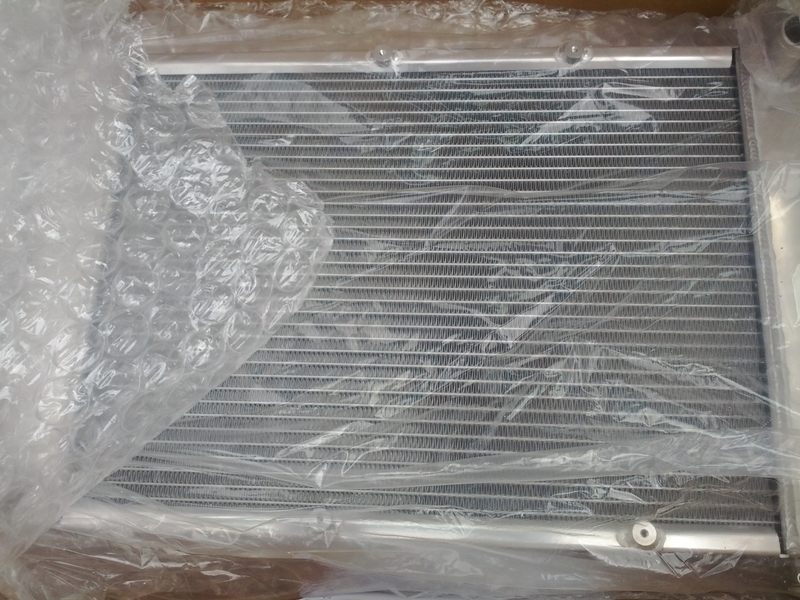

Yeah I got mine yesterday. I just need a fan for it now.
13" http://www.a1electric.com/spal/specs/30102044-2045.pdf
vs
14" http://www.a1electric.com/spal/specs/30102042-2056.pdf
The 13" is actually more powerful (see flow vs static pressure chart) but draws 3 amps more. Same price. I'm sure either will be overkill, but whatever... opinions?
13" http://www.a1electric.com/spal/specs/30102044-2045.pdf
vs
14" http://www.a1electric.com/spal/specs/30102042-2056.pdf
The 13" is actually more powerful (see flow vs static pressure chart) but draws 3 amps more. Same price. I'm sure either will be overkill, but whatever... opinions?
0
08-07-2012, 01:12 PM
#33
Former Vendor
Thread Starter
iTrader: (31)
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,099
I don't think a 14 will fit. I have one but it sticks up above the radiator.
Without AC, you should be fine with a 13 or even a 12. It's really just for idle and low-speed stuff.
Without AC, you should be fine with a 13 or even a 12. It's really just for idle and low-speed stuff.
0
08-08-2012, 12:45 AM
#34
I think the 14" spal would fit just fine. The radiator fin area is 13.5" high and the fan blades are a bit less than 14". So perfect.
I mocked this up and looks good to me.
Green circles inner and outer diameter (from SPAL schematic)
Black things would be the sheet metal brackets I'd make
Blue is the radiator area (only height is accurate)
I mocked this up and looks good to me.
Green circles inner and outer diameter (from SPAL schematic)
Black things would be the sheet metal brackets I'd make
Blue is the radiator area (only height is accurate)
0
08-08-2012, 11:30 AM
#36
I (barely) clear my sway with ebay 2" radiator and stock fan. I had to trim the fan a bit but it fits. The Spal fan is considerably slimmer and should clear the sway with thicker rad..
I CAN DO IT!!!! Fan ordererededede!
I CAN DO IT!!!! Fan ordererededede!
0
08-08-2012, 03:26 PM
#39
also available here
Spal Curved Blade Fans - Speedway Motors, America's Oldest Speed Shop
there's a drop down for size, choose 14"
Spal Curved Blade Fans - Speedway Motors, America's Oldest Speed Shop
there's a drop down for size, choose 14"
