Old 08-14-2012, 03:04 PM   #41
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Definitely. We're expecting the prototype in a few weeks to check for fitment, and then we'll release pricing info.
Savington is offline   Reply With Quote
Old 08-21-2012, 01:55 PM   #42
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Quote:
Originally Posted by soviet View Post
I think the 14" spal would fit just fine. The radiator fin area is 13.5" high and the fan blades are a bit less than 14". So perfect.

I mocked this up and looks good to me.


Green circles inner and outer diameter (from SPAL schematic)
Black things would be the sheet metal brackets I'd make
Blue is the radiator area (only height is accurate)

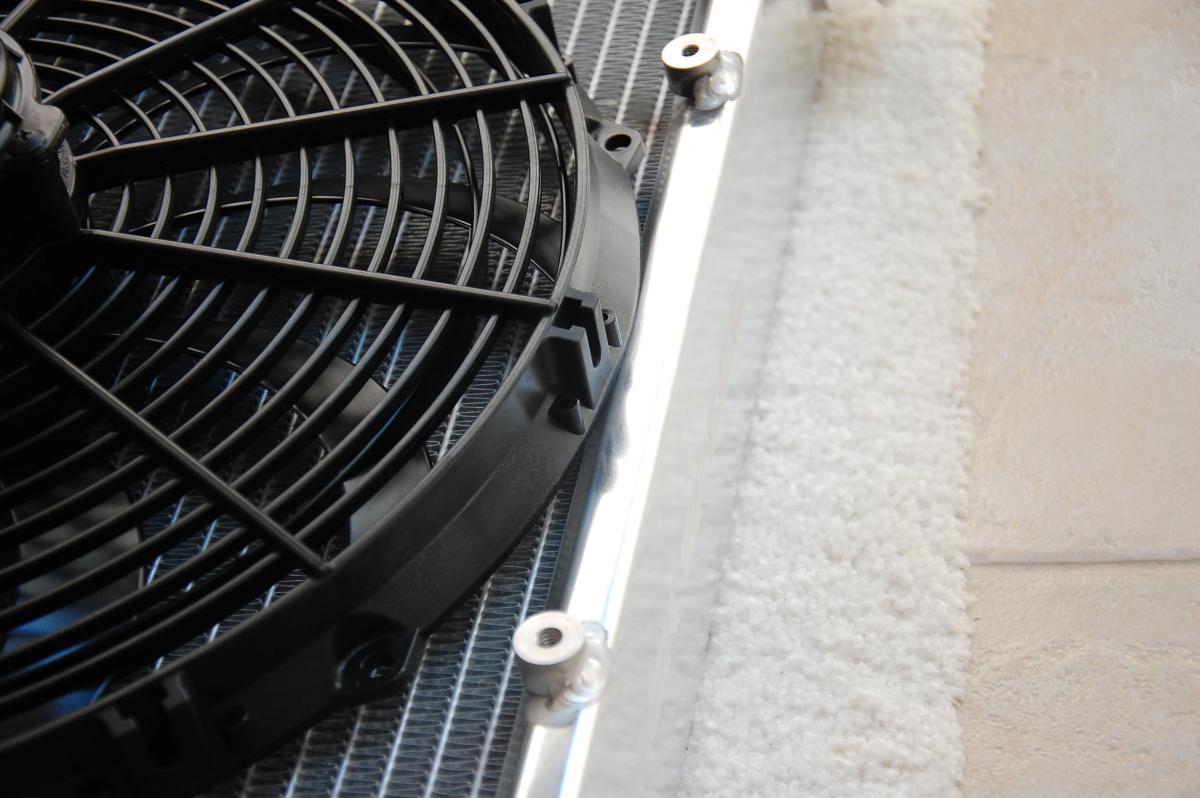

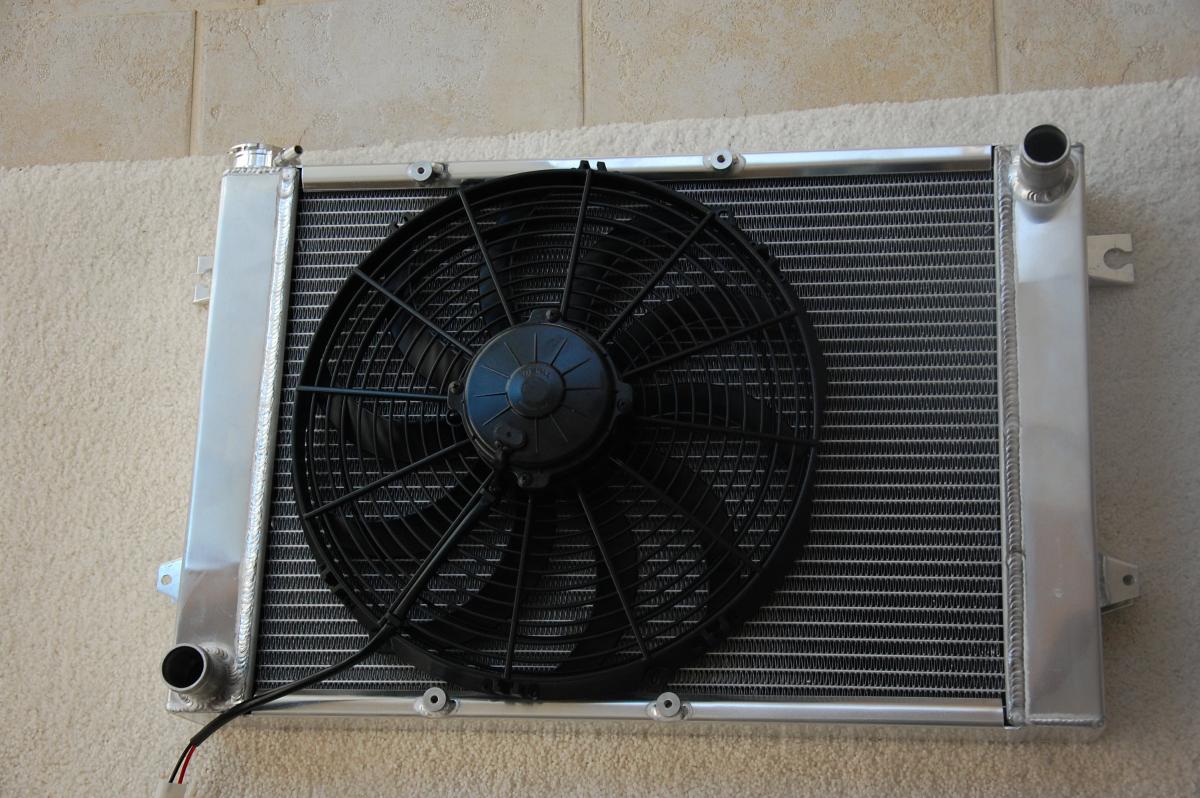

here's how the 14" spal fan ACTUALLY looks like. I haven't mounted it or checked sway bar clearance - it looks good to me.



Attached Thumbnails
Trackspeed Engineering NA Triple-Pass Dual-Core Race Radiator - ETA and Price Update-dsc_1151.jpg   Trackspeed Engineering NA Triple-Pass Dual-Core Race Radiator - ETA and Price Update-dsc_1153.jpg
soviet is offline   Reply With Quote
Old 09-17-2012, 03:20 AM   #43
Newb

Join Date: Jul 2010
Posts: 8
Total Cats: 0
Default

This may be a stupid question, but is it the same width as the OEM radiator? Just thicker (76mm), right?
kfed is offline   Reply With Quote
Old 09-17-2012, 10:32 AM   #44
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by kfed View Post
This may be a stupid question, but is it the same width as the OEM radiator? Just thicker (76mm), right?
What do you mean the same width, but just thicker? If it is thicker does that not mean it is not the same width?
shuiend is offline   Reply With Quote
Old 09-17-2012, 11:36 AM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

the core thickness of the oem rad is MUCH thinner than the total thickness of the endtanks/mounts.
Braineack is offline   Reply With Quote
Old 09-17-2012, 11:38 AM   #46
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
the core thickness of the oem rad is MUCH thinner than the total thickness of the endtanks/mounts.
Well he should have said core thickness. I guess tonight I will attempt to measure different things since I have an OEM, ebay, and TSE radiators all at my house.
shuiend is offline   Reply With Quote
Old 09-17-2012, 02:08 PM   #47
Newb

Join Date: Jul 2010
Posts: 8
Total Cats: 0
Default

I guess I'm more or less asking about mounting locations, does it mount to the stock location?
kfed is offline   Reply With Quote
Old 09-17-2012, 02:19 PM   #48
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

It drops into the factory location with no modifications required to the car. You will need to trim the OEM fan to clear the swaybar.
Savington is offline   Reply With Quote
Old 09-17-2012, 02:27 PM   #49
Newb

Join Date: Jul 2010
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
It drops into the factory location with no modifications required to the car. You will need to trim the OEM fan to clear the swaybar.
Thanks Savington, expect an order from me fairly soon.
kfed is offline   Reply With Quote
Old 10-18-2012, 08:42 PM   #50
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

NA cores arrived today! They will go off to our local fabricator to have fan bungs welded in, and current backorders will ship by the end of next week.

NB cores are ~4 weeks away.
Savington is offline   Reply With Quote
Old 01-02-2013, 06:54 PM   #51
Newb

Join Date: Jun 2012
Posts: 9
Total Cats: 0
Default

I'm doing a Ford 302 V8 swap in an NA - mainly an HPDE track car, but street and AX use as well.
I saw mention of an 'NB V8' model - any issues with your standard NA radiator in V8 swaps?
smurfv8 is offline   Reply With Quote
Old 01-02-2013, 07:04 PM   #52
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

You need to make some that slide under the front beam like the PRC unit for we V8 guys. I'm in need of a new radiator as this PRC unit has sprung a few leaks.
chpmnsws6 is offline   Reply With Quote
Old 01-03-2013, 10:23 PM   #53
Newb

Join Date: Jun 2012
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by chpmnsws6 View Post
You need to make some that slide under the front beam like the PRC unit for we V8 guys. I'm in need of a new radiator as this PRC unit has sprung a few leaks.
Not enough clearance to the engine as it installs now?
smurfv8 is offline   Reply With Quote
