Old 11-14-2014, 12:20 PM   #21
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Leafy View Post
the stock ignition harness had one
Toyota or Mazda?
EO2K is offline   Reply With Quote
Old 11-14-2014, 12:24 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by EO2K View Post
Toyota or Mazda?
Mazda, or so its been claimed. I didnt pay attention to my stuff when i ripped it out and fucked around with it and at this point my wiring harness is so adulterated that I'll never know. But pictures of caps in stock harnesses have been posted on here.
Leafy is offline   Reply With Quote
Old 11-14-2014, 12:31 PM   #23
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I've had 3 NB1 harnesses apart, both ignition/injection and ECU side and I can tell you with pretty solid certainty that there is no cap in the stock harness for 99/00. I also have a pair of NB2 ignition/injection harness and again, no cap. I've also got a complete 04 MSM harness in the garage (literally every wire in the car) and no caps in there either.

I'm not calling you a liar, I'm just saying from my personal experience I've not seen any caps. I'd love someone to prove me wrong.
EO2K is offline   Reply With Quote
Old 11-14-2014, 01:10 PM   #24
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

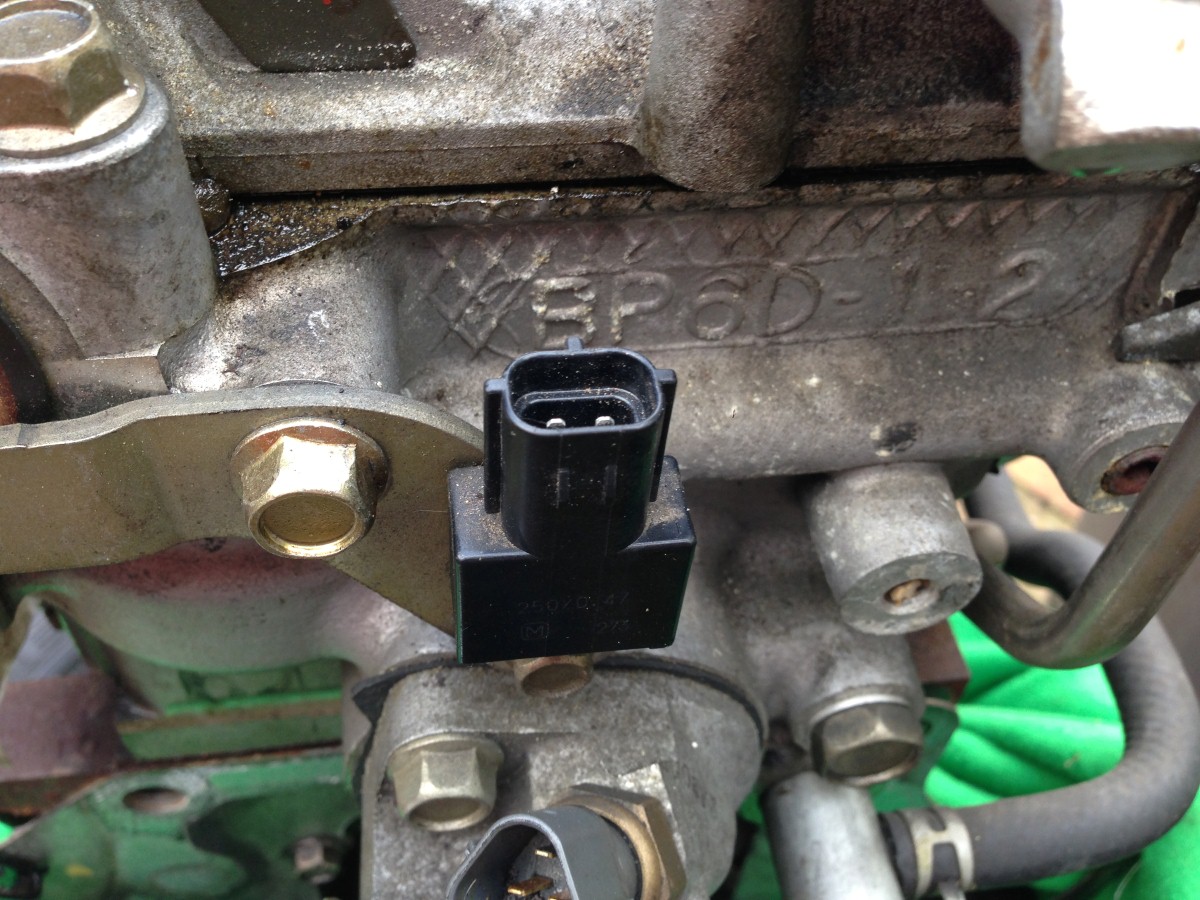

What this be then?
Attached Thumbnails
Upgrading to Coil on Plugs (all years) COP writeup-73271d1365784031-connector-witch-hunt-img_0996.jpg
Oscar is offline   Reply With Quote
Old 11-14-2014, 07:06 PM   #25
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Is it actually a cap? It looks to small to be of any use for power drop, but I could see it as some sort of filter to keep ignition noise out of the rest of the harness.
EO2K is offline   Reply With Quote
Old 11-15-2014, 07:56 AM   #26
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

My '96 does not have that.
sixshooter is online now   Reply With Quote
Old 11-15-2014, 09:09 AM   #27
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by EO2K View Post
Is it actually a cap? It looks to small to be of any use for power drop, but I could see it as some sort of filter to keep ignition noise out of the rest of the harness.
Don't know, was a genuine question
Oscar is offline   Reply With Quote
Old 11-15-2014, 11:01 AM   #28
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,126
Total Cats: 145
Default

Quote:
Originally Posted by Oscar View Post
Don't know, was a genuine question
Any idea what the wire colors are on the connector? Wiring diagram shows a 'condensor' for 2001+ NB cars that has a 2 wire connector.
bahurd is online now   Reply With Quote
Old 11-15-2014, 11:44 AM   #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Condensor is automotive speak for a capacitor in the ignition system.
Leafy is offline   Reply With Quote
Old 11-15-2014, 11:49 AM   #30
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by bahurd View Post
Any idea what the wire colors are on the connector? Wiring diagram shows a 'condensor' for 2001+ NB cars that has a 2 wire connector.
Diagram says black/white (going to front NBO2) and black/red (ground on right front of engine).
Oscar is offline   Reply With Quote
Old 11-15-2014, 04:14 PM   #31
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

So its a capacitor for the coils. The end. All miatas have it.
Braineack is offline   Reply With Quote
Old 11-15-2014, 04:36 PM   #32
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

So if they already have one, adding another one will surely make it better?
Reverant is offline   Reply With Quote
Old 11-15-2014, 04:39 PM   #33
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by Reverant View Post
So if they already have one, adding another one will surely make it better?
mine disappeared.
Leafy is offline   Reply With Quote
Old 11-23-2014, 03:18 PM   #34
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Can you all check my work for me, putting LS2 coils on a 1.6 DIYPNP.

Going to move ECU 2I to the MS Tach out, then splicing white/black at the igniter to the yellow/blue tach wire. If I'm not mistaken, this will drive the tach off the MS without having to run any extra wire. I'm curious if the tach will be more accurate this way, but it's probably the tach itself that makes it inaccurate, right? Either way, if you butcher a igniter to make a PNP solution this should work and be easily reversible.

Then, it's as easy as wiring in batch just like COPS. Reading has lead me to believe it's safe to wire all the coil grounds together. Is it true the signal ground of the coils is for misfire detection only? I guess you could easily use some of the evap purge valve wiring as a new signal ground, but is it worth the trouble, and hacking?

I plan on adding capacitors as documented on the first page, a large cap on the voltage to the coils, and two smaller capacitors on the trigger wires. The wiring diagram I have for my 1.6 does show a capacitor in the mix, and I already have them around so I've nothing to loose.

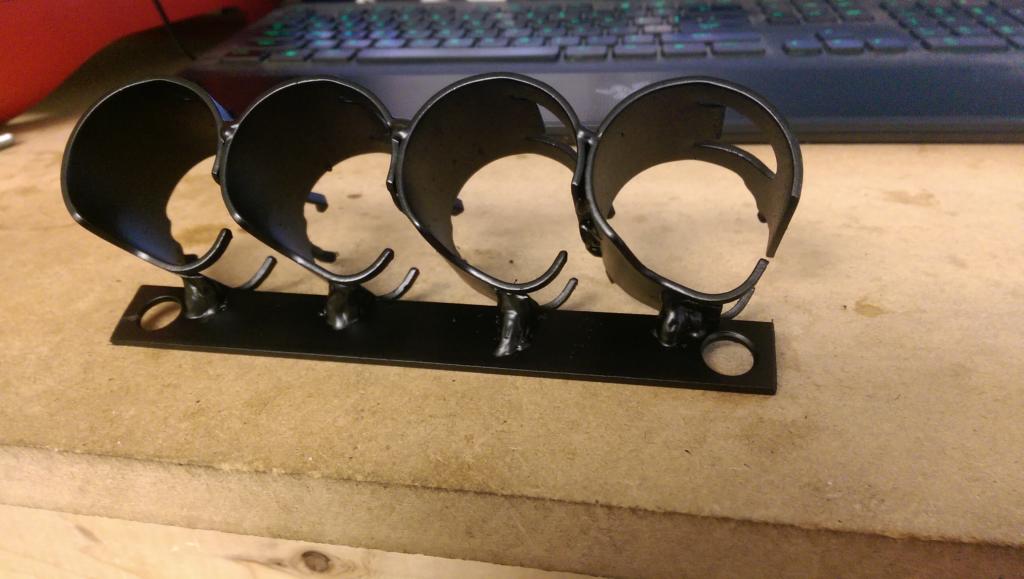

Here's what I came up with to hold the things in the stock location. At an angle, because the 45deg boot ends are cheapest and I've got more clearance for a reroute if I ever get around to it.

Attached Thumbnails
Upgrading to Coil on Plugs (all years) COP writeup-img_20141123_122329_zps12694c10.jpg
deezums is offline   Reply With Quote
Old 11-27-2014, 08:01 AM   #35
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Quote:
Originally Posted by deezums View Post
Can you all check my work for me, putting LS2 coils on a 1.6 DIYPNP.

Going to move ECU 2I to the MS Tach out, then splicing white/black at the igniter to the yellow/blue tach wire. If I'm not mistaken, this will drive the tach off the MS without having to run any extra wire. I'm curious if the tach will be more accurate this way, but it's probably the tach itself that makes it inaccurate, right? Either way, if you butcher a igniter to make a PNP solution this should work and be easily reversible.

Then, it's as easy as wiring in batch just like COPS. Reading has lead me to believe it's safe to wire all the coil grounds together. Is it true the signal ground of the coils is for misfire detection only? I guess you could easily use some of the evap purge valve wiring as a new signal ground, but is it worth the trouble, and hacking?

I plan on adding capacitors as documented on the first page, a large cap on the voltage to the coils, and two smaller capacitors on the trigger wires. The wiring diagram I have for my 1.6 does show a capacitor in the mix, and I already have them around so I've nothing to loose.

Here's what I came up with to hold the things in the stock location. At an angle, because the 45deg boot ends are cheapest and I've got more clearance for a reroute if I ever get around to it.

I just switched to coil over plugs and to run the tach all you need to do is splice the black and white wire to the blue and yellow and then put a resistor between -IG and B+ in your diag box.
aidandj is offline   Reply With Quote
Old 11-27-2014, 09:44 AM   #36
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Quote:
Originally Posted by aidandj View Post
I just switched to coil over plugs and to run the tach all you need to do is splice the black and white wire to the blue and yellow and then put a resistor between -IG and B+ in your diag box.

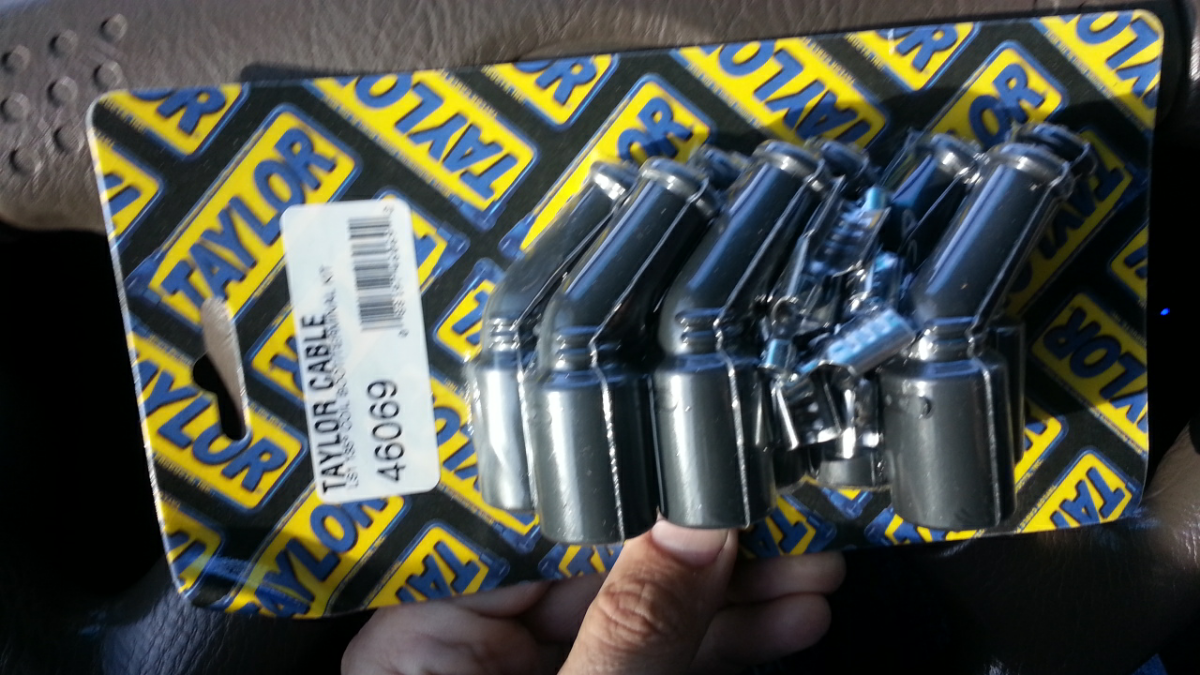

And the resistor was completely unnecessary for my '96 to run the tach but I bought a pack of them anyway because the instructions are so ambiguous. If anyone needs a resistor, I have a five pack from Radio Shack.

The grounds and the signal grounds were paired together. The giant capacitor was the only odd thing that was added to the harness. I'm using a MS1 in wasted spark configuration. I use the stock wires but used the Taylor ends from Summit Racing on the coil side and shortened the high tension leads to match my needs.



I need to take pics of the finished product.
Attached Thumbnails
Upgrading to Coil on Plugs (all years) COP writeup-127923d1416432927-sixshooters-slow-torture%25c2%2599-build-thread-forumrunner_20141119_163525.png
sixshooter is online now   Reply With Quote
Old 11-27-2014, 01:42 PM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

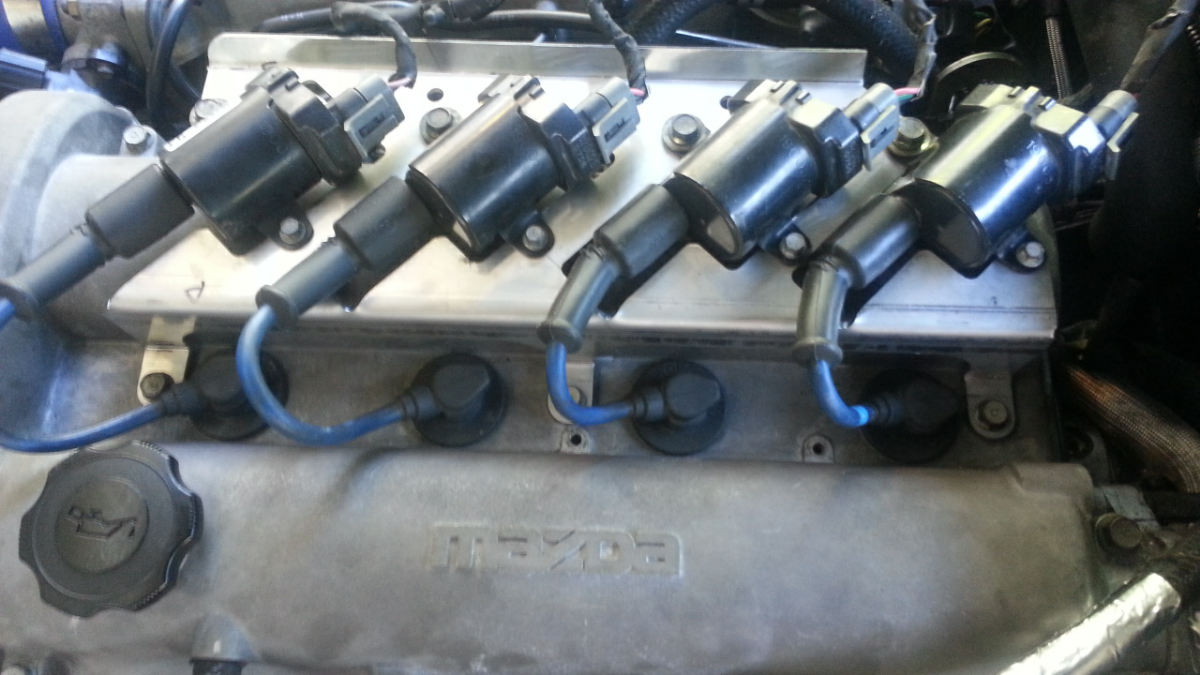

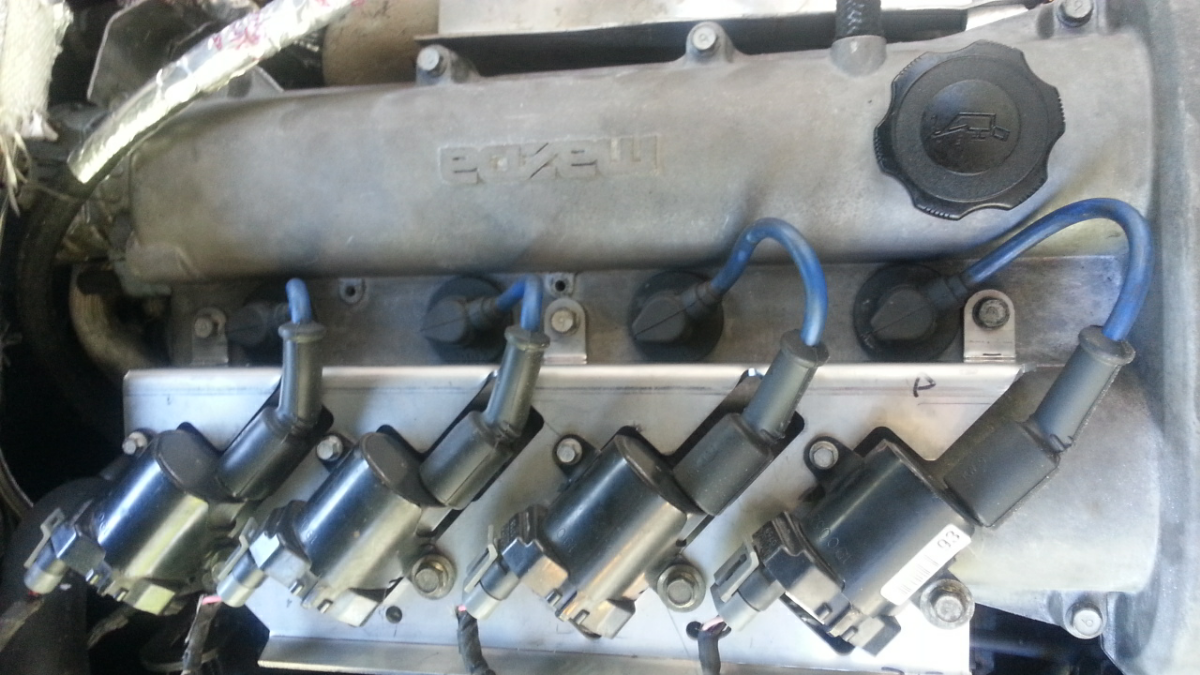

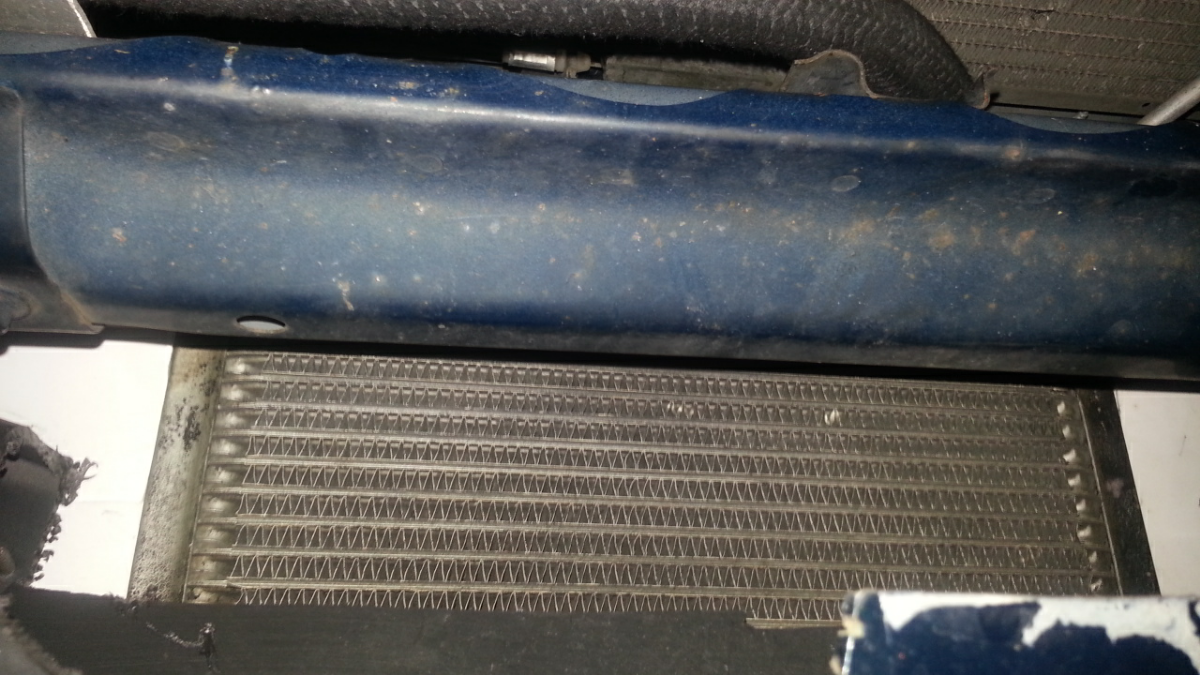

Visual aid:

Upgrading to Coil on Plugs (all years) COP writeup-forumrunner_20141127_124030.png



Upgrading to Coil on Plugs (all years) COP writeup-forumrunner_20141127_124102.png
Attached Thumbnails
Upgrading to Coil on Plugs (all years) COP writeup-forumrunner_20141127_124047.png   Upgrading to Coil on Plugs (all years) COP writeup-128345d1417110078-upgrading-coil-plugs-all-years-cop-writeup-forumrunner_20141127_124030.png   Upgrading to Coil on Plugs (all years) COP writeup-128347d1417110095-upgrading-coil-plugs-all-years-cop-writeup-forumrunner_20141127_124102.png

Last edited by sixshooter; 11-27-2014 at 08:08 PM.
sixshooter is online now   Reply With Quote
Old 11-27-2014, 06:22 PM   #38
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

I was reading over some wiring diagrams and that make sense. 96-97 (and maybe 94-95 but I don't remember) already have a Tach out pin on the ECU. But the 90-93 tach is connected straight to the coils.

EDIT: Just checked. 94-95 has tach out too.
aidandj is offline   Reply With Quote
Old 11-27-2014, 06:26 PM   #39
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

thats actually the tach in pin on the 94-95.5. it takes the tach signal off the coils to determine if the engine is running or not. yeah, its weird. Without that connected the car will only run for like 10 seconds then stall.
Leafy is offline   Reply With Quote
Old 11-27-2014, 06:30 PM   #40
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Quote:
Originally Posted by Leafy View Post
thats actually the tach in pin on the 94-95.5. it takes the tach signal off the coils to determine if the engine is running or not. yeah, its weird. Without that connected the car will only run for like 10 seconds then stall.
The one labeled tach out in this diagram?

https://www.dropbox.com/s/hwhkvztuco...-ms3x.jpg?dl=0
aidandj is offline   Reply With Quote
